16.000MHZX32/20/5/-20+70/SR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 16.000MHZX32/20/5/-20+70/SR

16.000MHZX32/20/5/-20+70/SR: DescriptionSeries - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size130KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

16.000MHZX32/20/5/-20+70/SR Overview

Series - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN

16.000MHZX32/20/5/-20+70/SR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145137425404
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.2
Other features	AT CUT
Ageing	3 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0005%
frequency tolerance	20 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	3.2mm x 2.5mm x 0.7mm
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

EURO

QUARTZ

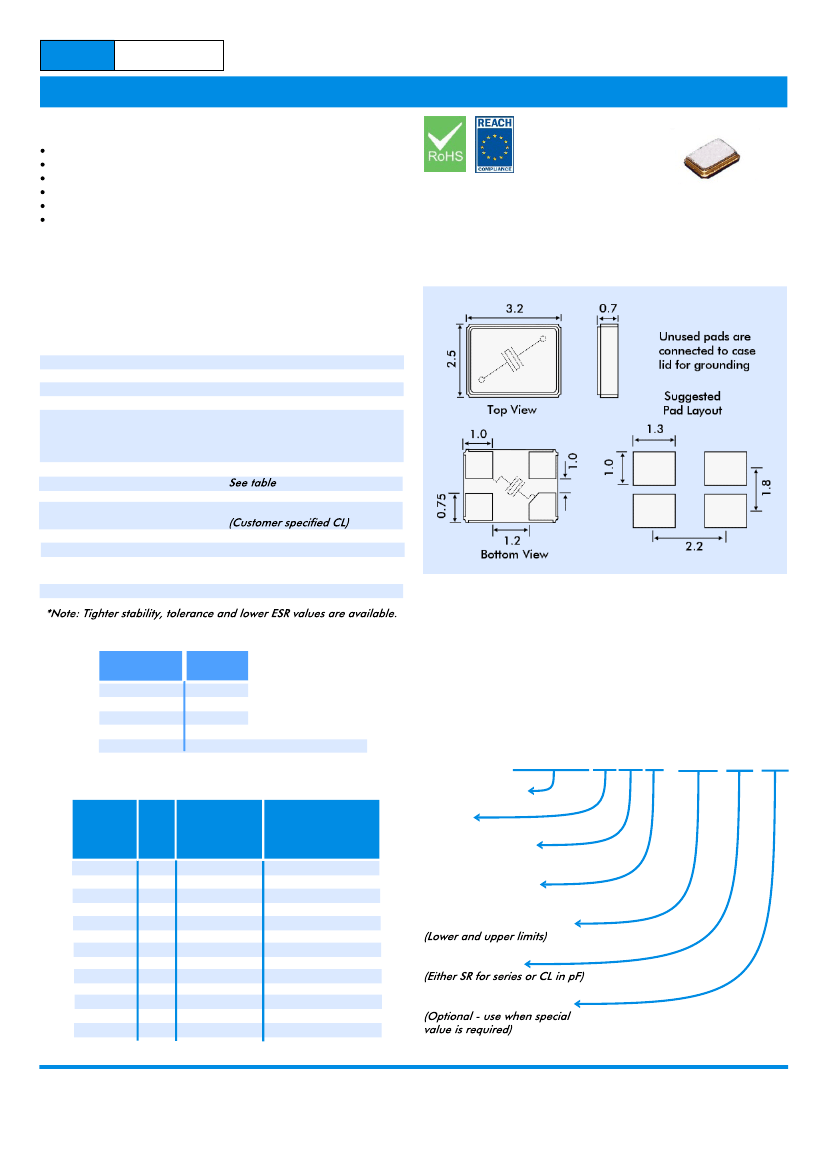

3.2 x 2.5 x 0.7mm SMD

FEATURES

Frequency range 8MHz to 60MHz, fundamental mode

Ultra-small package 3.2mm x 2.5mm x 0.6mm

Entire package may be grounded via metal lid and two pads

Packaged in standard EIA tape and reel

Extremely low ageing with high shock and vibration resistance

Ideal for PDAs, hand-held GPS, PCMCIA etc.

DESCRIPTION

MT crystals are ultra-miniature AT-cut crystals covering the frequency

range 8MHz to 60MHz in fundamental mode, 40MHz to 125MHz. Their

small size and low mass makes these crystals ideal for miniaturized

hand-held equipment and similar high-density applications.

SPECIFICATION

Frequency Range:

Operating Mode:

Calibration Tolerance at 25ºC*:

Frequency stability*

-10° to +60°C

-20° to +70°C

-40° to +85°C

Storage Temperature:

Equivalent Series Resistance:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive level:

Reflow Soldering:

Packaging:

OUTLINE & DIMENSIONS

X32 CRYSTALS

8.0MHz to 125MHz

8.0MHz to 125.00MHz

AT-Cut Fund./AT-Cut 3rd OT.

from ±5ppm

(±10, ±20 or ±30ppm standard)

from ±5ppm

from ±10ppm

from ±15ppm

-50°~+105°C

2pF to 4pF typical, 5pF maximum

Series or from 8pF to 32pF

<±3ppm per year at +25°C

10µW typical, 100µW maximum

10s maximum at 260°C twice

or 180s at 230°C, once.

12mm EIA tape and reel

EQUIVALENT SERIES RESISTANCE

Frequency

Range MHz

8.0~9.999

10.0~11.999

12.0~29.999

30.0~54.000

40.0~125.00

ESR

Ω Max.

600

200

100

PART NUMBER GENERATION

AT-Cut 3rd Overtone

Part numbers for X32 crystals are generated as follows:

Example:

STANDARD PART NUMBERS AND SPECIFICATIONS

Frequency CL

(MHz)

(pF)

16.0000

16.3840

20.0000

20.5720

20.9450

24.5500

24.5760

29.4912

32.0000

32.7680

40.0000

48.0000

50.0000

Tolerance (±ppm)/

Stability (±ppm)/

Temp. Range (°C)/

Max. ESR (Ohms)

30/50/-20+70/100R

30/50/-20+70/60R

16.000MHz X32/10/10/-10+60/12pF/80R

Nominal Frequency

Package

Calibration tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

Euroquartz

Part Number

X32-16000-12

X32-16384-12

X32-20000-12

X32-20572-12

X32-20945-12

X32-24550-12

X32-24576-12

X32-29491-12

X32-32000-12

X32-32768-12

X32-40000-12

X32-48000-12

X32-50000-12

Load Capacitance

Equivalent Series Resistance

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
