Datasheet
ZM3102N Z-Wave Module Datasheet
Document No:
Version:
DSH10756
6
Description:
Datasheet for the ZM3102N Z-Wave Module based on the
ZW0301 Z-Wave Single Chip.
Written By:
Date:
Reviewed By:
Restrictions:
SDH;TCA
2007-10-01
DCL
None
Approved by:
Date
2007-10-01
CET
13:28:40
Initials Name
NTJ
Niels Thybo Johansen
Justification
This document is the property of Zensys A/S. The data contained herein, in whole or in part,
may not be duplicated, used or disclosed outside the recipient for any purpose other than to
conduct technical evaluation. This restriction does not limit the recipient's right to use
information contained in the data if it is obtained from another source without restriction.
REVISION RECORD
Doc.
Rev
1
2
3
3
6
Date
20060913
20061127
20070209
20070420
20070709
By
SDH
SDH
SDH
SDH
SDH
Pages
affected
ALL
13
ALL
ALL
Table 4, 6
Table 4
Brief description of changes
First release
Document reference [1] updated to developers kit v5.0
HK, ANZ frequencies added
Datasheet state “Preliminary removed”
HK, ANZ RF parameters updated.
Preliminary removed from RF parameters
Zensys A/S
Contents
Page ii of iii
Table of Contents
1
PRODUCT DESCRIPTION ...................................................................................................................2
1.1 Name Convention..................................................................................................................................2
1.2 Overview................................................................................................................................................2
1.3 Signal Description..................................................................................................................................3
1.4 RF Front-End.........................................................................................................................................5
1.4.1
RF input/output ...........................................................................................................................5
1.4.2
Antenna Matching.......................................................................................................................5
1.5 Z-Wave Module Programming ..............................................................................................................5
2
SPECIFICATIONS ................................................................................................................................6
2.1 ZW0301 Specification ...........................................................................................................................6
2.2 ZW0301 Single Chip Peripherals ..........................................................................................................6
2.3 RF Specification ....................................................................................................................................7
2.4 Electrical Specification ..........................................................................................................................7
2.4.1
Absolute Maximum Ratings........................................................................................................8
2.4.2
DC Characteristics......................................................................................................................8
2.5 Physical Specification............................................................................................................................9
2.6 Process Specification ............................................................................................................................9
2.7 Recommended PCB Footprint Outline................................................................................................10
2.8 Recommended Reflow Profile.............................................................................................................11
2.9 Application PCB Layout Recommendation .........................................................................................11
2.9.1
Supply Voltage .........................................................................................................................11
2.9.2
Ground Plane ...........................................................................................................................12
2.9.3
Antenna Interconnection...........................................................................................................12
3
SOFTWARE ........................................................................................................................................13
3.1 SPI Interface........................................................................................................................................13
3.2 EEPROM .............................................................................................................................................13
4
REFERENCES ....................................................................................................................................14
Zensys A/S
Contents
Page iii of iii

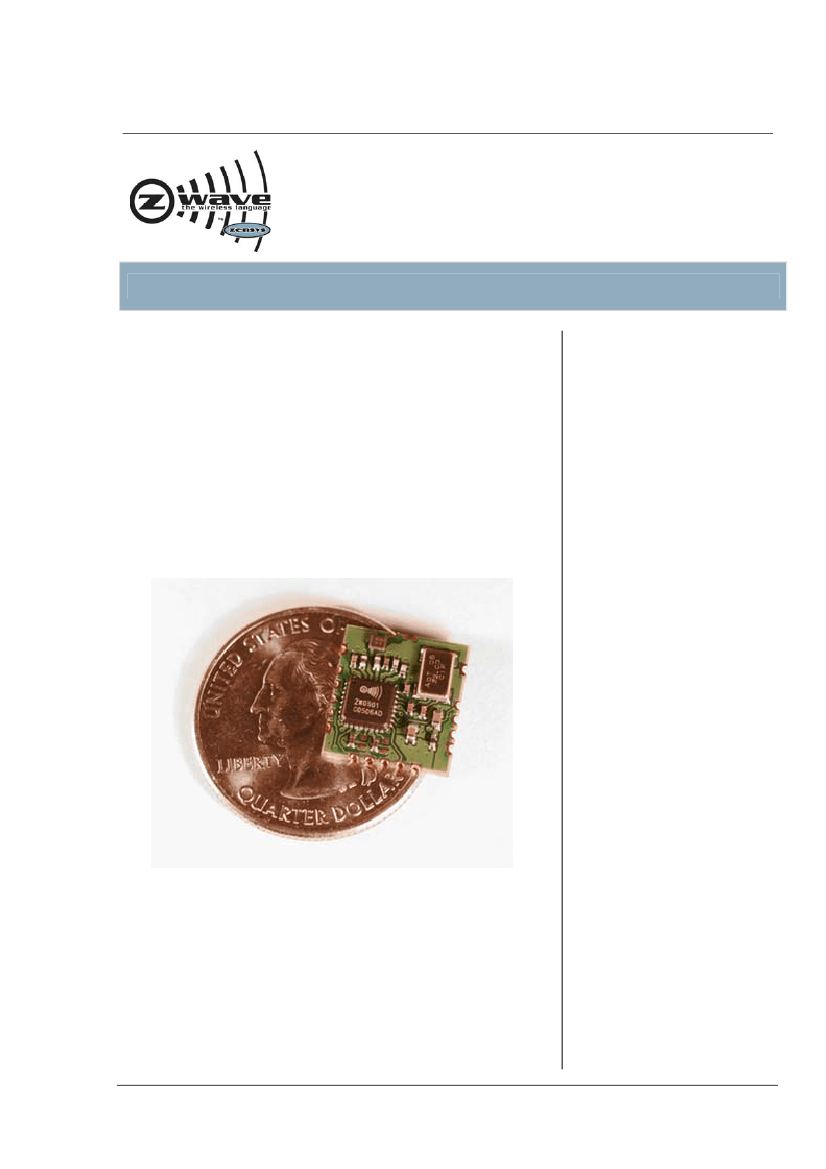

ZM3102N
Datasheet
Integrated Z-Wave RF Module
The ZM3102N Z-Wave Module is a fully integrated RF
communication module that uses the unlicensed Short-Range-
Device (SRD) frequency band of 868.0-868.6MHz in Europe,
902MHz-928MHz in US, 919.5MHz-920.0 MHz in Hong Kong,
921MHz-929 MHz in New Zealand, and 915MHz-928 MHz in
Australia. The ZM3102N is dedicated for wireless control and
monitoring of residential products like lighting and appliance
control, energy management, access control, security and building
automation.
Together with the patented Z-Wave Protocol the ZM3102N Z-Wave
Module delivers a complete highly reliable RF communication
solution. The Z-Wave Protocol uses Frame Acknowledgement,
Retransmission, Collision Avoidance, Frame Checksum Check and
sophisticated Routing to assure reliable full home coverage.
Features
Interfaces
•
•
•
•
•
•
•
10 General Purpose I/O’s
Two Interrupt Inputs
Serial UART
SPI Interface
Triac Control Interface
PWM Output
Four multiplexed 12/8 bit
ADC inputs
ZW0301 Single Chip
•
•
•
•
Optimized 8051 CPU Core
32kbyte Flash
2kbyte SRAM
Power-On-Reset / Brown-
Out Detection
•
Supply Voltage: 2.1V-3.6V
•
Power Consumption
o
TX@-5dBm = 24mA
o
TX@0dBm = 36mA
o
RX = 23mA
o
Power down/sleep mode
= 2.5μA
RF
•
Freq for 9.6kbps / 40kbps
EU: 868.42 / 868.40MHz
US: 908.42 / 908.40MHz
HK: 919.82 / 919.80MHz
NZ: 921.42 / 921.40MHz
AUS:921.42 / 921.40MHz
High Sensitivity
(-102/-98dBm)
FSK Modulation
9.6kbps/40kbps Data Rate
-22.0dBm to -2.0dBm Output
power (ZM3102N) (EU, US)
-23.5dBm to -3.5dBm Output
power (ZM3102N) (HK,ANZ)
Complies with:
EU: EN 300 220
US: FCC CFR47 part 15
HK: HKTA 1035
ANZ: ANZ 4268+A1+A2
Home Automation
Sensor networks
AV control
Page 1 of 14
•
•
•
•
The ZM3102N Z-Wave Module contains the integrated ZW0301
Z-Wave Single Chip, system crystal, and RF front-end circuitry.
The ZW0301 Single Chip is an integrated chip containing RF
Transceiver, 8051 MCU core, SRAM, Flash Memory for Z-Wave
Protocol and OEM Application software storage, Triac Controller,
and a wide range of HW interfaces.
This complete RF solution makes it very easy for OEM customers
to RF enable their products without having to do the time
consuming work of designing, verifying and optimizing the RF
design and thereby enables faster time to market.
Zensys A/S
Contents
•
Applications
•
•
•
DSH10756-6
ZM3102N Z-Wave Module Datasheet
2007-10-01
1 PRODUCT DESCRIPTION
1.1
Name Convention
The name convention of the ZM3102N module is explained below:
•
•
•
•
1.2
ZM: Z-Wave Module
31: Based on ZW0301 ASIC
02: Size of the module (2cm
2
)
N: The module contains castellation notches, which enables manual solderability and rework.
Overview
The ZM3102N Z-Wave Module is a fully integrated module containing all the HW and SW required to
Z-Wave enable OEM products. The ZM3102N Z-Wave Module contains the Z-Wave ZW0301 Single
Chip, System Crystal, RF Front-end and RF Supply Voltage Filtering. Only the antenna needs to be
implemented by the developer designing the Z-Wave enabled product.
ZM3102N Z-Wave Module
Decoupling
System
Crystal
RF Supply
Voltage
Filtering
ZW0301 Single Chip
32K bytes
Flash Memory
Z-Wave SW API
and
Application SW
System
Clock
General
Purpose
Timer
Pwr-On
POR/
Brown -
out
out
Timer 0/1
Watch-
dog
8/12 Bit
ADC
2 kbytes
SRAM
256 bytes
SRAM
RF Transceiver
WUT
RF Front-End
UART
8051W
CPU
Power
Mgt.
Triac
Ctrl
SFR
Modem
Interrupt
Ctrl
SPI
Ctrl
I/O
Interfaces
Figure 1
ZM3102N Z-Wave Module Block Diagram
Zensys A/S
Product Description
Page 2 of 14
