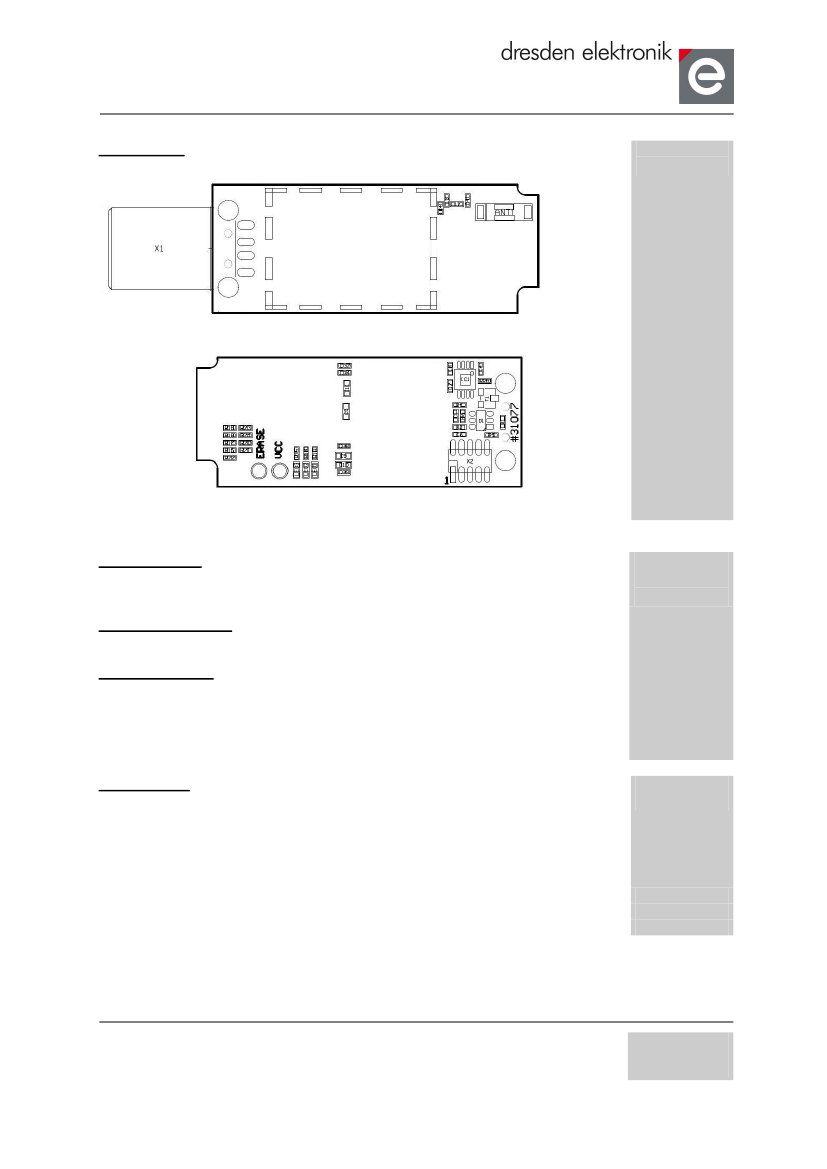

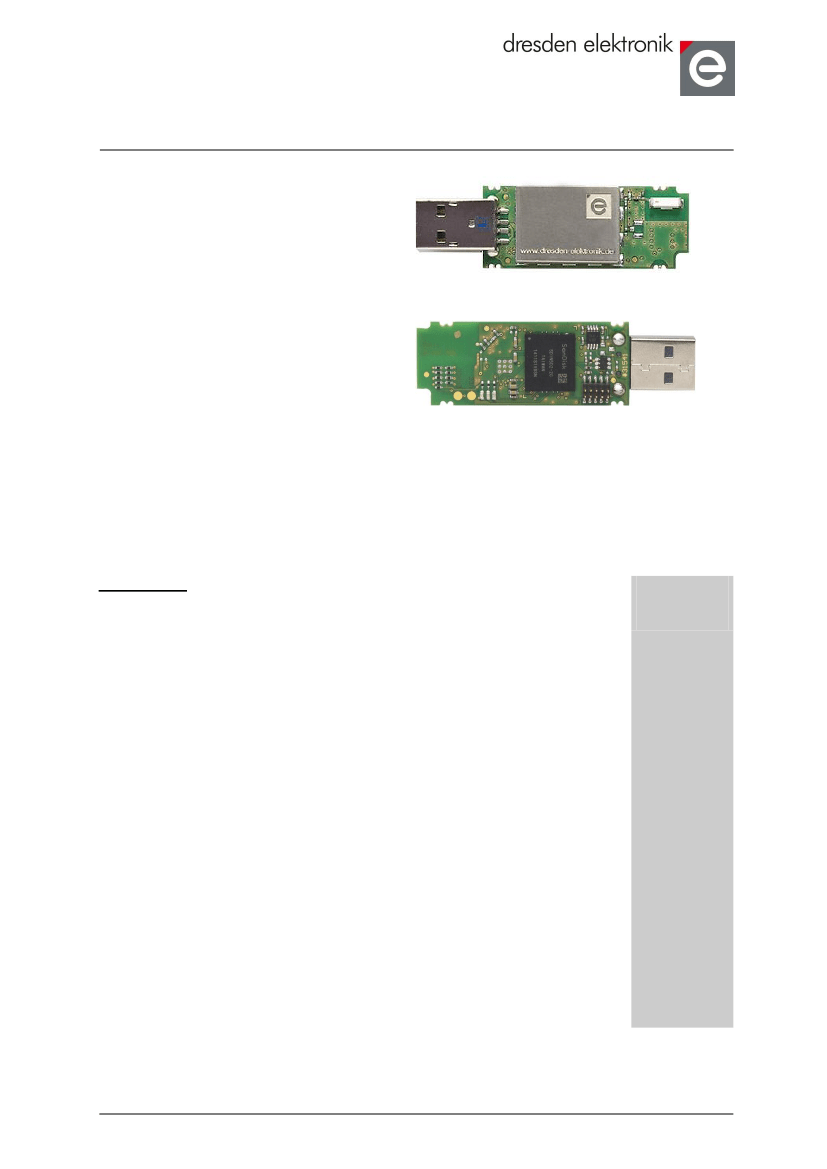

USB radio stick deRFusb

23E00 | 23E06 JTAG

Datasheet



The compact designed USB radio sticks

deRFusb-23E00 | 23E06 JTAG contain a

powerful Cortex-M3 microcontroller with

256 Kb High-Speed Flash and a 2.4 GHz ISM

band transceiver.

The transceiver AT86RF231 is intended for

ZigBee, IEEE 802.15.4, 6LoWPAN, RF4CE

and proprietary ISM applications. It uses a

128-Bit AES encryption.

With the integrated chip antenna distances of

more than 200 m can be reached for line of

sight conditions.

The radio stick is equipped with 3 LEDs for

status indication and a 10 pin connector for

development purposes (JTAG and Debug).

The stick comes optionally with a 2 Gb NAND

on board that can be used as mass storage

for user defined data.



Technical Data

Dimensions

Operating temperature

Control and display elements

Power supply

Power consumption

Connections

Antenna

Antenna gain

Antenna diversity

Range

Frequency range

Transmitting power

Receiver sensitivity

Communication standard

Data rate

Microcontroller

Transceiver

Additional non-volatile memory

Interfaces

Certification

63.5 x 19.0 x 9.5 mm

-20°C to 70°C

3x LED (red, yellow, green)

USB powered

TX: 65 mA | RX: 65 mA | Idle: 45 mA

USB connector type A

10 pin connector

Chip ceramic antenna

+1.3 dBi (peak) | -0.5 dBi (average)

> 200 m (line of sight)

2.4 GHz

+3 dBm

-101 dBm

IEEE 802.15.4

250 kBit/s, 500 kBit/s, 1 MBit/s, 2 MBit/s

ATSAM3S4B

AT86RF231

None (deRFusb-23E00 JTAG)

2 Gb NAND flash (deRFusb-23E06 JTAG)

USB, JTAG and Debug

CE, ETSI, FCC, IC pending

Technical

Data

dresden elektronik ingenieurtechnik gmbh

02-2013
