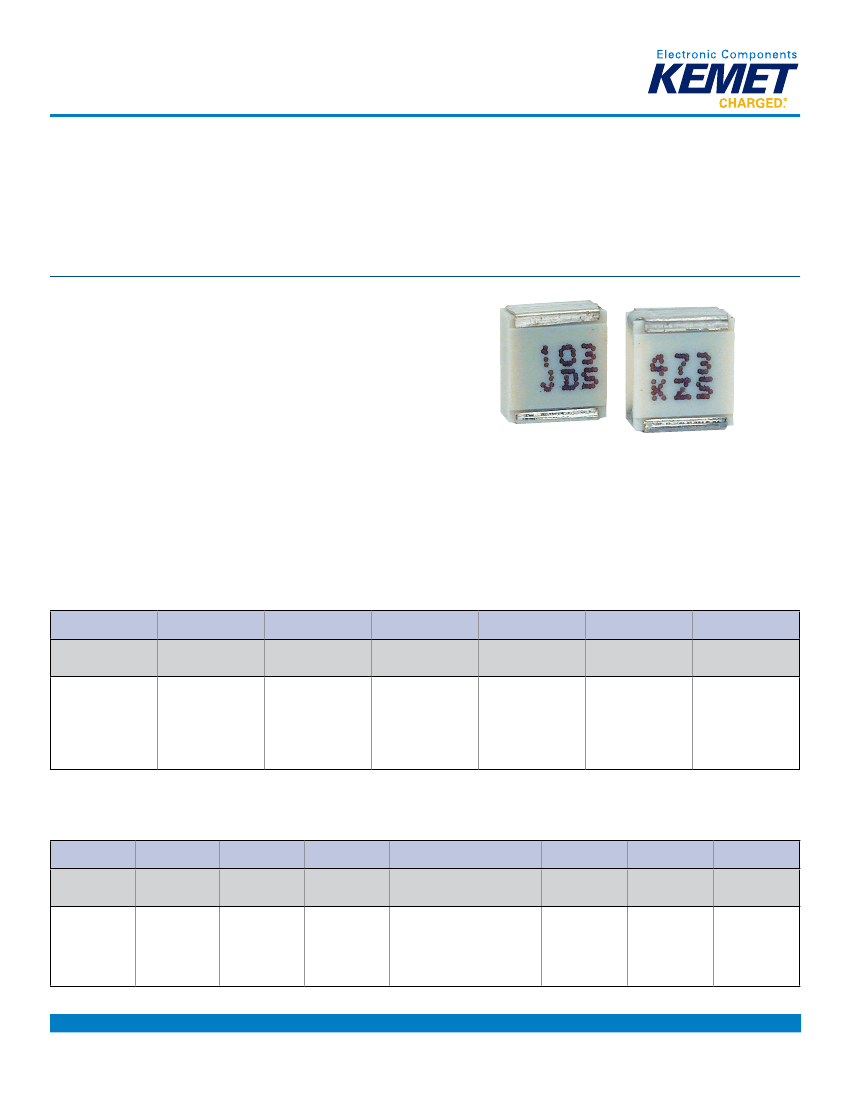

Surface Mount Metallized PPS Film Capacitor
SMC Series Encapsulated, Size 2220 – 6560, 50 – 400 VDC
Overview
Polyphenylene sulphide (PPS) film capacitor for surface
mounting. Encapsulation in self-extinguishing material
meeting the requirements of UL 94 V–0. SMC capacitors
meet the standards according to IEC 60384-20.
Applications
Typical applications include timing, filtering and use as a
memory capacitor. The SMC Series is designed for high
stability, accuracy and temperature. Not suitable for across-
the-line application (see suppressor capacitors).
Benefits
• Rated voltage: 50 – 400 VDC
• Rated voltage: 30 – 200 VAC
• Capacitance range: 0.001 – 3.3 µF
• EIA size: 2220 – 6560
• Capacitance tolerance: ±2%, ±2.5%, ±5%
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55˚C to +125˚C
Legacy Part Number System
SMC
Series
Metallized PPS
5.7
Chip Length (mm)
5.7
7.3
10.2
12.7
16.5
102
Capacitance
Code (pF)
J
Capacitance
Tolerance
50
Rated Voltage
(VDC)
50
100
250
400
J33
Size Code
See Dimension
Table
TR12
Packaging
See Ordering
Options Table
First two digits
G = ±2%
represent
H = ±2.5%
significant figures.
J = ±5%
The third digit
specifies number of
zeros.
New KEMET Part Number System
F
Capacitor Class
F = Film
125
Series
Metallized PPS
P
Chip Size
P = 2220
S = 2820
W = 4036
Y = 5045
Z = 6560
P
Size Code
See Dimension
Table
102
Capacitance Code (pF)
First two digits represent
significant figures. The
third digit specifies number
of zeros.
J
Capacitance
Tolerance
G = ±2%
R = ±2.5%
J = ±5%
050
Rated Voltage
(VDC)
050 = 50
100 = 100
250 = 250
400 = 400
V
Packaging
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3083_SMC • 9/28/2016
1
Surface Mount Metallized PPS Film Capacitor
SMC Series Encapsulated, Size 2220 – 6560, 50 – 400 VDC
Ordering Options Table
Chip Size
(EIA)
2220
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
KEMET
Packaging
Code
Legacy
Packaging
Code
2824
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
4036
Tape & Reel (Horizontal Orientation Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR16
BULK
TV24
5045
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR24
BULK
TV24
6560
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
V
A
Y
TR24
BULK
TV44
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3083_SMC • 9/28/2016
2
Surface Mount Metallized PPS Film Capacitor
SMC Series Encapsulated, Size 2220 – 6560, 50 – 400 VDC
Dimensions – Millimeters
F
H
B
L
F
KEMET
Size Code
PP
PU
SL
SP
ST
WP
YR
ZS
Legacy
Size Code
J33
J35
K33
K35
K37
A31
B31
C31
Chip Size
(EIA)
2220
2220
2824
2824
2824
4036
5045
6560
B
Nominal
5.0
5.0
6.0
6.0
6.0
9.1
11.5
15
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
3.0
4.0
3.0
3.5
4.5
5.5
6.5
7.0
H
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
5.7
5.7
7.3
7.3
7.3
10.2
12.7
16.5
L
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
F
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3083_SMC • 9/28/2016
3
Surface Mount Metallized PPS Film Capacitor
SMC Series Encapsulated, Size 2220 – 6560, 50 – 400 VDC
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Tolerance
Category Temperature
Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.001 – 3.3
2220 – 6560
±2%, ±2.5%, ±5%
−55°C to +125°C
+100°C
The rated voltage should be decreased with 1.25%/°C from +100°C to
+125°C and 1.5%/°C from +125°C to 175°C
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–19
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Pulse Rise Time
0.15%
0.25%
0.50%
C ≤ 0.33 µF
15,000 MΩ
30,000 MΩ
Maximum Values at +23°C
0.1 < C ≤ 1 µF
0.15%
0.25%
0.60%
C > 1 µF
0.15%
0.30%
C > 0.33 µF
5,000 MΩ • µF
10,000 MΩ • µF
100
63
0.001 – 1.5
250
160
0.001 – 0.47
400
200
0.001 – 0.22
The capacitors can withstand an unlimited number of pulses with a dV/
dt according to Table 1. For voltages (V) lower than the rated voltage
(V
R
), the specified dV/dt can be multiplied by V
R
/V.

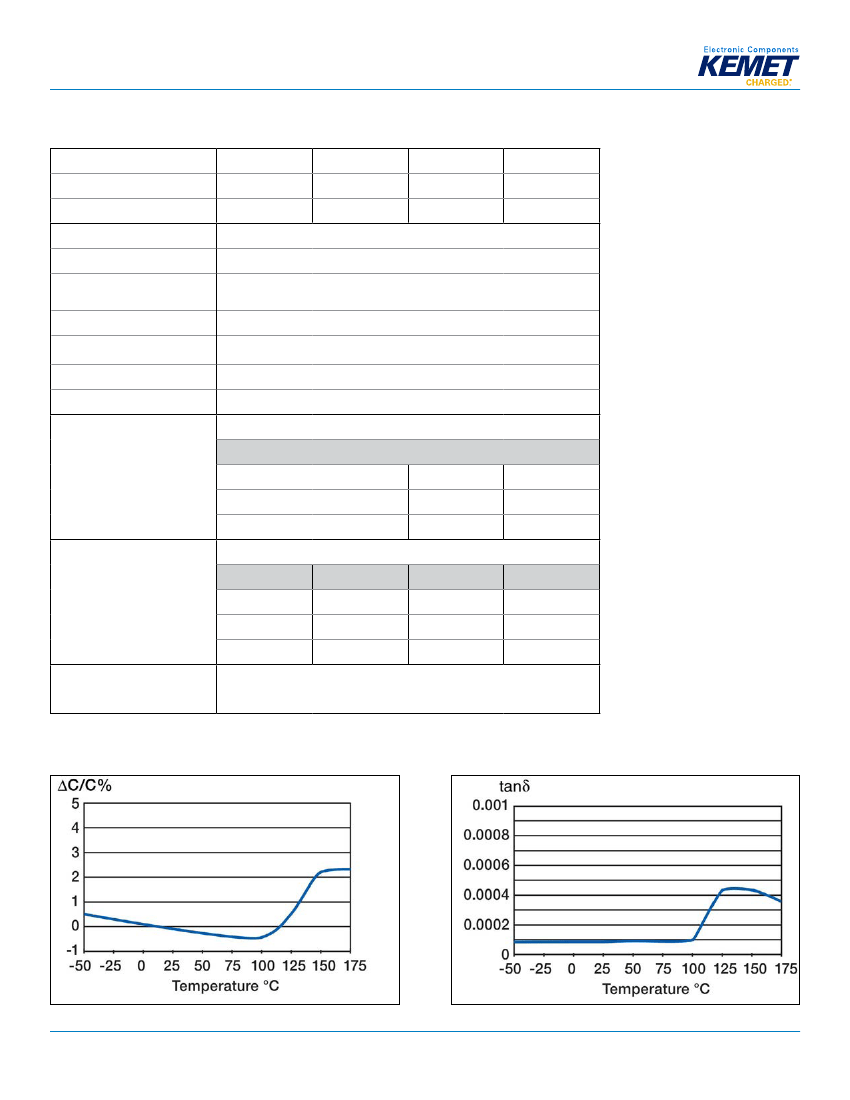

Capacitance vs. Temperature
Dissipation Factor vs. Temperature
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3083_SMC • 9/28/2016
4
Surface Mount Metallized PPS Film Capacitor
SMC Series Encapsulated, Size 2220 – 6560, 50 – 400 VDC
Table 1 – Ratings & Part Number Reference
VDC
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
VAC
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
Capacitance
Value (µF)
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.010
0.012
0.015
0.018
Size Code
(New/
Legacy)
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PU/J35
PU/J35
PU/J35
PU/J35
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SP/K35
SP/K35
SP/K35
ST/K37
WP/A31
WP/A31
WP/A31
WP/A31
Dimensions in mm
B
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.1
9.1
9.1
9.1
H
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
4.0
4.0
4.0
4.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.5
3.5
3.5
4.5
5.5
5.5
5.5
5.5
L
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
10.2
10.2
10.2
10.2
Chip
Size
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
4036
4036
4036
4036
dV/dt
(V/µs)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
15
15
15
15
15
6
6
6
6
6
6
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
15
15
15
15
15
6
6
6
6
6
6
4
4
4
4
New KEMET
Part Number
F125PP102(1)050(2)
F125PP122(1)050(2)
F125PP152(1)050(2)
F125PP182(1)050(2)
F125PP222(1)050(2)
F125PP272(1)050(2)
F125PP332(1)050(2)
F125PP392(1)050(2)
F125PP472(1)050(2)
F125PP562(1)050(2)
F125PP682(1)050(2)
F125PP822(1)050(2)
F125PP103(1)050(2)
F125PP123(1)050(2)
F125PP153(1)050(2)
F125PP183(1)050(2)
F125PP223(1)050(2)
F125PP273(1)050(2)
F125PP333(1)050(2)
F125PP393(1)050(2)
F125PP473(1)050(2)
F125PU563(1)050(2)
F125PU683(1)050(2)
F125PU823(1)050(2)
F125PU104(1)050(2)
F125SL102(1)050(2)
F125SL122(1)050(2)
F125SL152(1)050(2)
F125SL182(1)050(2)
F125SL222(1)050(2)
F125SL272(1)050(2)
F125SL332(1)050(2)
F125SL392(1)050(2)
F125SL472(1)050(2)
F125SL562(1)050(2)
F125SL682(1)050(2)
F125SL822(1)050(2)
F125SL103(1)050(2)
F125SL123(1)050(2)
F125SL153(1)050(2)
F125SL183(1)050(2)
F125SL223(1)050(2)
F125SL273(1)050(2)
F125SL333(1)050(2)
F125SL393(1)050(2)
F125SL473(1)050(2)
F125SL563(1)050(2)
F125SL683(1)050(2)
F125SL823(1)050(2)
F125SL104(1)050(2)
F125SP124(1)050(2)
F125SP154(1)050(2)
F125SP184(1)050(2)
F125ST224(1)050(2)
F125WP103(1)050(2)
F125WP123(1)050(2)
F125WP153(1)050(2)
F125WP183(1)050(2)
Legacy Part
Number
SMC5.7102(1)50J33(2)
SMC5.7122(1)50J33(2)
SMC5.7152(1)50J33(2)
SMC5.7182(1)50J33(2)
SMC5.7222(1)50J33(2)
SMC5.7272(1)50J33(2)
SMC5.7332(1)50J33(2)
SMC5.7392(1)50J33(2)
SMC5.7472(1)50J33(2)
SMC5.7562(1)50J33(2)
SMC5.7682(1)50J33(2)
SMC5.7822(1)50J33(2)
SMC5.7103(1)50J33(2)
SMC5.7123(1)50J33(2)
SMC5.7153(1)50J33(2)
SMC5.7183(1)50J33(2)
SMC5.7223(1)50J33(2)
SMC5.7273(1)50J33(2)
SMC5.7333(1)50J33(2)
SMC5.7393(1)50J33(2)
SMC5.7473(1)50J33(2)
SMC5.7563(1)50J35(2)
SMC5.7683(1)50J35(2)
SMC5.7823(1)50J35(2)
SMC5.7104(1)50J35(2)
SMC7.3102(1)50K33(2)
SMC7.3122(1)50K33(2)
SMC7.3152(1)50K33(2)
SMC7.3182(1)50K33(2)
SMC7.3222(1)50K33(2)
SMC7.3272(1)50K33(2)
SMC7.3332(1)50K33(2)
SMC7.3392(1)50K33(2)
SMC7.3472(1)50K33(2)
SMC7.3562(1)50K33(2)
SMC7.3682(1)50K33(2)
SMC7.3822(1)50K33(2)
SMC7.3103(1)50K33(2)
SMC7.3123(1)50K33(2)
SMC7.3153(1)50K33(2)
SMC7.3183(1)50K33(2)
SMC7.3223(1)50K33(2)
SMC7.3273(1)50K33(2)
SMC7.3333(1)50K33(2)
SMC7.3393(1)50K33(2)
SMC7.3473(1)50K33(2)
SMC7.3563(1)50K33(2)
SMC7.3683(1)50K33(2)
SMC7.3823(1)50K33(2)
SMC7.3104(1)50K33(2)
SMC7.3124(1)50K35(2)
SMC7.3154(1)50K35(2)
SMC7.3184(1)50K35(2)
SMC7.3224(1)50K37(2)
SMC10.2103(1)50A31(2)
SMC10.2123(1)50A31(2)
SMC10.2153(1)50A31(2)
SMC10.2183(1)50A31(2)
VDC
VAC
Capacitance
Value (µF)
Size Code
(New/Legacy)
B (mm)
H
(mm)
L (mm)
Chip Size
dV/dt
(V/μs)
New KEMET
Part Number
Legacy
Part Number
(1) G = ±2%, R = ±2.5% (Legacy code = H), J = ±5%.
(2) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3083_SMC • 9/28/2016
5
京公网安备 11010802033920号
EEWORLD
