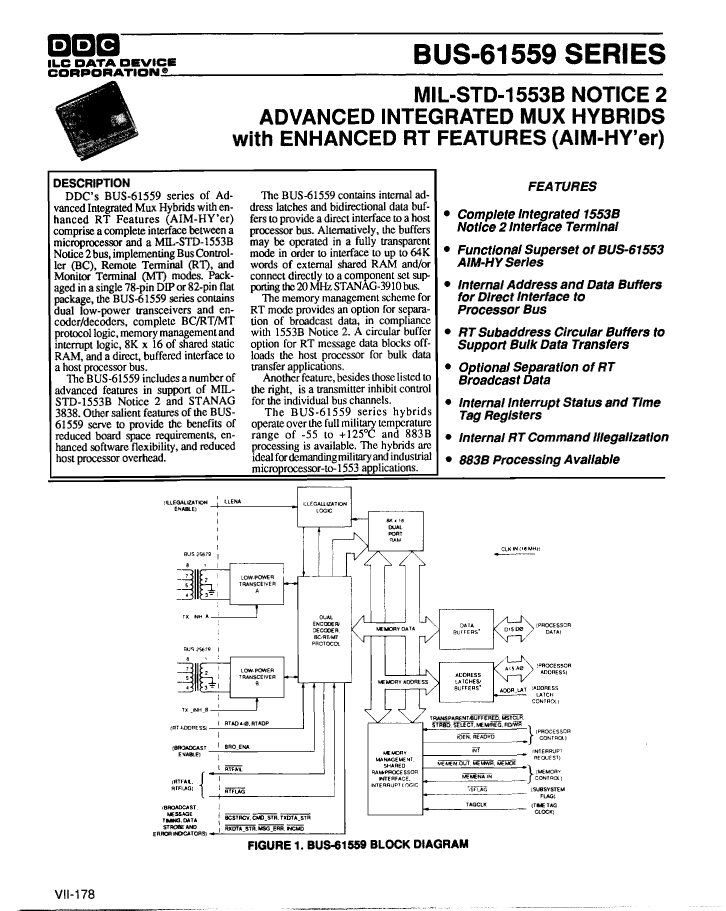

Preview

BUS-61561-300: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，27 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BUS-61561-300 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78

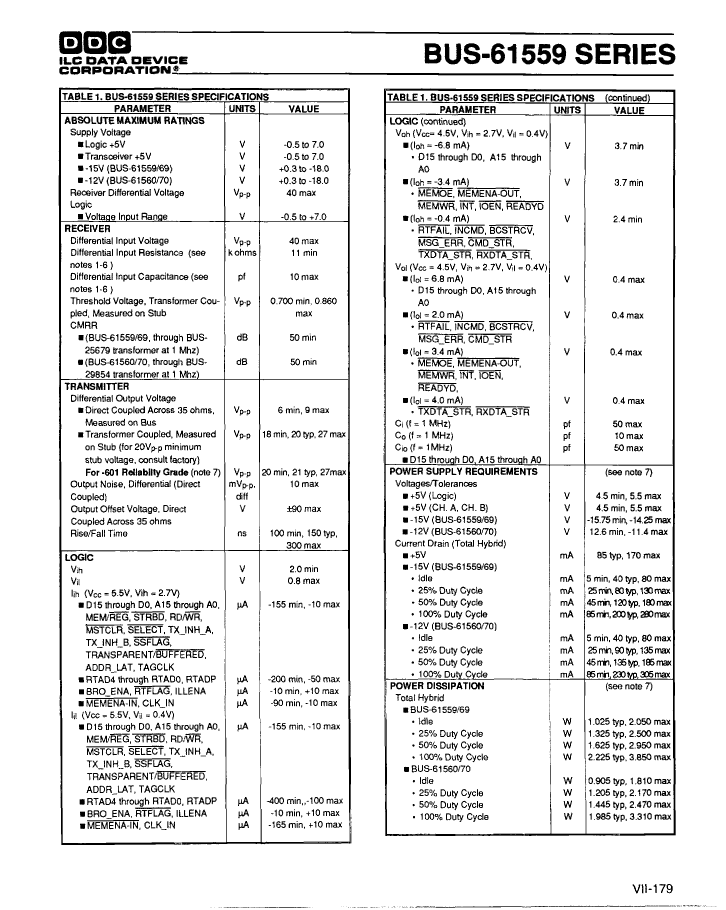

BUS-61561-300 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	QIP
package instruction	QIP,
Contacts	78
Reach Compliance Code	unknown
Address bus width	16
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-CQIP-P78
Number of serial I/Os	2
Number of terminals	78
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.334 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
width	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

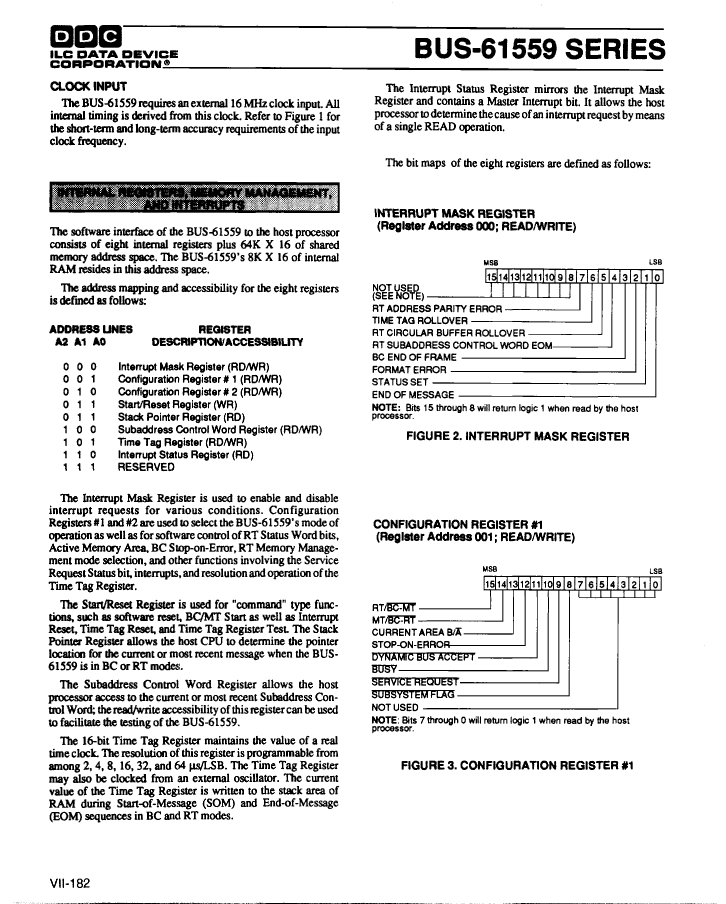

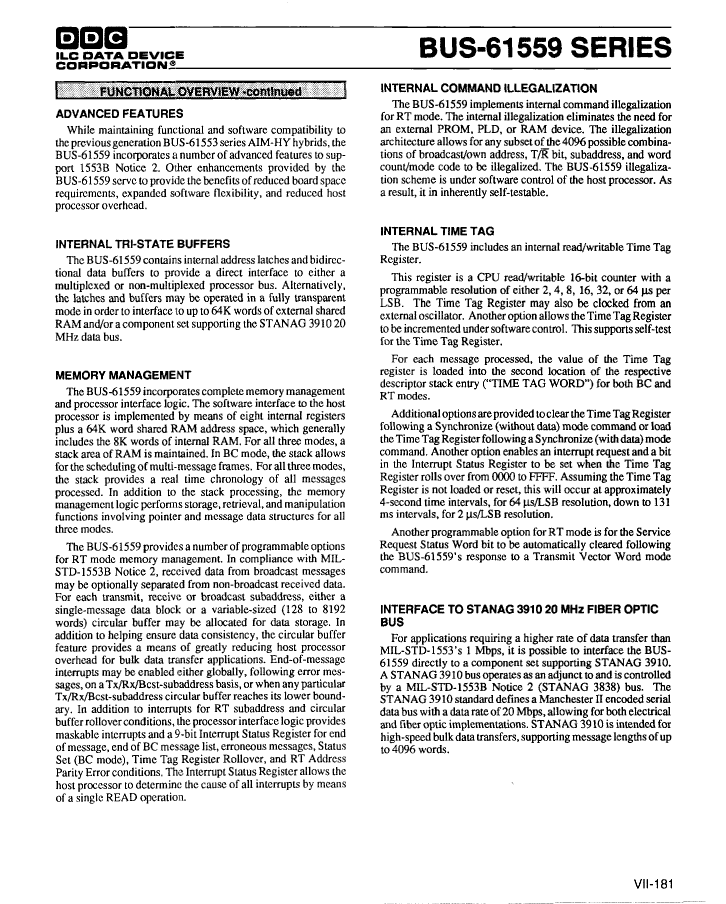

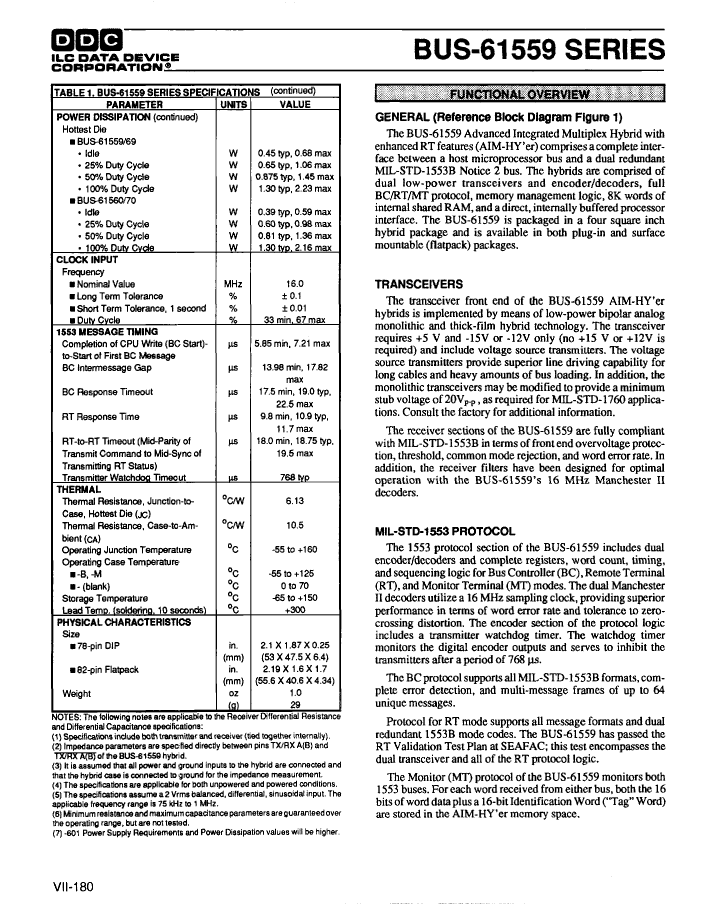

Preview

Download Datasheet

View All

BUS-61561-300 Related Products

	BUS-61561-300	BUS-61561-110	BUS-61561-120	BUS-61561-100
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
Parts packaging code	QIP	QIP	QIP	QIP
package instruction	QIP,	QIP,	2.100 X 1.870 INCH, 0.250 INCH HEIGHT, CERAMIC, DDIP-78	QIP,
Contacts	78	78	78	78
Reach Compliance Code	unknown	unknown	unknown	unknown
Address bus width	16	16	16	16
letter of agreement	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	16	16	16	16
JESD-30 code	R-CQIP-P78	R-CQIP-P78	R-CQIP-P78	R-CQIP-P78
Number of serial I/Os	2	2	2	2
Number of terminals	78	78	78	78
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP	QIP	QIP	QIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.334 mm	5.334 mm	5.334 mm	5.334 mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	41.91 mm	41.91 mm	41.91 mm	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1	1	1	1
Filter level	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
