USER MANUAL
V1.25
Transceiver Module
TCM 300 / TCM 300C
TCM 320 / TCM 320C
June 14, 2011
Observe precautions! Electrostatic sensitive devices!
Patent protected:
WO98/36395, DE 100 25 561, DE 101 50 128,
WO 2004/051591, DE 103 01 678 A1, DE 10309334,
WO 04/109236, WO 05/096482, WO 02/095707,
US 6,747,573, US 7,019,241
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone +49.89.67 34 689-0
Fax
+49.89.67 34 689-50
info@enocean.com
www.enocean.com
Subject to modifications
TCM 300 / 300C / 320 / 320C User Manual V1.25
June 14, 2011 4:53 PM
Page 1/52
USER MANUAL
V1.25
TCM 300 / 300C / 320 / 320C
REVISION HISTORY
The following major modifications and improvements have been made to the first version of
this document:
No
1.01
1.02
1.03
1.10
1.20
Major Changes
Tape running direction added in 3.8
Dimension of TCM 320 corrected (width 18 mm instead of 19 mm)
Editorial changes
Timing information regarding serial protocol added in A.2, A.3. 0xFFFF_FFFF ex-
cluded from usable ID range, because this ID will be used as broadcast ID.
Error corrected in 3.2.1. and 4.1: Maximum gain of external antenna at 50Ohm
output RF_50 is 0dBi! Error corrected in 2.2: WXODIO is configured as output and
provides information on VON signal
Note added in 3.5
Remarks added regarding use of IOVDD in 2.2.; Antenna specification in 3.3.1 ex-
tended. Updated information on conducted output power in 1.2; A.2.2 changed to
point to EnOcean Alliance Website; A.2.3 and A.2.4 removed; editorial changes
1.21
1.25
Published by EnOcean GmbH, Kolpingring 18a, 82041 Oberhaching, Germany
www.enocean.com, info@enocean.com, phone +49 (89) 6734 6890
© EnOcean GmbH
All Rights Reserved
Important!
This information describes the type of component and shall not be considered as assured characteris-
tics. No responsibility is assumed for possible omissions or inaccuracies. Circuitry and specifications
are subject to change without notice. For the latest product specifications, refer to the EnOcean web-
site: http://www.enocean.com.
As far as patents or other rights of third parties are concerned, liability is only assumed for modules,
not for the described applications, processes and circuits.
EnOcean does not assume responsibility for use of modules described and limits its liability to the
replacement of modules determined to be defective due to workmanship. Devices or systems contain-
ing RF components must meet the essential requirements of the local legal authorities.
The modules must not be used in any relation with equipment that supports, directly or indirectly,
human health or life or with applications that can result in danger for people, animals or real value.
Components of the modules are considered and should be disposed of as hazardous waste. Local
government regulations are to be observed.
Packing: Please use the recycling operators known to you.
© 2010 EnOcean | www.enocean.com
TCM 300 / 300C / 320 / 320C User Manual V1.25 | Page 2/52
USER MANUAL
V1.25
TCM 300 / 300C / 320 / 320C
TABLE OF CONTENT
1
1.1
1.2
1.3
1.4
1.5
2
GENERAL DESCRIPTION .................................................................................5
Basic functionality..........................................................................................5
Technical data ...............................................................................................5
Physical dimensions .......................................................................................6
Environmental conditions ................................................................................7
Ordering information ......................................................................................7
FUNCTIONAL DESCRIPTION ............................................................................8
2.1 Pin out .........................................................................................................8
2.2 Pin description and operational characteristics ...................................................9
2.2.1 GPIO supply voltage - IOVDD .................................................................... 11
2.3 Absolute maximum ratings (non operating) .................................................... 12
2.4 Maximum ratings (operating) ........................................................................ 12
2.5 Operating modes ......................................................................................... 13
2.6 Mode selection ............................................................................................ 14
2.7 Repeater configuration ................................................................................. 15
2.8 Teach-in procedure ...................................................................................... 16
2.8.1 Setting the receiver to learning mode ......................................................... 16
2.8.2 Confirmation of Learning Mode .................................................................. 16
2.8.3 Teaching in a transmitter .......................................................................... 16
2.8.4 Confirmation of correct learning/deletion .................................................... 17
2.8.5 Learning of further transmitters ................................................................. 17
2.8.6 Selecting the next channel ........................................................................ 17
2.8.7 Leaving learning mode ............................................................................. 17
2.8.8 Deleting a transmitter .............................................................................. 17
2.9 Remote management ................................................................................... 18
2.9.1 Remote Management Control Commands (RMCC) ........................................ 18
2.9.2 Remote Procedure Calls (RPC) ................................................................... 18
2.10 Smart Acknowledge ................................................................................ 19
2.11 Transmit timing ...................................................................................... 19
APPLICATIONS INFORMATION ....................................................................... 20
3.1 Transmission range ...................................................................................... 20
3.2 Antenna options TCM 300 / TCM 300C............................................................ 21
3.2.1 Overview ................................................................................................ 21
3.2.2 Whip antenna .......................................................................................... 22
3.2.3 Chip antenna........................................................................................... 23
3.2.4 Splatch antenna ...................................................................................... 25
3.2.5 Helical antenna........................................................................................ 26
3.3 Antenna options TCM 320 / 320C................................................................... 27
3.3.1 Mounting the whip antenna ....................................................................... 27
3.3.2 Mounting 50
Ω
antennas ........................................................................... 28
3.4 Recommendations for laying a whip antenna ................................................... 29
3.5 Power supply requirements ........................................................................... 30
3.6 Layout recommendations .............................................................................. 30
3.6.1 TCM 300/300C recommended foot pattern .................................................. 31
3.7 Soldering information ................................................................................... 34
3.7.1 TCM 300 / TCM 300C ............................................................................... 34
3.7.2 TCM 320 / TCM 320C ............................................................................... 35
3.8 Tape & Reel specification TCM 300 / TCM 300C ............................................... 35
3
© 2010 EnOcean | www.enocean.com
TCM 300 / 300C / 320 / 320C User Manual V1.25 | Page 3/52
USER MANUAL
V1.25
TCM 300 / 300C / 320 / 320C
3.9 Backward compatibility to TCM 220C .............................................................. 36
3.10 Using RVDD ........................................................................................... 36
3.11 Voltage dips ........................................................................................... 36
4
AGENCY CERTIFICATIONS ............................................................................ 37
4.1 CE approval ................................................................................................ 37
4.2 FCC (United States) Certification ................................................................... 38
4.3 IC (Industry Canada) Certification ................................................................. 41
Serial Interface ........................................................................................... 43
A.1 EnOcean serial protocol ................................................................................ 43
A.1.1 Message format (ESP2) ............................................................................ 43
A.1.2 Byte signals and bit order ......................................................................... 43
A.1.3 Description of serial data structure............................................................. 44
A.2 Radio transmission/reception commands ........................................................ 45
A.2.1 Detailed description of ORG, DATA_BYTE, and STATUS fields ........................ 45
A.3 Command telegrams and messages ............................................................... 46
A.3.1 ID Range commands ................................................................................ 46
A.3.2 Receiver sensitivity commands .................................................................. 46
A.3.3 Reset command ....................................................................................... 46
A.3.4 SW Version ............................................................................................. 46
A.3.5 Error messages ....................................................................................... 47
A.3.6 Command Encoding ................................................................................. 48
A
© 2010 EnOcean | www.enocean.com
TCM 300 / 300C / 320 / 320C User Manual V1.25 | Page 4/52
USER MANUAL
V1.25
TCM 300 / 300C / 320 / 320C
1
1.1
GENERAL DESCRIPTION
Basic functionality

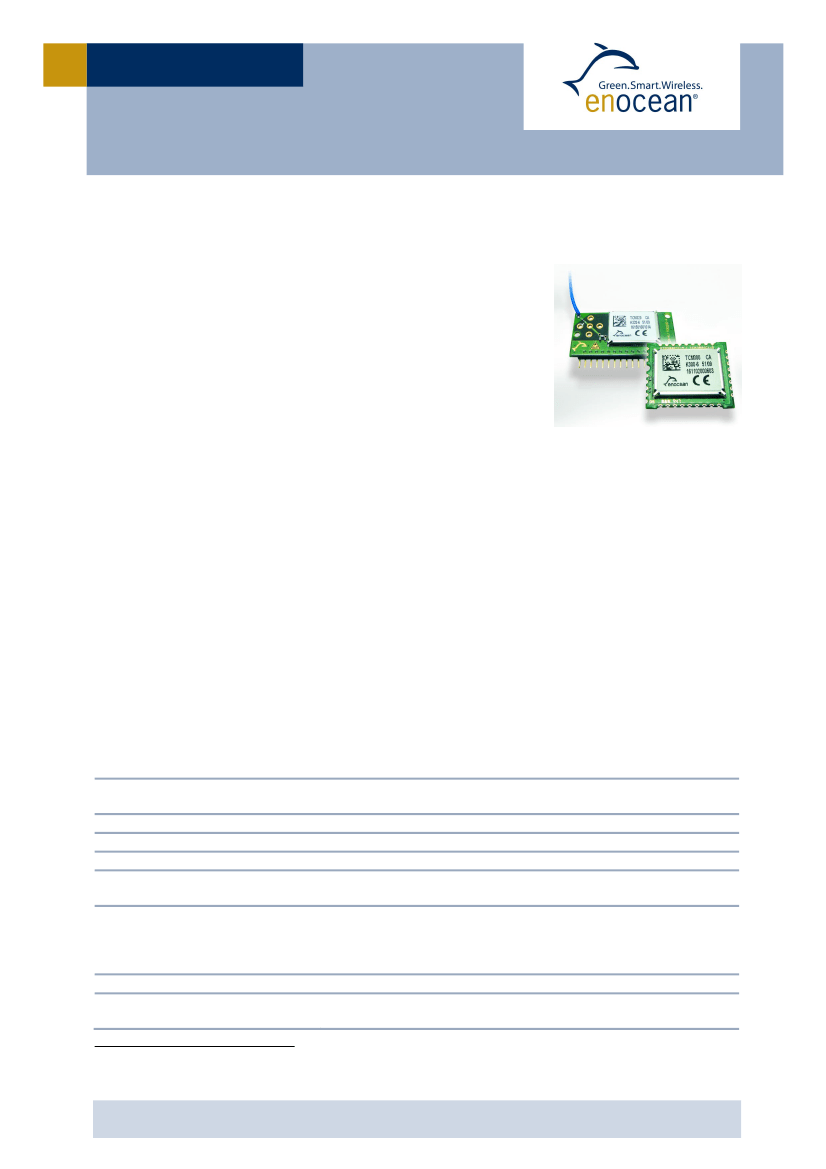

The transceiver modules TCM 300 / 300C and TCM 320 / 320C
enable the realization of highly efficient RF repeaters and
transceivers for the EnOcean 868 MHz and 315 MHz radio sys-
tems. The module provides several built-in operating modes.
In addition repeater functionality (1 or 2 level) can be acti-
vated. Using the Dolphin API library it is possible to write cus-
tom software for the module. All module variants are in-system
programmable.
Built-in operating modes
Unidirectional serial communication
Bidirectional serial communication
1-channel relay mode
4-channel relay mode
1-channel dimming mode
Product variants
TCM 300/300C: SMD mountable module for use with external antenna (868/315 MHz)
TCM 320/320C: Variant for vertical mounting with pin connector. Whip antenna.
(868/315 MHz). TCM 320C is backward compatible to TCM 220C
Features accessible via API:
Integrated 16 MHz 8051 CPU with 32 KB FLASH and 2 kB SRAM
Various power down and sleep modes
TCM 300/300C down to 0.2 µA current consumption
TCM 320/320C down to 1.4 mA current consumption
Up to 14 configurable I/Os (TCM 300/300C)
10 bit ADC, 8 bit DAC
1.2
Antenna
Frequency
Technical data
Pre-installed 8.6 cm/15 cm whip antenna (TCM 320/TCM 320C)
External whip or 50
Ω
antenna mountable (TCM 300/TCM 300C)
315.0 MHz (TCM 3X0C)/868.3 MHz (TCM 3X0)
EnOcean 868 MHz/315 MHz
125 kbps/ASK
typ. –96 dBm
1
(868 MHz)
typ. -98 dBm
1
(315 MHz)
dBm / 5.7 dBm / 7.0 dBm
dBm / 7.5 dBm / 9.5 dBm
dBm / 3.1 dBm / 5.2 dBm
dBm / 5.5 dBm / 7.5 dBm
Radio Standard
Data rate/Modulation type
Receiver Sensitivity (at 25°C)
Conducted Output Power @50Ω
min / typ /max
TCM 300:
TCM 300C:
TCM 320:
TCM 320C:
3.0
5.5
1.2
3.5
Power Supply
Current Consumption
2.6 V–3.3 V (TCM 320/320C), 2.6 V–4.5 V (TCM 300/300C)
Receive mode: typ. 33 mA, max. 43 mA (RX)
Transmit mode: typ. 24 mA, max. 33 mA (TX)
1
@ 0.1% telegram error rate (based on 3 transmitted sub-telegrams)
© 2010 EnOcean | www.enocean.com
TCM 300 / 300C / 320 / 320C User Manual V1.25 | Page 5/52
