SDP86XX
Optoschmitt Detector
FEATURES
•
Side-looking plastic package
•
55¡ (nominal) acceptance angle
•
Wide sensitivity ranges
•
TTL/LSTTL/CMOS compatible
•
Buffer (SDP8600/8601/8602) or inverting
(SDP8610/8611/8612) logic available
•
Three different lead spacing arrangements
•
Mechanically and spectrally matched to
SEP8506 and SEP8706 infrared emitting diodes
INFRA--6.TIF
DESCRIPTION
The SDP86XX series is a family of single chip
Optoschmitt IC detectors molded in a side-looking black
plastic package to minimize the effect of visible ambient
light. The photodetector consists of a photodiode,
amplifier, voltage regulator, Schmitt trigger and an NPN
output transistor with a 10 kì (nominal) pull-up resistor.
Output rise and fall times are independent of the rate of
change of incident light. Detector sensitivity has been
internally temperature compensated. Flexibility of use is
enhanced by a choice of three different lead
configurations; in-line (SDP8601/8611), 0.05
in.(1.27 mm) offset pin circle (SDP8600/8610) and 0.10
in. (2.54 mm) offset center lead (SDP8602/8612).
Device Polarity:
Buffer - Output is HI when incident light intensity is
above the turn- on threshold level.
Inverter - Output is LO when incident light intensity is
above the turn- on threshold level.

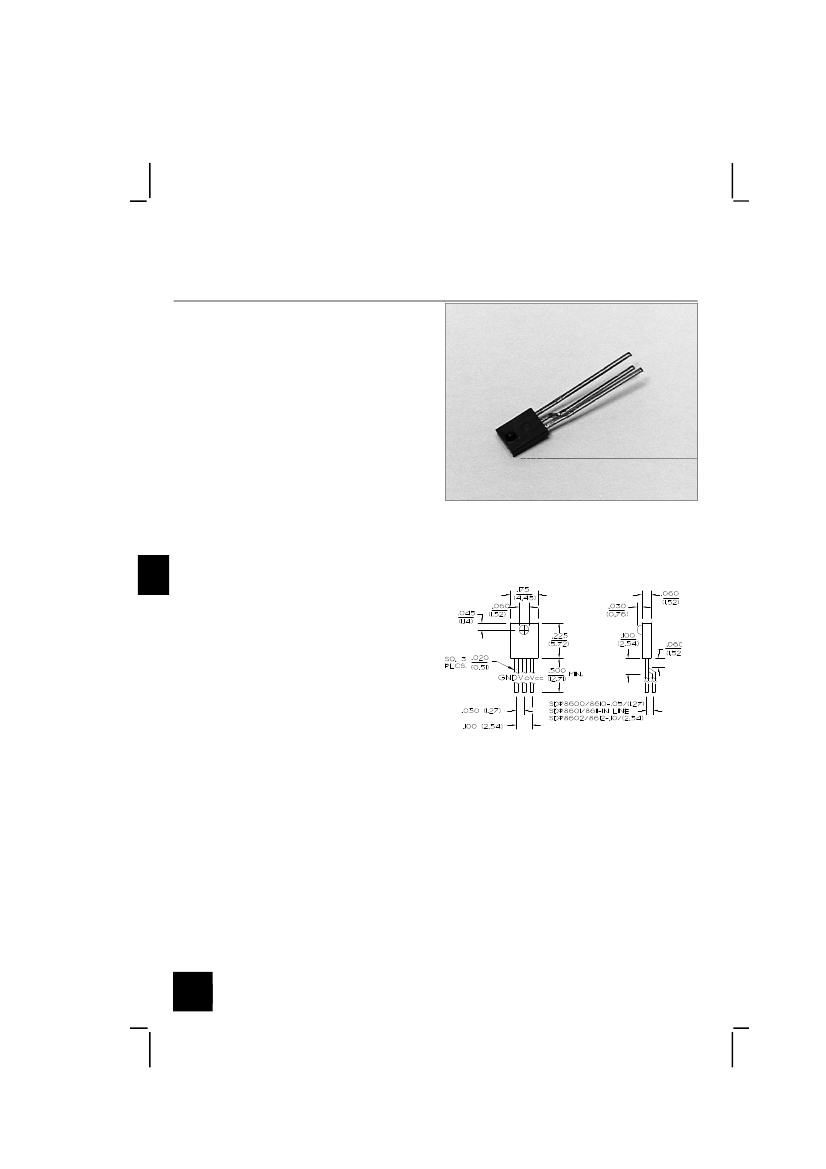

OUTLINE DIMENSIONS
in inches (mm)
Tolerance
3 plc decimals
±0.005(0.12)
2 plc decimals
±0.020(0.51)
DIM_028.cdr
200
h
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
SDP86XX
Optoschmitt Detector

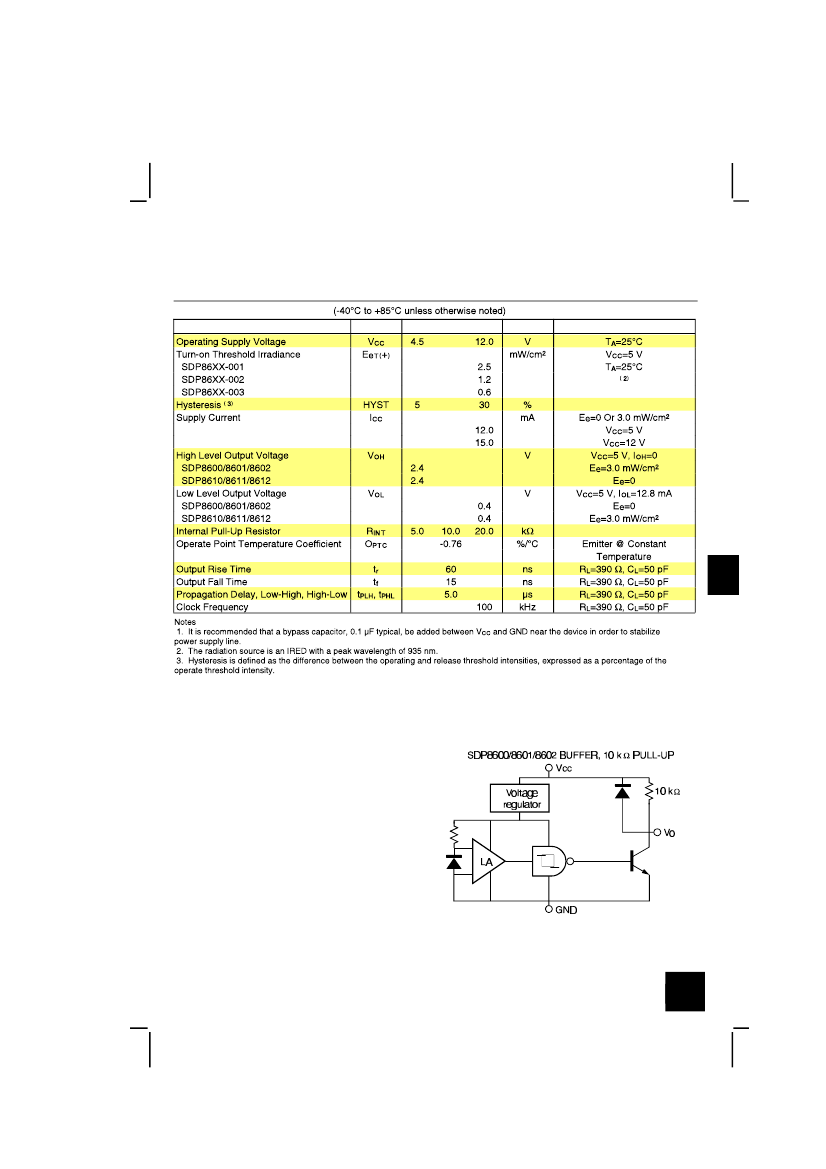

ELECTRICAL CHARACTERISTICS
PARAMETER
SYMBOL
MIN
TYP
MAX
UNITS
TEST CONDITIONS
ABSOLUTE MAXIMUM RATINGS
(25¡C Free-Air Temperature unless otherwise noted)
Supply Voltage
Duration of Output
Short to VÙÙ or Ground
Output Current
Operating Temperature Range
Storage Temperature Range
Soldering Temperature (5 sec)
Notes
1. Derate linearly from 25¡C to 5.5 V at 85¡C.
SCHEMATIC
12 V [À]
1.0 sec
18 mA
-40¡C to 85¡C
-40¡C to 85¡C
240¡C
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
h
201
SDP86XX
Optoschmitt Detector

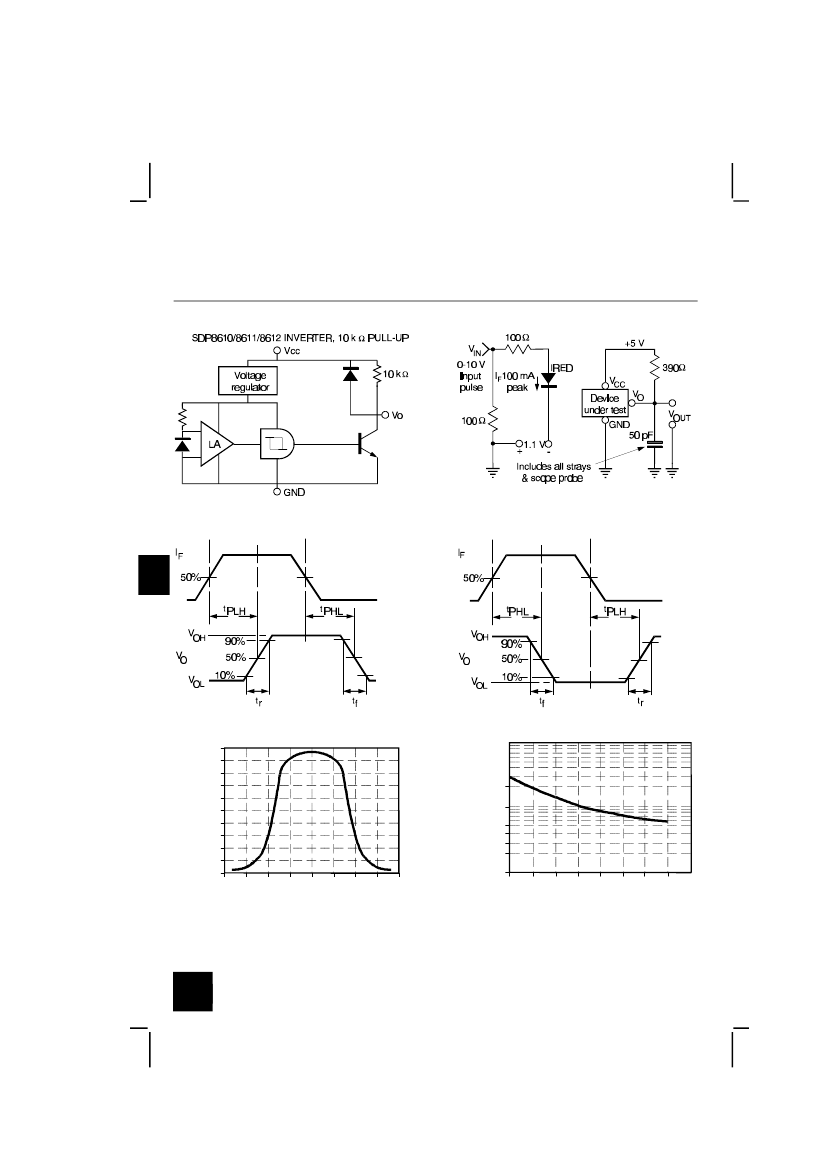

SCHEMATIC
SCH_024.cdr
SWITCHING TIME TEST CIRCUIT
cir_007.cdr
SWITCHING WAVEFORM FOR BUFFERS
cir_013.cdr
SWITCHING WAVEFORM FOR
INVERTERS
cir_011.cdr
Fig. 1
Responsivity vs
Angular Displacement
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
-60
-45
-30
-15
0
Fig. 2
gra_065.ds4
Threshold Irradiance vs Temperature
gra_060.ds4
Relative irradiance
Relative response
2.0
1.0
0.5
0.4
0.3
0.2
0.0
-40
-20
0
20
40
60
80
100
+15 +30 +45 +60
Angular displacement - degrees
Temperature - °C
202
h
Honeywell reserves the right to make
changes in order to improve design and
supply the best products possible.
SDP86XX
Optoschmitt Detector
Fig. 3
Output Rise Time (t²) and Output Fall
Time (t¶) vs Temperature
240
220
200
180
160
140
120
100
80
60
40
20
-40
Fig. 4
gra_061.ds4
Delay Time vs Temperature
gra_062.ds4
4.2
Rise time (T
R
) & fall time (T
F
)
- ns
Propagation delay - µs
Symbol definition & test
circuit per figures
3.8
3.4
3.0
2.6
2.2
1.8
1.4
0.0
-40
-20
0
20
40
60
80
100
T
PLH
Rise time T
R
Fall time T
F
-20
0
20
40
60
80
100
T
PHL
Temperature - °C
Fig. 5
Spectral Responsivity
gra_050.ds4
Ambient temperature - °C
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
600
700
800
900
1000
1100
1200
Relative response
Wavelength - nm
All Performance Curves Show Typical Values
