MAAM-009560
RF Driver Amplifier
250 - 4000 MHz
Features
•
Output Intercept Point of +42 dBm over a 20 dB
Input Power Range
•
Broadband Operation
•
Lead-Free SOT-89 Package
•
Halogen-Free “Green” Mold Compound
•
RoHS* Compliant and 260°C Reflow Compatible
•
Class 2 ESD Rating
Rev. V1
Functional Schematic
Description
The MAAM-009560 RF driver amplifier is a GaAs
MMIC which exhibits exceptional linearity
performance over a >20 dB dynamic range, as well
as featuring high gain in a lead-free miniature
SOT-89 surface mount plastic package. The device
is biased with a single +5 volt supply and consumes
225 mA typically.
The MAAM-009560 is fabricated using an HBT
process to realize low current and high linearity. The
process features full passivation for increased
performance and reliability.
Pin 1
RF In
RF Out / Bias
Pin Configuration
Pin No.
1
2
Function
RF Input
Ground
Pin No.
3
Function
RF Output/Bias
Maximum Operating Conditions
3
Parameter
Maximum Operating
Conditions
170 °C
28 dBm
-40 °C to +85 °C
Ordering Information
1,2
Part Number
MAAM-009560-000000
MAAM-009560-TR3000
MAAM-009560-001SMB
Package
Bulk Packaging
3000 piece reel
Sample Board
Junction Temperature
4
RF Output Power
Operating Temperature
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
3. These operating conditions will ensure MTTF > 1 x 10
6
hours.
4. Junction Temperature (T
J
) = T
A
+
Өjc
* ((V * I) - (P
OUT
- P
IN
))
Typical thermal resistance (Өjc) = 47° C/W
a) For T
A
= 25°C,
T
J
= 73 °C @ 5 V, 225 mA, P
OUT
= 20 dBm, P
IN
= 5 dBm
b) For T
A
= 85°C,
T
J
= 123 °C @ 5 V, 180 mA, P
OUT
= 20 dBm, P
IN
= 5.5 dBm
Absolute Maximum Ratings
5,6
Parameter
RF Output Power
Voltage
Storage Temperature
Junction Temperature
Absolute Maximum
29 dBm
6 volts
-65 °C to +150 °C
210 °C
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. M/A-COM Technology Solutions does not recommend
sustained operation near these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-009560
RF Driver Amplifier
250 - 4000 MHz
Electrical Specifications: Freq. = 2140 MHz, T
A
= 25°C, V
CC
= +5 V, Z
0
= 50
Ω
Parameter
Gain
Noise Figure
Input Return Loss
Output Return Loss
Output P1dB
Output IP3
Quiescent Current
Current (P
IN
= 0 dBm)
Units
dB
dB
dB
dB
dBm
dBm
mA
mA
Min.
14
—
—
—
—
40
—
—
Typ.
15
3
15
17
28.5
42
220
225
Max.
—
—
—
—
—
—
—
325
Rev. V1
2140 MHz PCB Layout
Parts List
Part
C1
C2
C3
C4
C5
C6
C7
L1
R1, R2
Value
1.8 pF
2.2 pF
0.1 µF
1000 pF
39 pF
1 pF
2 pF
3.6 nH
0
Ω
Case Style
0402
0402
0402
0402
0402
0402
0402
0402
0402

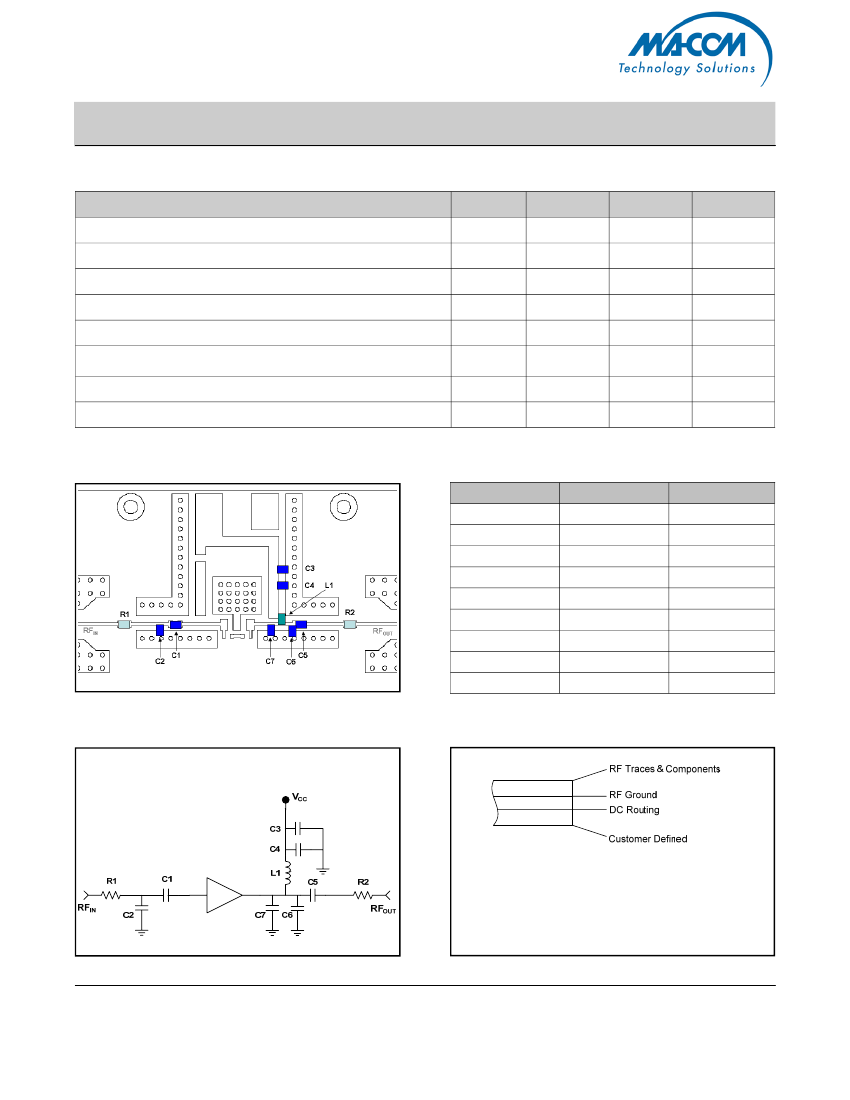

2140 Schematic
Cross Section View
The PCB dielectric between RF traces and RF ground layers
should be chosen to reduce RF discontinuities between 50
Ω
lines and package pins. M/A-COM recommends an FR-4
dielectric thickness of 0.008” (0.20 mm) yielding a 50
Ω
line
width of 0.015” (0.38 mm).
The recommended RF
metalization is 1 ounce copper.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-009560
RF Driver Amplifier
250 - 4000 MHz

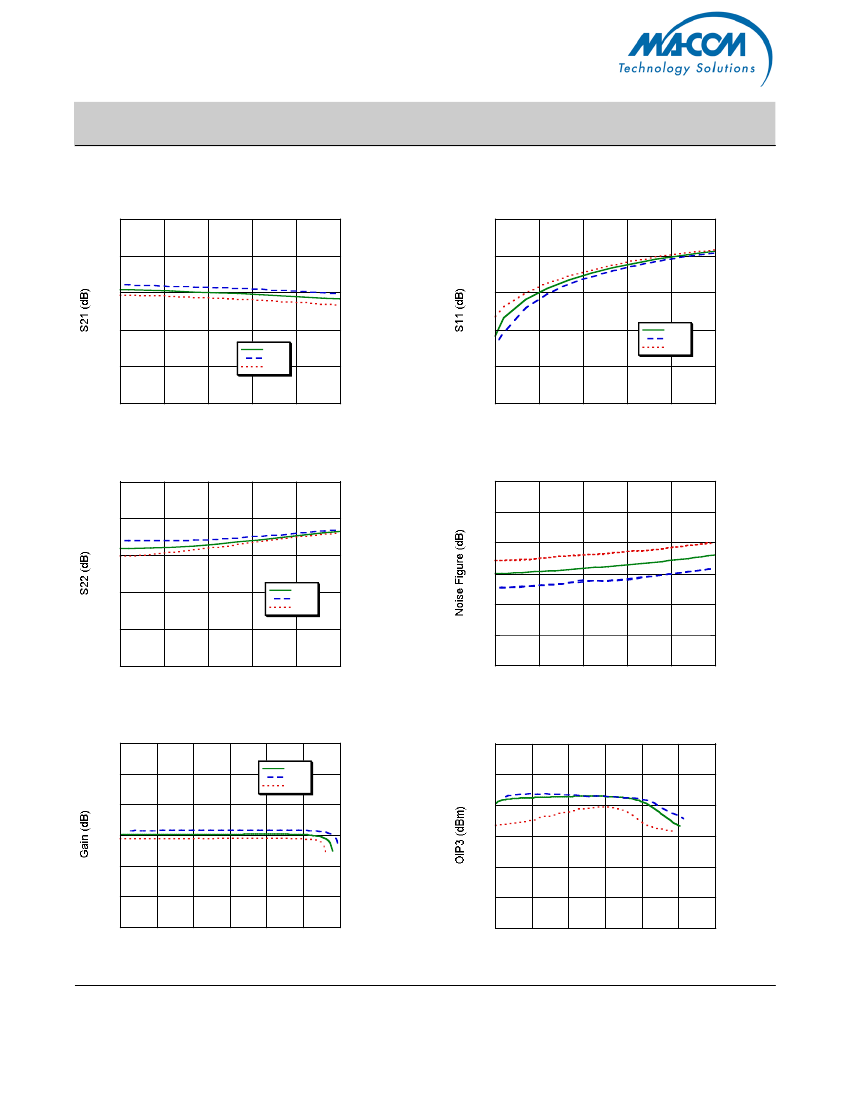

Typical Performance Curves, 2140 MHz Configuration
Gain
25
Rev. V1
Input Return Loss
0
20
-10
15
-20
10
+25°C
-40°C
+85°C
-30
+25°C
-40°C
+85°C
5
-40
0
2.10
2.12
2.14
2.16
2.18
2.20
-50
2.10
2.12
2.14
2.16
2.18
2.20
Frequency (GHz)
Frequency (GHz)
Output Return Loss
0
Noise Figure
6
5
4
-10
-20
3
-30
+25°C
-40°C
+85°C
2
1
0
2.10
-40
-50
2.10
2.12
2.14
2.16
2.18
2.20
2.12
2.14
2.16
2.18
2.20
Frequency (GHz)
Frequency (GHz)
P1dB
30
25
20
15
10
5
0
+25°C
-40°C
+85°C
Output IP3
60
50
40
30
20
10
0
0
5
10
15
20
25
30
0
5
10
15
20
25
30
Output Power (dBm)
Output Power / Tone (dBm)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-009560
RF Driver Amplifier
250 - 4000 MHz
Typical Performance Curves, 2140 MHz Configuration
Current
350
300
250
200
150
100
50
0
Rev. V1
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
class 2 devices.
0
5
10
15
20
25
30
Output Power (dBm)

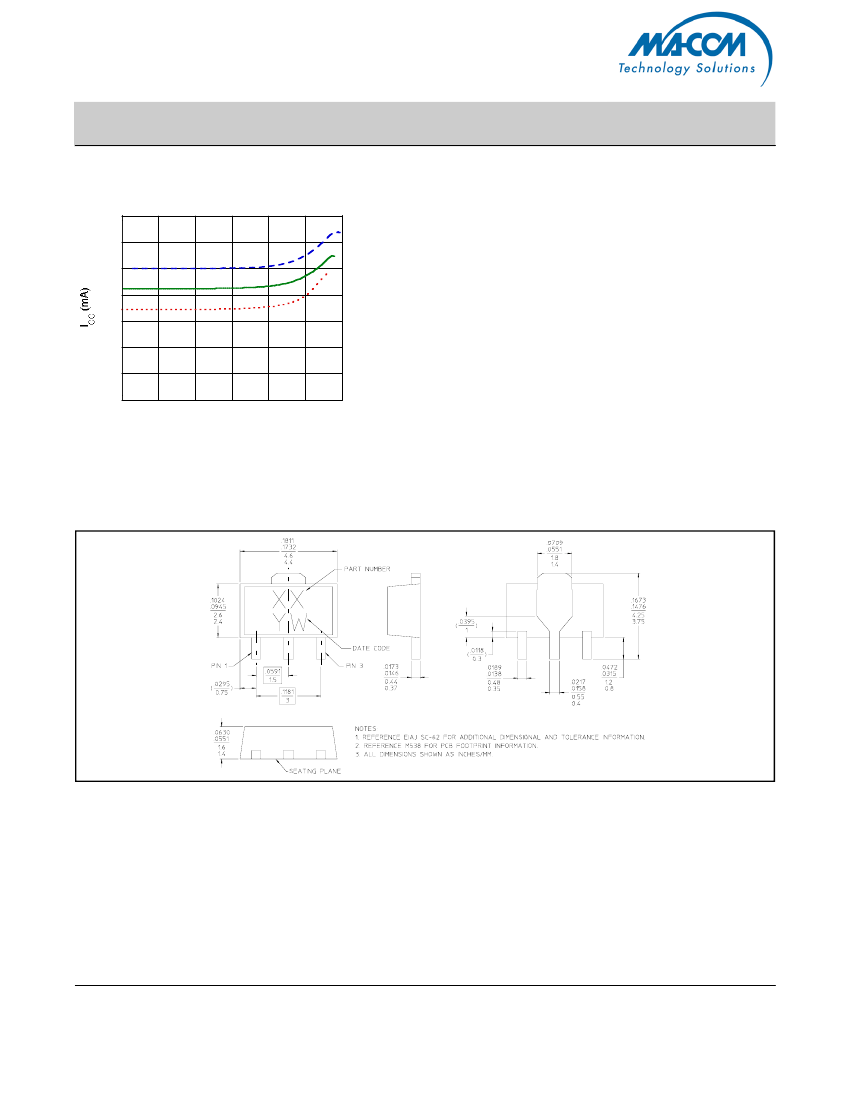

Lead-Free
SOT-89 Plastic Package
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Plating is 100% matte tin over copper.
4
