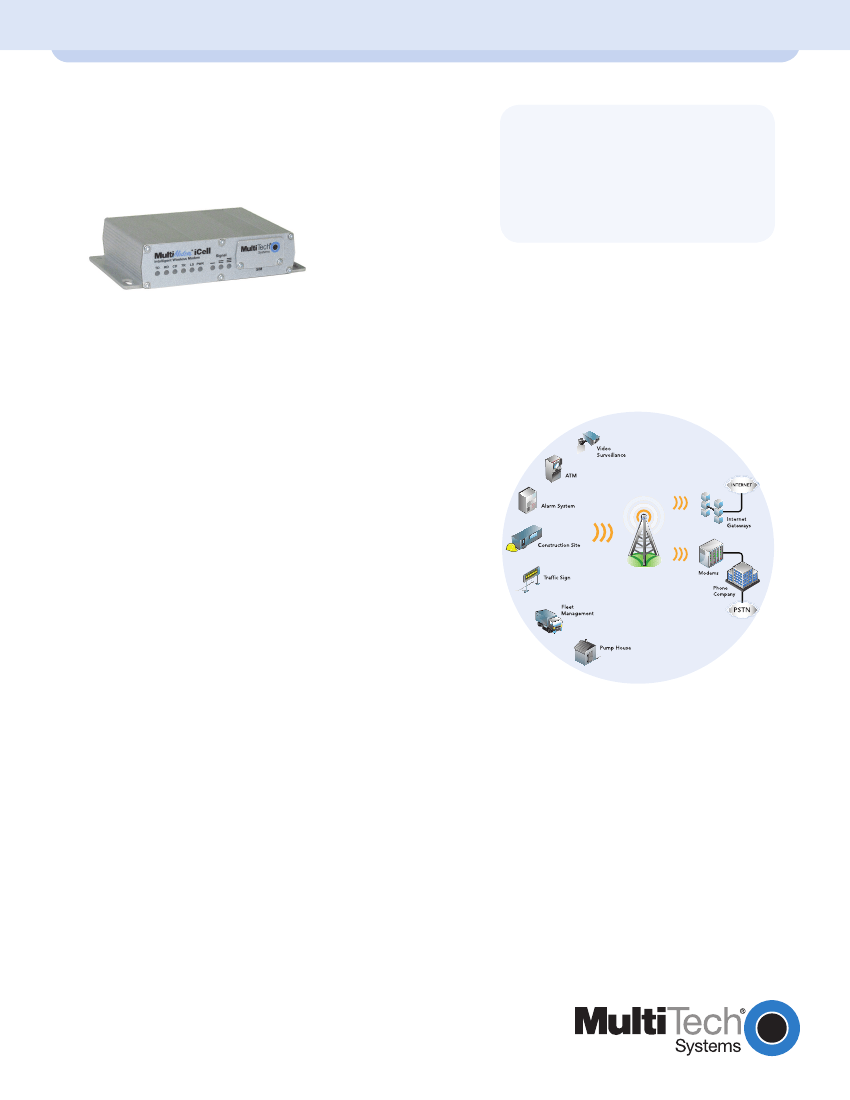

MultiModem iCell
®
Benefits
• Intelligent Universal IP stack
• Enhanced M2M functionality
• Programmable GPIO ports
• Carrier approved
Intelligent HSDPA Cellular Modem
The MultiModem
®
iCell intelligent HSDPA cellular modem offers standards-based tri-band UMTS/HSDPA
performance. This ready-to-deploy, standalone modem provides wireless data communication and integrates
seamlessly with virtually any application. The intelligence of the embedded Universal IP
™
stack allows for
automatic/persistent connectivity for mission critical applications and enhanced M2M functionality. The
MultiModem iCell intelligent cellular modem is based on industry-standard open interfaces and can be desktop or
panel mounted.
Features
• Tri-band UMTS/HSDPA 3.6
• Quad-band GSM/GPRS/EDGE
• Intelligent Universal IP stack for enhanced machine-to-machine
functionality
• Event monitoring and reporting via integrated GPIO ports
• Supports Short Message Service such as text and PDU mode,
point-to-point (MT/MO) and cell broadcast
• GSM circuit-switched data up to 9600 bps and UMTS circuit-
switched data up to 64K bps
• RS-232 interface supports DTE speeds to 921.6K bps (effective
throughput is 600-650K bps)
• USB 2.0 full speed interface (supported in a future firmware release,
currently RS-232 only)
• SMA antenna connector and SIM socket
• Desktop or panel mounting
• FCC, PTCRB and R&TTE certified
• AT command compatible
• Two-year warranty
Highlights
Applications. The MultiModem iCell intelligent cellular
modem with HSDPA support is ideal for highly data-
intensive, mission critical applications such as remote video
surveillance and other multimedia applications where you
are sending digital images, web pages and photographs.
Universal IP for Enhanced M2M Connectivity. Multi-Tech’s
Universal IP stack consists of a common set of TCP/IP
networking protocols and M2M applications implemented
using a standard AT command interface. Universal IP
provides developers a common programming interface
effectively future proofing their application as new cellular
technologies are introduced. Some of the benefits of
Universal IP are Automatic/Persistent Connectivity, Device
Monitor, Event Monitoring/Reporting, Ping & TCP Keep Alive
and Wake-up on Caller ID/Wake-up on Ring.
Reduces Development Time. The MultiModem iCell intelligent
cellular modem can make your existing and next generation
device communication-ready without requiring any
hardware changes to its design. It actually provides faster
time-to-market because it relieves the burden and expense
of obtaining PTCRB and RF approvals.
Multiple Interface Options. The MultiModem iCell intelligent
cellular modem is designed around a broad range of
interface options including RS-232; USB (supported in a
future firmware release) and GPIO to provide you with
seamless connectivity for your application. Each interface
option offers unique features and benefits related to the
technology it supports.
Comprehensive Service and Support. The Multi-Tech
commitment to service means we provide a two-year product
warranty and service that includes technical support, 24-
hour web site and ftp support.
Specifications
General Features
Tri-band UMTS/HSDPA (WCDMA/FDD), 850/1900/2100
MHz, UMTS/HSDPA 3GPP release 5
HSDPA: 3.6M bps max. download, 384K bps max. upload
Quad-band GSM/GPRS/EDGE, 850/900/1800/1900 MHz
Packet Data Features
HSDPA: UE CAT [1-6], 11, 12 supported, Compressed
mode according to 3GPP TS25.212
EDGE: Class 10, MCS 1-9
GPRS: Class 10, CS 1-4
Circuit Switched Data Features
GSM: Async, non-transparent up to 9600 bps (V.110)
UMTS: Async, non-transparent up to 64K bps (V.120)
SMS Features
Text & PDU, Point-to-Point (MO and MT), cell broadcast
Universal IP Features
TCP/IP features: DNS resolve, FTP client, Ping, POP3
client, PPP (dial-out), SMTP client, TCP RAW client &
server, UDP RAW client & server, PAP, CHAP
Connectors
RF Antenna: 50 ohm SMA female
RS-232: DB-9 female
USB: USB Type B (future firmware release)
Power: 2.5mm miniature screw
GPIO: 6-pin Molex female with ESD protection
SIM: Standard 3V SIM receptacle
Power Requirements
9V to 32VDC
GPIO Functions
Pin 1-2: Programmable digital input/output
Pin 3-4: Programmable digital input/output or ADC
Pin 5: ADC
Digital inputs: 5V tolerant TTL/CMOS levels; digital
outputs: 3.3V high; ADC inputs: 0 to 3.3V rail; Output
current: 2mA max
Ordering Information
Product
MTCMR-H*
Ordering Codes
-NAM
-EU
-GB/IE
-AU/NZ
Description
Intelligent HSDPA Modem
Region
Global
Includes US Style Power Plug
Includes Euro Style Power Plug
Includes UK Style Power Plug
Includes AU/NZ Style Power Plug
Physical Description
4.9" w x 1.1" h x 3.5" d; 8 oz
(12.4 cm x 2.8 cm x 8.9 cm; 227 g)
Environment
Operating: -30º to +60º C
Storage: -40º to +85º C
Humidity: 20% to 90% non-condensing
* Use ordering codes for specific build options. Go to www.multitech.com for
detailed product model numbers.
Made in Mounds View, MN, U.S.A.
Features and specifications are subject to change without notice.
Trademarks / Registered Trademarks: MultiModem, Universal IP, Multi-Tech,
and the Multi-Tech logo: Multi-Tech Systems, Inc. / All other products and
technologies are the trademarks or registered trademarks of their respective
holders.
Certifications
CE Mark, R&TTE
EMC: FCC Part 15, 22, 24; EN 55022, EN 55024,
EN 301 489-1, EN 301 489-7, EN 301 511; RSS 132,
133,102
Safety: cUL 60950-1, UL 60950-1; EN 60950-1,
AS/NRZ60950-1
Network: PTCRB
