TU SERIES
INDUSTRIAL RELAYS
UL & CUL File #E256619

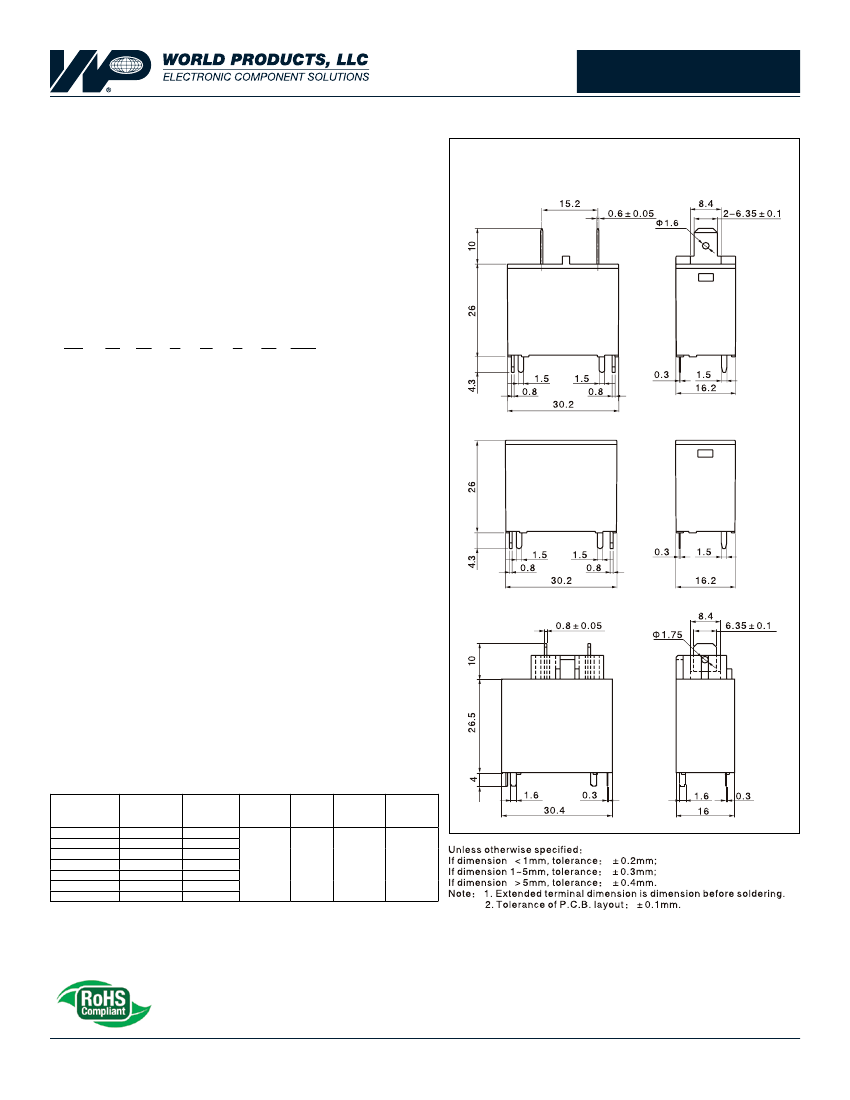

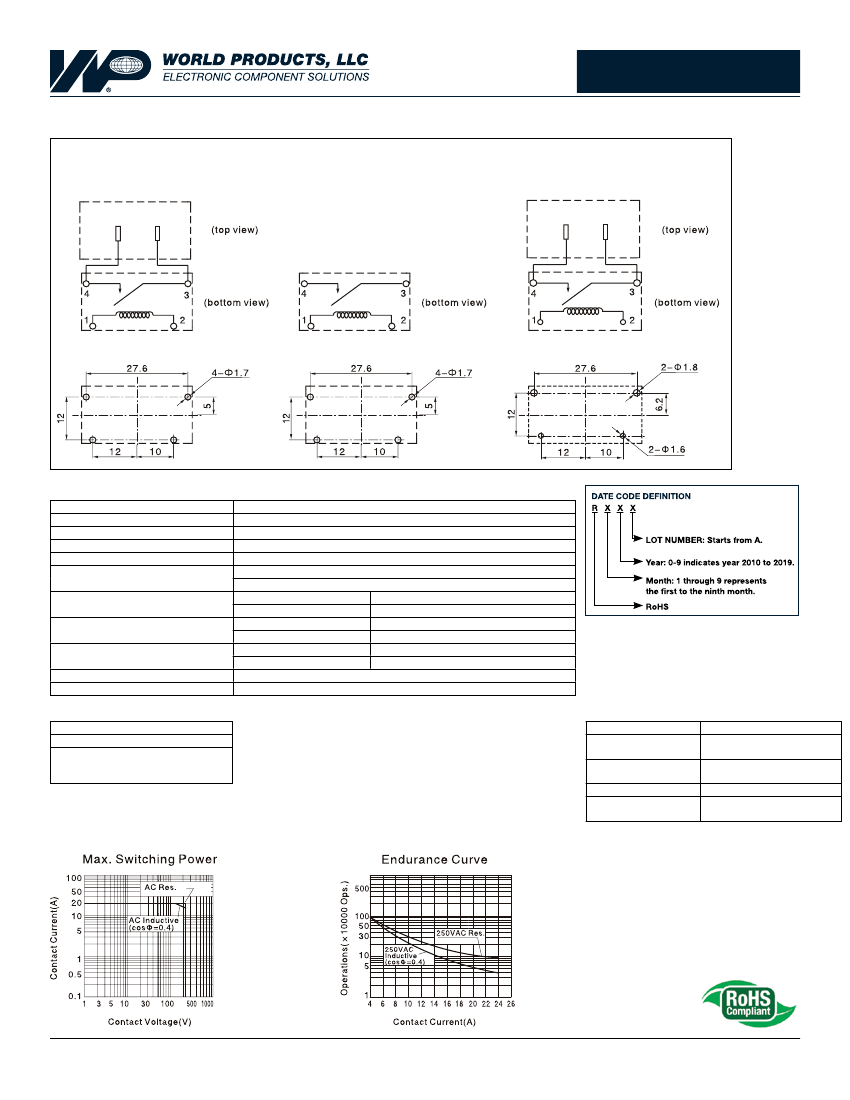

DIMENSIONS, WIRING DIAGRAM & MOUNTING HOLES
Unit: mm
Standard Type
FEATURES
• Small size (16.2x30x26), resistive rating: 25A.
• 250# quick connect terminal and PCB terminal types available.
TYPICAL APPLICATIONS
Air Conditioner Compressor and Heater, FAX Machine, Office Equipment
Signal Lamp and Motor Control, Microwave Oven Magnetic Control
ORDERING INFORMATION
TU
(1)
(1)
–1
(2)
12
(3)
D
(4)
M
(5)
P
(6)
(6)
–F
(7)
–XX
(8)
Type Designation
TU
= TU Series
Number of Poles
1
= 1 pole
Coil Voltage (VDC)
05, 06, 09,12, 18, 24, 48
Coil Power
D
= 0.90W
Contact Form
M
= Form A
(2)
Terminal Type
Nil
= Standard
P = PCB
K = Protective Quick
Connect Terminal
Insulation System
Nil
= Standard
B = Class B
F
= Class F
Special Parameter
Nil = Standard type
Letter or Number
= Special
Requirement
TU-P
(3)
(7)
(4)
(9)
(5)
TU-K
COIL DATA (AT 20ºC)
Nominal
Voltage
5
6
9
12
18
24
48
Coil
Max.
Pick–up Drop–Out Nominal
Nominal
Resistance Allowable Voltage Voltage Operating
Current (mA)
± 10% (Ω)
Voltage
(Max.)
(VDC)
Power
180.00
27.8
150.00
40
110% of 80% of
5% of
100.00
90
Approx.
75.00
160
Nominal Nominal Nominal
0.90W
50.00
360
Voltage
Voltage
Voltage
37.50
640
18.75
2560
World Products, LLC
19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
72
| Industrial Relays Catalog
Rev. 1.0 12.11.12)
TU SERIES
DIMENSIONS, WIRING DIAGRAM & MOUNTING HOLES
Unit: mm
Standard Type
TU-P
TU-K
CHARACTERISTIC DATA
Contact Material
Initial contact resistance
(@ 6VDC 1A)
Operate time
(@ nominal voltage)
Release Time
(@ nominal voltage)
Initial insulation resistance
Initial dielectric strength
Vibration Resistance
Shock Resistance
Endurance
(operations)
Ambient Temperature
Unit Weight
Silver Alloy
50mΩ Max.
10msec. Max.
5msec. Max.
1000M Ω Min. (DC500V)
Between open contacts: AC1000V, 50/60Hz 1 Min.
Between coil and contact: AC4000V, 50/60Hz 1Min.
Functional
10 ~ 55Hz @ double amplitude of 1.5mm
Destructive
10 ~ 55Hz @ double amplitude of 1.5mm
Functional
10G Min.
Destructive
100G Min.
Mechanical (@10,800 ops./h)
10,000,000
Electrical (@600 ops./h)
100,000
–40ºC ± 105ºC (no condensation)
Open Type: Approximately 28.0g
SAFETY APPROVAL RATINGS
UL/CUL
E256619
5A 250VAC, Resistive
5A 28VDC, Resistive
2A 250VAC, General Use
CONTACT CAPACITY
Model
Nominal Switching
Capacity (res. load)
Max. Switching
Current
Max. Switching Voltage
Max. Switching
Power
TU
20A 250VAC
25A
277VAC
6250VA
CHARACTERISTIC CURVES
