TECHNOLOGIES

Standard and Bluetooth Low Energy Dual-Mode Smart-Ready

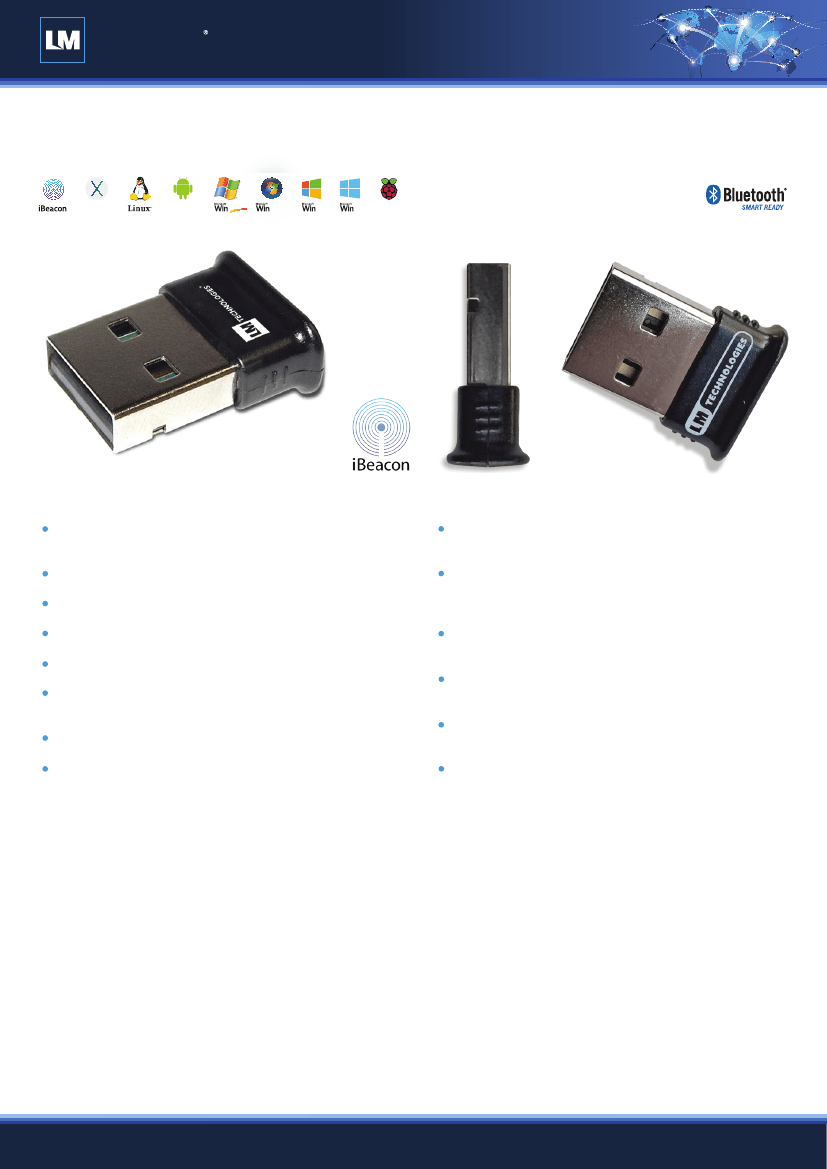

LM506 Long Range Bluetooth 4.0 BLE USB Nano Adapter

Product

Part No

Revised

LM506

506-0508

9/SEP/2015

OSX

Android

Vista

RaspberryPi

Features

Compatible with Bluetooth v4.0 specification. Backward compati-

ble with Bluetooth 3.0, 2.0/2.1 + EDR devices.

BT 4.0 dual mode (Standard Bluetooth and Bluetooth Low Energy)

Supports Maximum Asynchronous Data Rate of 3 Mbps.

Supports Low Power Application Data Rate of 250 Kbps.

Supports Bluetooth Low Energy.

Provides data access via USB 2.0 interface with ultra-low power

consumption.

2.4 - 2.4835 GHz ISM Band Operation.

Configurable using Widcomm software available to download at;

http://www.lm-technologies.com/support/downloads

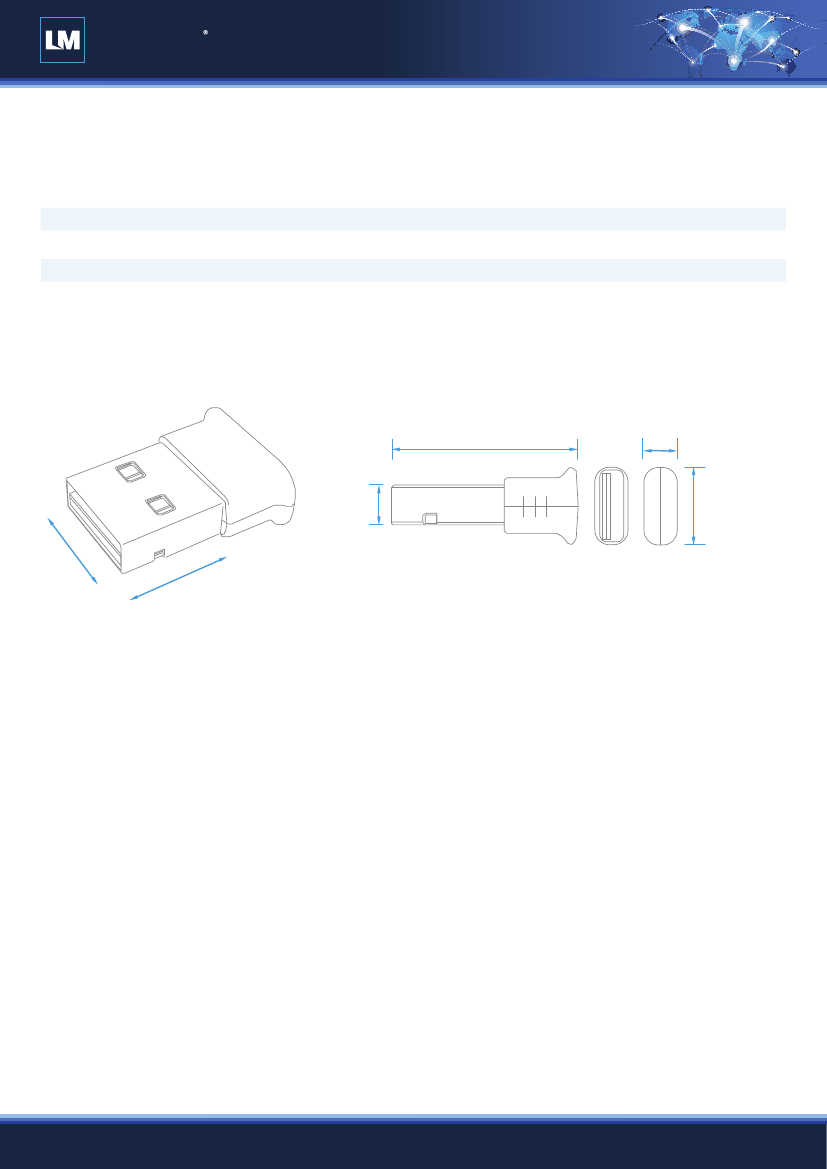

Small Form Factor 19.47mm x 16mm x 8.1mm

Class 1 adapter with a range up to 110m in open space.

Wide range of Bluetooth profiles supported (like HF, A2DP,

OPP, FTP, DUN, PAN, SPP, HCRP, SYNC, BTLE profiles

etc).

Eliminates the need of cable between your computer and

other Bluetooth Devices.

Stereo Audio supported with VoIP calls over Bluetooth also

supported.

Interoperable with PDAs, Phones and Bluetooth Low

Energy Devices used in Medical, AMR applications.

Supported on Windows XP, VISTA & 7, iBeacon.

Overview

The LM506 Long Range Bluetooth Dual Mode USB Nano Adapter is a Class 1 Adapter designed to be fully compatible with the

Bluetooth v4.0 Standard. It is a dual mode HCI Adapter supporting Bluetooth v3.0 and Bluetooth Low Energy.

This is a very small form factor and high performance adapter which allows you to connect to up to 7 Bluetooth devices simultane-

ously. The adapter is backward compatible with Bluetooth 2.0 and Bluetooth 2.1 + EDR devices and also supports connection to

Bluetooth 3.0 and Bluetooth Low Energy Devices (BLE).

The adapter integrates high performance Bluetooth Radio, Baseband, Link Manager, Host Controller Interface and is configurable

with Widcomm Software which offers a huge range of Bluetooth profiles for a variety of connectivity applications. The adapter is

ideally suited for Bluetooth connectivity to serial adapters, laptops, PC's, Bluetooth Low Energy Devices and Mono and stereo

headsets. Due to its small size, long range, high performance, ultra low power consumption and high sensitivity, this adapter is ideally

suited for Bluetooth connectivity applications where the adapter can fit discreetly into portable devices that have USB port.

Page 1 of 3

LM506

+44(0) 207 428 2647 www.lm-technologies.com
