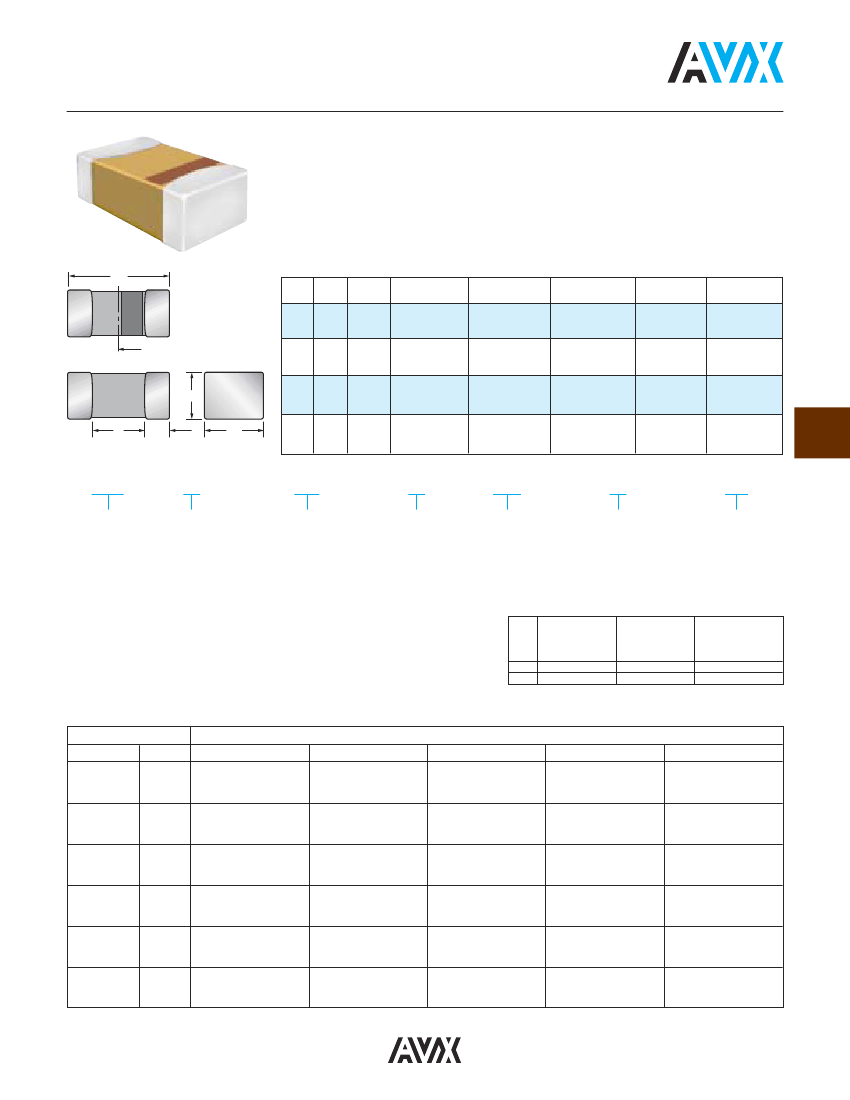

TMC Series
Established Reliability TACmicrochip™
KEY FEATURES
•
•
•
•
Weibull graded
Reliability 0.1% / K hrs
Low leakage
Conformance testing
(Lot by Lot)
• Extended traceability
• Approved for use in life
support medical devices
L
CASE DIMENSIONS:
millimeters (inches)
EIA
Code Code
EIA
Metric
Length (L)
1.00
+0.20
-0.00
(0.039
+0.008
)
-0.000
1.60
-0.15
(0.063
+0.010
)
-0.006
2.00
+0.25
-0.15
(0.079
+0.010
)
-0.006
+0.25
Width (W)
0.50
+0.20
-0.00
(0.020
+0.008
)
-0.000
0.85
-0.10
(0.033
+0.008
)
-0.004
1.35
-0.10
(0.053
+0.008
)
+0.20
+0.20
Height (H)
0.50
+0.20
-0.00
(0.020
+0.008
)
-0.000
0.85
-0.00
(0.033
+0.008
)
-0.004
1.35
-0.10
(0.053
+0.008
)
+0.20
+0.20
Termination
Length (Lt)
0.10 (0.004)
Typical Mass
2.0mg
%
K
POLARITY BAND NOT TO
EXCEED CENTER LINE
L
0402 1005-05
0603 1608-08
0.15 (0.006)
8.6mg
H
S
Lt
W
%
R
0805 2012-12
A
1206 3216-16
0.15 (0.006)
29.9mg
3.20±0.20
(0.126±0.008)
-0.004
+0.00
1.60
-0.20
(0.063
+0.000
)
-0.008
-0.004
+0.00
1.60
-0.20
(0.063
+0.000
)
-0.008
0.15 (0.006)
44.6mg
HOW TO ORDER
TMC
Type
TACmicrochip™
R
Case Code
0402=K
0603=L
0805=R
1206=A
106
Capacitance Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
M
Tolerance
K=±10%
M=±20%
010
Rated DC Voltage
002=2Vdc
003=3Vdc
004=4Vdc
006=6.3Vdc
010=10Vdc
016=16Vdc
E
Packaging
E = Non Modular
Tin Termination
D = Non Modular
Gold Termination
(see table below)
**
Additional
characters may
be add for special
requirements
Packaging Suffix
RTA –
Std. termination (Nickel & Tin) supplied on
plastic embossed tape on a 4mm pitch in a
7" diameter reel.
XTA –
Std. termination (Nickel & Tin) supplied
on plastic embossed tape on a 4mm pitch in a
4.25" diameter reel.
PTA –
Std. termination (Nickel & Tin) supplied
on punched paper tape on a 2mm pitch in a
7" diameter reel.
QTA –
Std. termination (Nickel & Tin) supplied
on punched paper tape on a 2mm pitch in a
4.25" diameter reel.
ATA –
Nickel & thin Gold plated termination,
supplied on plastic embossed tape on a
4mm pitch in a 7" diameter reel.
FTA –
Nickel & thin Gold plated termination,
supplied on plastic embossed tape on a
4mm pitch in a 4.25" diameter reel.
Packaging Suffix
Standard
Standard
Reel Tin Termination Tin Termination Gold Termination
Size
Plastic Tape
Paper Tape
Plastic Tape
1206/0805/0603
0402
1206/0805/0603
7"
Rxx
Pxx
Axx
Xxx
Qxx
Fxx
4
1
⁄
4
"
ESTABLISHED RELIABILITY RANGE (EIA Sizes)
Capacitance
Cap. (µF)
Code
0.33
334
0.47
474
0.68
684
1.0
105
1.5
155
2.2
225
3.3
335
4.7
475
6.8
685
10
106
15
156
22
226
33
336
47
476
68
686
100
107
150
157
220
227
Available Ratings
(LETTER DENOTES CASE SIZE)
10V
K/L
K/L
L
L
L
L/R
R
R
R
R
A
16V
L
L
L
L
3.0V
Voltage Rating DC (VR) at 85°C
4.0V
6.3V
K
K
L
R
R
R
A
A
TAK
Developmental Ratings - subject to change
R
R
R
R
R
R
R
39
TMC Series
Established Reliability TACmicrochip™

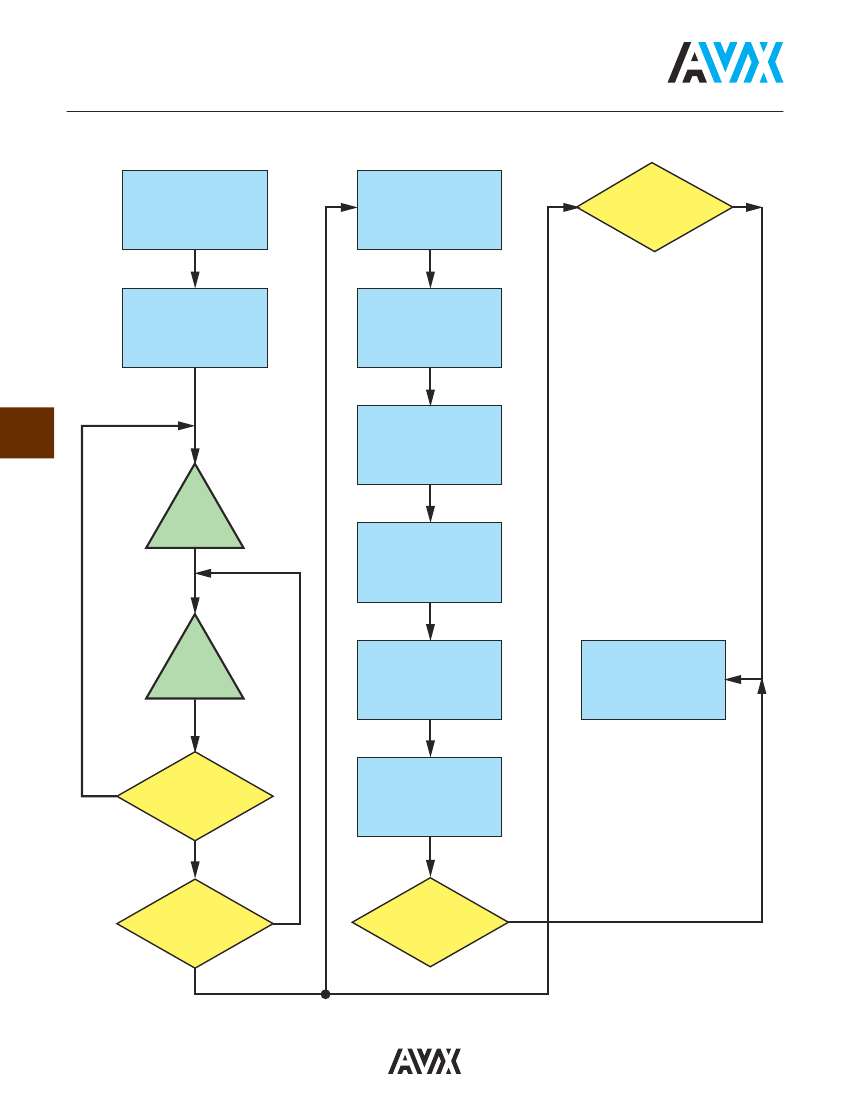

Production Processing,
Test, and Inspection
100% Thermal Shock
Conditioning
MIL-STD-202, Method 107,
Condition F
(10 cycles)
Simulated
Function Test
20 pc random sample
selected
Electrical Measurements
Cap, DF, ESR & DCL
Additional
Function Tests
Solderability
Test, MIL-C-55365
n = -13, c = 0
Pass
100% Weibull
Grading to FRL B minimum
(1.3*WVDC @ 85°C
for 40 hours, minimum)
Simulated
Mounting
30 sec @ 235°C
Simulated Rework
Repeat Mounting
Procedure 2 times
100%
Elec. Test
Simulated
Preconditioning
24 hours @ 150°C
100%
Mech. Insp.
Thermal Shock
MIL-STD-202, Method 107,
Condition F (10 cycles)
Electrical Measurements
Cap, DF, ESR, & DCL
Receipt to inventory
for shipment
Simulated Life Test
Fail
AQL
Electrical
Inspection
1.3*WVDC @ 85°C
for 6 hours
(accel = 279.15)
AQL
Mechanical
Inspection
Fail
Electrical
Measurements
Cap, DF, ESR & DCL
c=0
Pass
Note:
Under specific conditions,
contained in documented procedures,
a lot that fails inspection may be
re-tested and/or reworked for
resubmissions.
Electrical test parameters are set in accordance
with customer’s specification.
Pass
40
