54FCT2241ATDB

Description
Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CDIP20
Categorylogic    logic
File Size343KB,6 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric View All

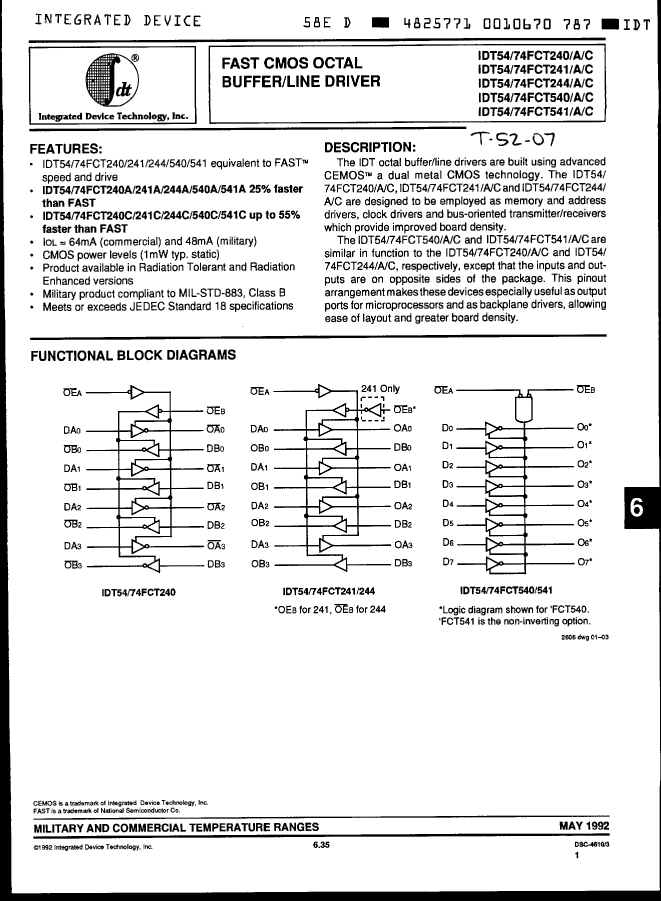

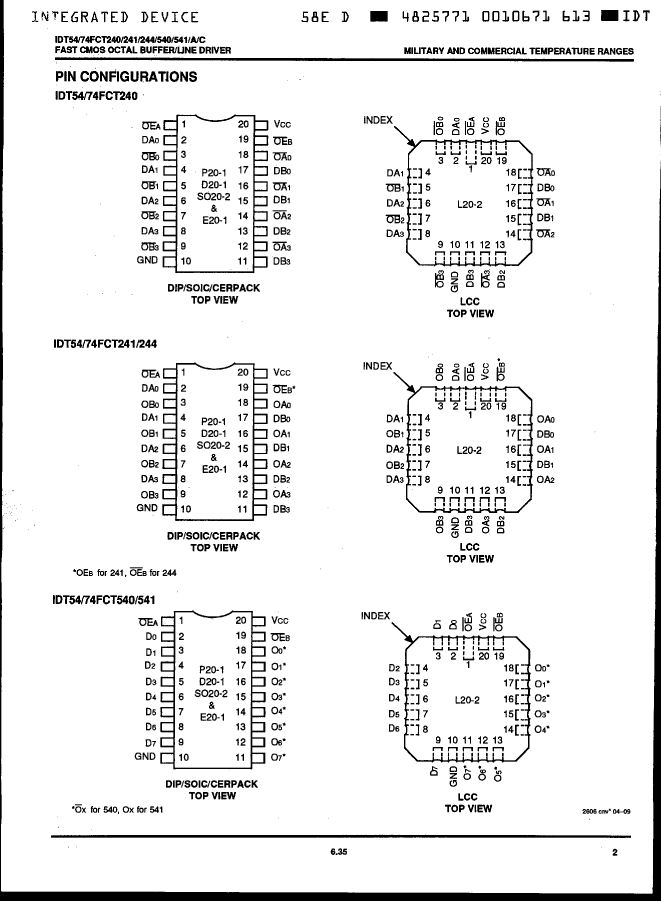

54FCT2241ATDB Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CDIP20

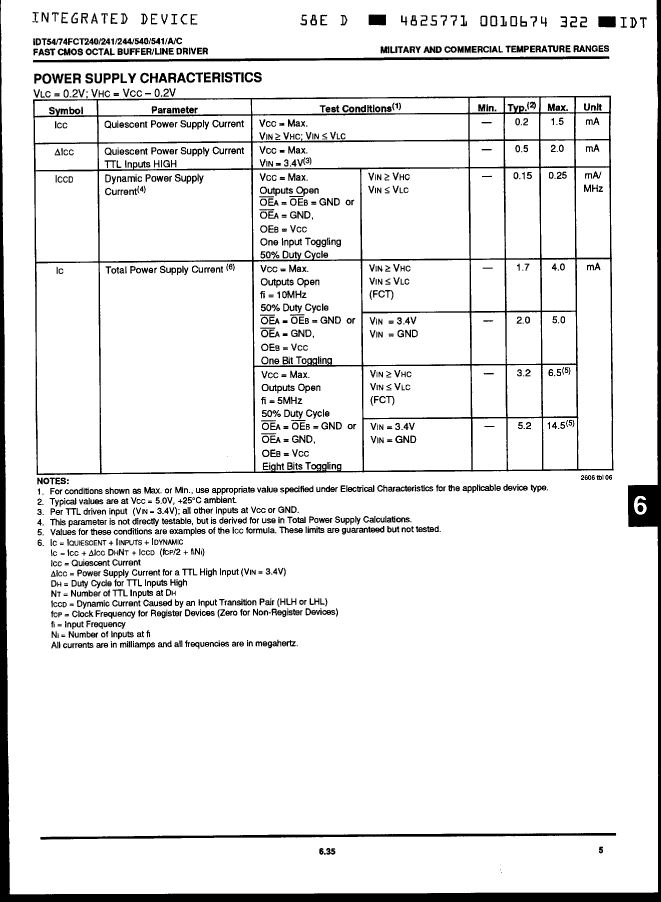

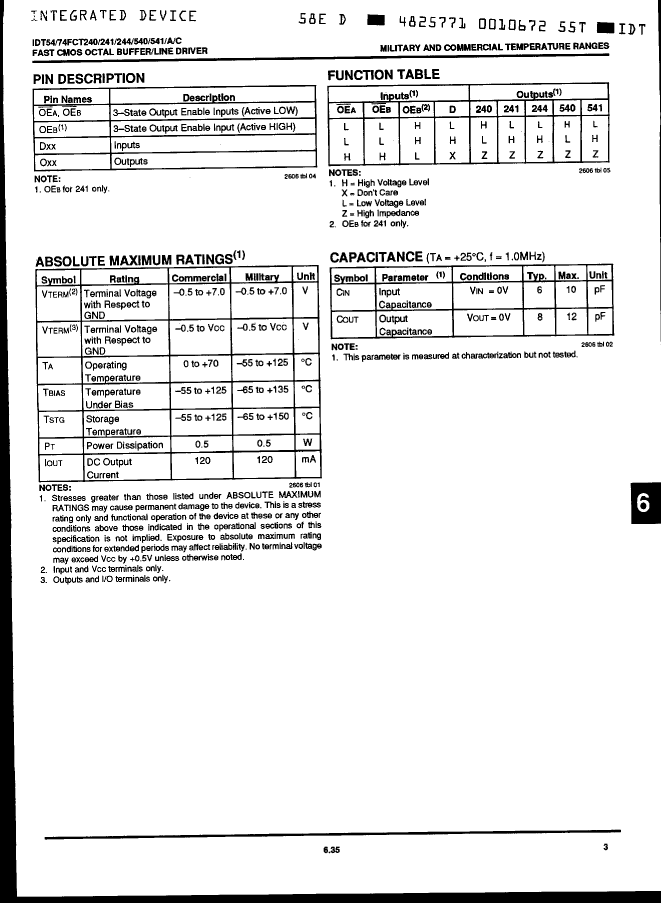

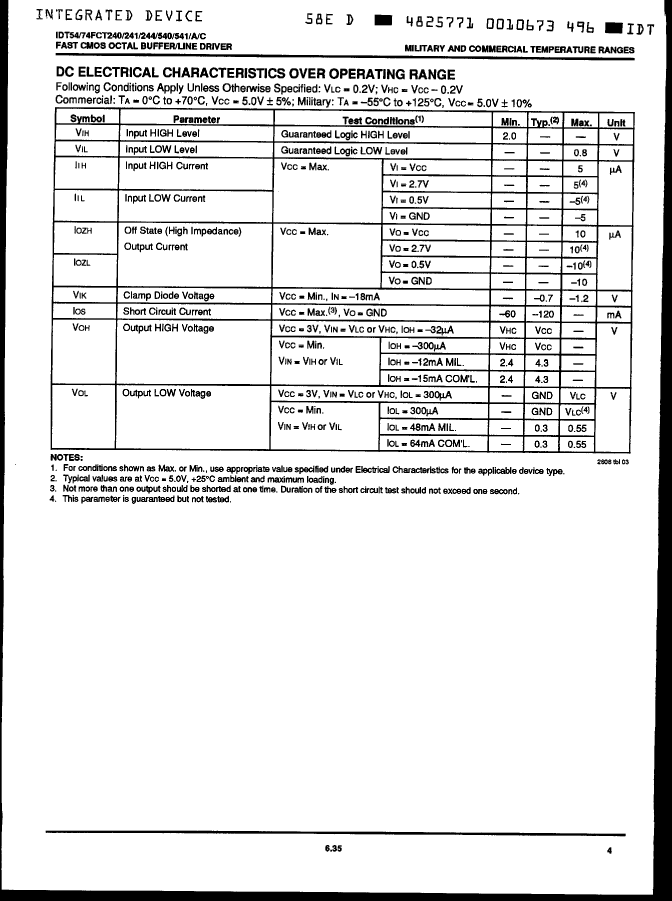

54FCT2241ATDB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1156961161
package instructionDIP, DIP20,.3
Reach Compliance Codenot_compliant
YTEOL0
Control typeENABLE LOW/HIGH
JESD-30 codeR-XDIP-T20
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.012 A
Number of digits4
Number of functions2
Number of ports2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP20,.3
Package shapeRECTANGULAR
Package formIN-LINE
Prop。Delay @ Nom-Sup5.1 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
