BPH-2-SM-52-SD-GD-CP: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BPH-2-SM-52-SD-GD-CP Overview

Board Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle

BPH-2-SM-52-SD-GD-CP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304485750
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	8.4
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.087 inch
body length	2.047 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.4958 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	52

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

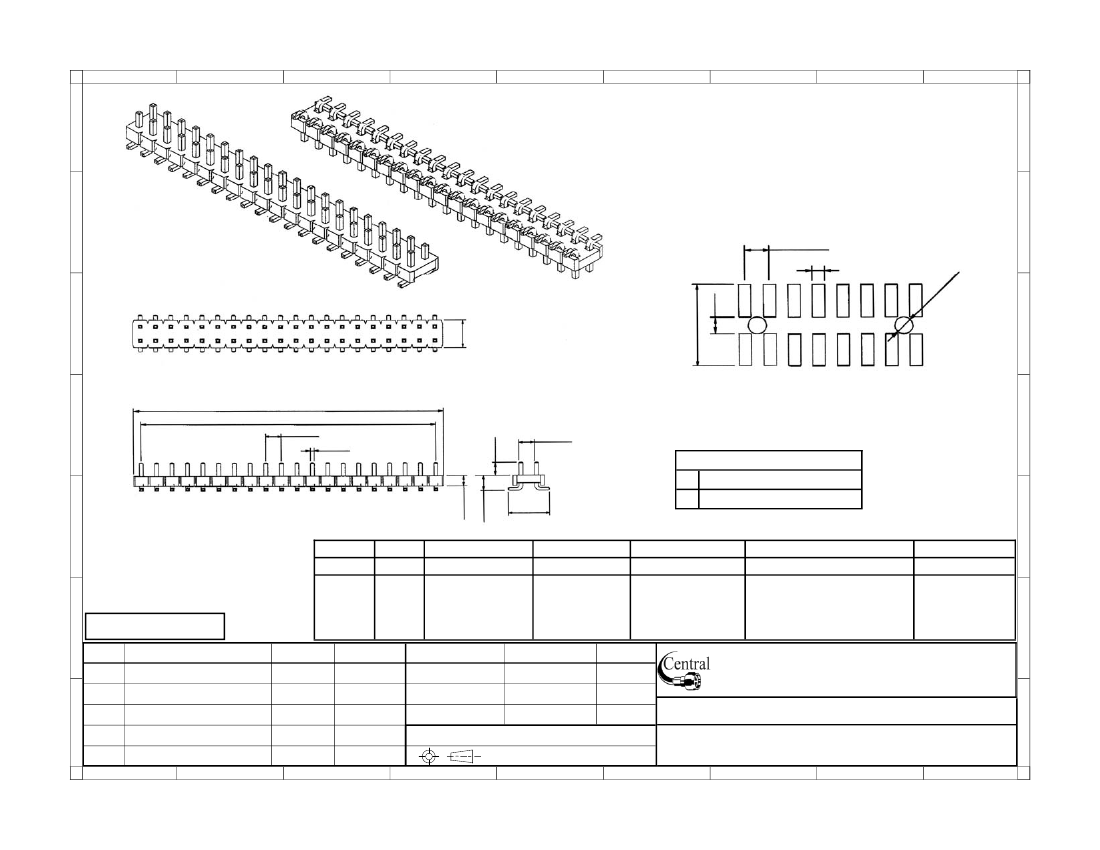

SPECIFICATIONS

Contact material:

Contact plating:

Insulator material:

Brass

Gold flash over nickel

Nylon 6T, UL94V-0

A

Recommended PC Board Layout

B

2.0 pitch

1

1.5

.5

ø1

C

4.0±0.15

G±0.35

1.9±0.2

D

H±0.13

2.0 pitch

0.5 SQ

2.0 pitch

D

1.5±0.15

2.2±0.2

E

5.3±0.3

7.5

Dimensions

G 2.0mm” x No. of positions

H A+2.0mm

E

Series

BHD

2mm pin

header

F

Rows

2

2 rows

RoHS compliant

Rev.

Description

Date

Approved

Type

Contacts

Contact length

Plating

Options

XX

[blank]=Straight

Double row: 2-80 SD=Standard (.157”) GDXX=Gold

[blank]=None

RA=Right angle

CSL(A/F) for

SGXX=Duplex

CP=Centering pin

SM=Surface mount

custom length

TN=Tin

XX=Flash if blank; 15, 30, 50µ”

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

Central Components Manufacturing

11/21/07

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

11/21/07

11/21/07 Part No.:

BPH-2-SM-XX-CSL(1.91/5.33)-GDXX-CP

Description: Pin header, 2mm pitch

6

7

8

9

F

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm
