L2020CWBK

Description
Mains Power Connector,
CategoryThe connector    The connector
File Size157KB,1 Pages
ManufacturerCooper Industries
Download Datasheet Parametric View All

L2020CWBK Overview

Mains Power Connector,

L2020CWBK Parametric

Parameter NameAttribute value
Objectid1810057373
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeMAINS POWER CONNECTOR

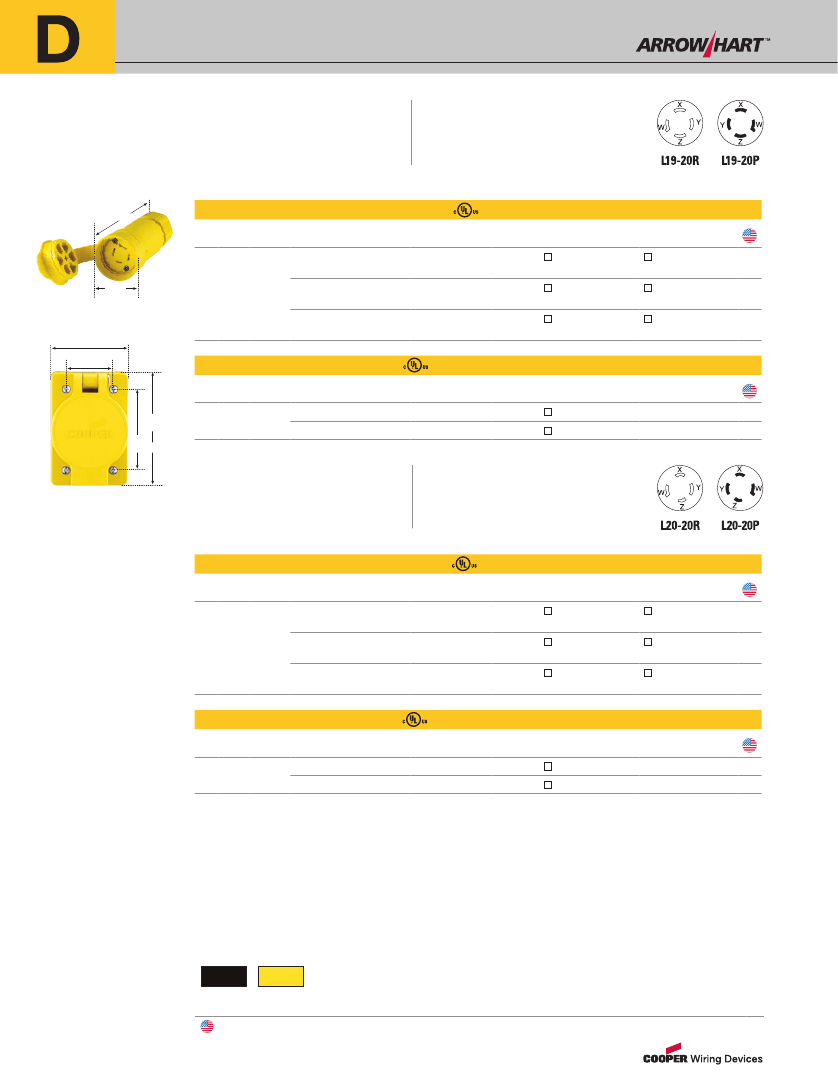

SECTION
20A Locking Devices
Hart-Lock
Complex Environment
Locking Devices
5.42"
(137.7mm)
4-Pole, 4-Wire Non-Grounding
20A, 3ØY 277/480V/AC
NEMA L19-20
Hart-Lock 3ØY Plugs & Connectors
A
Rating
V/AC NEMA
Description
Cord
Diameter
Color
Plug
Catalog No.
Connector
Catalog No.
20
2.49"
(63.2mm)
277/ L19-20 3ØY Watertight
480
3ØY Watertight
3ØY Severe Duty
0.36-0.84"
(9.1-21.3mm)
0.36-0.84"
(9.1-21.3mm)
Y
BK
L1920PW
L1920PWBK
L1920PY
L1920CW
L1920CWBK
L1920CY
L1920CW
3.10" (78.7mm)
1.88"
(47.8mm)
0.63-1.16"
Y & BK
(15.9-29.4mm)
Hart-Lock 3ØY Receptacles
A
4.60"
(116.8mm)
3.25"
(82.6mm)
Rating
V/AC NEMA
Description
Color
Single Receptacle
Catalog No.
20
277/ L19-20 3ØY Watertight
480
3ØY Watertight
Y
BK
L1920RW
L1920RWBK
L1920RW
Hart-Lock
Complex Environment
Locking Devices
Rating
V/AC NEMA
4-Pole, 4-Wire Non-Grounding
20A, 3ØY 347/600V/AC
NEMA L20-20
Hart-Lock 3ØY Plugs & Connectors
A
Description
Cord
Diameter
Color
Plug
Catalog No.
Connector
Catalog No.
20
347/ L20-20 3ØY Watertight
600
3ØY Watertight
3ØY Severe Duty
0.36-0.84"
(9.1-21.3mm)
0.36-0.84"
(9.1-21.3mm)
Y
BK
L2020PW
L2020PWBK
L2020PY
L2020CW
L2020CWBK
L2020CY
0.63-1.16"
Y & BK
(15.9-29.4mm)
Hart-Lock 3ØY Receptacles
A
Rating
V/AC NEMA
Description
Color
Single Receptacle
Catalog No.
20
347/ L20-20 3ØY Watertight
600
3ØY Watertight
Y
BK
L2020RW
L2020RWBK
Dimensional Information:
D-33
Specification Information:
Watertight Industrial Plugs &
Connectors: D-36
Watertight Industrial
Receptacles: D-37
Severe Duty Industrial
Plugs & Connectors: D-38
Color Information:
BK
(Black)
Colors: BK (Black), Y (Yellow)
Y
(Yellow)
Specifications and availability are subject to change without notice.
Indicates NAFTA Compliant - Page R-30
D-26
www.arrowhart.com
