ZPM3570
ZigBee Pro Module
Data Sheet
www.RFM.com
© 2011 by RF Monolithics, Inc.
Technical support +1.678.684.2000
E-mail:
tech_sup@rfm.com
Page 1 of 18
ZPM3570 Data Sheet - 05/25/11
Table of Contents
1 System Description .................................................................................................................................... 4
1.1 Applications............................................................................................................................................. 4
1.2 Module Summary.................................................................................................................................... 4
1.3 Block Diagram......................................................................................................................................... 4
1.4 Acronyms ................................................................................................................................................ 5
2 Mechanical Specifications ......................................................................................................................... 5
2.1 Module Dimensions ................................................................................................................................ 5
2.2 Module Outline Drawing ......................................................................................................................... 5
2.3 Module Bottom View............................................................................................................................... 6
2.4 Detailed Mechanical Data (Top View) .................................................................................................... 6
2.5 Module Pin Out ....................................................................................................................................... 7
3 DC Electrical Specifications....................................................................................................................... 8
3.1 Typical Power Consumption ................................................................................................................... 8
3.2 Digital IO Specifications .......................................................................................................................... 8
4 RF Specifications ....................................................................................................................................... 9
5 Environmental Specifications..................................................................................................................... 9
5.1 Absolute Maximum Ratings .................................................................................................................... 9
5.2 Recommended Operating Conditions .................................................................................................... 9
6 Application Information ............................................................................................................................ 10
6.1 Connection Reference for the UART Host Interface ............................................................................ 10
6.2 Connection Reference for the SPI Host Interface ................................................................................ 10
6.3 Recommended Host (Customer) Circuit Board PCB Land Pattern...................................................... 11
6.4 Host PCB Layout Recommendations ................................................................................................... 12
6.5 Module Location ................................................................................................................................... 13
6.5.1 Location in x-y Plane ......................................................................................................................... 13
6.5.2 Location in z Plane ............................................................................................................................ 14
7 Assembly Information .............................................................................................................................. 14
7.1 Lead-free Reflow Soldering Profile ...................................................................................................... 14
8 Package Information ................................................................................................................................ 15
8.1 Tape and Reel Specifications ............................................................................................................... 15
9 Ordering Information ................................................................................................................................ 16
10 RoHS Declaration .................................................................................................................................. 16
11 Regulatory Information .......................................................................................................................... 16
11.1 FCC Notice (USA) .............................................................................................................................. 16
11.1.1 FCC Labeling Requirements ........................................................................................................... 17
11.1.2 RF Exposure .................................................................................................................................... 17
11.2 IC Notice (CANADA)........................................................................................................................... 17
11.3 CE Notice (EUROPE) ......................................................................................................................... 18
12 Technical Support Contact .................................................................................................................... 18
13 References............................................................................................................................................. 18
www.RFM.com
© 2011 by RF Monolithics, Inc.
Technical support +1.678.684.2000
E-mail:
tech_sup@rfm.com
Page 2 of 18
ZPM3570 Data Sheet - 05/25/11
List of Figures
Figure 1 ZPM3750 Module Block Diagram................................................................................................... 4
Figure 2 Module Top and Side View............................................................................................................. 5
Figure 3 Module Bottom View....................................................................................................................... 6
Figure 4 Detailed Mechanical Data (Top View) ............................................................................................ 6
Figure 5 UART Host Interface Reference Diagram ................................................................................... 10
Figure 6 SPI Host Interface Reference Diagram ........................................................................................ 10
Figure 7 Recommended Host (Customer) PCB Pattern............................................................................. 11
Figure 8 Recommended Host Circuit Board Design Underneath the Module............................................ 12
Figure 9 Recommended Locations in x-y Plane......................................................................................... 13
Figure 10 Locations Not Recommended in x-y Plane ................................................................................ 13
Figure 11 Recommended Locations in z Plane.......................................................................................... 14
Figure 12 Locations not Recommended IN x-y Plane ................................................................................ 14
Figure 13 Recommended Solder Reflow Profile ........................................................................................ 15
Figure 14 Tape Dimensions........................................................................................................................ 15
www.RFM.com
© 2011 by RF Monolithics, Inc.
Technical support +1.678.684.2000
E-mail:
tech_sup@rfm.com
Page 3 of 18
ZPM3570 Data Sheet - 05/25/11
1 System Description
1.1 Applications
RFM’s ZPM3750 module is a standards-based wireless transceiver designed for Smart Energy and other
short range wireless markets that require low power consumption, high transmit power (20 dBm typical)
and high receiver sensitivity (-103 dBm). The ZPM3750 is based upon the IEEE 802.15.4 wireless net-
work specification and includes the ZigBee PRO stack. The module can be used to develop applications
supporting the ZigBee PRO Smart Energy and Home Automation application profiles. The ZPM3750
module operates in the 2.4 GHz unlicensed ISM frequency band for worldwide deployment.
1.2 Module Summary
• Dimensions: 27.20 x 14.75 x 2.90 mm
• Ember EM357 high-performance, integrated ZigBee/802.15.4 chipset
• Supply voltage: 2.4 to 3.4 V
• Data logging memory: 8 Mbits serial flash
• Security: 128-bit AES
• Antenna: on-module
• Host Interface: SPI, UART
• Meter interface: I2C, GPIO
• ADC ports: 6 x 14-bit
• RoHS compliant
• MSL JEDEC level 3
1.3 Block Diagram

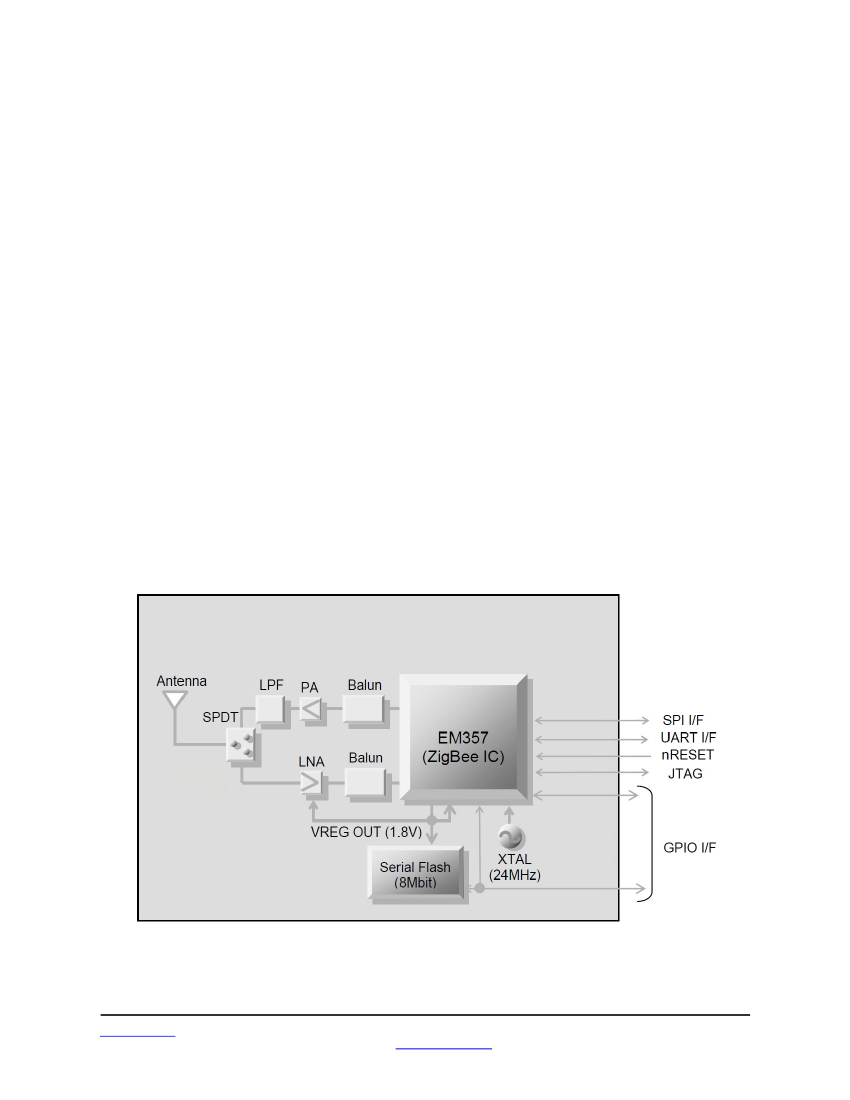

Figure 1 - ZPM3750 Module Block Diagram
www.RFM.com
© 2011 by RF Monolithics, Inc.
Technical support +1.678.684.2000
E-mail:
tech_sup@rfm.com
Page 4 of 18
ZPM3570 Data Sheet - 05/25/11
1.4 Acronyms
ADC
AMR
GPIO
I2C
ISM
MAC
MSL
PER
ROHS
SPI
UART
WPAN
Analog to Digital Converter
Automatic Meter Reading
General-Purpose Input-Output
Intelligent Interface Controller
Industrial, Scientific and Medical
Medium Access Control
Moisture Sensitivity Level
Packet Error Rate
Restriction of Hazardous Substances
Serial Peripheral Interface
Universal Asynchronous Receiver-Transmitter
Wireless Personal Area Network
2 Mechanical Specifications
2.1 Module Dimensions
Parameter
Dimensions (L x W x H)
Dimensional Tolerances (L, W, H)
Typical
27.20 x 14.75 x 2.90
±0.20, ±0.20, ±0.15
Units
mm
mm
2.2 Module Top and Side View

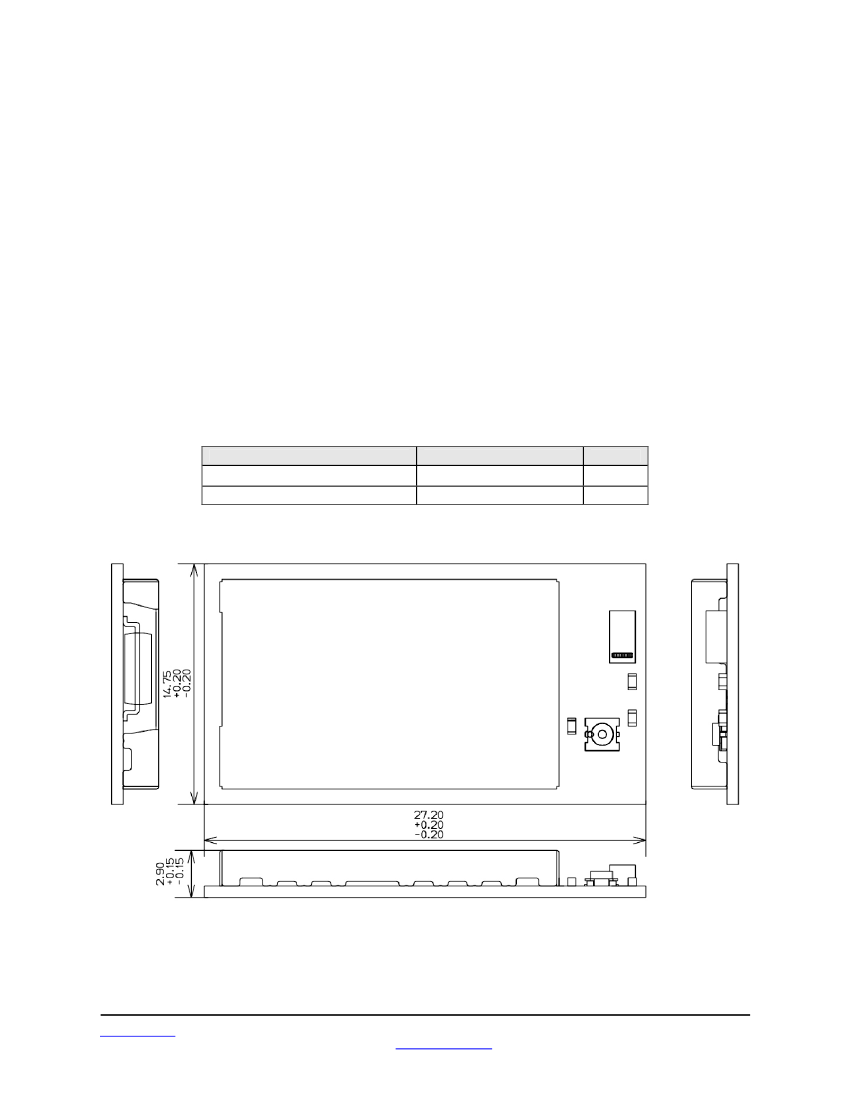

Figure 2 - ZMP3570 Outline Drawing
www.RFM.com
© 2011 by RF Monolithics, Inc.
Technical support +1.678.684.2000
E-mail:
tech_sup@rfm.com
Page 5 of 18
ZPM3570 Data Sheet - 05/25/11
