5258F-26TB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5258F-26TB

Preview

5258F-26TB: DescriptionD Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5258F-26TB Overview

D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Plug

5258F-26TB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307113276
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.559 inch
body length	1.54 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
Shell surface	TIN
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

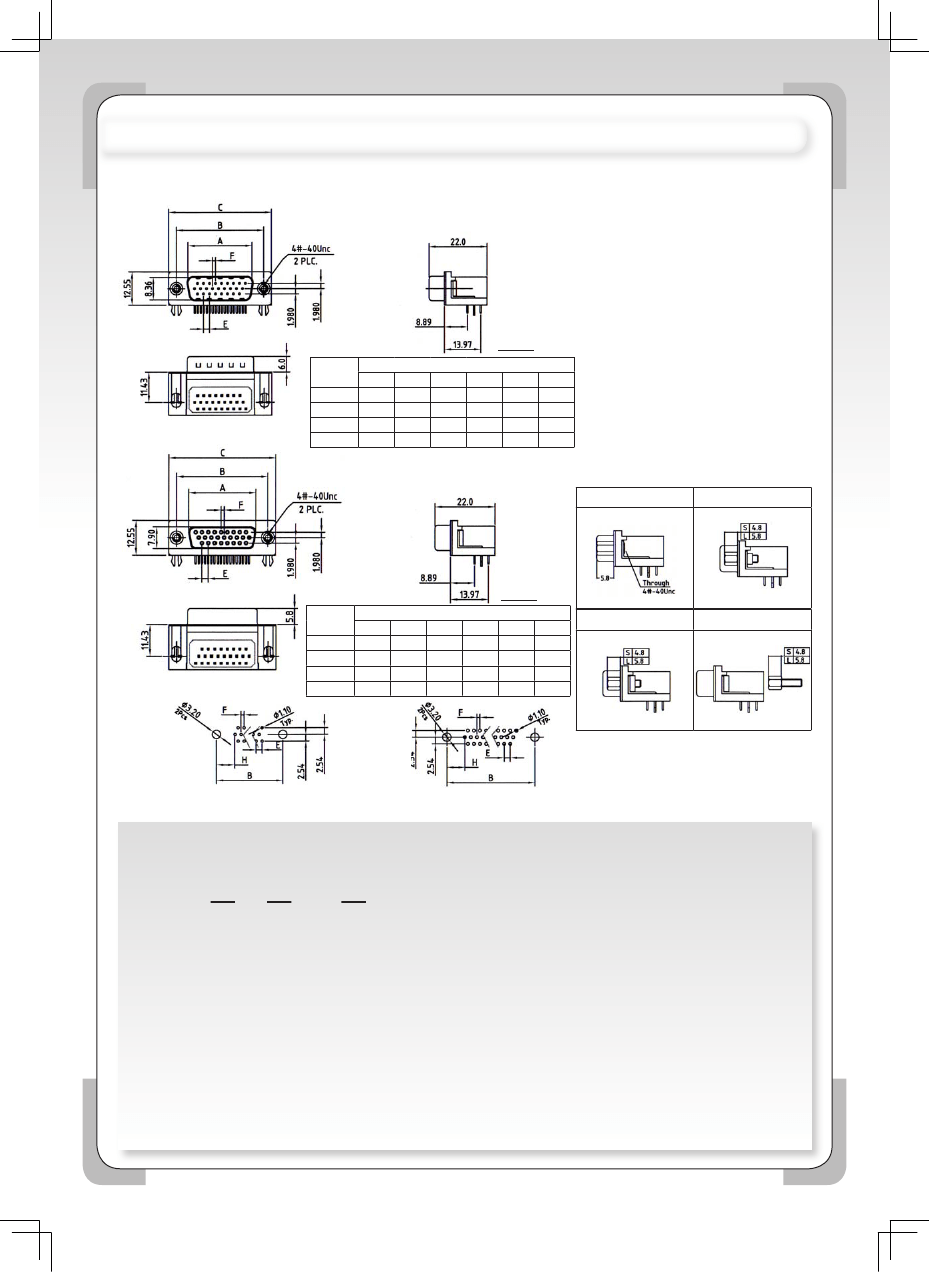

D-SUB. HIGH DENSITY CONNECTOR RIGHT ANGLE TYPE WITH

STAMPED CONTACTS & FERRITE (8.89MM)

SPECIFICATIONS

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

5257F

No. of

Contacts

15

26

44

62

A

16.92

25.25

38.96

55.42

Dimensions(mm)

B

C

E

F

24.99 30.81 2.29 1.145

33.32 39.14 2.29 1.145

47.04 53.04 2.29 1.145

63.50 69.32 2.41 1.205

H

7.04

6.88

7.00

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

MATERIALS

N

(BLANK)

5258F

No. of

Contacts

15

26

44

62

A

16.33

24.66

38.38

54.84

Dimensions(mm)

B

C

E

F

24.99 30.81 2.29 1.145

33.32 39.14 2.29 1.145

47.04 53.04 2.29 1.145

63.50 69.32 2.41 1.205

H

7.04

6.88

7.00

NJ

NH

Recommended P.C.Board Layout

(15 POSITION)

Recommended P.C.Board Layout

(26, 44, 62 POSITION)

ORDERING INFORMATION:

P/N 5 2 x x F - x x T B / x x

1

2

3

1. CONNECTOR TYPE:

"57" MALE

"58" FEMALE

2. NO. OF CONTACTS:

15, 26, 44, 62

3. MOUNTING OPTION:

" " LOCKED SCREWS (4.8MM)

"N" WITHOUT SCREWS (5.8MM)

"NH" LOOSE SCREWS (4.8MM)

"NJ" ASSEMBLED SCREWS (4.8MM)

C0069
