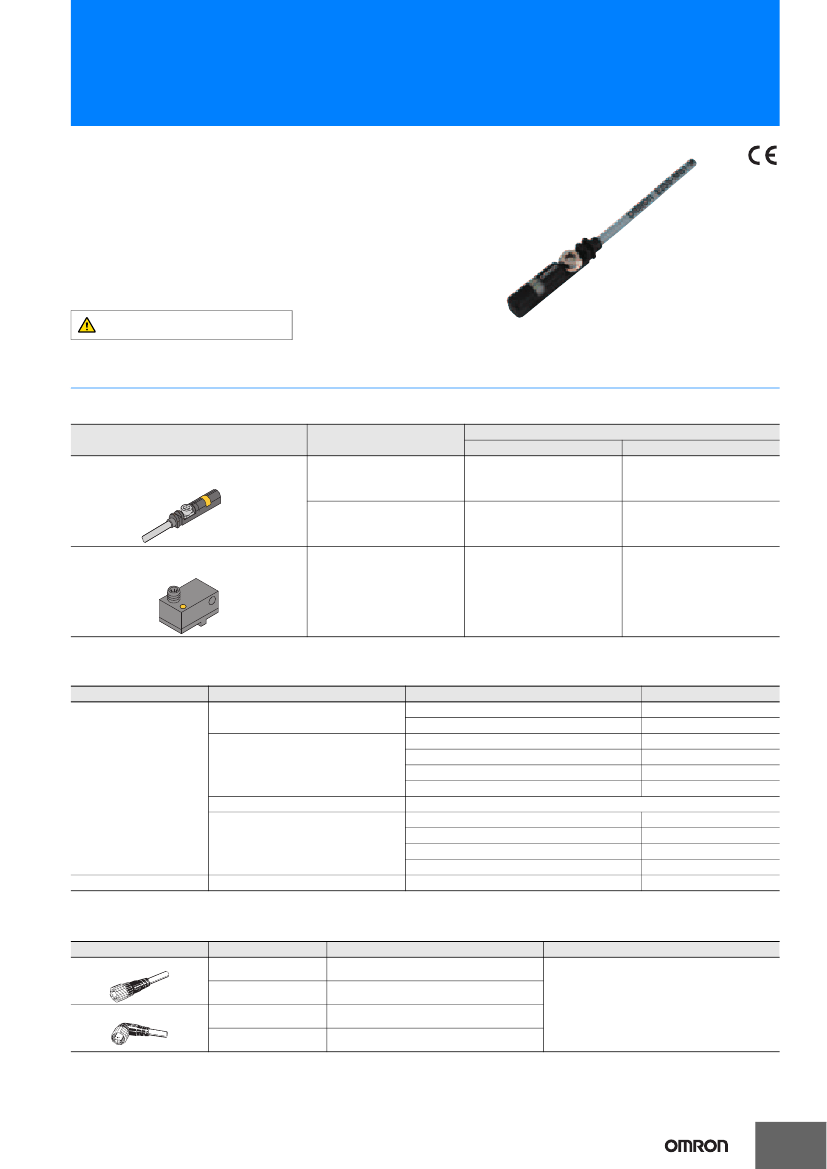

Cylinder Sensor
E2SS
CSM_E2SS_DS_E_1_1
Mounts to Any Type of Cylinder
• One shape of Sensor for all types of cylinders.
• Mounting is simple even in narrow spaces.
• Operating condition is confirmable at a glance.

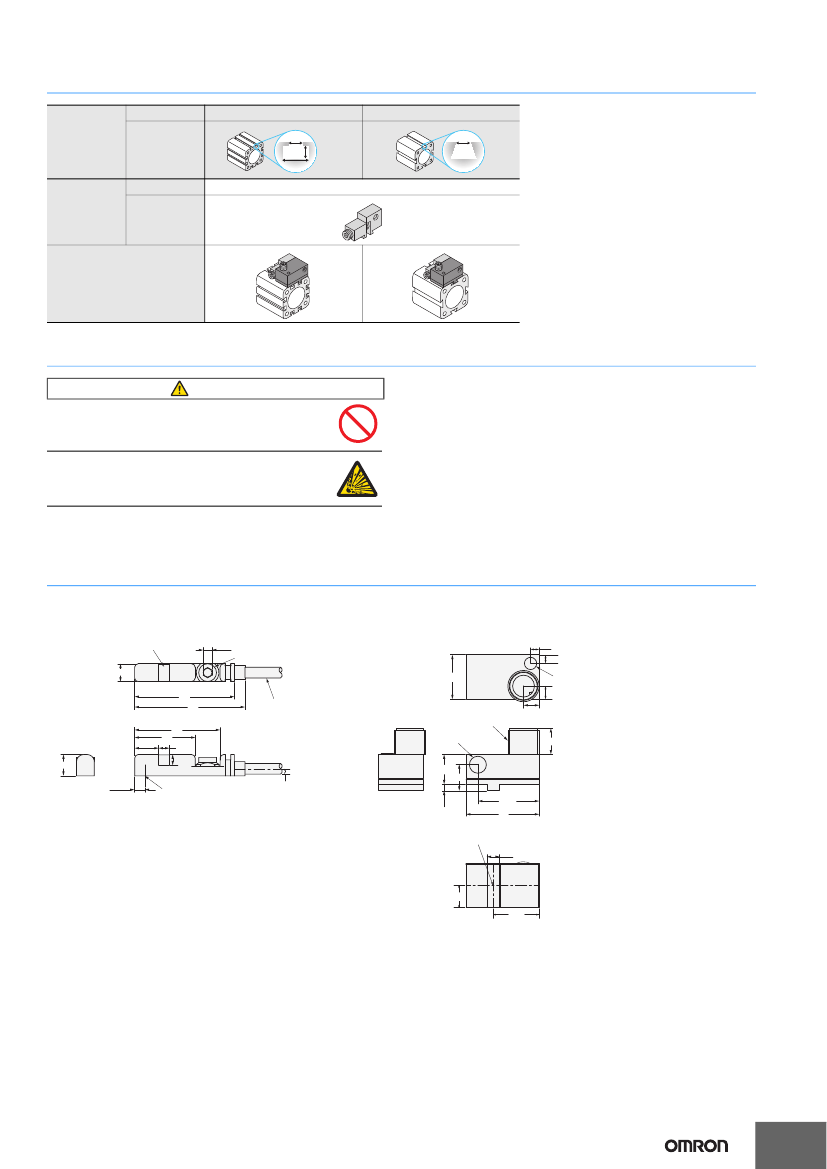

Refer to
Safety Precautions
on page 4.
For the most recent information on models that have been certified
for safety standards, refer to your OMRON website.
Ordering Information
Sensors
(Dimensions
➜
page 4)
Series
Standard Models
E2SS-M
Connection method
Model
NPN output
E2SS-MC1 2M
PNP output
E2SS-MB1 2M
Pre-wired (2 m)
M12 Pre-wired connector
(0.3 m)
Magnetic Field Immune Models
E2SS-W
M12 Connector
E2SS-MC1-M1J 0.3M
E2SS-MB1-M1J 0.3M
E2SS-WC1-P1
E2SS-WB1-P1
Accessories (Order Separately)
Mounting Brackets
A Mounting Bracket is not provided with the Sensor and must be ordered separately as required.
Series
Round
Applicable cylinders
Cylinder diameter or groove width
8 to 25 mm dia.
25 to 63 mm dia.
32 to 40 mm dia.
50 to 63 mm dia.
80 to 100 mm dia.
160 to 200 mm dia.
Not necessary (mounted directly)
7 mm
9.4 mm
11.5 mm
12.6 mm
-
Model
E2SS-MR1
E2SS-MR2
E2SS-MT1
E2SS-MT2
E2SS-MT3
E2SS-MT4
E2SS-MV1
E2SS-MV2
E2SS-MV3
E2SS-MV4
E2SS-WV1
Tie-rod
E2SS-M
T-groove
Dovetail-groove
E2SS-W
T-groove or dovetail-groove
Sensor I/O Connectors (M12, Sockets on One Cable End)
(Required for models for Connectors and with Pre-wired Connectors.) A Connector is not provided with the Sensor. Be sure to order a
Connector separately.
(Dimensions
➜
XS2F)
Appearance
Cable length
Sensor I/O Connector model number Applicable Proximity Sensor model number
Straight
2m
XS2F-D421-DC0-F
5m
L-shape
2m
5m
XS2F-D421-GC0-F
XS2F-D422-DC0-F
XS2F-D422-GC0-F
E2SS-M@1-M1J
E2SS-W@1-P1
1
E2SS
Ratings and Specifications
Model
Item
Power supply voltage
Detection sensitivity
(magnetic sensitivity)
Current consumption
Hysteresis
Repeat accuracy
Pass speed
Switching frequency

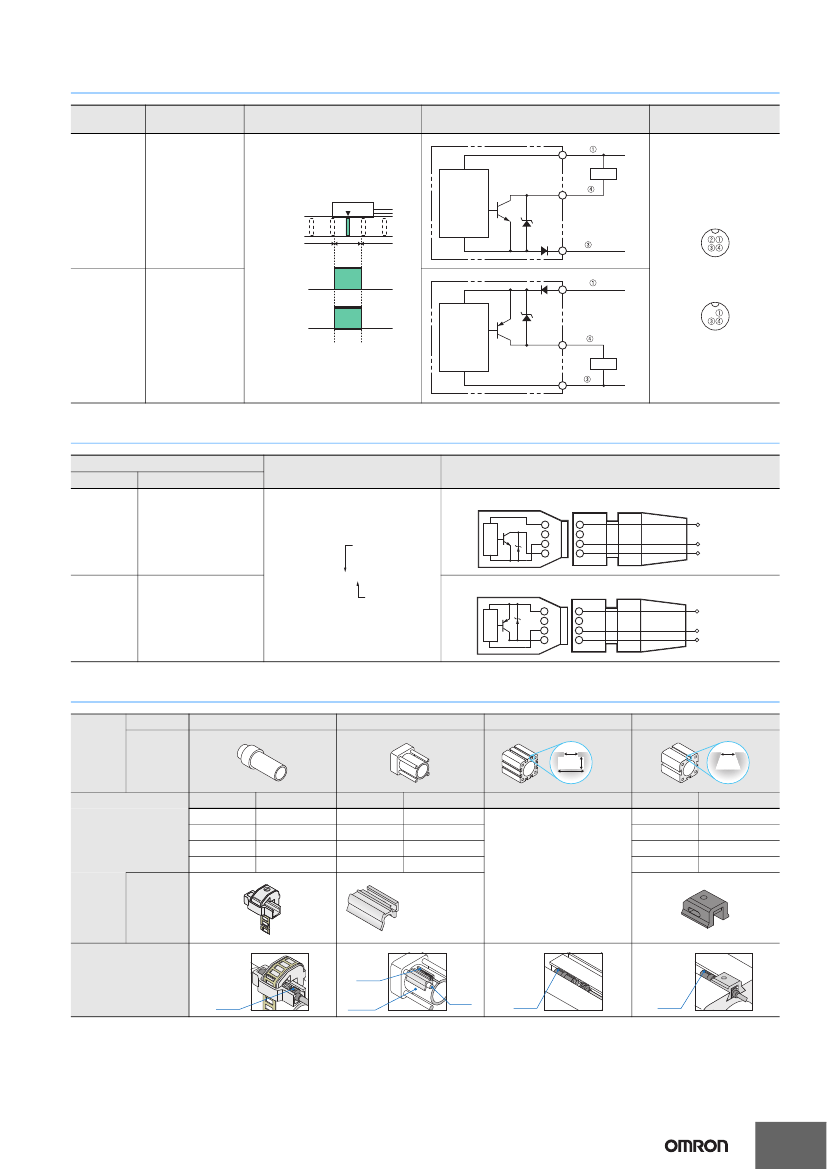

Control
output
Indicator
Operation mode
Protective circuits
Ambient temperature
Ambient humidity
Insulation resistance
Dielectric strength
Vibration resistance
(endurance)
Shock resistance (endurance)
Degree of protection
Connection method
Weight (when packed)
Materials
Accessories
Switching capacity
Residual voltage
Standard Models
E2SS-M Series
E2SS-MC1(-M1J)
E2SS-MB1(-M1J)
10 to 30 VDC (including ripple (p-p): 10 %)
2.8 mT max.
15 mA max.
1 mm max.
±0.1
mm max.
10 m/s max.
1 kHz max.
150 mA max.
2 V max. (Load current: 150 mA, Cable length: 2 m)
Operation indicator (yellow)
NPN open-collector,
NO (normally open)
PNP open-collector,
NO (normally open)
NPN open-collector,
NO (normally open)
PNP open-collector,
NO (normally open)
1 m/s max.
20 Hz max.
100 mA max.
2 V max. (Load current: 100 mA, Cable length: 2 m)
Magnetic Field Immune Models
*
E2SS-W Series
E2SS-WC1-P1
E2SS-WB1-P1
Power supply reverse polarity protection, output reverse polarity protection, and load short-circuit protection
Operating/Storage: -25 to 70°C (with no icing or condensation)
Operating/Storage: 35% to 95% (with no condensation)
50 MΩ min. (at 500 VDC) between charged parts and case
500 VAC, 50/60 Hz for 1 min between charged parts and case
10 to 55 Hz with 1.0-mm double amplitude for 2 hours each in X, Y, and Z directions
300 m/s
2
10 times each in X, Y, and Z directions
IEC 60529 IP67
Blank: Pre-wired (standard cable length: 2 m)
M12 connector
-M1J: Pre-wired M12 connector (cable length: 0.3 m)
Pre-wired models: Approx. 35 g
Pre-wired M12 connector models: Approx. 30 g
Case: PP, Cable: PUR
Instruction Manual, cable clip (one)
Approx. 25 g
Case: PA, Connector: PA
Instruction Manual, mounting screw (one)
* These models prevent malfunction in environments in which AC welding is being performed.
The Sensor will hold the ON or OFF control output condition when subjected to an AC magnetic field of 50 to 60 Hz and 10 to 100 mT.
When the field subsides, the Sensor returns to normal operation. (Standard models will malfunction under magnetic field noise of approximately 1 mT or higher.)
