412J-420132 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 412J-420132

Preview

412J-420132: DescriptionRF Coaxial Relay, SPDT, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 12400MHz, DC Input, Panel Mount,; CategoryMechanical and electronic products relay; File Size851KB，2 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric View All

412J-420132 Overview

RF Coaxial Relay, SPDT, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 12400MHz, DC Input, Panel Mount,

412J-420132 Parametric

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown
body width	44.5 mm
body height	58.4 mm
Body length or diameter	44.5 mm
Maximum coil current (DC)	0.32 A
Coil power	3840 mW
Coil resistance	37.5 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Installation features	PANEL MOUNT
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
physical size	44.5mm x 44.5mm x 58.4mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.6
Base Number Matches	1

Preview

Download Datasheet

View All

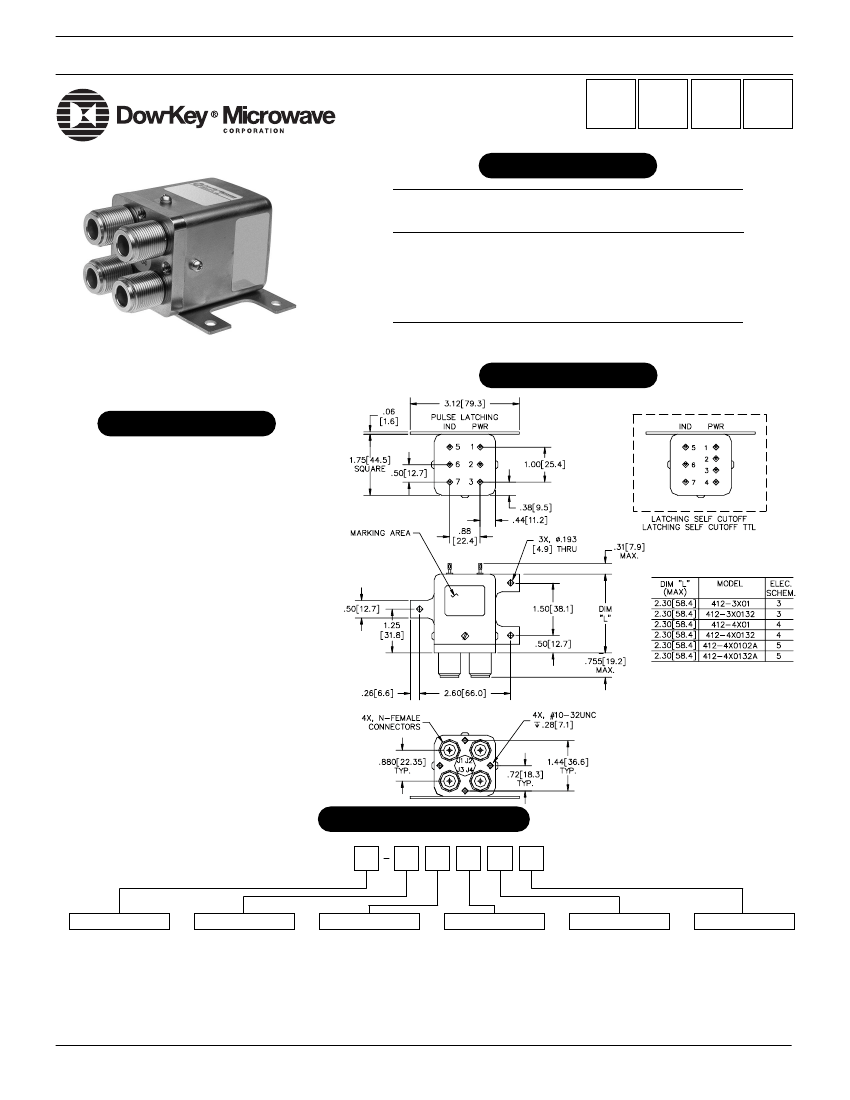

412 Series Transfer Latching

N, TNC, BNC, SC

C M A

Commercial

Military

Avionics

S

Space

RF Characteristics

Frequency

GHz

0-1

1-2

2-4

4-8

8-12.4

VSWR

(max)

1.15

1.20

1.25

1.45

1.60

Isolation

dB (min)

85

80

70

60

Ins. Loss

dB (max)

0.15

0.20

0.25

0.40

0.50

Note: RF characteristics for Type N & TNC female connectors, consult Dow-

Key for other connector configurations

412 Series Latching

Mechanical

Specifications

Operating Voltage:

(across temperature range)

12 Vdc (11-14 Vdc)

28 Vdc (24-32 Vdc)

Coil Current (max @ nom.Vdc & 20°C):

12 Vdc 320 mA

28 Vdc 185 mA

Switching Time:

20 mS maximum

Operating Temperature:

-25ºC to +65ºC (Standard)

-55ºC to +85ºC (Extended “T” Option)

Mechanical Life, Cycles:

1,000,000 minimum

Vibration, Operating:

10 G RMS, 20-2000 Hz

Mechanical Shock, Non-Operating:

30 G, 1/2 Sine, 11 mS

Nominal Weight:

14 oz., (397g.)

412-3X0132 Shown

Part Number Selection

412

J

4

2

01

02

A

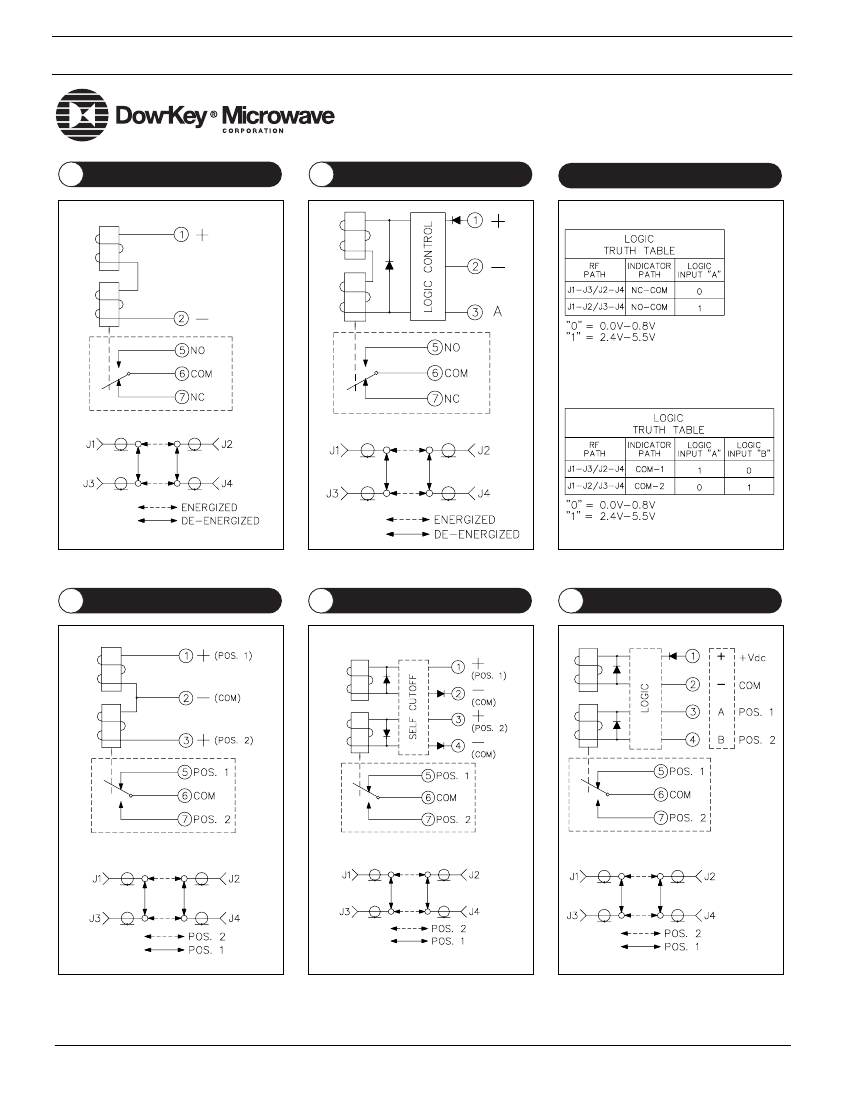

For Electrical Schematic

see page # 2-6

Special Options

Actuator

Coil Voltage

Connectors

Indicators

Circuit Options

A

=

C

=

J

=

N

=

P

=

R

=

S

=

T

=

High Power

Special Mounting Bracket

'D' Connector

No Mounting Bracket

Power Plug

(+) Com

Epoxy Seal

-55°C to + 85°C

3

= Pulse Latching

4

= Self Cutoff

7

= Pulse Latching with

Suppression Diodes

2

= 12Vdc

3

= 28Vdc

7 = 20Vdc

8

= 24Vdc

9

= 15Vdc

01

= N Female

02

= BNC Female

03

= TNC Female

53

= SC Female*

02

= No Indicators

32

= Indicators

A

= TTL High

*1” connector spacing

Consult Dow-Key for dimensions
