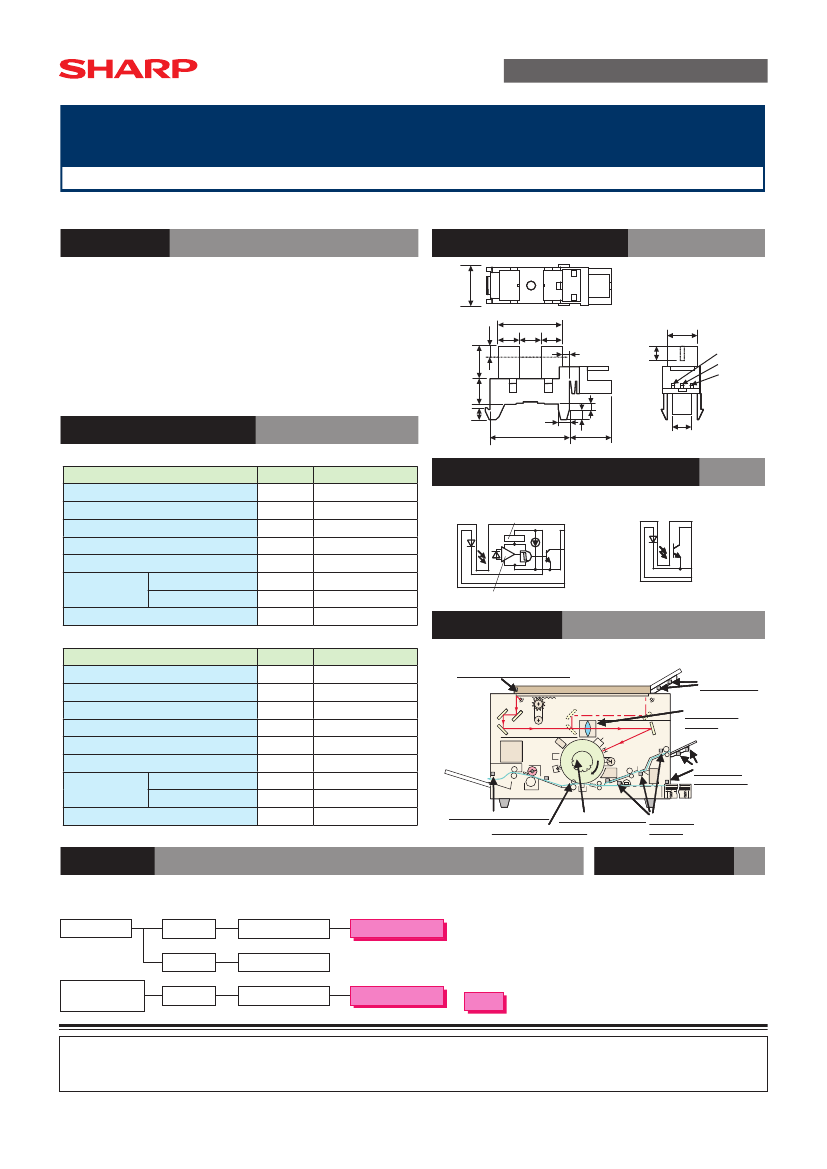

Photointerrupter with Connector
GP1A173LCS2F/GP1S173LCS2F
Features
n
Employs connector-united case and connector pin-united
frame.
Low cost by part reduction
n
High operating temperature (-30 to +95 °C)
Extending area to mount photointerrupter under high/low
temperature condition in copier & LBP.
n
High reliability of connection improved by combined case &
connector as one part.
n
Mechanical installation is compatible with conventional
models. (GP1A73/GP1S73 series)
Outline Dimensions
8
(Unit: mm)
SHARP mark
13.6
4.3
5
4.3
1.6
3.2
6.4
①
Vcc
②
Vout
③
GND
(Center)
2.3
7.2
5.6
2.3
Main Specifications
OPIC output type
【GP1A173LCS2F】
Parameter
Symbol
Operating supply voltage
V
CC
Low level supply current
I
CCL
Low level output voltage
V
OL
High level supply current
I
CCH
High level output voltage
V
OH
MIN. interruption time
t
H
Response
characteristics MIN. sensing time
t
L
Operating temperature
T
opr
Characteristics
4.5 to 5.5 V
MAX. 16.5 mA
MAX. 0.35 V
MAX. 16.5 mA
MIN. V
CC
× 0.9 V
MIN. 166 μs
MIN. 166 μs
-30 to +95 °C
2.4
17
1.1
2.3
8.9
4
Internal Connection Diagram
OPIC output type
【GP1A173LCS2F】
Voltage regulator
③
GND
②
Vo
①
Vcc
Amplifier
②
GND
①
Anode
Phototransistor output type
【GP1S173LCS2F】
③
Collector
Phototransistor output type
【GP1S173LCS2F】
Parameter
Symbol Characteristics
Forward voltage
V
F
1.2 to 1.4 V
Peak forward voltage
V
FM
TYP. 3 V
Reverse voltage
I
R
MAX. 10 mA
Dark current
I
CEO
MAX. 100 nA
Collector current
I
C
MIN. 0.5 mA
Collector-emitter voltage
V
CE (sat)
MAX. 0.4 V
Rise time
t
r
MAX. 15 μs
Response
characteristics
Fall time
t
f
MAX. 20 μs
Operating temperature
T
opr
-30 to +95 °C
Application
n
Example used in copier
Cover detection (open/close)
Paper detector
Lens position
detector
Paper stock
exist detector
Paper pass (exit) detector
Drum rotation detector Paper pass
detector
Paper separate detector
Lineup
n
Transmissive type photointerrupter with connector
Output type
OPIC output
Operating voltage
5 V drive
3 V drive
Phototransistor
output
5 V drive
Current model
GP1A73AJ000F
GP1A073LCS0F
GP1S73PJ000F
GP1S173LCS2F
: New product
General purpose type
GP1A173LCS2F
Applications
n
Copier, Laser beam printer
n
