804-030-00C10-26S

Description
Circular Connector
CategoryThe connector    The connector
File Size297KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Environmental Compliance
Download Datasheet Parametric View All

804-030-00C10-26S Overview

Circular Connector

804-030-00C10-26S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1340678357
Reach Compliance Codecompliant
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationGOLD (50)
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Number of contacts26
Contact size23
Coupling typeSNAP
rotation
empty shellNO
Environmental characteristicsENVIRONMENT RESISTANT
Filter functionNO
JESD-609 codee4
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
Maximum operating temperature200 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
polarizationN
Shell surfaceANODIZED BLACK
Shell materialALUMINUM ALLOY
Housing size10
Termination typeSOLDER
Total number of contacts26
Unique insertion number10-26

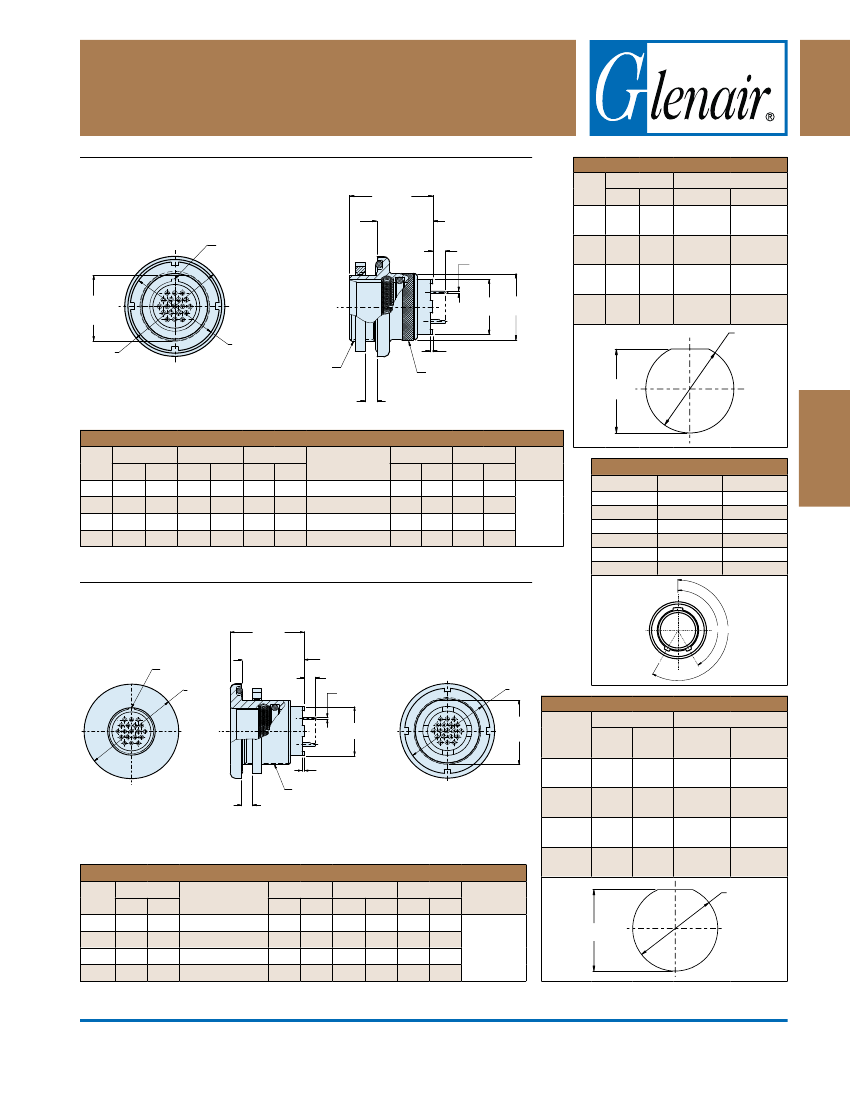

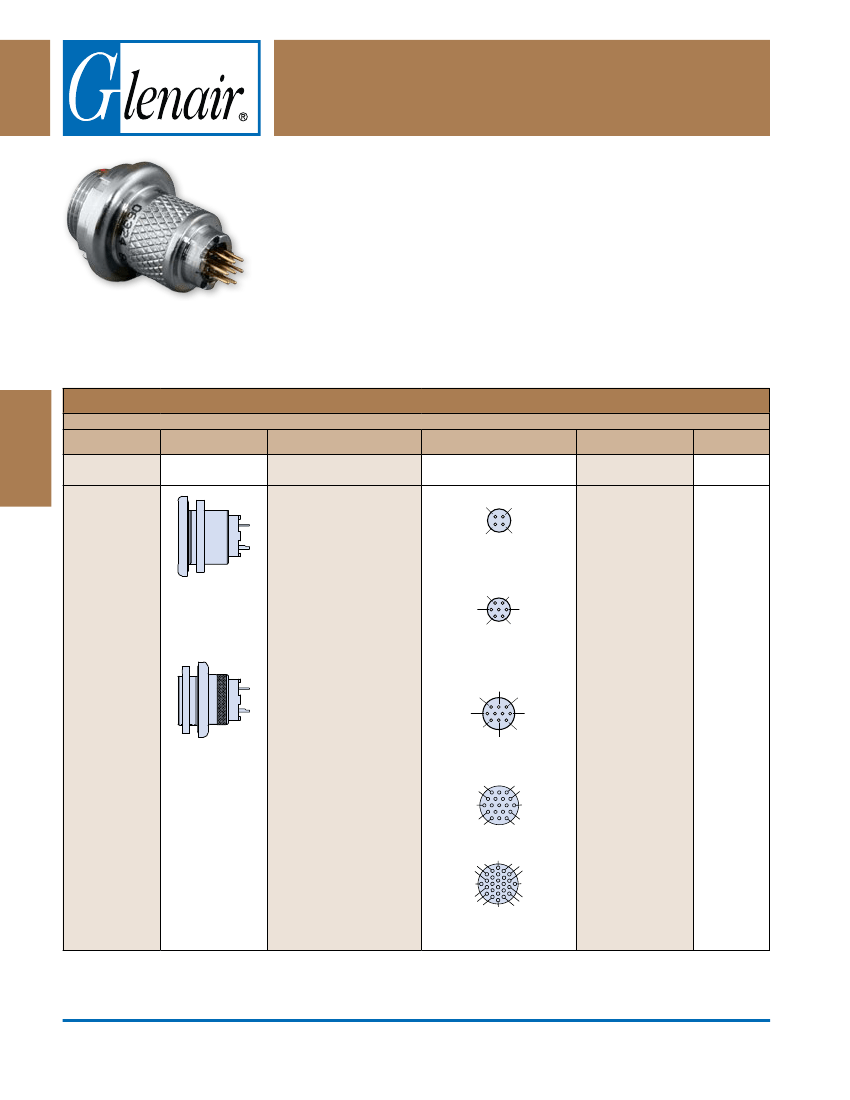

Rear and Front Mount Jam-Nut PCB or Solder Cup Receptacle
Ordering Information
Panel Mount Receptacles
feature factory-installed non-removable contacts. Choose
solder cup or printed circuit board terminals. Available in front or rear panel mount
versions.
Water Immersion, Unmated
Specify 804-030 connectors for applications where open face water immersion is
not a requirement. For MIL-STD-810 Method 512G immersion requirements, specify
804-031 watertight connectors . These 804-031 connectors are specially sealed
(“MoD-518”) and are 100% tested to maintain a helium leak rate of 1 x 10-4 cc/second
at one atmosphere pressure differential from -40C to +70C.
804-030
Series 804 Push-Pull High Speed Mighty Mouse
Series 804
Mighty Mouse
Series 804
Printed Circuit Board Receptacle
How To Order
C
Sample Part Number
804-030
Series
-07
Shell Style
M
Shell Material / Finish
6-4
Shell Size- Insert Arrangement
1
4
2
3
p
Contact Type
n
Shell Key
Position
receptacle for
Solder Cup or
PCB Termination,
With Standard
Epoxy Potting
receptacle for
Solder Cup or
PCB Termination,
With Special
“MoD-518”
Sealing For open
Face (unmated)
Water Immersion
requirements.
100% Leak
Tested.
804-030
Aluminum / Black Anodize
(Non-Conductive)
roHS Compliant
C
Connector supplied
with contacts
Pin
Socket
3
P
S
E
F
for Single
Master Key
Pos. A
(Normal)
Pos. B
Pos. C
Pos. D
Pos. E
Pos. F
OMIT
A
B
C
804-031
Jam Nut, Front
Panel
- 00
Aluminum / Electroless
Nickel
roHS Compliant
Aluminum / olive Drab
Cadmium over Electroless
Nickel Finish
Aluminum / Zinc-Nickel
over Electroless Nickel
M
6 - 4
1
6
5
7
2
4
NF
6 - 7
3
7
10
9
8
2
1
4
Pin,
Solder Cup
Socket,
Solder Cup
D
E
F
ZN
Jam Nut, rear
Panel
- 07
Aluminum / Zinc-Nickel
Black over Electroless
Nickel
Stainless Steel / Passivate
Stainless Steel / olive Drab
Chromate over Cadmium
Stainless Steel / Zinc Cobalt
Alloy / Black Chromate
ZNU
7 - 10
7
12
16
19
17
13
3
1
4
8
Z1
ZB
ZC
9 - 19
6 3
11
15
18
23
25
1
8
14
20
5
10
17
22
7
13
19
2 4
9
12
24
16
21
10-26
26
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
C-10
