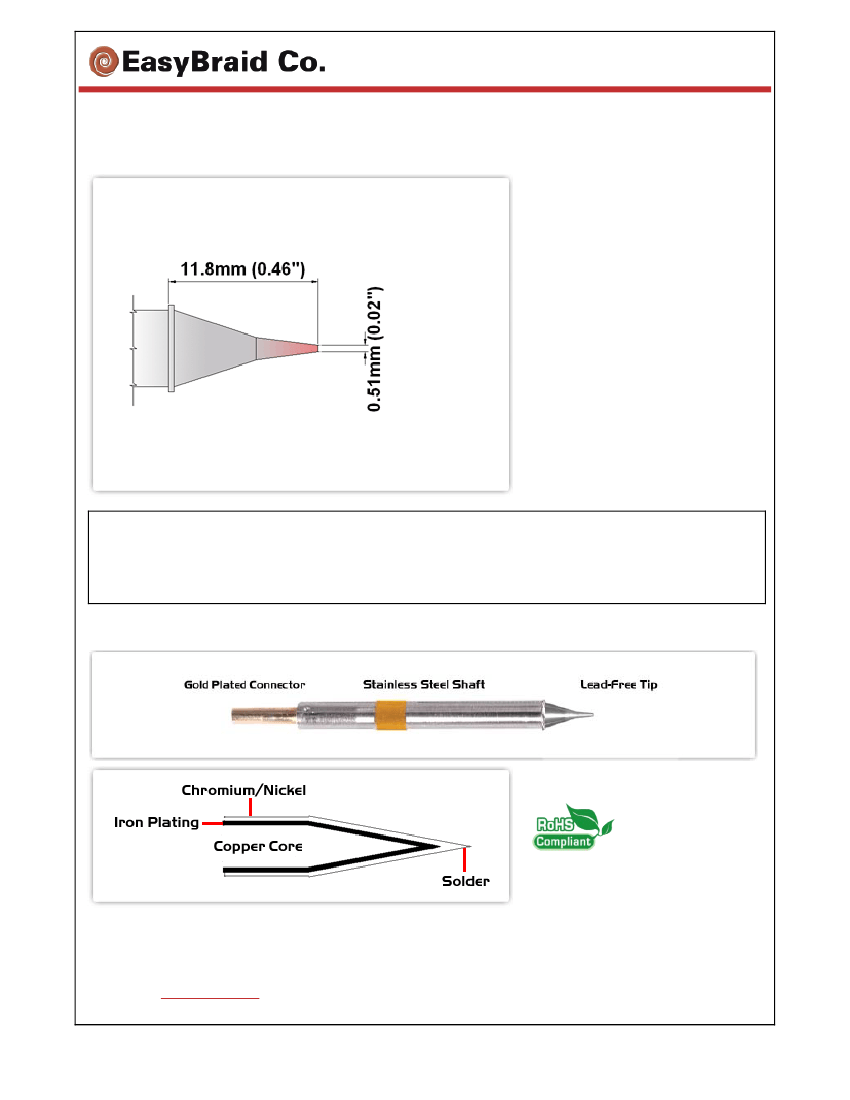

EK75CS005 Datasheet

Technical Specifications

EK75CS005

Conical Sharp 0.5mm (0.02")

Tip Style:

Conical Sharp

Tip Width:

0.50mm (0.02")

Tip Length: 11.80mm (0.46")

350°C - 398°C

75 Type Cartridge

RoHS Compliant

/ Lead Free: YES

Equivalent to:

SFV-CN05, SFV-CN05A, SFV-CNL04

EB-2000S, PS900 w/SHP-K, MFR-PS1100/MFR-PS2200 w/SHP-KM

For Use With:

Material Composition

All components

are RoHS

compliant and

Lead-Free.

Easy Braid Co. tip cartridges will typically idle within a temperature range of +/-1.1°C. However, there is variation in idle temperature across tip geometries

within an individual temperature series. Easy Braid Co. offers a wide variety of tip geometries from 0.25mm fine point tip to 5mm chisel. The length and

geometry of a tip will have an influence on the tip idle temperature. To accurately measure idle temperature it will depend greatly on the measurement method,

technique and equipment used. Two different methods or the use of alternative equipment will produce different test results.

Please refer to

http://www.rohs.gov.uk

for details on RoHS Compliance.
