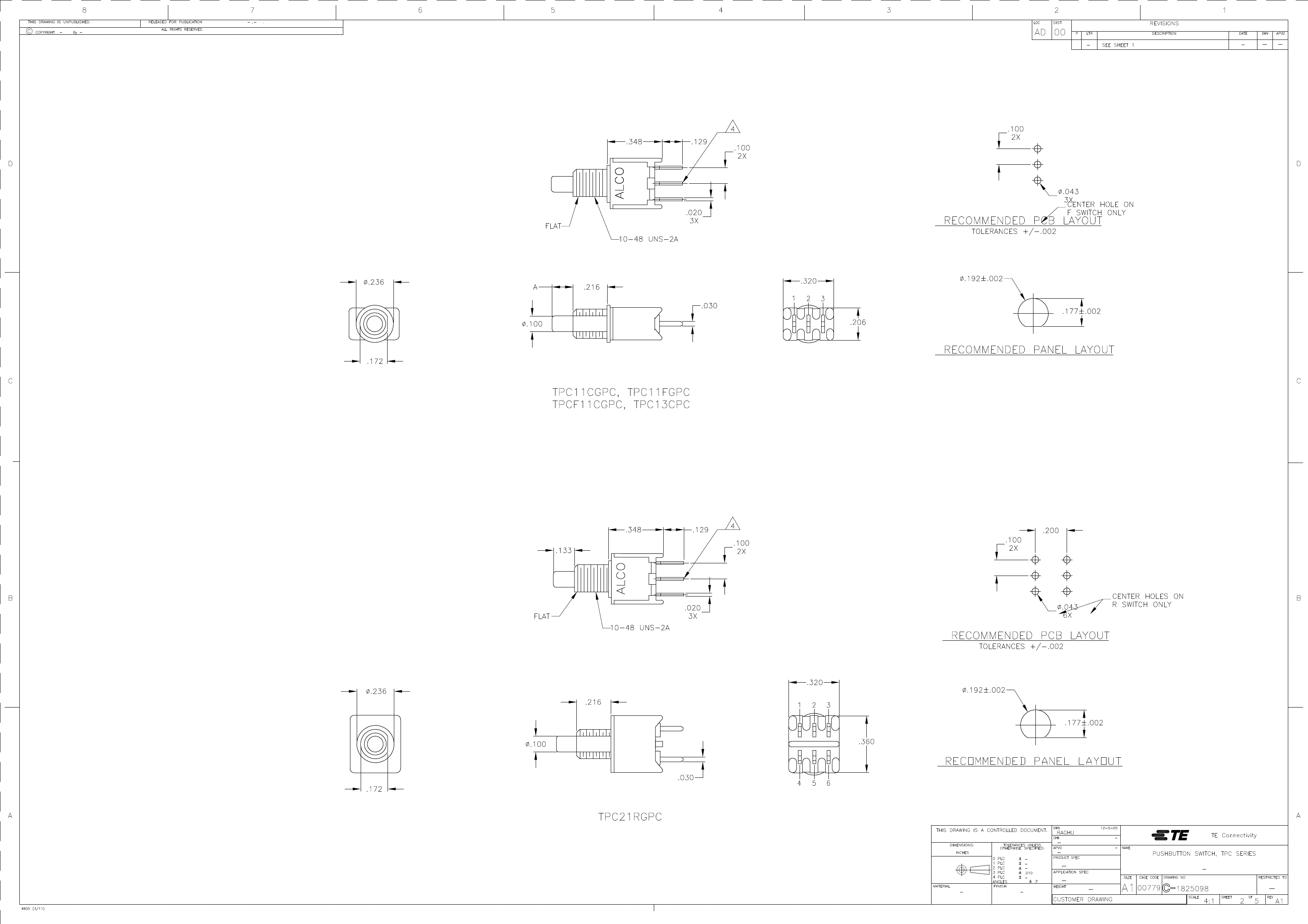

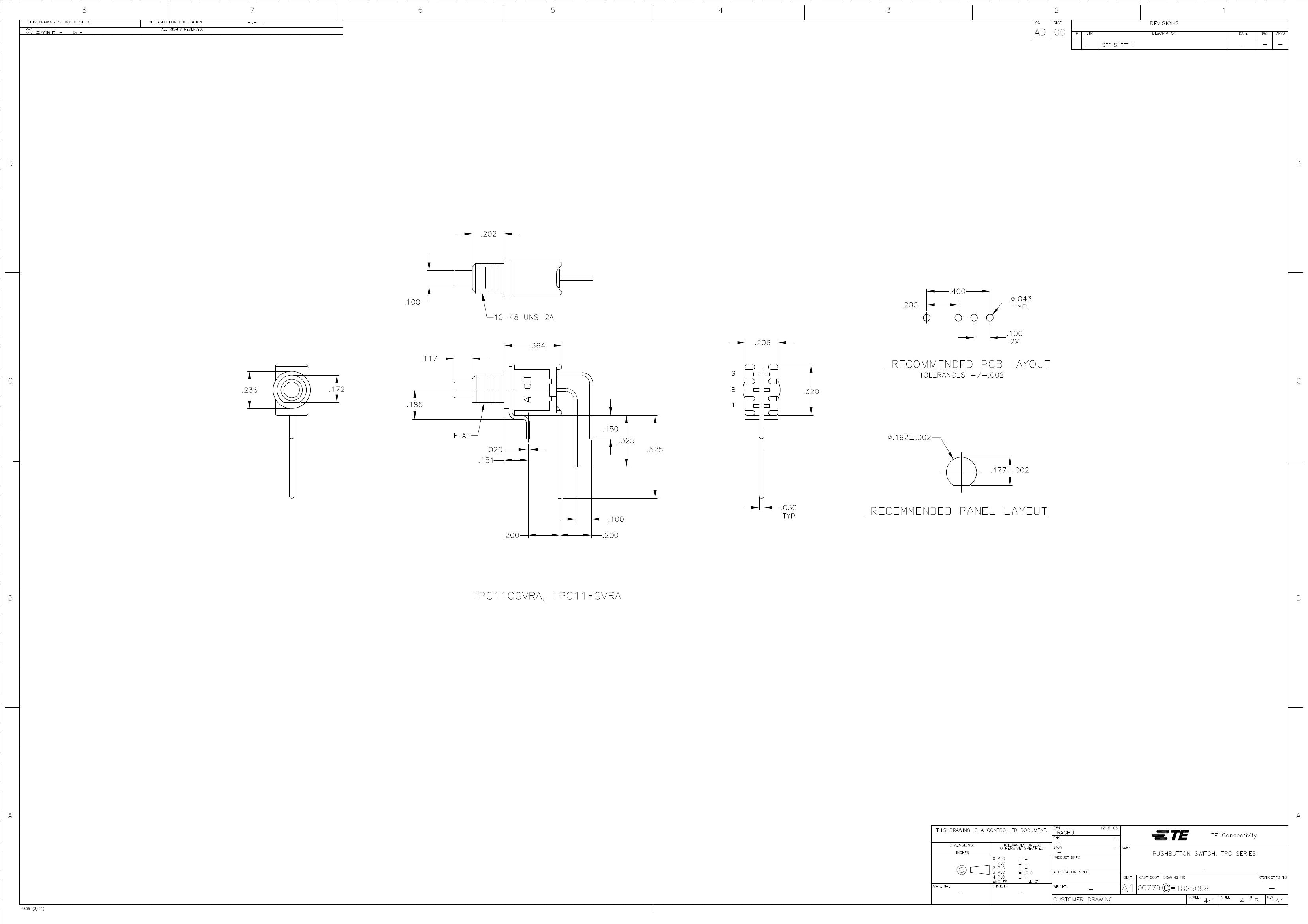

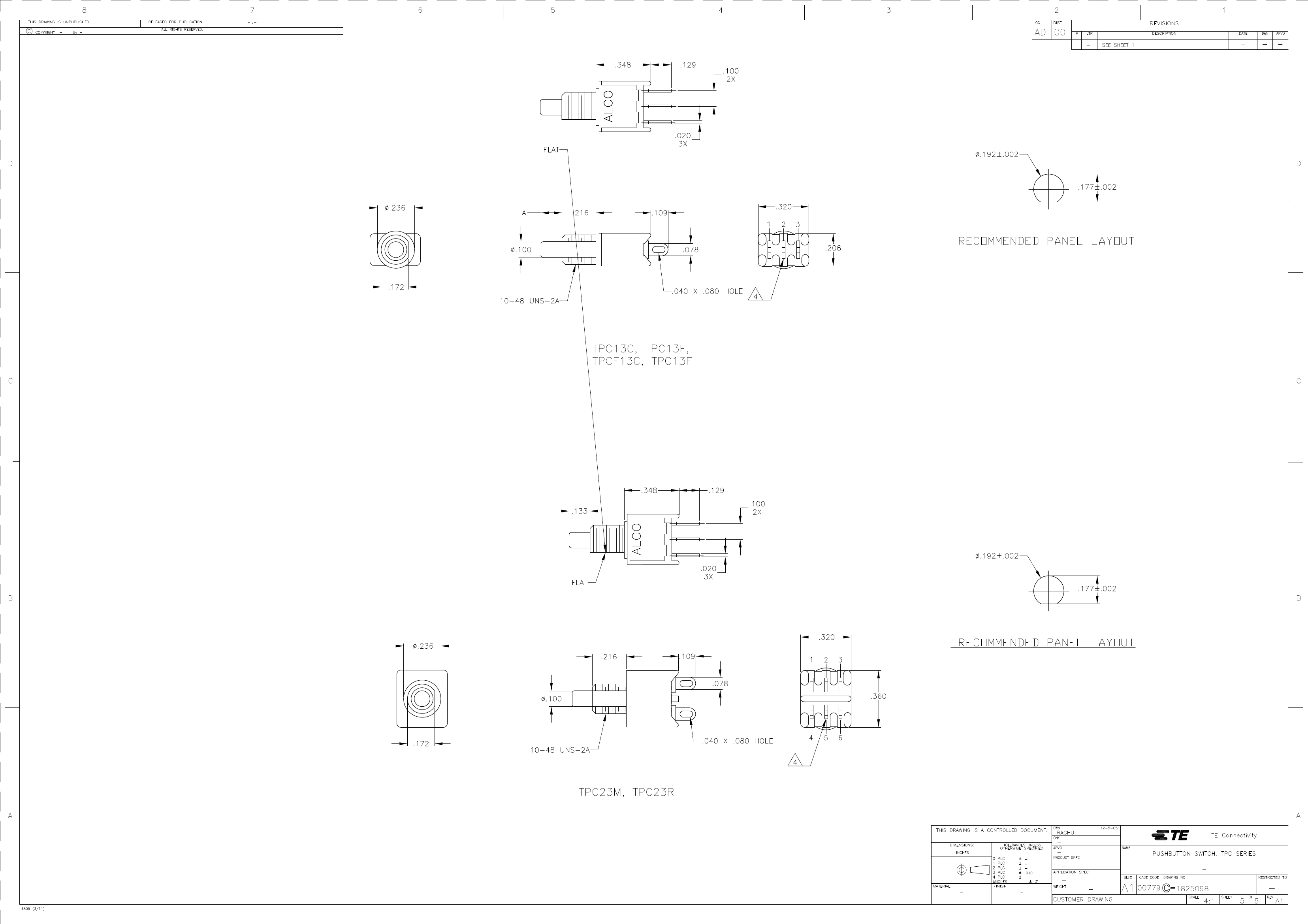

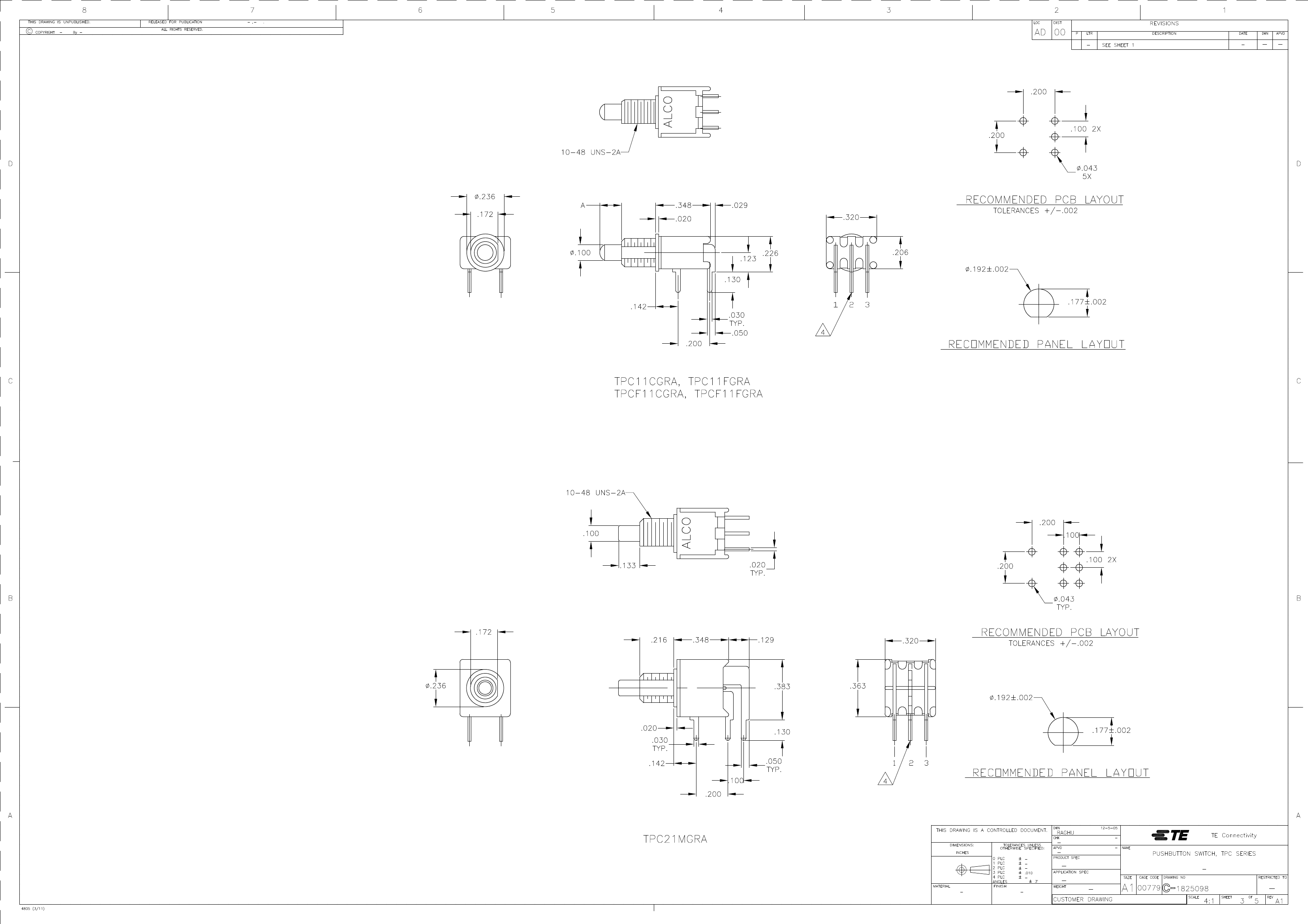

TPCF11CGPC004

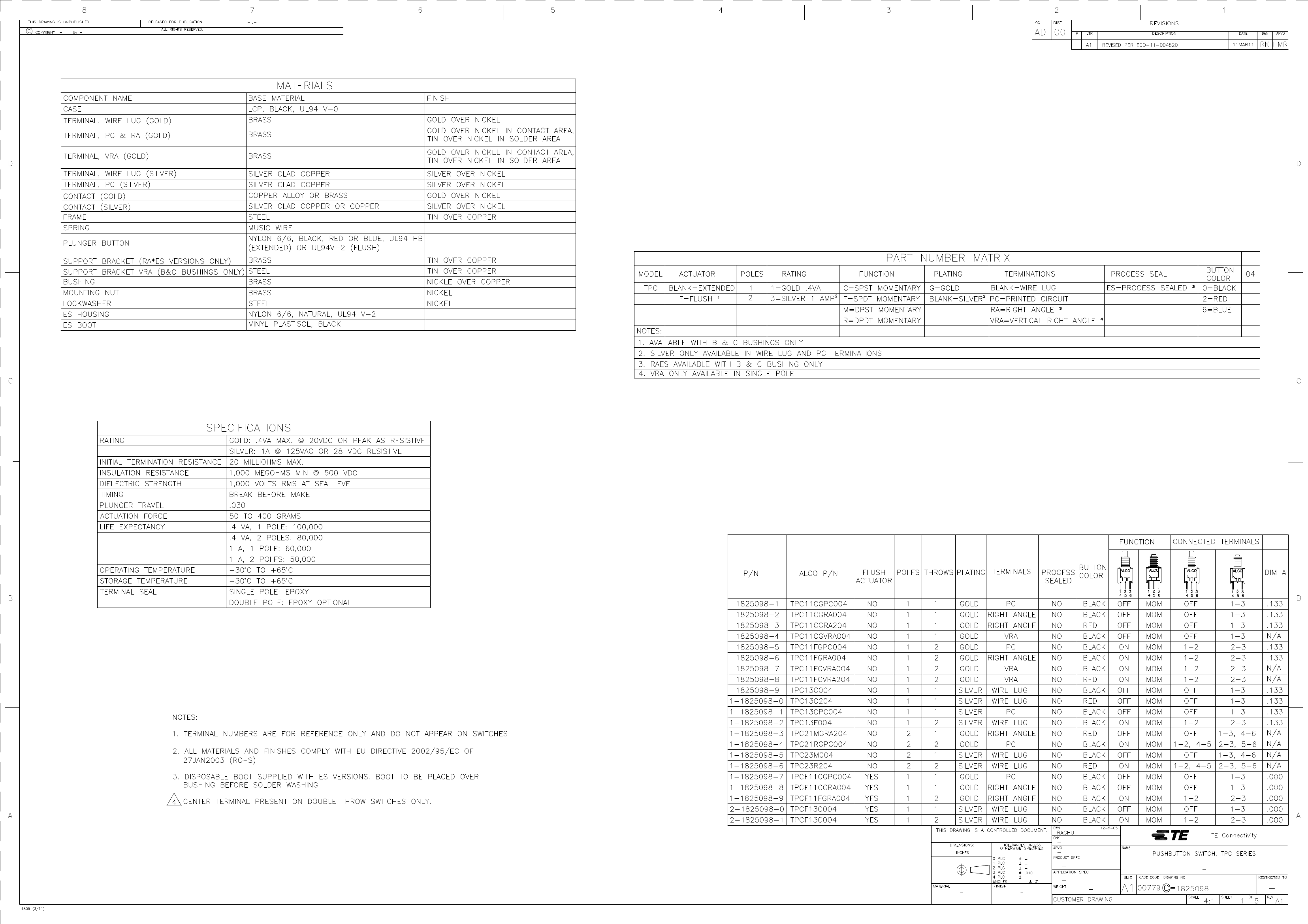

| Parameter Name | Attribute value |
| Brand Name | Alcoswitch |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 26 weeks |
| Is Samacsys | N |
| Actuator type | FLUSH TYPE |
| body width | 5.23 mm |
| body height | 8.84 mm |
| Body length or diameter | 8.13 mm |
| Maximum contact current (DC) | 0.02 A |
| Contact (DC) maximum rated R load | .02A@20VDC |
| Maximum contact voltage (DC) | 20 V |
| Electrical life | 100000 Cycle(s) |
| Manufacturer's serial number | 1825098 |
| Installation features | THROUGH HOLE-STRAIGHT |
| Maximum operating force | 3.92 N |
| Maximum operating temperature | 65 °C |
| Minimum operating temperature | -30 °C |
| method of packing | BULK |
| seal | EPOXY TERMINAL SEALED |
| surface mount | NO |
| Switch action | MOMENTARY |
| switch function | SPST |
| Switch type | PUSHBUTTON SWITCH |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 1-1825098-7 | SMR114S4-26B5-M46 | 1825098-1 | SR105T0-26F4-180 | SR105T0-26S2-180 | 1825098-2 | TPC13F004 | |
|---|---|---|---|---|---|---|---|
| Description | TPCF11CGPC004 | Board Connector, 114 Contact(s), 1 Row(s), Female, 0.05 inch Pitch, Crimp Terminal, Hole .061-.077, Plug | TPC11CGPC004 | Board Connector, 105 Contact(s), 1 Row(s), Female, 0.05 inch Pitch, Solder Lug Terminal, Plug | Board Connector, 105 Contact(s), 1 Row(s), Female, 0.05 inch Pitch, Solder Lug Terminal, Plug | TPC11CGRA004 | PUSHBUTTON SWITCH,STRAIGHT,SPDT,ON-(ON),QUICK CONNECT TERMINAL |
| Reach Compliance Code | compliant | unknown | compliant | unknown | unknown | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | 5.23 mm | 0.25 inch | 5.23 mm | 0.08 inch | 0.08 inch | 8.13 mm | 5.2324 mm |
| Termination type | SOLDER | CRIMP | SOLDER | SOLDER LUG | SOLDER LUG | SOLDER | QUICK CONNECT |
| Is it Rohs certified? | conform to | - | conform to | - | - | conform to | conform to |
| Factory Lead Time | 26 weeks | - | 26 weeks | - | - | 60 weeks | 29 weeks |
| Actuator type | FLUSH TYPE | - | EXTENDED TYPE | - | - | EXTENDED TYPE | PUSHBUTTON |
| body height | 8.84 mm | - | 8.84 mm | - | - | 5.74 mm | 8.8392 mm |
| Body length or diameter | 8.13 mm | - | 8.13 mm | - | - | 8.84 mm | 8.128 mm |
| Maximum contact current (DC) | 0.02 A | - | 0.02 A | - | - | 0.4 A | 1 A |
| Contact (DC) maximum rated R load | .02A@20VDC | - | .02A@20VDC | - | - | .02A@20VDC | 1A@28VDC |
| Maximum contact voltage (DC) | 20 V | - | 20 V | - | - | 20 V | 28 V |
| Electrical life | 100000 Cycle(s) | - | 100000 Cycle(s) | - | - | 100000 Cycle(s) | 50000 Cycle(s) |
| Manufacturer's serial number | 1825098 | SMR | 1825098 | S | S | - | TPC |
| Installation features | THROUGH HOLE-STRAIGHT | - | THROUGH HOLE-STRAIGHT | - | - | PANEL MOUNT | PANEL MOUNT |
| Maximum operating temperature | 65 °C | - | 65 °C | - | - | 65 °C | 65 °C |
| Minimum operating temperature | -30 °C | - | -30 °C | - | - | -30 °C | -30 °C |
| seal | EPOXY TERMINAL SEALED | - | EPOXY TERMINAL SEALED | - | - | EPOXY TERMINAL SEALED | EPOXY |
| surface mount | NO | - | NO | - | - | NO | NO |
| Switch action | MOMENTARY | - | MOMENTARY | - | - | MOMENTARY | MOMENTARY |
| switch function | SPST | - | SPST | - | - | SPST | SPDT |
| Objectid | - | 1153177528 | - | 1149795023 | 1149795046 | 1808763307 | - |
| Other features | - | METAL SHELL,CODE-MIL-STD-681C | - | TYPE 'ET' TEFLON WIRE | TEFLON INSULATED COPPER WIRE | - | UL |
| Contact resistance | - | 8 mΩ | - | 8 mΩ | 8 mΩ | - | 0.02 mΩ |
| Dielectric withstand voltage | - | 900VAC V | - | 900VAC V | 900VAC V | - | 1000VRMS V |
| Insulation resistance | - | 5000000000 Ω | - | 5000000000 Ω | 5000000000 Ω | - | 1000000000 Ω |
