Pressure Sensors
Miniature Signal Conditioned
40PC Series

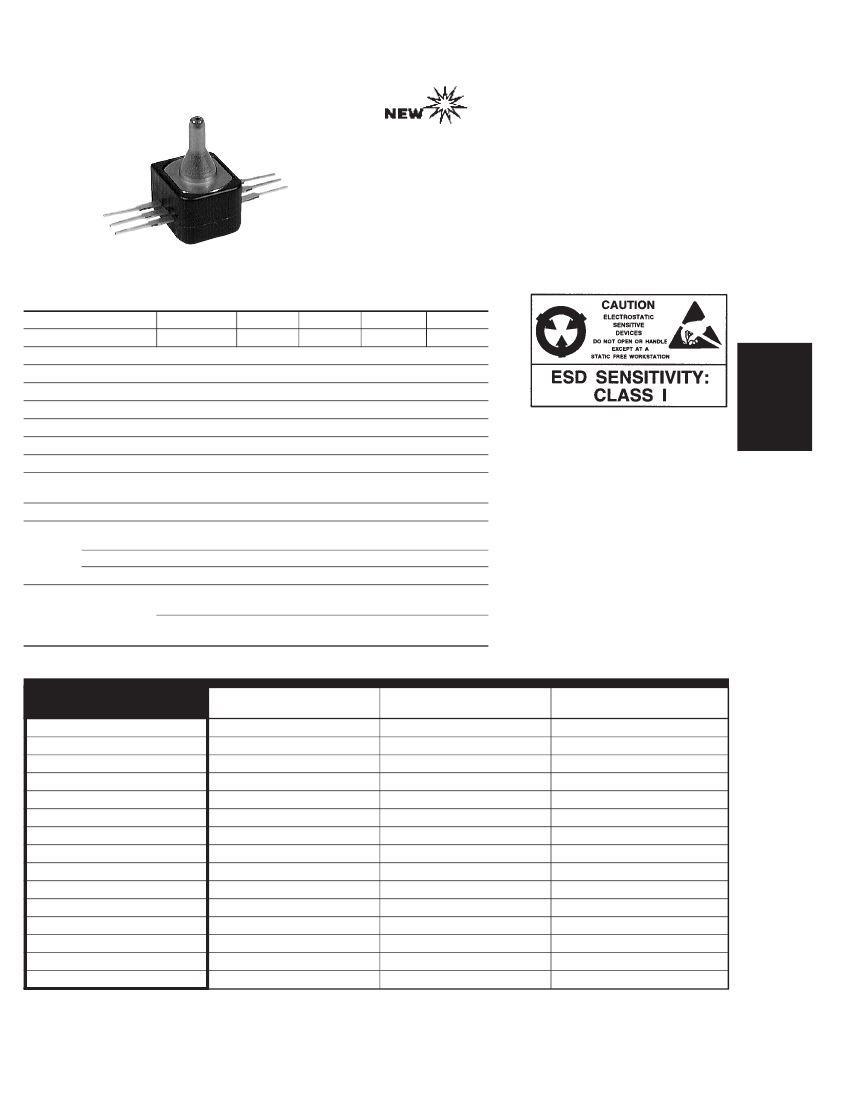

FEATURES
Smallest amplified sensor package
Minimal PCB space
Fully signal conditioned
Operating temperature range from
−45°
to
+125°C
Silicon piezoresistive technology
Monolithic design
6 Pin DIP package
Port designed for O-ring interface
Excellent media compatibility
Accuracy of 0.2%
PERFORMANCE CHARACTERISTICS
Pressure Range
Overpressure, max.
Supply Voltage
Supply Current
Output Source Current
Output Sink Current
Operating Temperature
Storage Temperature
Hysteresis & Repeatability
Ratiometricity (at 4.75 to
5.25 Supply Voltage)
Output Load Capacitance
Full Scale
−50
mm Hg
+50
mm Hg
All other pressure ranges
P1 port
P2 port
±50
mm Hg
±170
mm Hg
0-15 psi
45 psi
0-100 psi
200 psi
5 VDC
±0.25
10 mA max.
0.5 mA max.
1.0 mA max.
−45°
to
+125°C
(−49° to
+257°F)
−55°
to
+125°C
(−67° to
+257°F)
0.15% Span, Typ.
±0.25%
Span, Typ.
0.05 microtarads, max.
0.50 VDC Typ.
4.50 VDC Typ.
4.50 VDC Typ.
DRY GASES ONLY: Media must be compatible with
epoxy based adhesive
Media must be compatible with glass, silicon,
stainless steel, invar, Sn/Ni plating or Sn/Ag solder
0-150 psi
300 psi
0-250 psi
500 psi
Amplified
Media
Compatibility
40PC SERIES ORDER GUIDE
Catalog
Listing
40PC001B1A
40PC001B2A
40PC001B3A
40PC015G1A
40PC015G2A
40PC015G3A
40PC100G1A
40PC100G2A
40PC100G3A
40PC150G1A
40PC150G2A
40PC150G3A
40PC250G1A
40PC250G2A
40PC250G3A
Pressure Range
psi
±50
mm Hg
±50
mm Hg
±50
mm Hg
0-15
0-15
0-15
0-100
0-100
0-100
0-150
0-150
0-150
0-250
0-250
0-250
Pressure
Type
Bi-directional
Bi-directional
Bi-directional
Gage
Gage
Gage
Gage
Gage
Gage
Gage
Gage
Gage
Gage
Gage
Gage
Lead Style
1-unformed
2-formed away from port
3-formed towards port
1-unformed
2-formed away from port
3-formed towards port
1-unformed
2-formed away from port
3-formed towards port
1-unformed
2-formed away from port
3-formed towards port
1-unformed
2-formed away from port
3-formed towards port
Note:
For tubing and O-Ring interface recommendations, see the 40PC Application Note in the Reference Section.
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
31
Pressure Sensors
Miniature Signal Conditioned
OUTPUT PERFORMANCE CHARACTERISTICS @ 25°C, 5VDC (unless otherwise noted)
Pressure
Range
±50
mm Hg
Null
(VDC)
Span
(VDC)
Sensitivity,
Typ.
Linearity,
B.F.S.L.
(% Span) Max.
+25°
to
+50°C
+25°
to 0°C
+25°
to
−18°C
+25°
to
+63°C
0 to 15 psi
0.50
±
0.11
4.00
±
0.11
266.6 mV/psi
0.20
+25°
to
−45°C
+25°
to
+85°C
+25°
to
+125°C
+25°
to
−18°C
+25°
to
+63°C
0 to 100 psi
0.50
±
0.04
4.00
±
0.09
40.0 mV/psi
0.10
+25°
to
−45°C
+25°
to
+85°C
+25°
to
+125°C
+25°
to
−18°C
+25°
to
+63°C
0 to 150 psi
0.50
±
0.04
4.00
±
0.07
26.6 mV/psi
0.10
+25°
to
−45°C
+25°
to
+85°C
+25°
to
+125°C
+25°
to
−18°C
+25°
to
+63°C
0 to 250 psi
0.50
±
0.04
4.00
±
0.07
16.0 mV/psi
0.10
+25°
to
−45°C
+25°
to
+85°C
+25°
to
+125°C
Null Shift
(% Span)
Max.
±1.50
±1.50
±2.00
±2.00
±2.75
±2.75
—
±1.25
±1.25
±2.00
±2.00
±3.00
±0.75
±0.75
±1.00
±1.00
±1.50
±0.75
±0.75
±1.00
±1.00
±2.00
40PC Series
Span ShIft
(% Span)
Max.
±1.50
±1.50
±0.75
±0.75
±1.00
±1.00
—
±0.75
±0.75
±1.00
±1.00
±2.00
±0.75
±0.75
±1.00
±1.00
±1.50
±0.75
±0.75
±1.00
±1.00
±2.00
Combined Null
and Span Shift
(% Span) Max.
—
—
±2.00
±2.00
±3.00
±3.00
—
±1.50
±1.50
±2.50
±2.50
±3.00
±0.75
±0.75
±1.00
±1.00
±1.50
±0.75
±0.75
±1.00
±1.00
±3.00
2.50
±
0.050 4.00 Typ.
40.0 mV/mm Hg 0.80
PERFORMANCE SPECIFICATIONS, TEMPERATURE/ACCURACY
Temperature
Range
25°C
−18°
to
+63°C
−45°
to
+85°C
−45°
to
+125°C
Total Accuracy (% Span) Max.
0 to 15 psi
±0.4
(RSS)
±4.0
±4.0
0 to 100 psi
±0.2
(RSS)
±2.5
±2.5
±3.0
0 to 150 psi
±0.2
(RSS)
±2.0
±2.0
±2.5
0 to 250 psi
±0.2
(RSS)
±2.0
±2.0
±3.0
Note 1:
Accuracy at 25°C is defined as RSS error for linearity, hysteresis, and
repeatability.
Note 2:
Total accuracy is the maximum deviation from the 25°C reference transfer
function at any pressure or temperature over the specified ranges. This
calculation includes null, span, linearity, hysteresis, repeatability, null shift,
and span shift.
32
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Pressure Sensors
Miniature Signal Conditioned

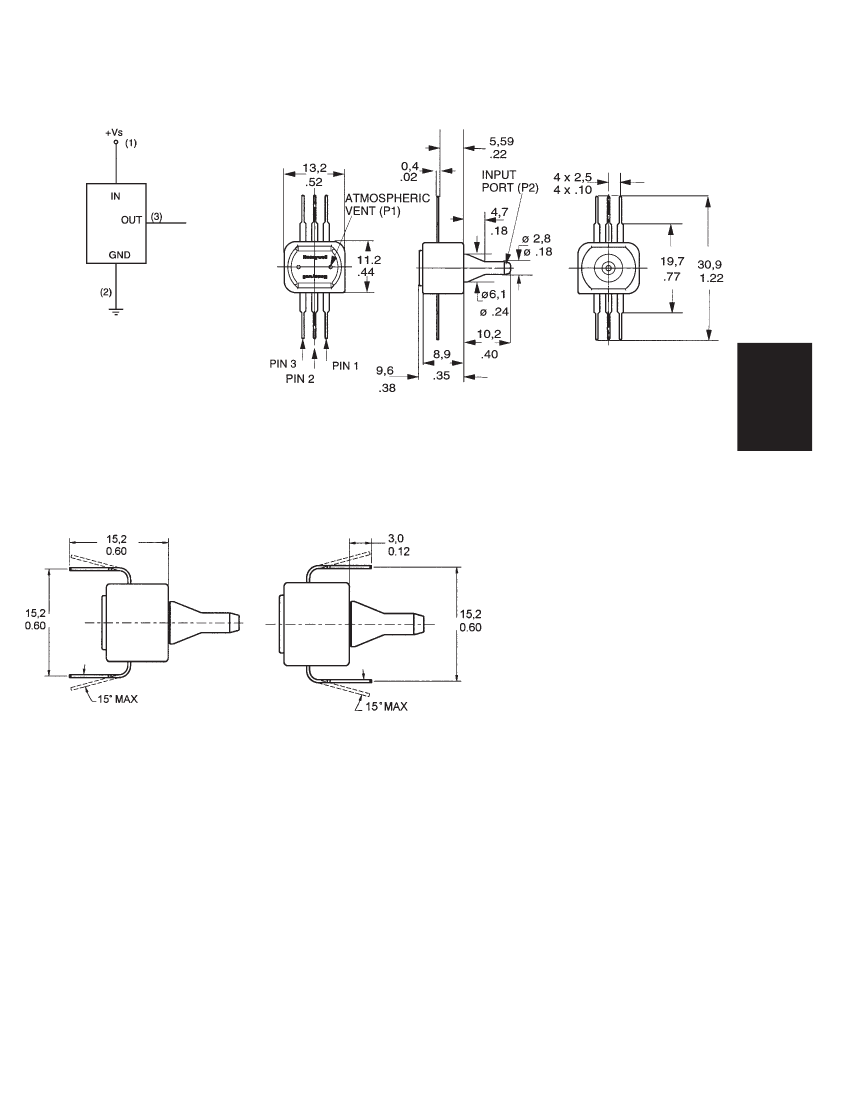

ELECTRICAL CONNECTION
MOUNTING DIMENSIONS
(for reference only) mm/In.
40PC Series
NOTES:
1. Square corner marks pin 1 (Vs).
2. Output is short circuit protected.
Lead Style 1
NOTE:
P1 - DRY GASES ONLY: Media must be compatible with epoxy based adhesive.
P2 - Media must be compatible with glass, silicon, stainless steel, invar, Sn/Ni plating or
Sn/Ag solder.
Lead Style 2
Lead Style 3
Amplified
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
33
