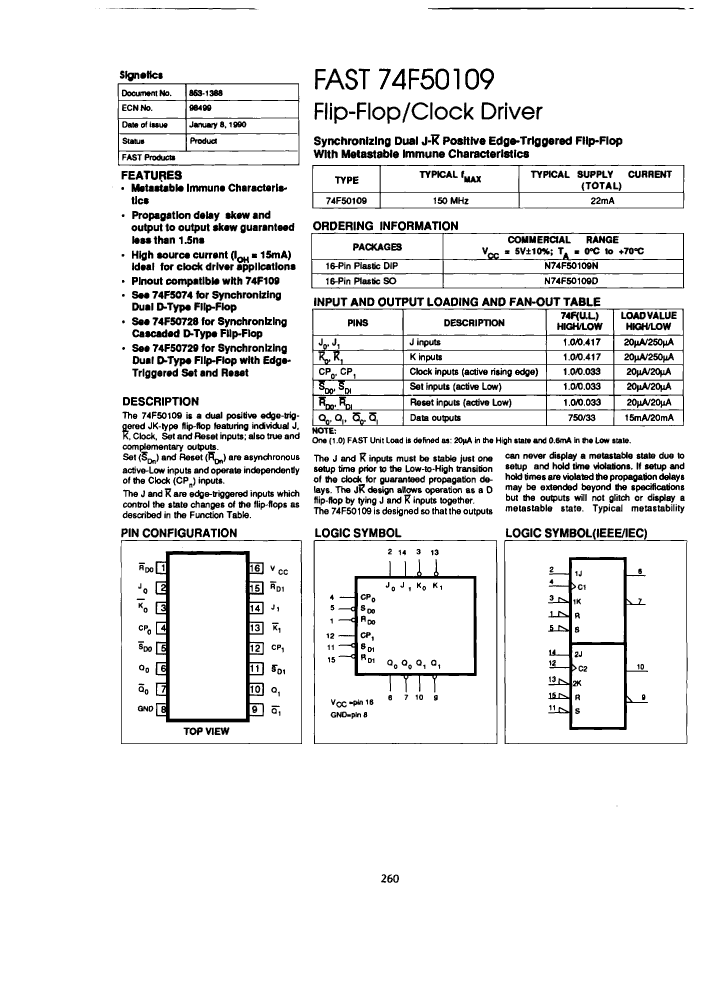

J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16

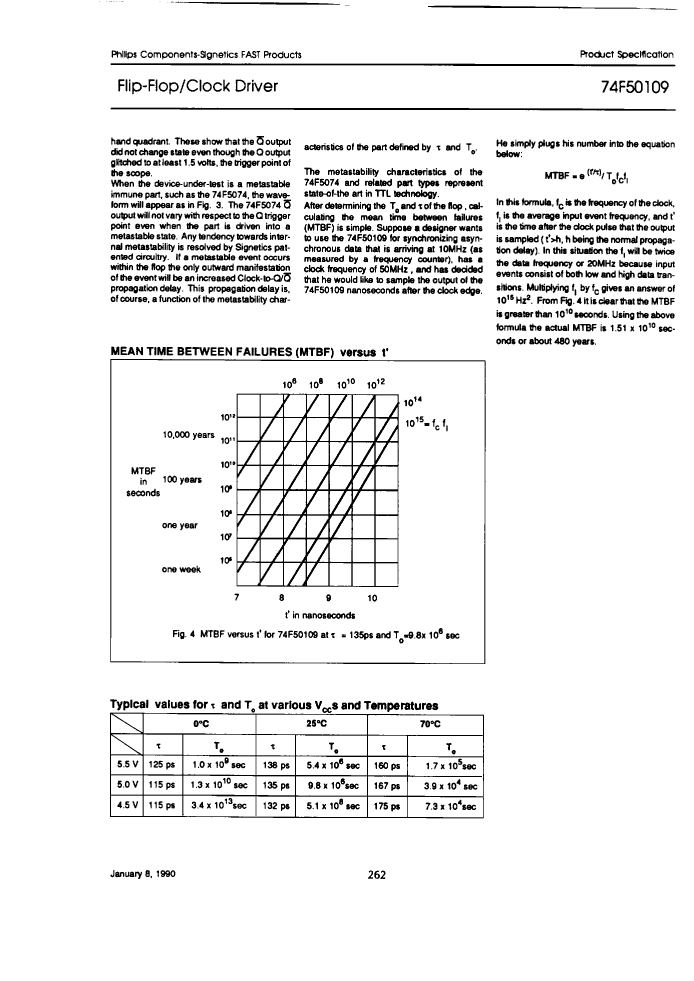

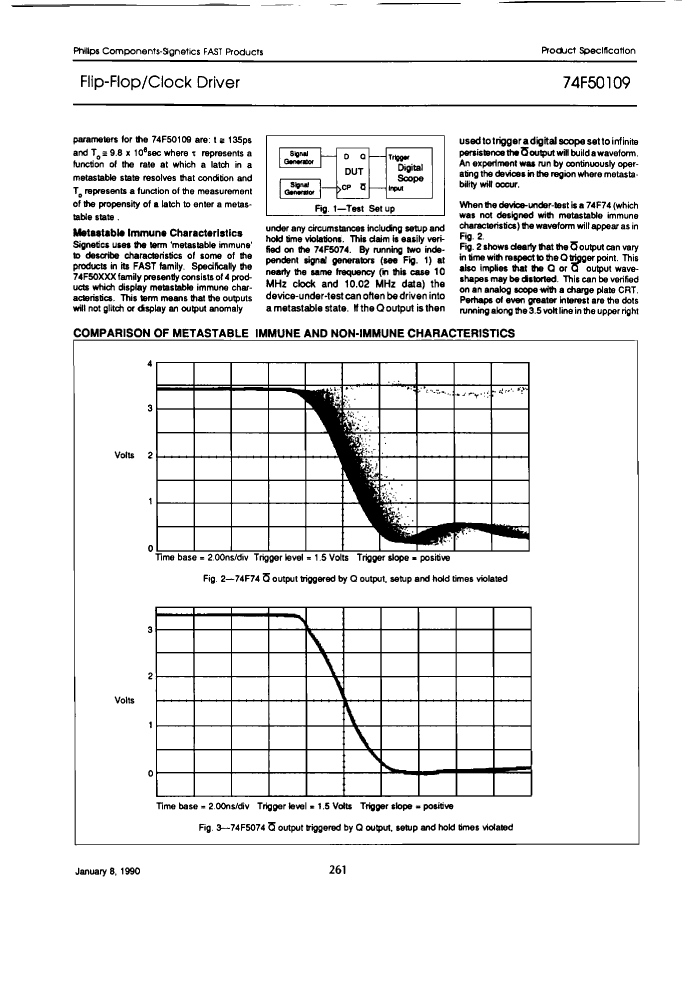

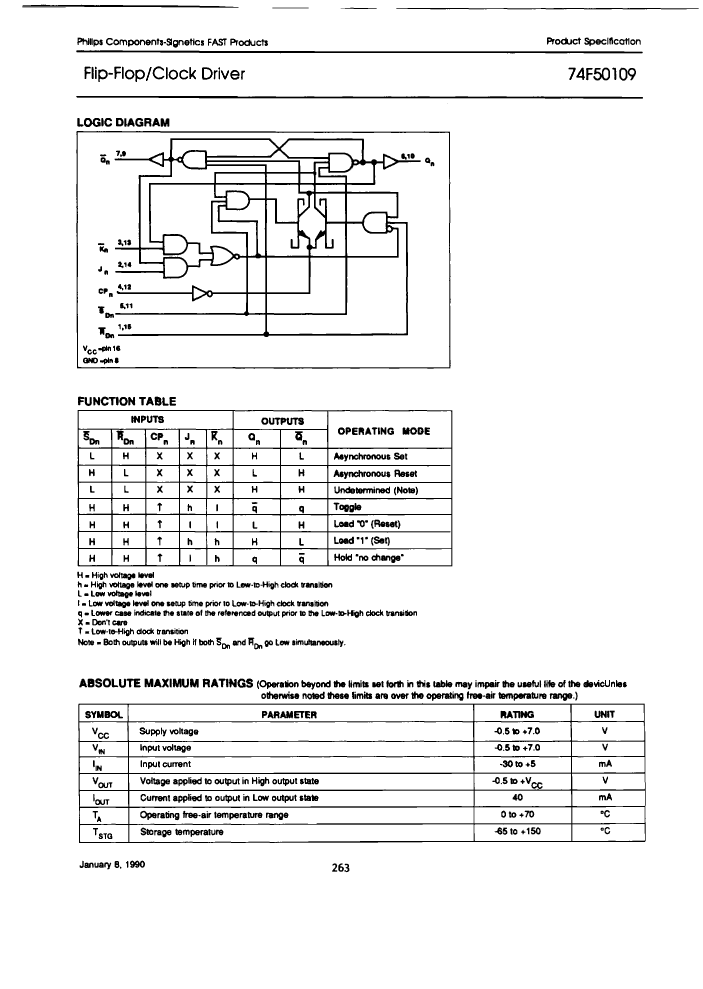

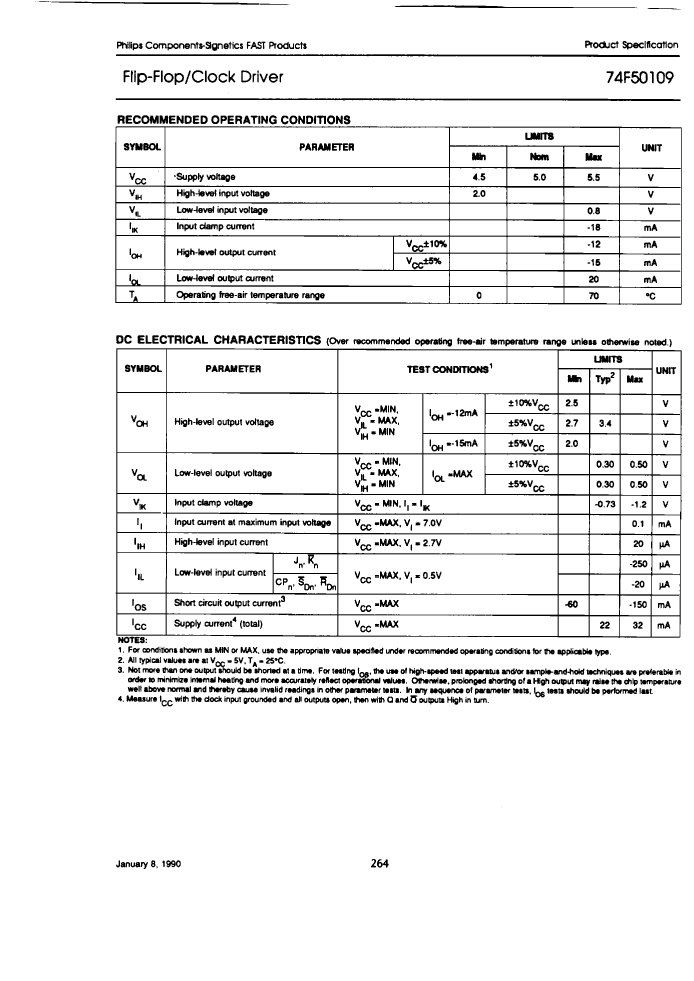

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | WITH METASTABLE IMMUNE CHARACTERISTICS |
| series | F/FAST |
| JESD-30 code | R-PDIP-T16 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | J-KBAR FLIP-FLOP |
| Number of digits | 2 |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 24 mA |
| propagation delay (tpd) | 6 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| minfmax | 150 MHz |
| Base Number Matches | 1 |
| N74F50109N | N74F50109D-T | N74F50109D | |
|---|---|---|---|
| Description | J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16 | J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SO-16 | J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SO-16 |
| Maker | YAGEO | YAGEO | YAGEO |
| package instruction | , | PLASTIC, SO-16 | PLASTIC, SO-16 |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | WITH METASTABLE IMMUNE CHARACTERISTICS | WITH METASTABLE IMMUNE CHARACTERISTICS | WITH METASTABLE IMMUNE CHARACTERISTICS |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G16 | R-PDSO-G16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | J-KBAR FLIP-FLOP | J-KBAR FLIP-FLOP | J-KBAR FLIP-FLOP |
| Number of digits | 2 | 2 | 2 |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 24 mA | 24 mA | 24 mA |
| propagation delay (tpd) | 6 ns | 6 ns | 6 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| minfmax | 150 MHz | 150 MHz | 150 MHz |
| Base Number Matches | 1 | 1 | 1 |
| Parts packaging code | - | SOIC | SOIC |
| Contacts | - | 16 | 16 |
| length | - | 9.9 mm | 9.9 mm |
| encapsulated code | - | SOP | SOP |
| Maximum seat height | - | 1.75 mm | 1.75 mm |
| Terminal pitch | - | 1.27 mm | 1.27 mm |
| width | - | 3.9 mm | 3.9 mm |
