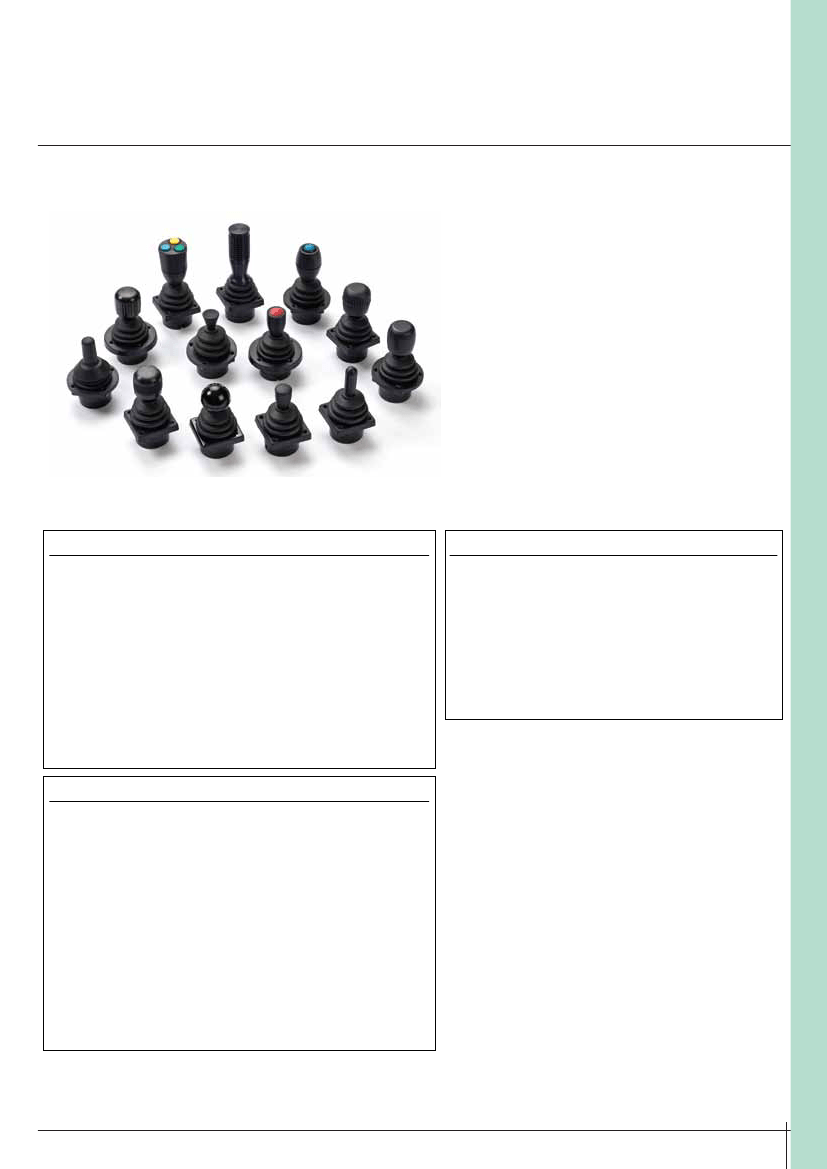

Premium Hall effect joysticks
3000 series

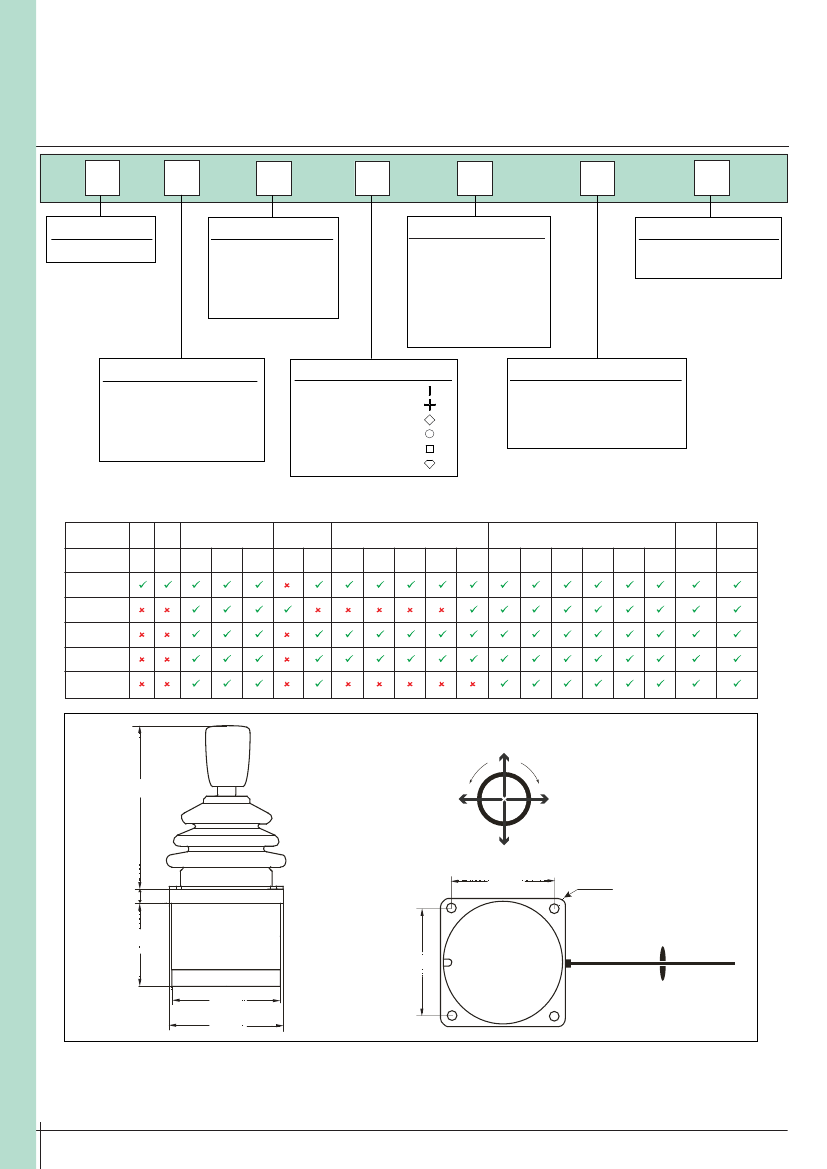

Distinctive features and specifications
Class leading installed depth <20 mm
Hall effect sensing
1, 2 or 3 axis
5V or 3.3V operation
EMC shielded
Analog or PWM outputs
Next generation metal mechanisms
Dual outputs available
ELECTRICAL
MECHANICAL
•
Gain (Output Voltage Span): ±10% x V to ±50% x V
•
Output at Center: V/2 ±(5% x Gain)
•
Power Supply: 5V ±0.5V Transient free
(Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2)
•
Center Tap Impedance: 1K1
•
Center Detect Output: Pulled high within joystick
via 2K2 to +V, and smoothed to 0V with 100nF
•
Sensor Type: Hall effect
•
Current Consumption:
5V <13mA (Two axis) <20mA (Three axis)
3.3V <24mA (Two axis) <40mA (Three axis)
•
Loads: Minimum 10K, preferred 100K+
ENVIRONMENTAL
•
Materials Employed: Shaft - Stainless Steel
Boot - Neoprene
Others - Brass, Nylon, ABS
•
Weight: 100g (0.20lb) nominal
•
Breakout Force: 1.3N (2.86lbf)
•
Mechanical Angle of Movement:
36˚ for X and Y axis (subject to limiter)
50˚ for Z axis (subject to handle)
•
Max Load to Mechanism: 400N (881.85lbf)
NOTES:
1. All values are nominal.
2. All specifications shown are based on a
standard configuration and are provided
for guidance only.
3. Please refer to APEM for assistance on how
to achieve the best performance from your
chosen configuration.
4. Current consumption will be greater for
dual output configurations.
Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
Seal Above Panel: IP65 – Neoprene boot fitted as standard
EMC Emission: Complies with EN 61000-6-3:2001,
CISPR 22:2005, Class B 30MHz–11GHz
•
Life Cycles: 10,000,000 cycles
(5,000,000 for 3 axis joysticks)
•
ESD: Complies with EN61000-4-2 (extended)
±8KV (20 contacts) & ±15KV (20 air discharges)
•
EMC Immunity: 100V/m, 80MHz-2.7GHz,
1KHz 80% sine wave modulation,
EN 61000-4-3 (extended)
•
Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS
(1 Hour in each of the three mutually perpendicular axis)
•
•
•
•
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
Premium Hall effect joysticks

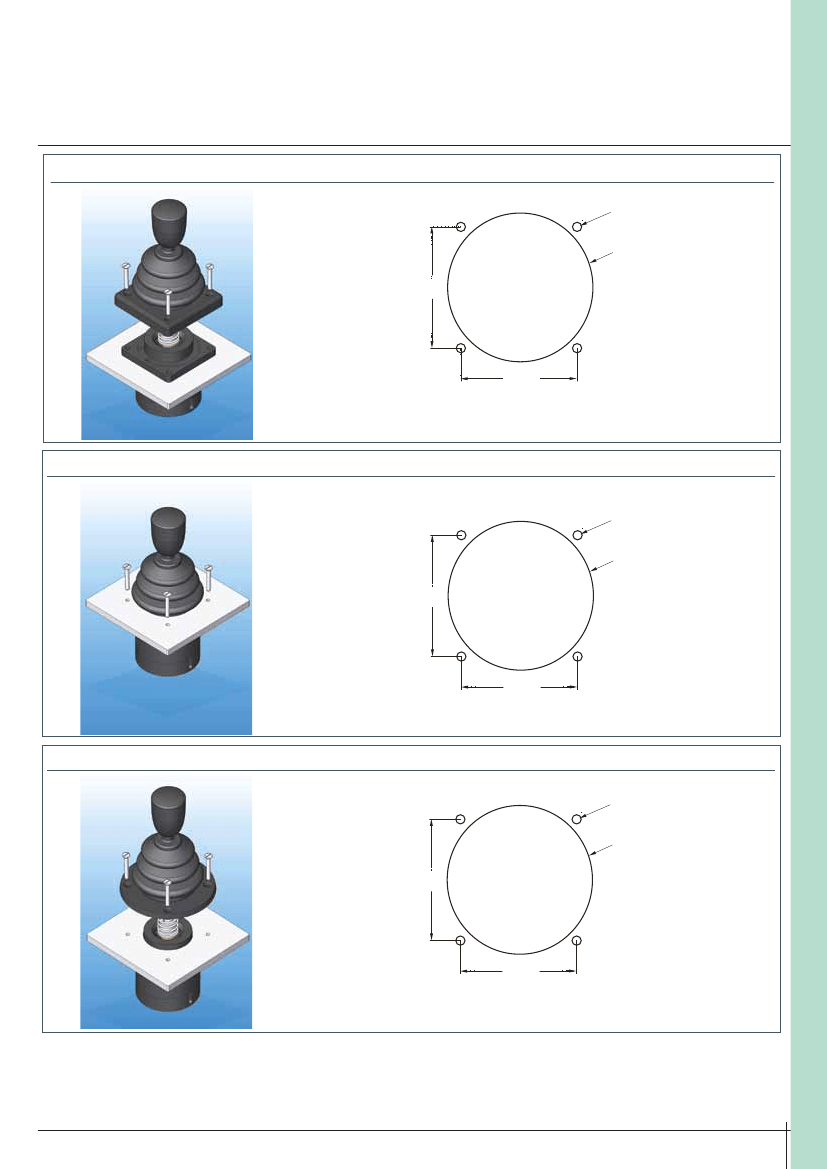

DROP IN MOUNTING - PANEL CUT-OUT & MOUNTING INSTALLATION
3000 series
Overview
MOUNTING CUT-OUT
Ø3.20 x 4
(0.13 x 4)
Ø39.00
(1.54)
35.80
(1.41)
35.80
(1.41)
The joystick is dropped into the panel cut-out. For panel thickness of <3mm, M3 x 16 counter-
sunk machine screws are recommended.
Please note: Image (left) shows a square bezel, a circular bezel is also available for this option.
SUB MOUNTING OPTION A - PANEL CUT-OUT & MOUNTING INSTALLATION
MOUNTING CUT-OUT
Ø3.20 x 4
(0.13 x 4)
Ø35.00
(1.38)
35.80
(1.41)
35.80
(1.41)
When mounted this way the panel acts as the bezel and no
separate bezel is needed. M3 machine screws are recommended.
SUB MOUNTING OPTION B - PANEL CUT-OUT AND MOUNTING INSTALATION
MOUNTING CUT-OUT
Ø3.20 x 4
(0.13 x 4)
Ø31.00
(1.22)
35.80
(1.41)
35.80
(1.41)
The joystick is mounted beneath the panel and the base of the boot must be brought through
the panel cut-out and held in place with the circular bezel.
For panel thickness of <3mm, M3 x 16 countersunk machine screws are recommended.
NOTES:
* 3000 series has slotted mounting holes - allows compatibility with mounting pitches of 32.25mm to 35.80mm.
1. Dimensions are in mm/(inch).

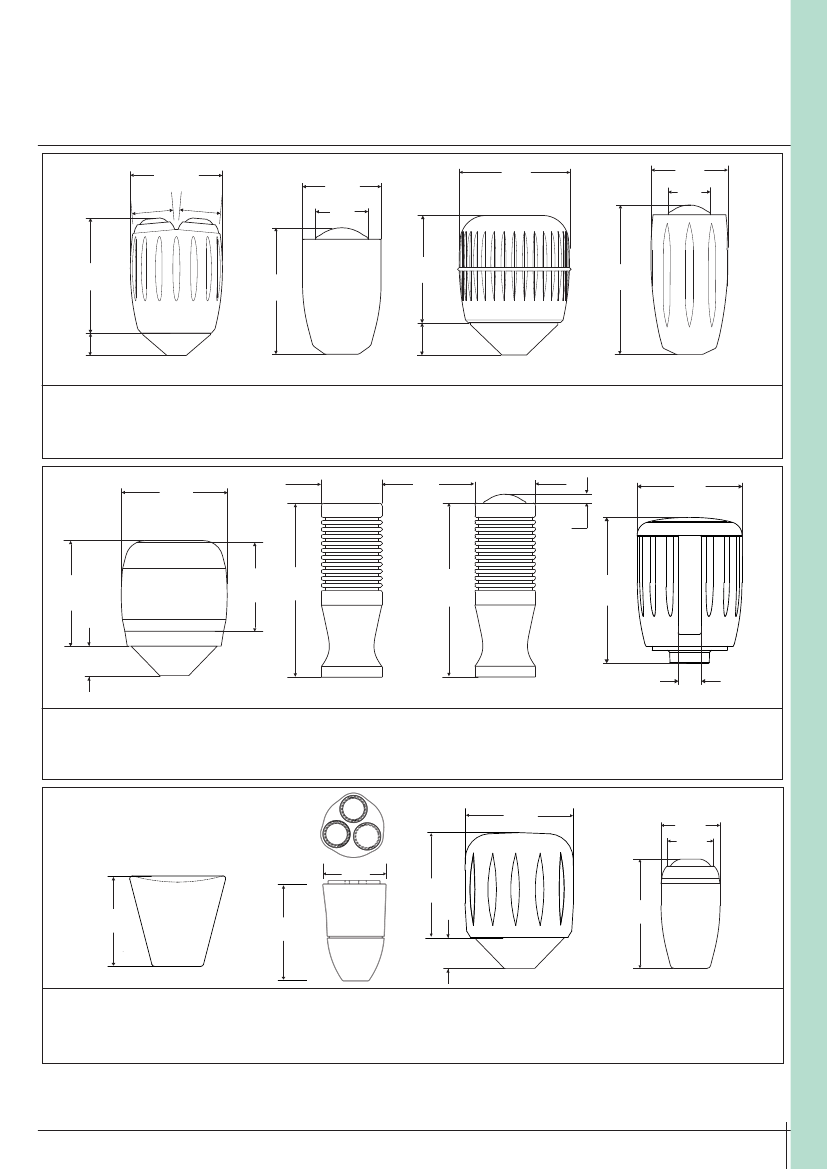

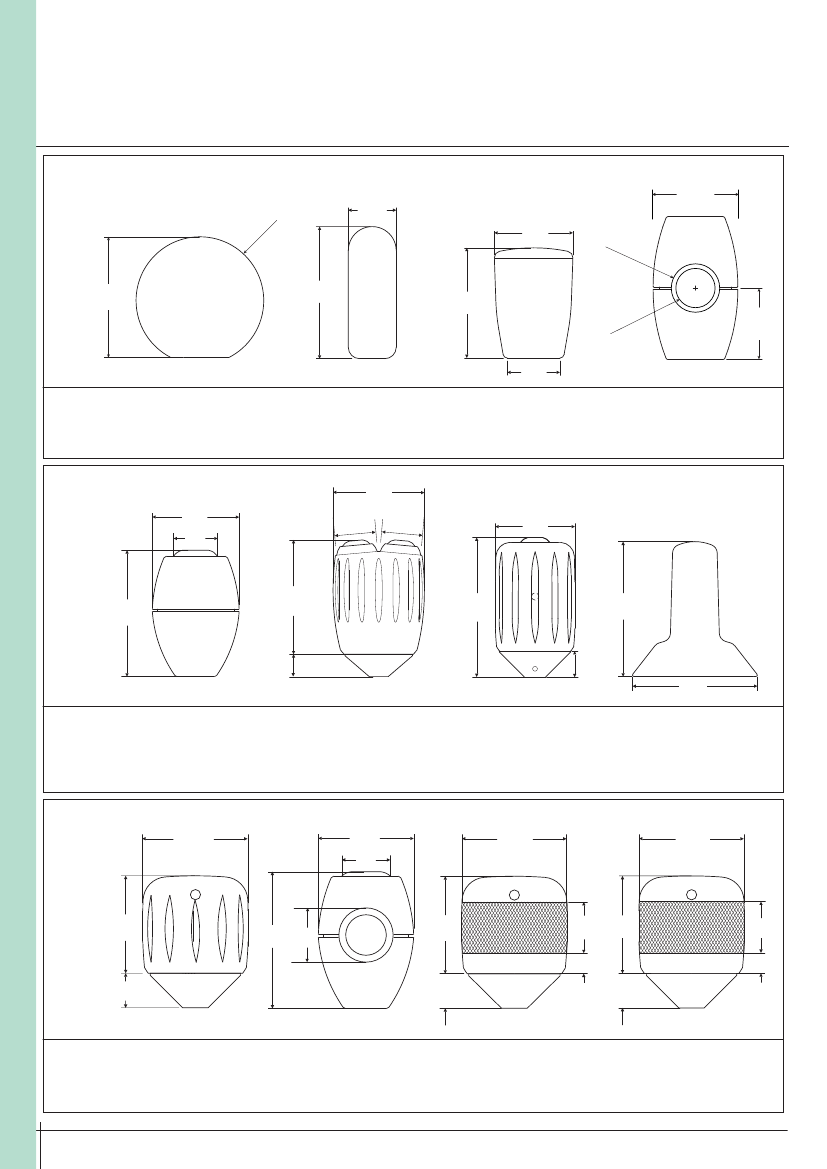

2. The dimensions shown are for generic 3000 series with E type handle. For specific dimensions of this or any other
configuration please refer to APEM.
3. When sub panel mounting, great care should be taken not to damage the boot, or any of the mechanism under the boot.
All panel cut-outs should be free from sharp edges and debris that may damage the boot.
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
