54F198/BLA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F198/BLA

54F198/BLA: DescriptionIC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, Shift Register; Categorylogic logic; File Size160KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F198/BLA Overview

IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, Shift Register

54F198/BLA Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	R-GDIP-T24
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	110 mA
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	70 MHz
Base Number Matches	1

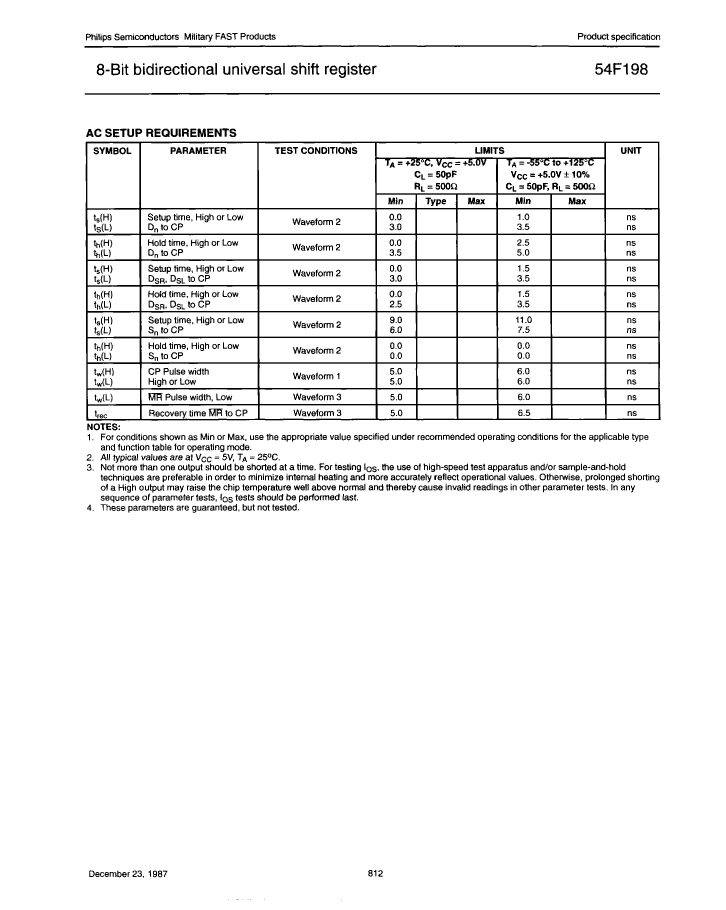

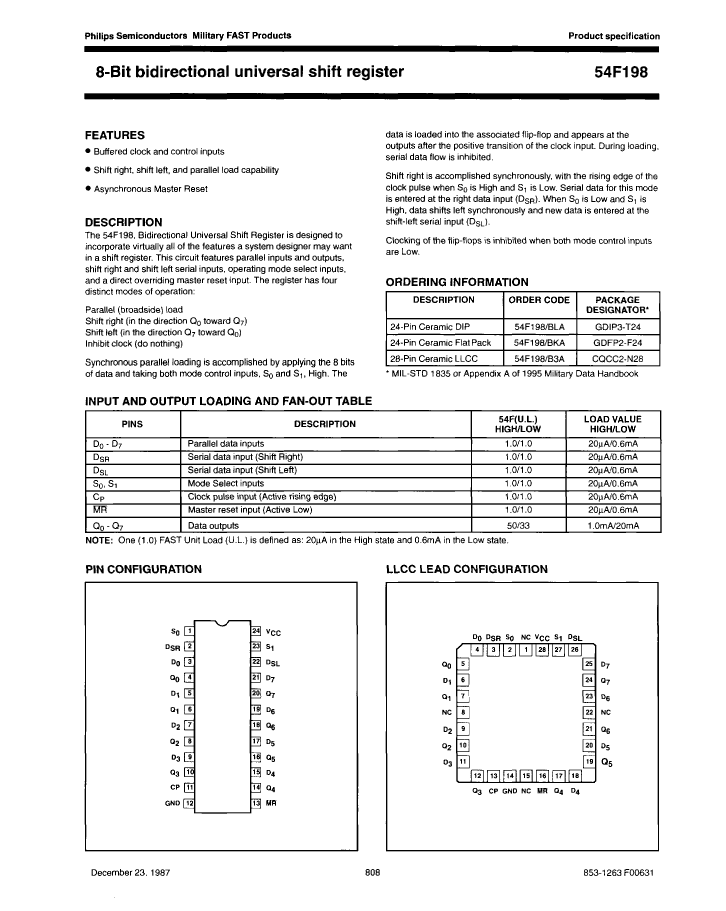

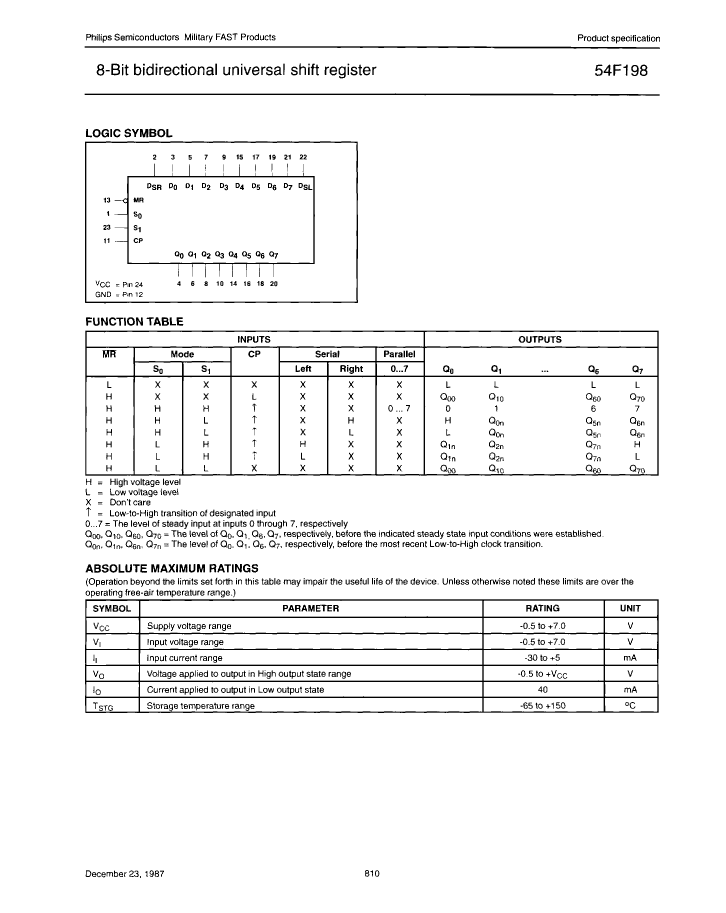

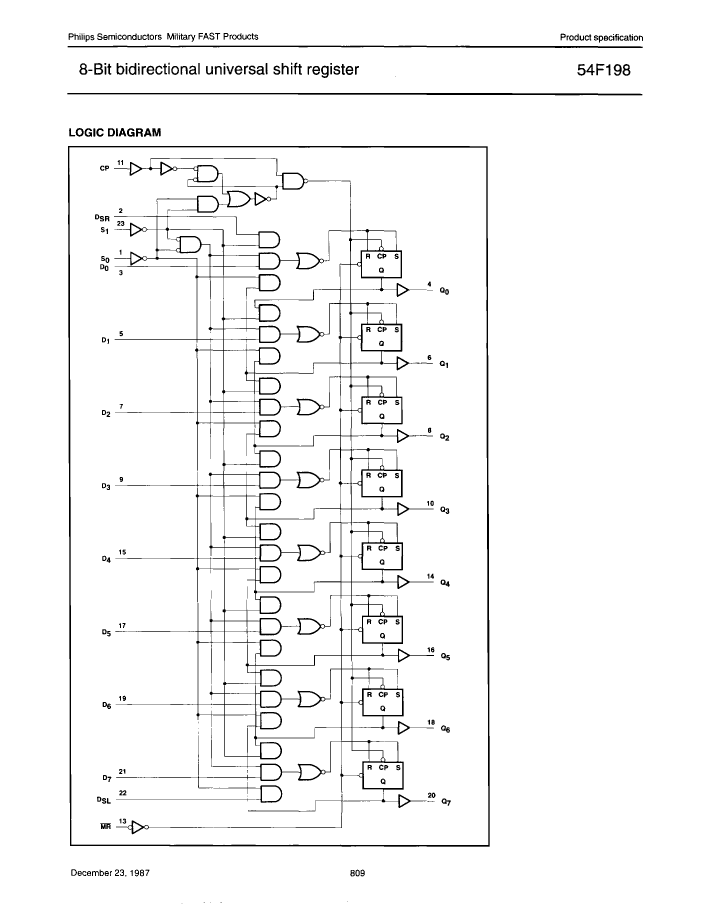

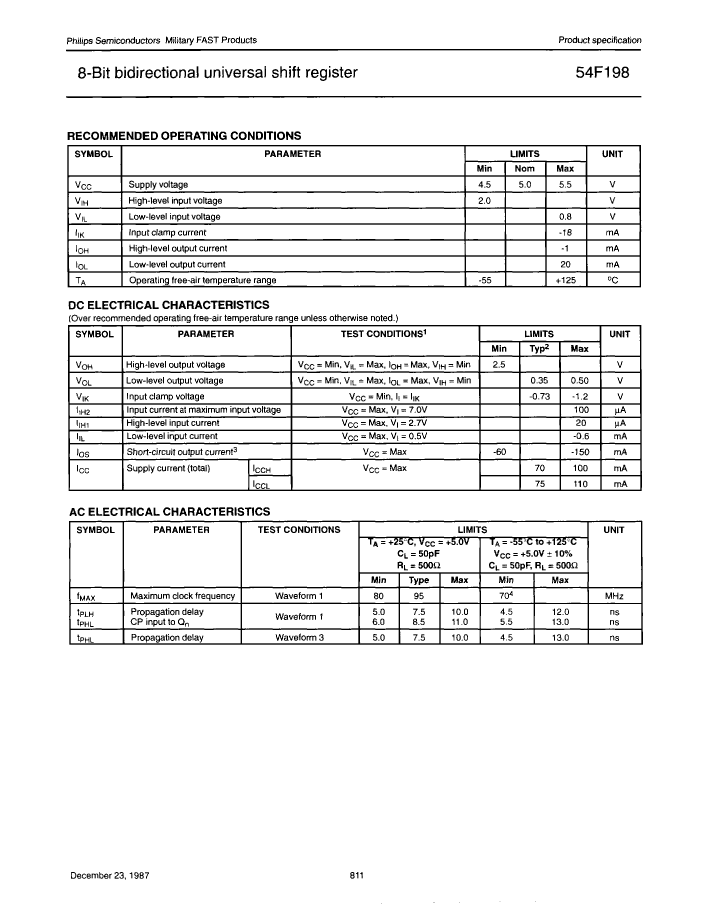

Preview

Download Datasheet

View All

54F198/BLA Related Products

	54F198/BLA	54F198/B3A	54F198/BKA	N54F198/BKA	N54F198/B3A
Description	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, Shift Register	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CQCC28, Shift Register	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP24, Shift Register	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP24, CERAMIC, DFP-24, Shift Register	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CQCC28, CERAMIC, LLCC-28, Shift Register
package instruction	DIP,	QCCN,	DFP,	DFP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK	HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK	HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK	HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK	HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T24	S-CQCC-N28	R-CDFP-F24	R-CDFP-F24	S-CQCC-N28
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	24	28	24	24	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DFP	DFP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	110 mA	110 mA	110 mA	110 mA	110 mA
propagation delay (tpd)	13 ns	13 ns	13 ns	13 ns	13 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	NO LEAD
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz
Base Number Matches	1	1	1	1	1
