500-526

Description
switch 4 way hat
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size349KB,1 Pages
ManufacturerAPEM
Environmental Compliance
Download Datasheet View All

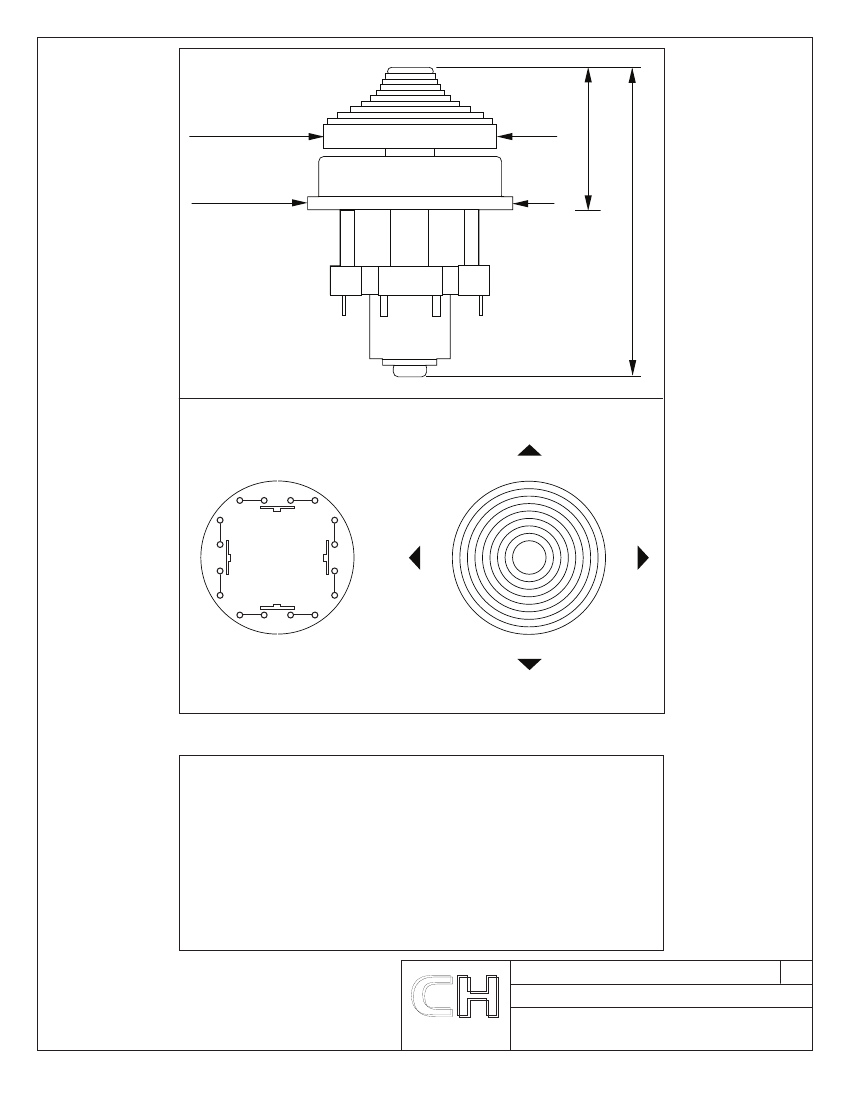

500-526 Overview

switch 4 way hat

Ø0.75in
(19.05mm)
Ø0.90in
(22.86mm)
0.64in
(16.26mm)
Bottom Terminal View
Top Actuator View
A
D
C
180º
B
270º
+
90º
4-WAY MOMENTARY TOGGLE ACTION WITH OPERATING POSITIONS EVERY 90º
SPECIFICATIONS
ELECTRICAL
CIRCUITS AVAILABLE
SWITCHING CAPACITIES
ELECTRICAL LIFE
SPST, 4 toggle positions
1 to 50mA, 5 to 24VDC (resistive load)
1,000,000 operations min @ 100gF
300,000 operations min @ 150gF
100,000 operations min @ 260gF
Thermoplastic - black
CONSTRUCTION
RoHS
compliant
CH
Products
P/N
DESCRIPTION
1.353in
(34.37mm)
500-526
PROPRIETARY AND CONFIDENTIAL
REV
A
4-Way Hat
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY
OF CH PRODUCTS. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT
THE WRITTEN PERMISSION OF CH PRODUCTS IS PROHIBITED.
