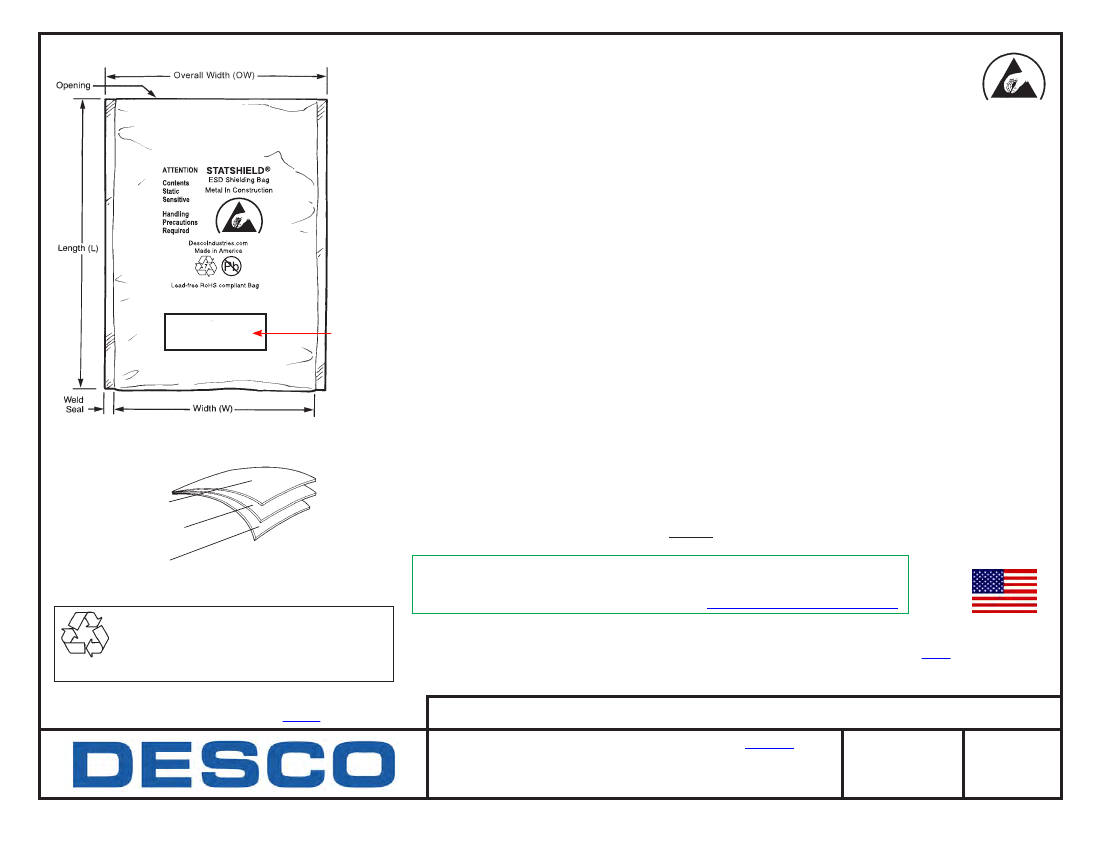

STATSHIELD
®
METAL-IN SHIELDING BAG
Meets the required limits of ANSI/ESD S20.20, Packaging standard ANSI/ESD S541, and Static
Control Bag standard ANSI/ESD S11.4-2012 Level 3.
Specifications:
Electrical Properties
Surface Resistance:
Outer Surface
Inner Surface
Discharge Shielding
Charge Generation
Typical Values
Test Procedures/Method
ANSI/ESD STM11.11
ANSI/ESD STM11.11
ANSI/ESD STM11.31, EIA 541
Modified Incline Plane
Modified Incline Plane
ANSI/EIA-541/Appendix E, 1kV Discharge
1 x 10
4
to < 1 x 10
11
ohms
1 x 10
4
to < 1 x 10
11
ohms
<20 nJ
Teflon: 0.09 nC/sq. in.
Quartz: 0.01 nC/sq. in.
Capacitance Probe (to dissipate 1 KV) <30 volts
Physical Properties
Bag Thickness:
Thickness
Width (Inside Dimensions)
Length (Inside Dimensions)
Light Transmission
Heat Seal
Tensile
Puncture Resistance
MVTR
Non-corrosive
Chemical Properties
Corrosion
Polycarbonate Capability,
Side Weld Seals 3/8 in. (±0.10)
Bag is free of amines, N-octanoic acid, silicones and heavy metals.
ANSI/ESD S541 Section 6.2 Outside an EPA
“Transportation of sensitive products outside of an EPA shall require packaging that provides:
1. Low charge generation
2. Dissipative or conductive materials for intimate contact
3. A structure that provides electrostatic discharge shielding.”
RoHS 2 and REACH Compliance Statement
None of the RoHS 2 restricted materials or REACH substances of very high concern as of
2013/06/20 are intentionally added in manufacturing this product. Ref: European Union Directive
2011/65/EU and Regulation (EC) No. 1907/2006/CE. See
Desco Limited Warranty at Desco.com.
The bag’s material meets the required limits of ANSI/ESD S541 per ANSI/ESD S20.20.
Statshield
®
and Statfree
®
are Registered Trademarks of Desco Industries Inc. See Bag Selection Chart Click
HERE.
*Made in the
United States of America
Date & Lot Code
Printed for QC
Traceablility
Nominal 0.0030" (.0762mm) ±10%
Nominal -0" / + 0.125"
Nominal ± 0.125"
>40% (Tobias)
>10 lbs/in
9000 PSI
>10 lbs
<0.40
Pass
MIL-STD-3010, 1003
ASTM D-1003
375°F, 1/2 sec 60 psi
ASTM D882
MIL-STD-3010, 2065
FTMS 101C/2065
MIL-STD-3010, M3005
No effect on aluminum, copper, silver, Sn-Pb coated foil,
stainless steel, low carbon steel
Yes
Low Charging Static
Dissipative Proprietary
Outer Polyester Layer
Aluminum Shielding Layer
Low Charging Static
Dissipative Proprietary
Inner Polyethylene Layer
Mixed Unsortable Plastic Scrap
7
Mixed unsortable plastic scrap shall contain assorted plastics
of multiple grades that are co-extruded, bonded or laminated
together which are unsortable into individual grades
Desco’s bags are recyclable
Specifications and procedures subject to change without notice.
Statshield
®
bags are packaged 100 per package in an oversized shielding bag.
See Shielding Bag Storage at
TB-7057.
*Film made in USA or Malaysia
STATSHIELD
®
