COPAL ELECTRONICS
ROTARY CODED SWITCHES
S-1000A/2000A

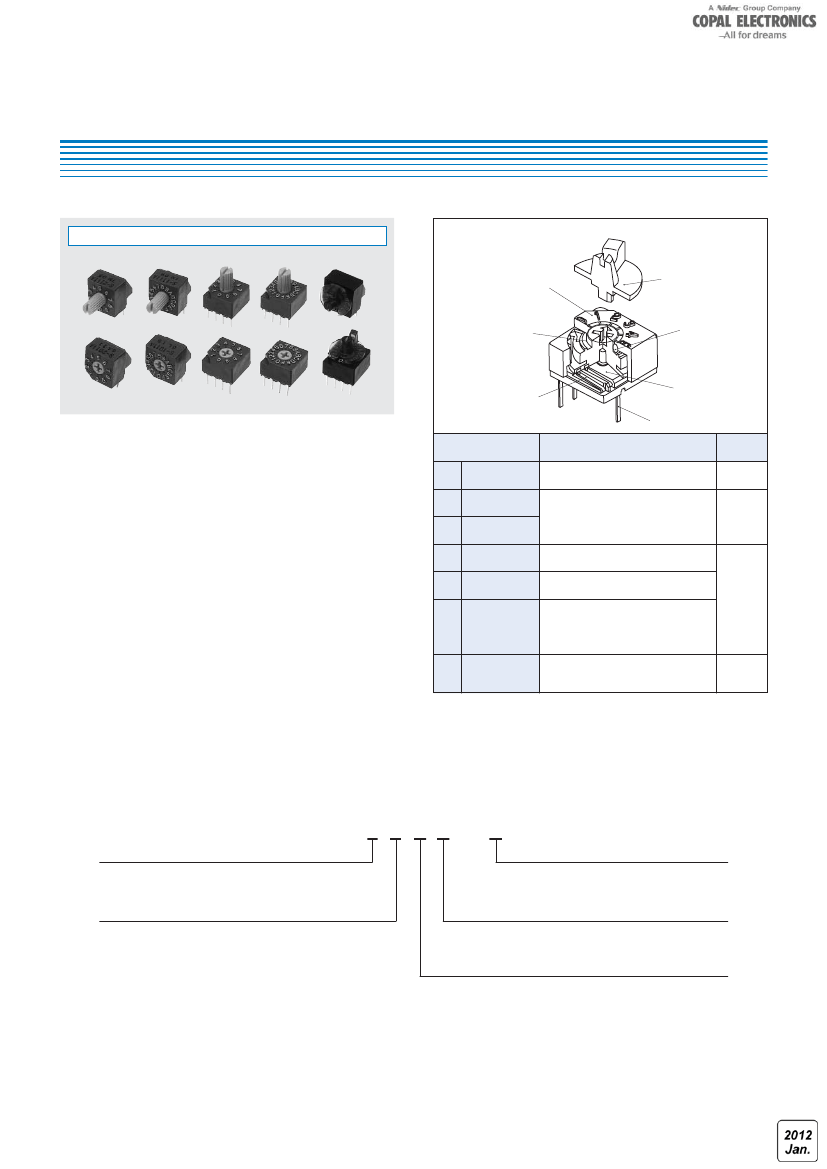

INTERNAL STRUCTURE
S-1000A / 2000A series
①
⑦
RoHS compliant
⑥
⑤
②
③
④
■
FEATURES
●
RoHS compliant
●
Protection against dust and whole cleaning after
soldering is possible
●
Pin compatible with conventional DIP switches
●
Translucent knob with flange type (S-1200A/2200A
series)
• Distinguished visibility with translucent flange
• Settable with fingers or screwdriver
Part name
Material
PBT(
Polybutyleneterephthalate)
Flammability
①
②
③
④
⑤
⑥
⑦
Housing
Contact
UL-94HB
Copper alloy, Gold-plated
Terminal pin
Base
“O” ring
PBT(
Polybutyleneterephthalate)
—
Silicone rubber
UL-94HB
Rotor : Polyoxymethylene
Pattern : Copper alloy, Gold-plated
PAR（
Polyarylate
）
Insert rotor
Translucent
※S-12□□A/22□□Aのみ
knob with flange
S-12
□□
A/22
□□
A only
UL-94V-2
■
PART NUMBER DESIGNATION
S - 1 0 1 0 A W
No. of positions
1
：
16 positions
2
：
10 positions
Form of packaging
W
：
Tray packaging
Blank
：
Bulk in plastic bag
Shape of rotor
0
：
Without knob
1
：
With knob (with extended shaft)
2
：
Translucent knob with flange (Black housing)
Setting position
0
：
Top setting
1
：
Side setting
Code format
1
：
Real code
3
：
Complementary code
※Please
refer to the LIST OF PART NUMBERS when placing orders.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
S-1000A/2000A
ROTARY CODED SWITCHES
■
LIST OF PART NUMBERS
Binary coded decimal
Binary coded hexadecimal
Real code
S-1010AW
S-1010A
S-1110AW
S-1110A
S-1210AW
S-1210A
S-1011AW
S-1011A
S-1111AW
S-1111A
S-1211AW
S-1211A
Complementary code
S-1030AW
S-1030A
S-1130AW
S-1130A
S-1230AW
S-1230A
S-1031AW
S-1031A
S-1131AW
S-1131A
S-1231AW
S-1231A
Shape
Form of packging
Real code
Complementary code
S-2030AW
S-2030A
S-2130AW
S-2130A
S-2230AW
S-2230A
S-2031AW
S-2031A
S-2131AW
S-2131A
S-2231AW
S-2231A
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
S-2010AW
S-2010A
S-2110AW
S-2110A
S-2210AW
S-2210A
S-2011AW
S-2011A
S-2111AW
S-2111A
S-2211AW
S-2211A
Pieces in
package
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
Without knob
Top
setting
With knob
Translucent knob
with flange
Without knob
Side
setting
With knob
Translucent knob
with flange
※
Verify the above part numbers when placing orders.
Tray version can be supplied only in tray units.
■
TERMINAL CONNECTION / P.C.B. THROUGH HOLE DIMENSIONS
Top setting
Side setting
Operating face
of real code
8 4 2 1
C
(Unit: mm)
Terminal pin layout
(Bottom view)
Real code
8 4 2 1
C
Complementary code
8 4 2 1
C
Operating face of
complementary code
8 4 2 1
C
2.54±0.1
Operating face
2.54±0.1
5 –
φ
0.8 hole
2.54±0.1
5 –
φ
0.8 hole
5.08±0.1
S – 1000A/2000A case
S – 1000A/2000A case
■
CODE FORMAT
No. of positions
Position
Real code
Code
Complemen-
tary code
●
…Contact
closed
8
4
2
1
8
4
2
1
0
1
2
S-1000A series (16 positions)
S-2000A series (10 positions)
3
4
5
6
7
8
9
A
B
C
D
E
F
7.62±0.1
P.C.B. dimensions
(Bottom view)
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
2.54±0.1
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
S-1000A/2000A
ROTARY CODED SWITCHES
■
STANDARD SPECIFICATIONS
Circuit type
Operating temperature range
Storage temperature range
Sealing
Washable by “O” ring
Approx. 0.87 g
(S-1010A, S-1030A, S-2010A, S-2030A)
Approx. 1.13 g
(S-1011A, S-1031A, S-2011A, S-2031A)
Approx. 0.97 g
(S-1110A, S-1130A, S-2110A, S-2130A)
Approx. 1.23 g
(S-1111A, S-1131A, S-2111A, S-2131A)
Approx. 1.02 g
(S-1210A, S-1230A, S-2210A, S-2230A)
Approx. 1.28 g
(S-1211A, S-1231A, S-2211A, S-2231A)
BCD (Real code, complementary code)
BCH (Real code, complementary code)
−
40 ~ 85 °C
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1
μA
100 mΩ maximum
1000 MΩ (DC100 V) minimum
AC300 V, 60 s
Net weight
■
ENVIRONMENTAL CHARACTERISTICS
■
MECHANICAL CHARACTERISTICS
No. of positions
Adjustment torque
Stepping angle
Terminal strength
Solderability
16 (S-1000A), 10 (S-2000A)
13 mN·m {133 gf·cm} minimum
Shock
22.5° (S-1000A), 36° (S-2000A)
15 N {1.53 kgf} minimum
245
±
3 °C, 2 ~ 3 s
Flow : 260
±
3 °C as the temperature in
a pot of molten solder, immer-
sion from head of terminal to
backside of board, 5 ~ 6 s, two
times maximum
Manual soldering
：
380
±
10 °C, 3 ~ 4 s
{ } : Reference only
Load life
Humidity (Steady state)
High temperature exposure
Low temperature exposure
Thermal shock
Vibration
Amplitude 1.5 mm or Acceleration 98 m/s
2
,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
10000 steps
DC5 V, 100 mA
Resistance load DC50V 100mA
60 °C, Relative humidity 90 ~ 95 %, 1000 h
85 °C, 1000 h
−
40 °C, 96 h
−
40 (0.5 h) ~ 85 °C ( 0.5 h ), 5 cycles
Soldering heat
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
S-1000A/2000A
ROTARY CODED SWITCHES
■

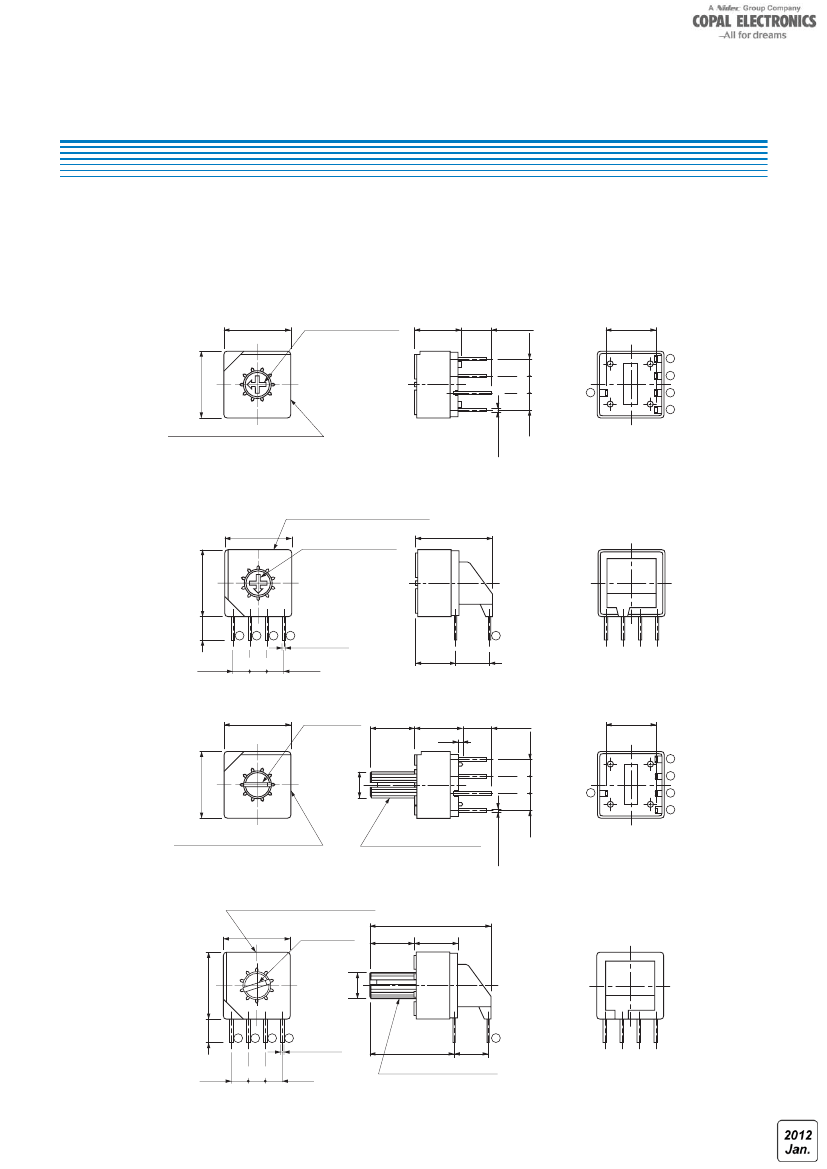

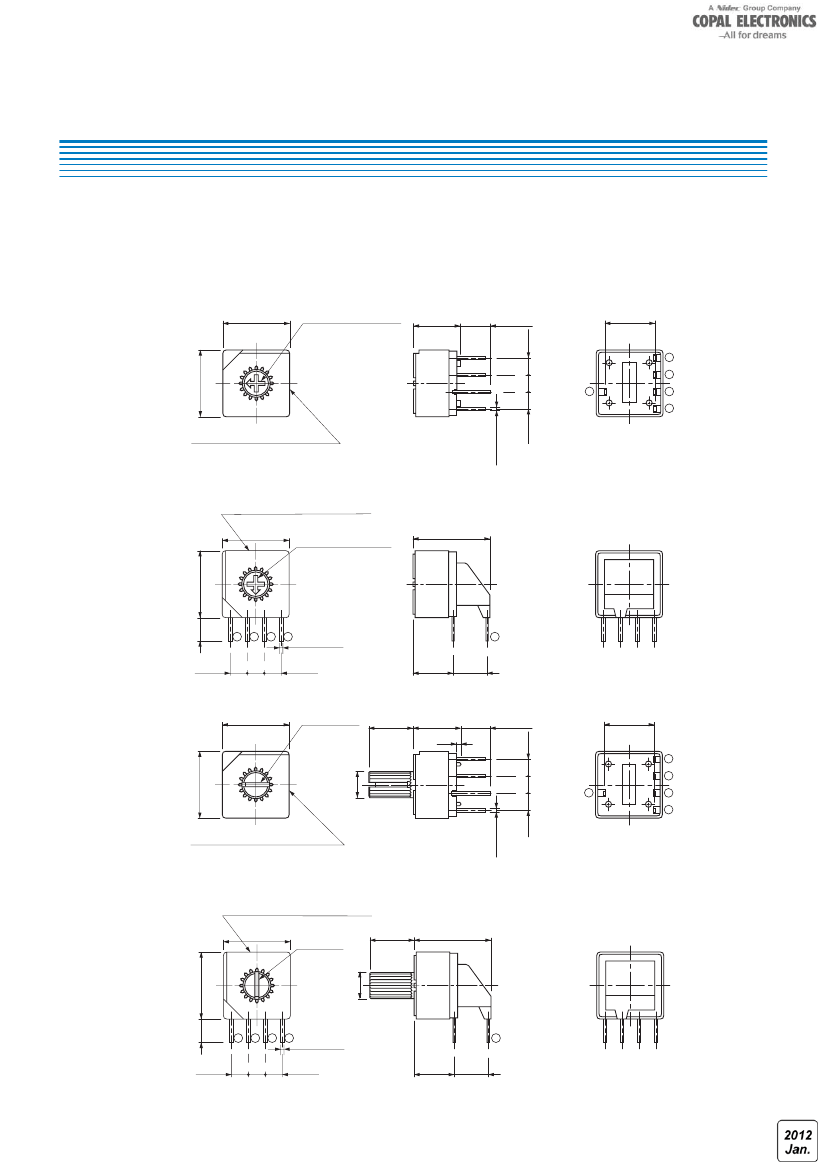

OUTLINE DIMENSIONS
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
(S-2000A series)
●
S-2010A
●
S-2030A
Top setting
0.6 W
×
2.6 L
×
1.7 D
10±0.2
7
4.5±0.5
2.54
7.62
8
2
3
10±0.2
4
5
6
5–0.5±0.1
t = 0.2
9
0
1
2.54
4
C
2
1
Part No. & Production date code
●
S-2011A
●
S-2031A
Side setting
10±0.2
Part No. & Production date code
10±0.2
0.6 W
×
2.6 L
×
1.7 D
11.5
4
5
6
2
3
3.5±0.5
8
4
2
1
2.54
2.54
5 – 0.5±0.1
t = 0.2
2.54
C
6
5.08
10±0.2
2
3
2.54
●
S-2110A
●
S-2130A
Top setting
10±0.2
0.7 W
×
1 D
2.54
9
0
1
φ
3.9
2.54
5
–
0.5±0.1
t = 0.2
Part No. & Production date code
Straight knurl M = 0.2
●
S-2111A
●
S-2131A
Side setting
10±0.2
Part No. & Production date code
18.1
10±0.2
0.7 W
×
1 D
6.6
6.5
4
5
6
2
3
φ
3.9
3.5±0.5
8
4
2
1
2.54
2.54
5 – 0.5±0.1
t = 0.2
2.54
12.6
C
5.08
Straight knurl M = 0.2
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
2.54
9
0
1
9
0
1
7
8
7
8
6.6
7
0.5
4.5±0.5
7.62
8
4
5
6
4
C
2
1
7
8
7 8
