EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-031-088
REV.:
2
4.7mm Round Type LED Lamps
PART NO. :
█
Features :
●
●
●
313HD/F45-63
█
ECN :
Page:
1/4
Package Dimensions:
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities,
epoxy colors, etc.
█
Applications :
●
TV set
●
Monitor
●
Telephone
●
Computer
PART NO.
313HD/F45-63
█
Notes :
1. All dimensions are in millimeters.
2. An epoxy meniscus may extend about
1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
Chip
Material
GaP
Emitted Color
Bright Red
Lens Color
Red Diffused
Office : 7C Building, Lian Hua Port Industrial District, Lian Hua Shan
Bonded Pricessing Zone Pan Yu, Guang Zhou, China
TEL. : (020)84860913,84860914
FAX : (020)84860600
http : //www.everlight.com
T01504,B90560175
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-136
REV.:
1
5.0mm Round Type LED Lamps
PART NO. :
█
313HD/F45-63
ECN :
Page:
2/4
Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Peak Forward
Current(Duty 1/10 @
1KH
Z
)
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
Pd
I
F
(Peak)
V
R
Rating
15
-40 to +85
-40 to +100
260
±
5
45
50
5
Unit
mA
℃
℃
℃
mW
mA
V
█
Electronic Optical Characteristics :
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
△λ
V
F
I
R
Min.
0.50
／
／
／
／
1.50
／
Typ.
1.60
60
697
650
90
2.00
／
Max.
／
／
／
／
／
2.40
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
I
F=
10 mA
I
F=
10 mA
I
F=
10 mA
I
F=
10 mA
I
F=
10 mA
I
F=
10 mA
V
R
= 5 V
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-031-088 REV.:
2
4.7mm Round Type LED Lamps
PART NO. :
313HD/F45-63
█
ECN :
Page:
3/4

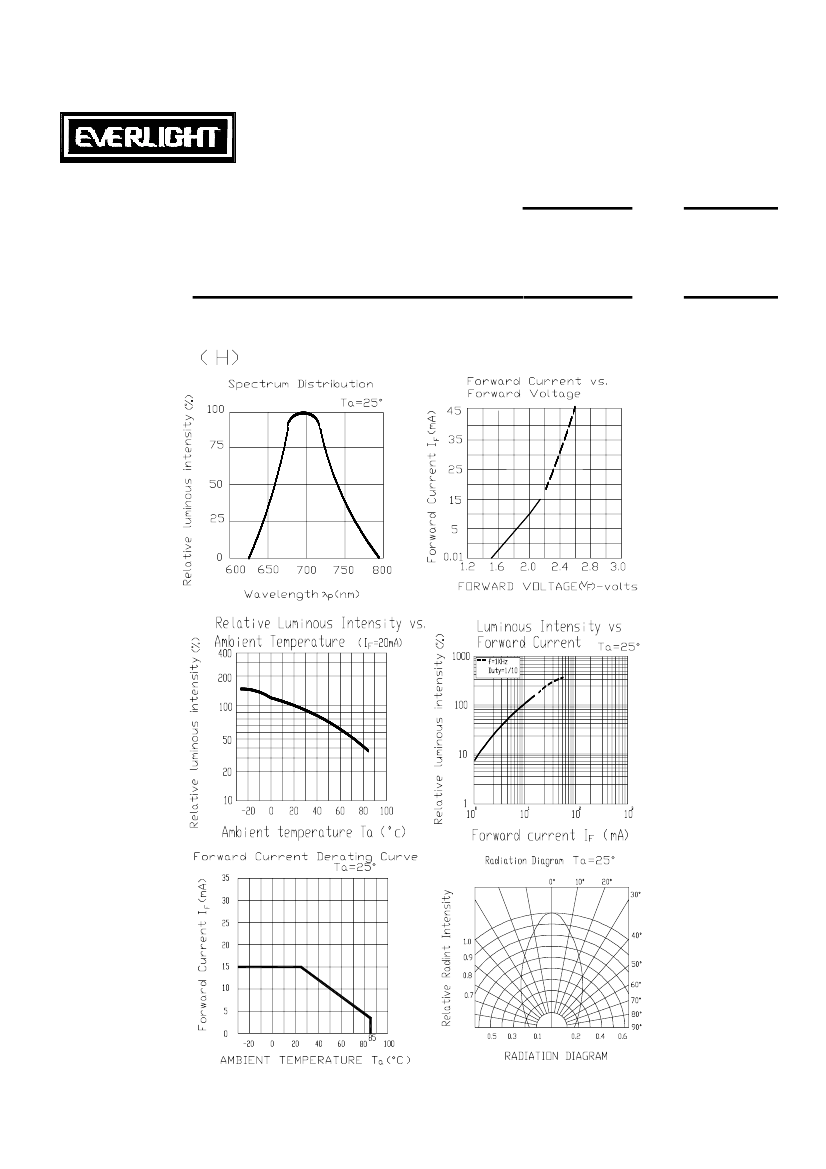

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-031-088
REV.:
2
4.7mm Round Type LED Lamps
PART NO. :
313HD/F45-63
█
NO
1
ECN :
Page:
4/4
Reliability test items and conditions:
Item
Solder Heat
Test Conditions
TEMP : 260℃
±
5
℃
H : +85℃ 30min
∫
5 min
L : -55℃ 30min
H : +100℃ 5min
∫
10 sec
L : -10℃ 5min
TEMP : 100℃
Test
Sample
Ac/Re
Hours/Cycle
Size
5 SEC
76 PCS
0/1
2
Temperature Cycle
50 CYCLES 76 PCS
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
50 CYCLES 76 PCS
0/1
4
1000 HRS
76 PCS
0/1
5
TEMP : -55℃
TEMP : 25℃
I
F
= 10 mA
1000 HRS
76 PCS
0/1
6
1000 HRS
76 PCS
0/1
7
High Temperature /
High Humidity
85℃ / 85% RH
1000 HRS
76 PCS
0/1
