STATSHIELD
®
HIGH PUNCTURE MOISTURE BARRIER BAG
Specifications:
Standard Document
ANSI/ESD S541 (ANSI/ESD S20.20)
ANSI/ESD S11.4
Electrical Properties
Surface Resistance
(both exterior and interior)
Discharge Shielding
Static Shielding
Charge Generation
Teflon
Quartz
Date & Lot Code
Printed for QC
Traceablility
Meets Requirements of:
ESD Protective Packaging
Level 2 Technical Requirements
Typical Values
1 x 104 to < 1 x 10
11
ohms
<10 nJ
20 volts
-0.09 nC/sq. in.
+0.10 nC/sq. in.
Test Procedures/Method
ANSI/ESD STM11.11
ANSI/ESD STM11.31
EIA 541
Modified incline plane
Modified incline plane
Weld
Seal
Side Weld Seal 3/8 in.
Soft Fold Bottom
Heavy Duty Static
Dissipative Polyester
Aluminum Shielding
Layer
Polyester Layer
Aluminum Shielding Layer
High Performance Heavy
Duty Static Dissipative Polyethylene
Physical Properties
Film Thickness
Puncture Strength
Heat Seal Strength
(Vetrod bar sealer)
Seal Strength
MVTR
Silicone
Non-corrosive
Marking Adhesion
Nominal 0.0065" (.1651mm) ±10% MIL-STD-3010, 1003
>30 lbs
MIL-STD-3010, 2065
>11 (lb/in width)
>12 PSI
≤0.014/g/100sq.in/24hours
Not detected
Pass
Pass
ASTM D1876-93
ASTM D882
ASTM F1249
FTIR
MIL-STD-3010, M3005
IPC-TM-650 2.4.1
NOTE:
The complete dry package concept of packaging
for electronics requires three elements:
Statshield
®
Moisture Barrier Bags
- To Protect
Dessicant
- To Absorb Moisture
Humidity Indicator Card
- To Monitor Performance
For detailed instructions see Technical Bulletin
TB-2031
-
Moisture Barrier Bags Application Instructions.
ANSI/ESD S541 Section 6.2 Outside an EPA
“Transportation of sensitive products outside of an EPA shall require packaging that provides:
1. Low charge generation
2. Dissipative or conductive materials for intimate contact
3. A structure that provides electrostatic discharge shielding.”
RoHS 2, REACH and Conflict Minerals Statement
None of the RoHS 2 restricted materials, REACH substances of very high concern as of 2016/06/20, or
Conflict Minerals are intentionally added in manufacturing this product. Ref: European Union Directive
2011/65/EU and Regulation (EC) No. 1907/2006/CE. See
Desco Limited Warranty at Desco.com.
Statshield
®
and Statfree
®
are Registered Trademarks of Desco Industries Inc.
See Bag Selection Chart Click
HERE.
Statshield
®
bags are packaged 100 per package in an oversized shielding bag.
See Shielding Bag Storage at
TB-7057.
Specifications and procedures subject to change without notice.
Made in the
United States of America

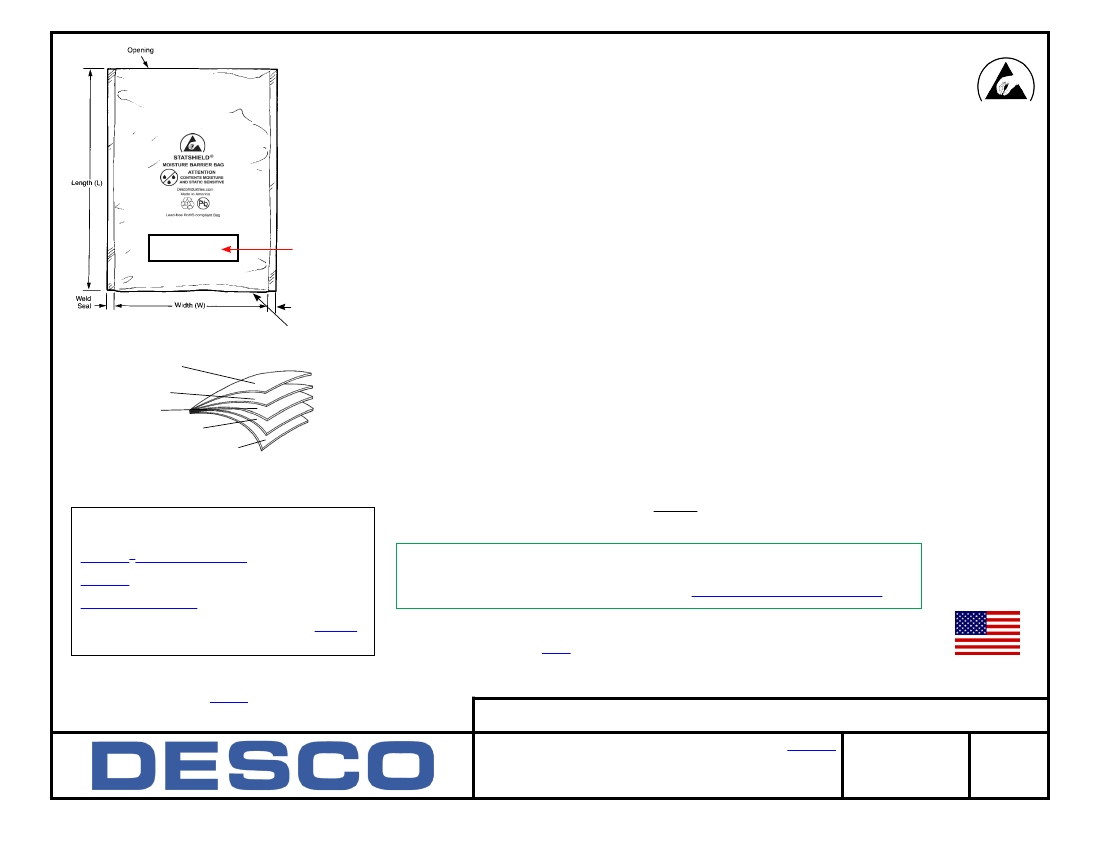

STATSHIELD® HIGH PUNCTURE, MOISTURE BARRIER BAG, 0.0065" (0.1651mm)
DESCO WEST:
3651 WALNUT AVE., CHINO, CA 91710 WEB SITE:
Desco.com
PHONE (909) 627-8178
DESCO EAST:
ONE COLGATE WAY, CANTON, MA 02021-1407
PHONE (781) 821-8370
DRAWING
NUMBER
13760
DATE:
August
2016
© 2016 DESCO INDUSTRIES INC.
