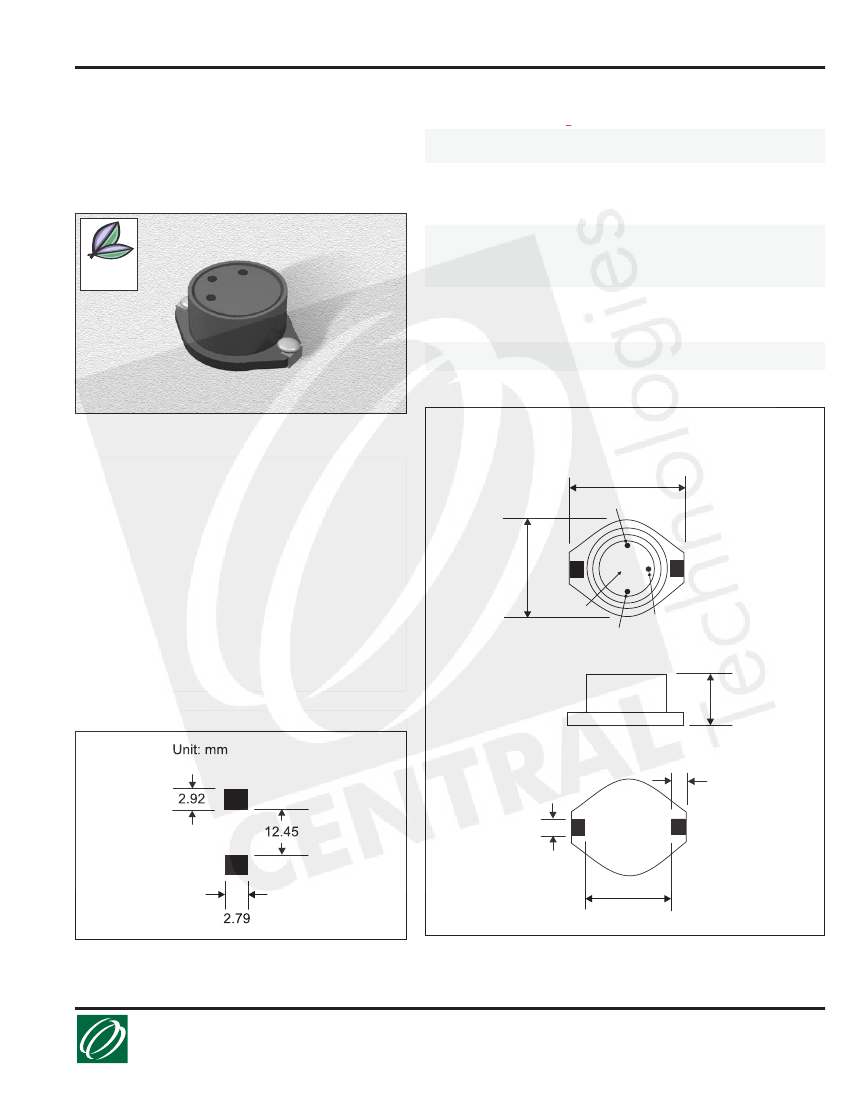

Power Inductors - Shielded

ctparts.com

CTDS5022 Series

From 10 µH to 1,000 µH

Part

Number

CTDS5022P_-103

CTDS5022P_-153

CTDS5022P_-223

CTDS5022P_-333

CTDS5022P_-473

CTDS5022P_-683

Not shown at actual size.

CTDS5022P_-104

CTDS5022P_-154

CTDS5022P_-224

CTDS5022P_-334

CTDS5022P_-474

CTDS5022P_-684

CTDS5022P_-105

SPECIFICATIONS

Parts are available in ±20% tolerance only.

CTDS5022PF

Please specify “F” for RoHS Compliant

Inductance

(µH±20%)

100

150

220

330

470

680

1000

L Test

Freq.

(kHz)

100

Fact.

Min.

Q Test

Freq.

(kHz)

100

SRF

(MHz)

8.0

7.0

5.5

4.8

4.0

3.0

2.4

2.0

1.0

DCR

Max.

Ω

(Ω)

.04

.05

.06

.08

.10

.14

.21

.30

.47

.78

1.1

1.4

2.0

Isat

(A)

8.0

7.0

6.0

5.0

4.0

3.0

2.4

2.1

1.9

1.1

1.0

0.8

Irms

(A)

3.9

3.4

3.1

2.8

2.4

2.0

1.7

1.3

1.1

.86

.73

.64

.53

Compliant

Available

RoHS

PHYSICAL DIMENSIONS

Size

inches

Max.

18.54

0.73

Max.

15.24

0.6

Max.

7.62

0.3

2.54

0.1

2.54

0.1

12.7

0.5

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Ideal for high performance DC/DC converter

applications, computers, LCD displays and telecommunication

equipment. Especially those requiring shielding

Operating Temperature:

-40°C to +85°C

∆

40°C typically at Irms

Inductance Tolerance:

±20%

Inductance Drop:

10% typically at Isat

Testing:

Inductance and Q are tested on an HP4285A at 100 kHz

Packaging:

Tape & Reel

Marking:

Color dots OR Inductance code

Miscellaneous:

RoHS Compliant available.

Magnetically shielded

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

Parts will be marked with

Significant Digit Dots OR Inductance Code

1st significant digit

Ind. Code

XXX

2nd significant digit

3rd significant digit

PAD LAYOUT

01.14.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
