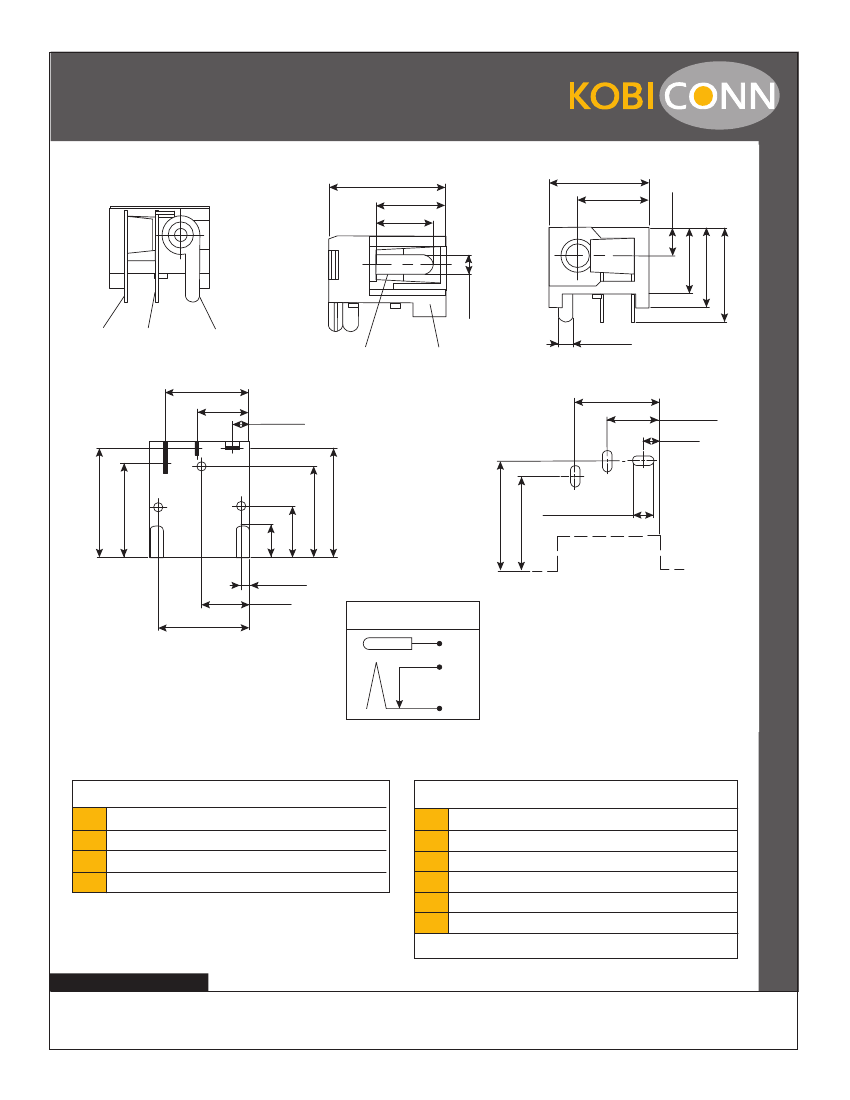

DC Power Jack
163-4521-E
DC Power Jack
12.20
7.30±.20
6±.10
7±.10
8.50
2
3
1
5
8.85
5.50
1.75
3
2
11.50
8.85±.20
5.50±.20
1.75
1
4
ø2
3-1.50
9.60±.10
11.50
11.50
9.90
3.40
.85±.10
5±.10
9.65±.10
SCHEMATIC
3
2
5.40
9.90
3-2.20x1
Pin Hole Layout
(Jack Bottom View)
1
10.50
7.30±.20
3
Dimensions: mm
ELECTRICAL SPECIFICATIONS
1
2
3
4
Contact resistance: 30mΩ max.
Insulation resistance: 100mΩ min at DC 500V.
Withstanding voltage: AC 500V for 1 minute.
RoHS Compliant
ITEM
1
2
3
4
5
MATERIAL SPECIFICATIONS
SPECIFICATIONS
Pin Terminal: 0.3T Brass, Silver Plated
Sleeve Spring: 0.3T Phosphor Bronze, Silver Plated
Break Terminal: 0.4T Bass, Sliver Plated
Housing: PBT, Black Color
Pin(2.0ø): Copper, Nickel Plated
RoHS Compliant
10
163-4521-E
Date Last Revised: 05/27/09
Available from Mouser Electronics
1-800-346-6873 / www.mouser.com
KC-301315
