D83C251SA16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> D83C251SA16

D83C251SA16: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size884KB，36 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

D83C251SA16 Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40

D83C251SA16 Parametric

Parameter Name	Attribute value
Maker	Intel
Reach Compliance Code	compliant
Has ADC	YES
Address bus width
bit size	8
CPU series	8051
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-XDIP-T40
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	8192
ROM programmability	MROM
speed	16 MHz
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

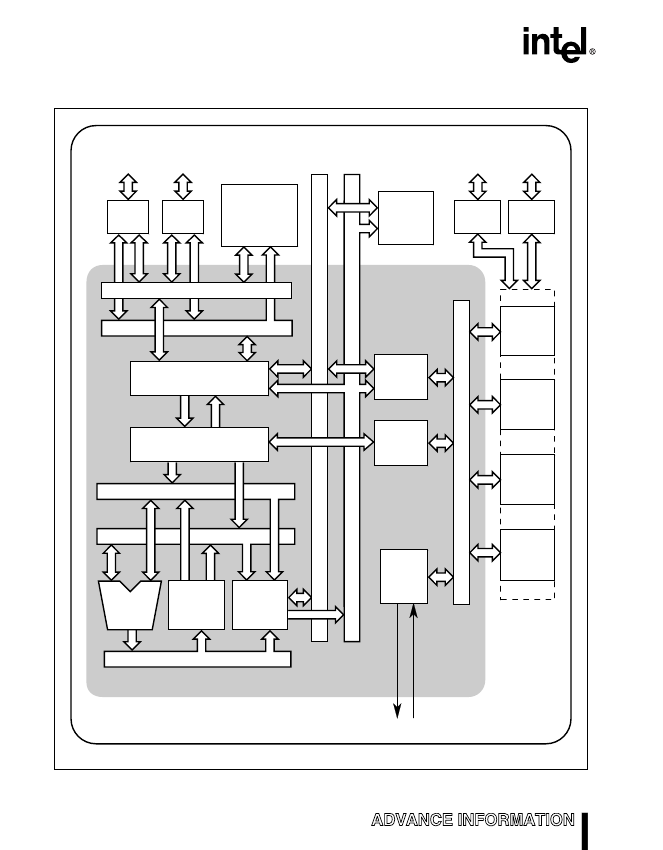

8XC251SA/SB/SP/SQ

HIGH-PERFORMANCE

CHMOS MICROCONTROLLER

Commercial/Express

Real Time and Programmed Wait State

Bus Operation

Binary-code Compatible with MCS

Pin Compatible with 44-lead PLCC and

40-lead PDIP MCS 51 Sockets

251 Architecture

— 40-byte Register File

— Registers Accessible as Bytes, Words,

and Double Words

Enriched MCS 51 Instruction Set

— 16-bit and 32-bit Arithmetic and Logic

Instructions

— Compare and Conditional Jump

Instructions

— Expanded Set of Move Instructions

Linear Addressing

256-Kbyte Expanded External Code/Data

Memory Space

ROM/OTPROM/EPROM Options:

16 Kbytes (SB/SQ), 8 Kbytes (SA/SP), or

without ROM/OTPROM/EPROM

16-bit Internal Code Fetch

64-Kbyte Extended Stack Space

On-chip Data RAM Options:

1-Kbyte (SA/SB) or 512-Byte (SP/SQ)

8-bit, “Min” 2-clock External Code Fetch

Page Mode

User-selectable Configurations:

— External Wait States (0-3 wait states)

— Address Range & Memory Mapping

— Page Mode

32 Programmable I/O Lines

Seven Maskable Interrupt Sources

with Four Programmable Priority

Levels

Three Flexible 16-bit Timer/counters

Hardware Watchdog Timer

Programmable Counter Array

— High-speed Output

— Compare/Capture Operation

— Pulse Width Modulator

— Watchdog Timer

Programmable Serial I/O Port

— Framing Error Detection

— Automatic Address Recognition

High-performance CHMOS Technology

Static Standby to 16-MHz Operation

Complete System Development

Support

— Compatible with Existing Tools

— New MCS 251 Tools Available:

Compiler, Assembler, Debugger, ICE

Package Options (PDIP, PLCC, and

Ceramic DIP)

Fast MCS 251 Instruction Pipeline

This document contains information on products with “[M] [C] '94 '95 C” as the last line of the top marking

diagram.

A member of the Intel family of 8-bit MCS 251 microcontrollers, the 8XC251SA/SB/SP/SQ is binary-

code compatible with MCS 51 microcontrollers and pin compatible with 40-lead PDIP and 44-lead PLCC

MCS 51 microcontrollers. MCS 251 microcontrollers feature an enriched instruction set, linear addressing,

and efficient C-language support. The 8XC251SA/SB/SP/SQ has 512 bytes or 1 Kbyte of on-chip RAM and is

available with 8 Kbytes or 16 Kbytes of on-chip ROM/OTPROM/EPROM, or without

ROM/OTPROM/EPROM. A variety of features can be selected by new user-programmable configurations.

Information in this document is provided in connection with Intel products. Intel assumes no liability whatsoever, including infringement of

any patent or copyright, for sale and use of Intel products except as provided in Intel’s Terms and Conditions of Sale for such products.

Intel retains the right to make changes to these specifications at any time, without notice. Microcontroller products may have minor varia-

tions to this specification known as errata.

2004

July 2004

Order Number:

272783-004

D83C251SA16 Related Products

	D83C251SA16	D87C251SP16	D87C251SQ16	D83C251SB16	D83C251SQ16	D87C251SB16
Description	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Has ADC	YES	YES	YES	YES	YES	YES
bit size	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
JESD-30 code	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
Number of I/O lines	32	32	32	32	32	32
Number of terminals	40	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	1024	512	512	1024	512	1024
rom(word)	8192	8192	16384	16384	16384	16384
ROM programmability	MROM	UVPROM	UVPROM	MROM	MROM	UVPROM
speed	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Maximum slew rate	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
