53462-0621

Description
usb and firewire connector RA smt pcb skt 6P shielded flat
CategoryThe connector    The connector
File Size38KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

53462-0621 Online Shopping

Suppliers Part Number Price MOQ In stock
53462-0621 - - View Buy Now

53462-0621 Overview

usb and firewire connector RA smt pcb skt 6P shielded flat

53462-0621 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSHIELDED
Board mount optionsSOLDERABLE RETENTION CLIPS
body width0.331 inch
subject depth0.638 inch
body length0.516 inch
Body/casing typeSOCKET
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance30 mΩ
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability1500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
insulator materialPOLYAMIDE
MIL complianceNO
Manufacturer's serial number53462
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1DETENT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialPHOSPHOR BRONZE
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts6
UL Flammability Code94V-0
Evacuation force-minimum value1.5568 N
Base Number Matches1
This document was generated on 11/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:

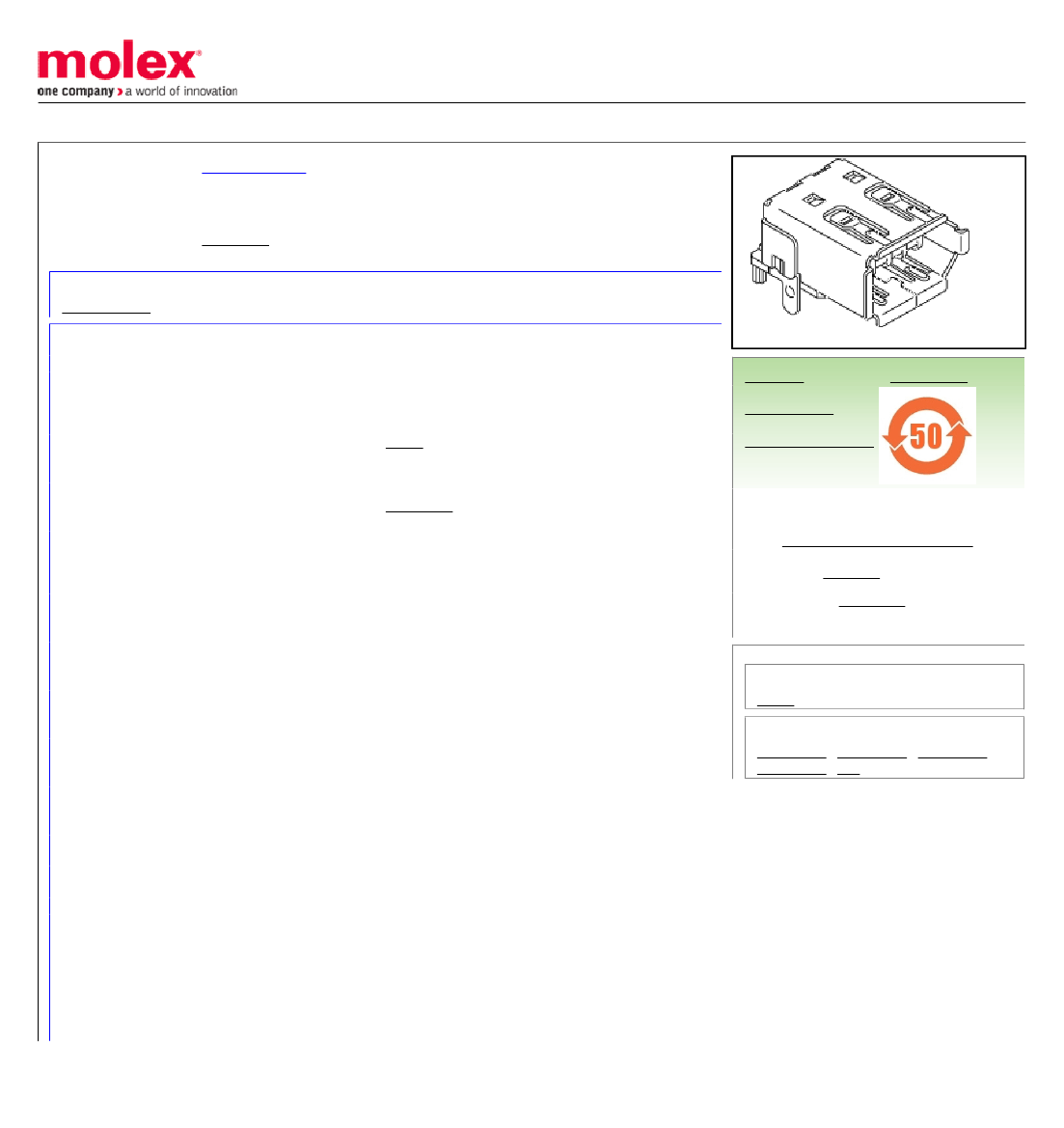

Drawing (PDF)
Series
0534620621
Obsolete
2.00mm (.079") Pitch IEEE 1394-1995 Shielded I/O PCB Socket, Right Angle, Flat,
SMT
534620629
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
Not RoHS Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Component Type
Product Name
Replacement Part Number
Type
I/O Connectors
53462
Wire-to-Board
Receptacle
IEEE 1394
534620629
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Orientation
PCB Retention
PCB Thickness - Recommended
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
6
6
94V-0
Yes
Gold
Tin-Lead
Right Angle
Yes
1.60mm (.063")
Tray
No
2.00mm (.079")
Yes
N/A
-40°C to +85°C
Surface Mount
N/A
Search Parts in this Series
53462Series
Mates With
59233-0xxx , 59233-3xxx , 59233-5xxx ,
59233-7xxx , 592 33-6xxx
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
0.5A, 1.5A
Yes
40V
Material Info
Reference - Drawing Numbers
Product Specification
PS-53460-001, PS-53460-002, PS-53460-003,
PS-54030-010, PS-54030-032, PS-54030-033,
PS-59205-209, RPS-53460-019, RPS-54030-028,
RPS-54515-013
