303483J000-21: DescriptionBoard Connector, 348 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Receptacle; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

303483J000-21 Overview

Board Connector, 348 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Receptacle

303483J000-21 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	XD/P
Board mount options	HOLE .099-.111
body width	0.485 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	30
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	348
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

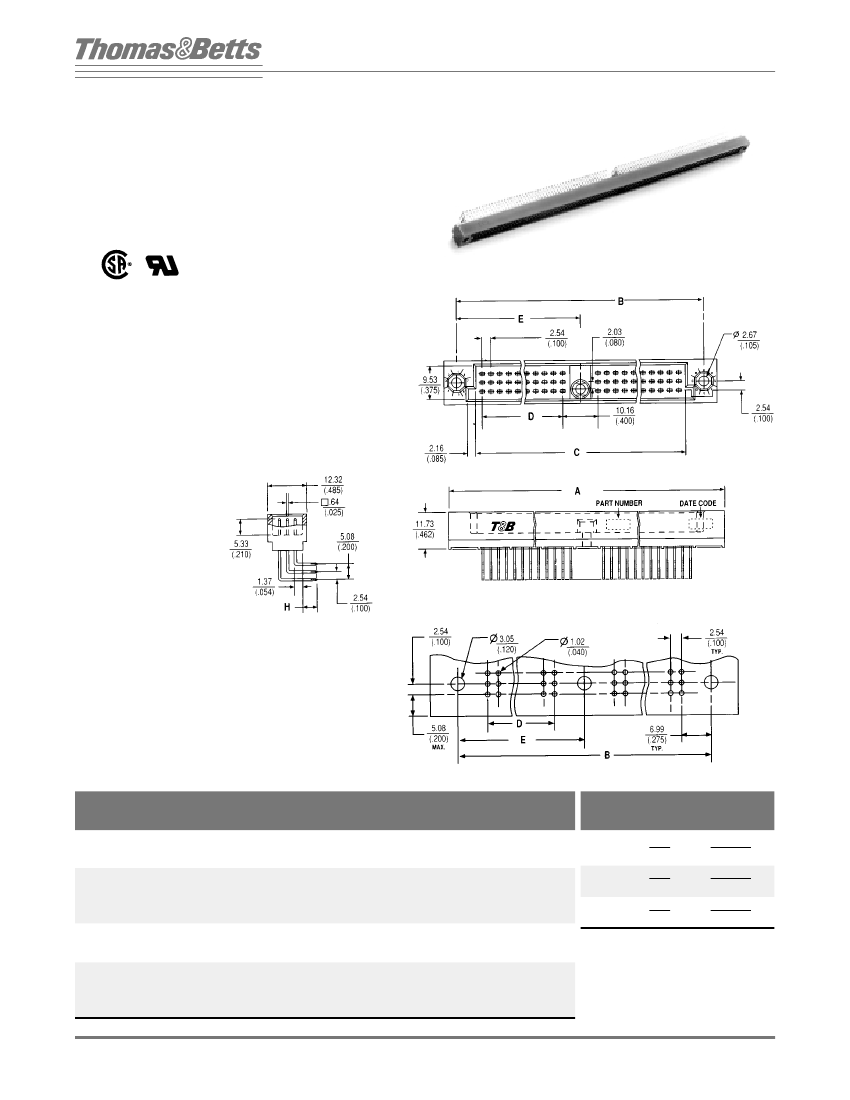

Two–Piece Connectors

XD/P System

THREE ROW, TWO CELL

RIGHT ANGLE MALE

XD/P

™

CONNECTORS

240-366 POSITIONS

ONE CENTER MOUNTING

FEATURE

LR49571

E60980

HYSICAL

ROPERTIES

Insulation Material: Glass filled thermoplastic

rated UL 94V-0

Color: Black

Contacts: Copper alloy, nickel plate overall, 30

microinches gold plating in contact zone, tin/lead

or gold on posts

LECTRICAL

ROPERTIES

Current Rating: 2 amps/pin

Insulation Resistance: >1 x 10

0hms

Dielectric Strength: > 1000 VDC at sea level

NVIRONMENTAL

ROPERTIES

Temperature Rating: -55˚C TO 125°C

OUNTING

ARDWARE

See pages 310-314

ELECTIVE

OADING

See pages 308-309

Recommended Printed Circuit Board Layout

Ordering Information

NUMBER

PART NUMBER

POSITIONS SPECIFY X

240

252

258

276

294

300

312

330

348

366

302403X000-21

302523X000-21

302583X000-21

302763X000-21

302943X000-21

303003X000-21

303123X000-21

303303X000-21

303483X000-21

303663X000-21

eg. 303663L000-21

229.87 (9.050)

240.03 (9.450)

245.11 (9.650)

260.35 (10.250)

222.25 (8.750)

232.41 (9.150)

237.49 (9.350)

252.73 (9.950)

212.09 (8.350)

222.51 (8.750)

227.33 (8.950)

242.54 (9.550)

257.81 (10.150)

262.89 (10.350)

273.05 (10.750)

288.29 (11.350)

303.53 (11.950)

318.77 (12.550)

99.06 (3.900)

104.14 (4.100)

106.68 (4.200)

114.30 (4 500)

121.92 (4.800)

124.46 (4.900)

129.54 (5.100)

137.16 (5.400)

144.78 (5.700)

152.40 (6.000)

111.13 (4.375)

116.21 (4.575)

118.75 (4.675)

126.37 (4 975)

133.99 (5.275)

136.53 (5.375)

141.61 (5.575)

149.23 (5.875)

156.85 (6.175)

164.67 (6.475)

TAIL LENGTH

RECOMMENDED

PCB THICKNESS

RANGE

3.05

(.120)

3.81

(.150)

4.57

(.180)

1.2 - 2.0

(.047 - .077)

2.0 - 2.8

(.078 - .109)

2.8 - 3.6

(.110 - .140)

275.59 (10.850) 267.97 (10.550)

280.67 (11.050) 273.05 (10.750)

290.83 (11.450) 283.21 (11.150)

306.07 (12.050) 298.45 (11.750)

321.31 (12.650) 313.69 (12.350)

336.55 (13.250) 328.93 (12.950)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
