1500 Standard & 1300 High Inrush Switches
150A to EN61058-1 and 16A 250Vac
Standard rocker switch
Non-illuminated
1300 high inrush current
Choice of switching
circuits including 3
position
Choice of bezel styles
Choice of panel cut outs
Matching indicator
Single pole
Splash resistant option
BioCote antimicrobial
option
Panel cut out ‘A’ style:
27.3 x 12.3mm
Approvals and specifications
1500 Series 16(4)A 250Vac T125
UL CSA 16A Non Ind 250Vac, (2 posn) 250Vac 1hp, 125Vac
1/2hp, (3 posn) 250Vac 1/2hp, 125Vac 1/4hp
UL 10A 14Vdc ‘T’ (1500 and 1510 only)
UL 85˚C, file E45221, CSA file LR10990
In house test:
10A 24Vdc
— Indicative rating only
1300 series 16(6)A 250Vac T125 5E4 (50,000 Ops.)
150A Inrush to EN61058-1
UL CSA 20A 250Vac 1hp, 125Vac 1/2hp
UL 85˚C, file E45221, CSA file LR10990
rocker
switches
In house test:
20A 24Vdc
— Indicative rating only
BioCote antimicrobial additive. Independently verified
to ISO22196:2007.
3mm contact gap except if marked µ.
Technical data on pages 4 & 5 (switches), 6 (indicators).

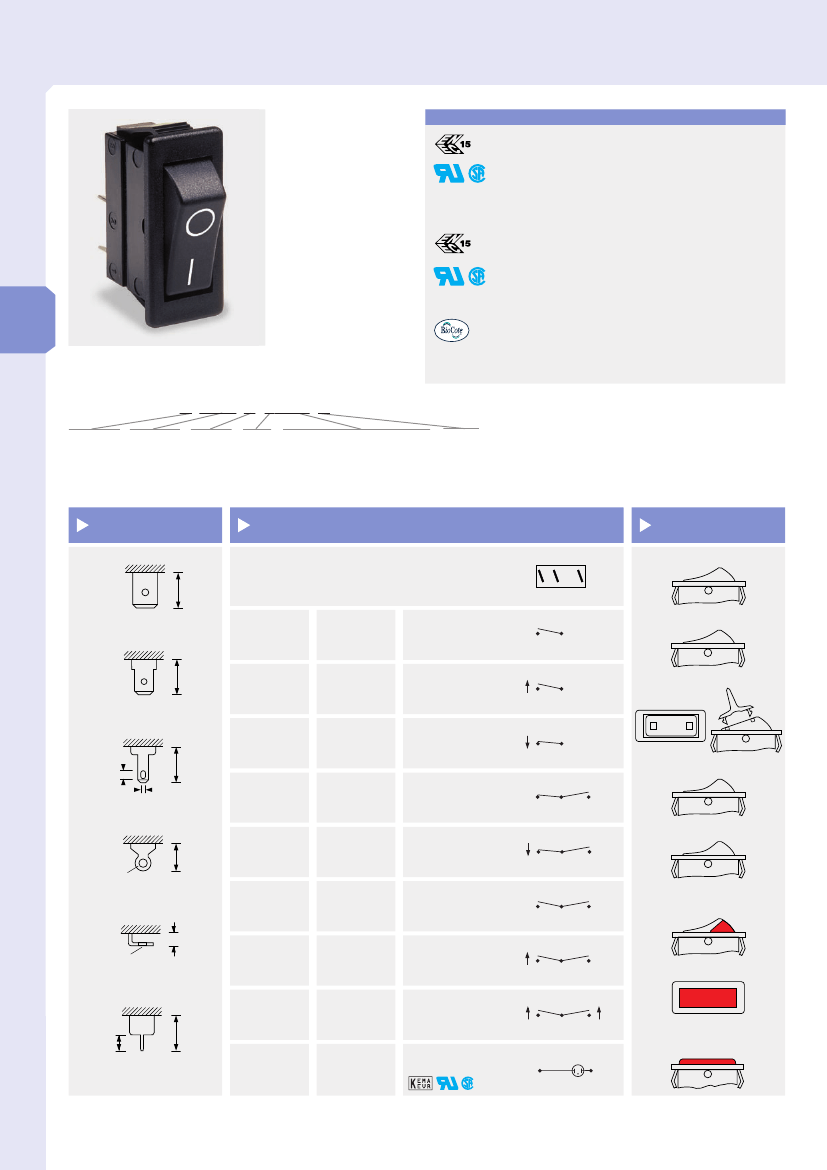

C 1300 A L--- B
TERMINAL FUNCTION ROCKER BODY PRINT, COLOUR, VOLTAGE ETC BioCote
TERMINAL
C
9.1
FUNCTION
ROCKER
A
Softline Matt
Approvals & ratings vary with function
ON OFF Switches - ON when pressed over terminal 1
1
2
3
6.3 x 0.8
H
9.1
Standard
1500
‘L’ body only
Approvals apply to C & T
terminals only
High Inrush
1300
B
Splash resistant (with Arcshield)
ON - OFF
Matt
1501
HP rating N/A
ON - OFF
(momentary ON)
H
Slotted (for custom Adaptors)
not momentary
4.8 x 0.8*
K
9.1
2.0
1.2
1502
HP rating N/A
ON - OFF
(momentary OFF)
V
Curved Matt or gloss
1510
µ
HP rating N/A
ON - ON
2.8 x 0.8*
T
1511
µ
7.0
Ø2.1
HP rating N/A
W
Splash resistant (with Arcshield)
ON - ON
(momentary 1 side)
Matt
Solder
1520
µ
125V & 250V 1/2 HP
H terminal rated
T100 only
X
Two colour Matt
ON - OFF - ON
ON - OFF only (not momentary)
U
3.2
Ø2.1
1521
µ
HP rating N/A
H terminal rated
T100 only
Right angle “T” solder terminal
ON - OFF - ON
(momentary 1 side)
F
Flat lens Gloss (0430 only)
X
9.1
4.0
1522
µ
HP rating N/A
H terminal rated
T100 only
ON - OFF - ON
(momentary 2 sides)
Indicator
Technical data on page 6
A
Softline lens Matt (0430 only)
as F but with raised profile
PCB 0.8Sq*
*N/A for 1300 series
0430
X terminal N/A
22
tel: +44 (0)20 8979 3232 •
Arcolectric
• email: europe@elektron-technology.com

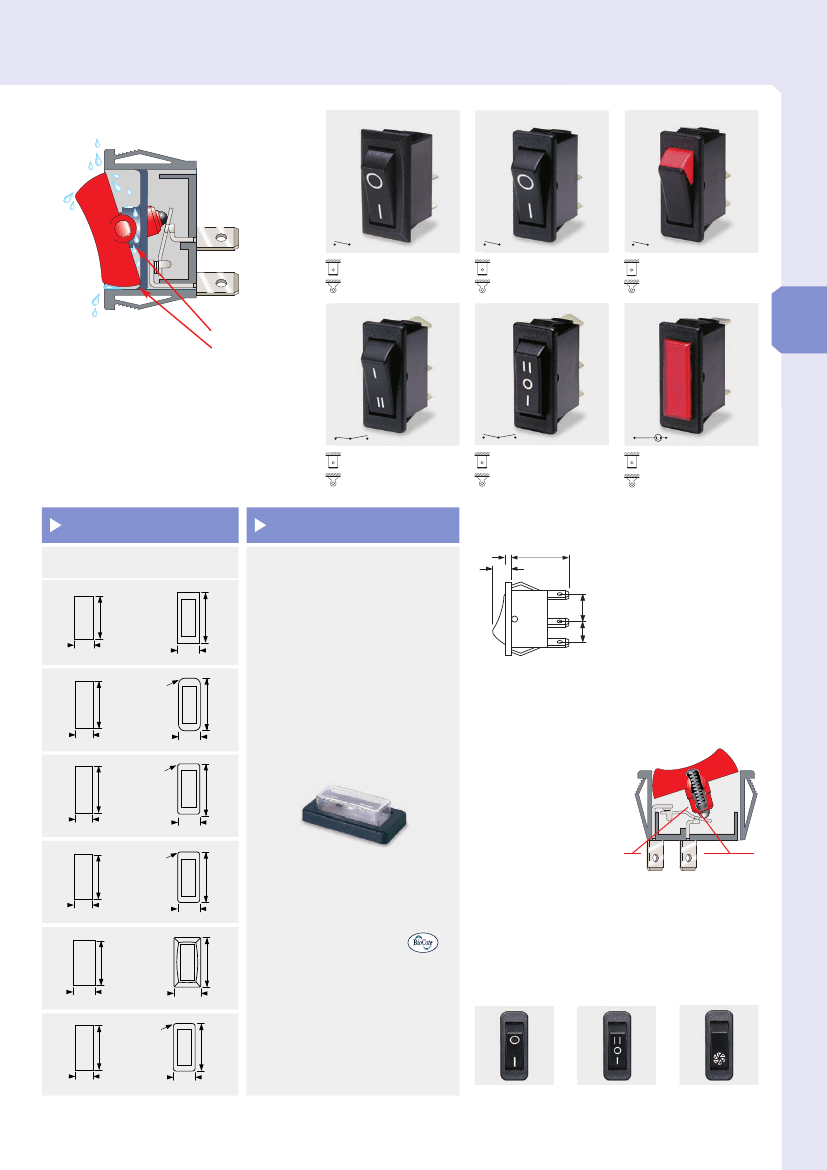

Splash Resistant
C1500AR ---
T1500AR ---
collar
feather-edge seal
C1500AL ---
T1500AL ---
C1500XL ---
T1500XL ---
rocker
switches
1500 W and B splash resistant options
Feather edge seals and a close fitting collar protect current
carrying parts from moisture.
B option has Hytrel collar/seals for enhanced protection.
C1510AL ---
T1510AL ---
C1520AL ---
T1520AL ---
C0430AL ---
T0430AL ---
BODY
Panel cut-out
*
A
27.2
27.3
12.2/12.3
Gloss or Matt
14.0
30.2
OPTIONS
Bezel
Finish
Matt is standard.
Colour
Call sales for custom colours.
A full range is available for large orders.
Legend printing
Select from the examples or
call sales for custom legends.
DIMENSIONS
(mm)
2.0
25.3 Max
7.6
Panel thickness
A,Q
L,B,T
R
13.2
9.2
Cut-outs must be punched in the direction of insertion
0.75 to 3.3mm
0.75 to 2.5mm
0.75 to 3.0mm
Lamp voltage
Call sales for details.
Blanking plates A0434 - -
Dummy units to
fill unused panel holes.
33.4
T
i
l
i
* For cut-out details
on momentary switches
call sales
B
R3.5
30.0
30.1
11.0/11.1
Protective cover
Matt only
R1.0
14.0
L
30.0
30.1
11.0/11.1
Snaps on to A, L, Q or T bodies
(add G after body code in cat no.), this reduces
panel thickness by 1.0mm.
32.0
1300 High inrush, positive break switching
The 1300 series mechanism
ensures contact welds formed at
switch-on are positively separated
by the plunger tube acting directly
on the step in the moving contact.
Matt only
14.0
Q
28.2
28.3
R1.6
30.2
14.0
step
Panel sealing washer W46 is available for the
same body sizes, this reduces panel thickness by
0.5mm.
Covers are not suitable for momentary types.
plunger tube
11.5/11.6
Gloss or Matt
R
28.5
28.6
14.0/14.1
31.5
17.0
BioCote Antimicrobial Additive
Moulded components have antimicrobial
properties using BioCote silver ion technology.
Matt only
Examples of printing
T
28.2
28.3
11.5/11.6
R1.6
30.2
14.0
Matt only
For all options call sales.
EN602A
tel: +44 (0)20 8979 3232 •
Arcolectric
• email: europe@elektron-technology.com
EN730
EN822
23
