3mm
LED CBI Circuit Board Indicator
Ganged Arrays

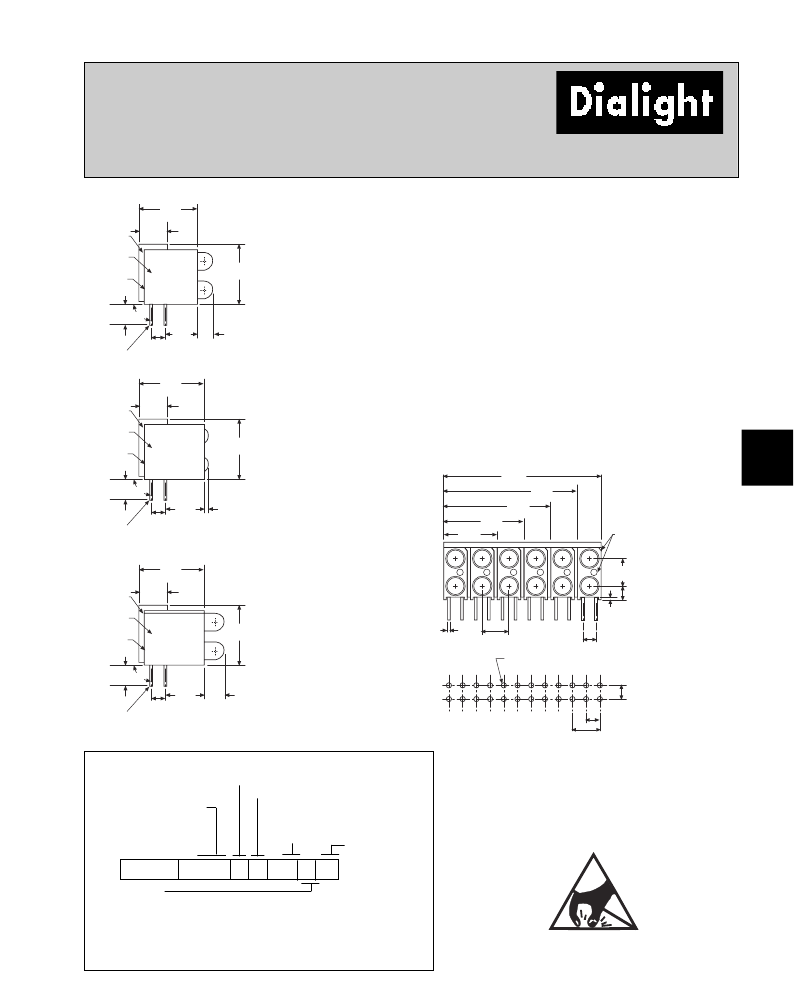

CBI Type 553-xxxx-0xx Standard View
9.06
[.36]
CARRIER
BI-LEVEL
ASSY
ULTRASONIC
WELD
10.67
[.420]
5.16
[.203]
REF
STANDARD POLARITY
CATHODE ON RIGHT
553-xxxx-xxx
Features
• 2 through 12 LEDs
• Mount on .200 center lines
• Standard View: 553-xxxx-0xx compatible with:
553-xxxx single bi-level
• Backlight: 553-22xx-1xx compatible with:
553-22xx-100 single backlighting bi-level
• DIN Compatible: 553-xxxx-2xx compatible with:
553-xxxx-200 single DIN41494 bi-level
• Reduces insertion labor cost
• Welded angle bracket construction assures rigidity
• Carrier and housing material meets UL 94 V-0
3.68
[.145]
90°
4.44
[.175]
REF
2.80
[.103]
MAX
TOP
LED
2.54
[.100] TYP
CBI Type 553-22xx-1xx Backlight
11.56
[.455]
CARRIER
BI-LEVEL
ASSY
ULTRASONIC
WELD
10.67
[.420]
5.16
[.203]
REF
STANDARD POLARITY
CATHODE ON RIGHT
Custom Combinations
• Consult factory for color or LED variations
• Narrow .185 mounting pitches available, consult factory
29.88
[1.174]
24.74
[.974]
4
3.68
[.145]
90°
6.86
[.270]
REF
.38
[.015]
9.50
[.347]
19.65
[.774]
14.58
[.574]
TOP
LED
2.54
[.100] TYP
POLARITY
I.D. MARK
CBI Type 553-xxxx-2xx DIN Compatible
11.56
[.455]
CARRIER
BI-LEVEL
ASSY
ULTRASONIC
WELD
10.67
[.420]
5.16
[.203]
REF
STANDARD POLARITY
ANODE ON RIGHT
5.08
[.200] TYP
2.54
[.100] TYP
.51
[.020] TYP
.46 SQ. NOM
[.018] TYP
5.08 [.200]
TYP 5 PLS
NON-ACCUM.
1.02
±.05
[.040
±.002]
TYP 24
2.54
[.100] TYP
3.68
[.145]
90°
6.86
[.270]
REF
3.51
[.138]
4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
2.54
±.05
[.100
±.002]
TOP
LED
2.54
[.100] TYP
RECOMMENDED PC
BOARD HOLE PATTERN
2.54
±.05
[.100
±.002]
TYP
5.08 [.200]
TYP 5 PLS
NON-ACCUM.
Standard Polarity Shown in Above Drawings
PART NUMBER ORDERING CODE
LED Type
01 - High Efficiency
02 - Low Current, 2mA
03 - Integral Resistor, 5V
07 - Bi-color
22 - Non-diffused
Series
Top LED Color
Bottom LED Color
CBI Type
0 - Standard View
1 - Backlight
2 - DIN 41494 Compatible
# of Positions 2–6
Tolerance note: As noted,
otherwise:
• LED Protrusion: ±0.04 mm [±0.016]
• CBI Housing: ±0.02mm[±0.008]
5 5 3 - x x x x - x x x
Polarity Option
0) Standard Polarity
Cathode Right Standard View
Cathode Right Backlight
Anode Right DIN Compatible
Colors:
1) Reverse Polarity
Cathode Left Standard View
Cathode Left Backlight
Anode Left DIN Compatible
³
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
0) Blank 1) Red or Red/Green Bi-Color 2) Green 3) Yellow
4) Yellow/Green Bi-Color 7) Orange 8) Blue³
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 •www.dialight.com
4-41
553-xxxx-xxx
Typical Operating Characteristics (TA = 25°C)
STANDARD VIEW
Part Number
553-0111-0xx
553-0122-0xx
553-0133-0xx
553-0177-0xx
553-0188-0xx
553-0211-0xx
553-0222-0xx
553-0233-0xx
553-0311-0xx
553-0322-0xx
553-0333-0xx
Color **
Red
Green
Yellow
Orange
Blue
Red
Green
Yellow
Red
Green
Yellow
Peak
Wavelength nm
650
563
585
600
428
635
565
585
635
565
585
635/565
585/565
635
565
585
I
V
mcd
10
16
6.3
7
12
1.6
1.6
1.6
29
19
12.6
4.7/10
4.3/6.3
29
50
20
See LED data sheet for additional information
See page 4-70 and 4-71 for Reference Only LED Drive Circuit Examples. See page 4-72 for Pin Out
V
F
Volts
2
2.1
2.1
2.2
3.5
1.7
1.9
1.8
5
†
Test
Current (mA)
10
10
10
10
10
2
2
2
10
††
Viewing
Angle 2Θ
½
Θ
45°
45°
45°
60°
70°
60°
60°
60°
60°
60°
60°
50°
80°
45°
45°
45°
LED
Data sheet
521-9427
521-9408
521-9428
521-9498
521-9831
521-9324
521-9326
521-9325
521-9215
521-9323
521-9322
521-9459
521-9478
521-9432
521-9430
521-9431
Page #
4-64
4-64
4-64
4-58
4-57
4-60
4-60
4-60
4-59
4-59
4-59
4-63
4-62
4-61
4-61
4-61
553-0711-0xx Red/Green
553-0744-0xx Yellow/Green
553-2211-0xx
553-2222-0xx
553-2233-0xx
BACKLIGHT
Part Number
553-2211-1xx
553-2222-1xx
553-2223-1xx
553-2232-1xx
553-2233-1xx
Red
Green
Yellow
5
†
5
†
2/2.1
2..1*/2.1*
2*
2.1*
2.1*
10
††
10
††
10
10
10
10
10
Peak
Color **
Wavelength nm
Red-Red
635/635
Green-Green
565/565
Green-Yellow
565/585
Yellow-Green
585/565
Yellow-Yellow
585/585
I
V
mcd
29/29
50/50
50/20
20/50
20/20
V
F
Volts*
2/2
2.1/2.1
2.1/2.1
2.1/2.1
2.1/2.1
Test
Current (mA)
10
10
10
10
10
Viewing
LED
Angle 2Θ
½
Θ
Data sheet
45°
521-9432
45°
521-9430
45°
521-9430/-9431
45°
521-9431/-9430
45°
521-9431
Page #
4-61
4-61
4-61
4-61
4-61
DIN COMPATIBLE
Part Number
553-0111-2xx
553-0122-2xx
553-0133-2xx
553-0177-2xx
553-0188-2xx
553-0211-2xx
553-0222-2xx
553-0233-2xx
Color **
Red
Green
Yellow
Orange
Blue
Red
Green
Yellow
Peak
Wavelength nm
635
565
585
600
428
635
565
585
635
565
585
635/565
585/565
635
565
585
††
Forward
I
V
mcd
10
12.6
10
7
12
1.6
1.6
1.6
29
19
12.6
4.7/10
4.3/6.3
29
50
20
V
F
Volts
2
*
2.1
*
2.1
*
2.2
3.5
1.7
1.9
1.8
5
†
Test
Current (mA)
10
10
10
10
10
2
2
2
10
††
Viewing
Angle 2Θ
½
Θ
60°
60°
60°
60°
70°
60°
60°
60°
60°
60°
60°
50°
80°
45°
45°
45°
LED
Data sheet
521-9216
521-9210
521-9211
521-9498
521-9831
521-9324
521-9326
521-9325
521-9215
521-9323
521-9322
521-9459
521-9478
521-9432
521-9430
521-9431
Page #
4-58
4-58
4-58
4-58
4-57
4-60
4-60
4-60
4-59
4-59
4-59
4-63
4-62
4-61
4-61
4-61
553-0311-2xx
Red
553-0322-2xx
Green
553-0333-2xx
Yellow
553-0711-2xx Red/Green
553-0744-2xx Yellow/Green
553-2211-2xx
Red
553-2222-2xx
553-2233-2xx
* IF = 20mA
†
Green
Yellow
Test Voltage
5
†
5
†
2/2.1
2.1*/2.1*
2*
2.1*
2.1*
**
Top-Bottom
10
††
10
†
10
10
10
10
10
LED
Current mA
4-42
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 •www.dialight.com
NEW
3mm Discrete LED
Tinted, Diffused
521-9831
PART NO.
SURFACE NOT FLAT
4.8 [.189]
4.4 [.173]
4.8 [.189]
4.4 [.173]
0.7 [.028]
0.4 [.016]
0.6 [.024]
0.4 [.016]
2.54 [.100]
3.4 [.134]
3.1 [.122]
521-9831
COLOR
Blue³
2.9 [.114]
ø
2.7 [.106]
3.7 [.145]
3.5 [.138]
6.1 [.240]
5.7 [.224]
CATHODE
1.8 [.071]
1.2 [.047]
0.6 [.024]
0.4 [.016]
29 [1.142]
27 [1.063]
Dimensions in mm [inches]
MOUNTING CLIP: 515-0006
located on page 4-65
³
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
4
Blue
ABSOLUTE MAXIMUM RATINGS
(TA=25°C)
Power Dissipation (mW)
Forward Current (mA)
Derating (mA/°C)
From 55°C
Operating Temperature (°C)
Storage Temperature (°C)
Soldering Temperature
Solder Adherence per MIL-STD-202E, Method 208C
-9831
100
20
.44
-40/+100
-40/+100
260°C, 5 seconds, 1.6 mm from case
Blue
OPERATING CHARACTERISTICS
(TA=25°C)
Luminous Intensity (mcd)
IF=10mA
Peak Wavelength (nm)
λ
Peak
Viewing Angle (2
Θ
½)
Forward Voltage (V)
IF=10mA
Reverse Voltage (V)
IR=10µA
-9831
Min.
Typical
Typical
Typical
Typical
Max.
Min.
6.3
12
428
70°
3.5
4.2
3
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 •www.dialight.com
4-57
3mm Discrete LED
High Efficiency
Diffused
521-9210,
-9211, -9216, -9498, -9636
PART NO. COLOR
521-9210
Green
521-9211
Yellow
521-9216
Red
521-9498 Orange
521-9636
Red
2.54
[.100]
4.45
[.175]
1.02
[.040]
25.4
[1.0] MIN
1.02
[.040]
MIN
3.30
[.13]
NEW
3.00
[.118]
1.50
[.059]
MAX
6.00
[.236]
.45
[.016 ]
.40
[.016]
MOUNTING CLIP: 515-0006
located on page 4-65
short lead cathode all colors except 521-9636 Red.
For 521-9636 Red, short lead is anode.
Dimensions in mm [inches]
Green
Yellow
Red
Orange
Red
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C)
Power Dissipation (mW)
Forward Current (mA)
Derating (mA/°C)
From 50°C
Operating Temperature (°C)
Storage Temperature (°C)
Soldering Temperature
Solder Adherence per MIL-STD-202E, Method 208C
1
-9210
100
-9211
60
20
.25
-55/+100
-55/+100
-9216
100
30
.4
-55/+100
-55/+100
-9498
135
25
.5
-55/+100
-55/+100
-9636
100
40
.5
1
-55/+100
-55/+100
from 25°C
30
.4
-55/+100
-55/+100
260°C, 5 seconds, 1.6 mm from body
Green
Yellow
Red
Orange
Red
OPERATING CHARACTERISTICS
(T
A
=25°C)
Luminous Intensity (mcd)
IF=10mA
1
IF=20mA
Peak Wavelength (nm)
λ
Peak
Viewing Angle (2
Θ
½
)
Forward Voltage (V)
IF=10mA
1
IF=20mA
Reverse Voltage (V), IR=100µA
Min.
Typical
Typical
Typical
Typical
Max.
Max.
-9210
4.7
12.6
565
60°
2.1
1
2.8
1
5
-9211
7.4
10
585
60°
2.1
1
2.8
1
5
-9216
7.4
10
635
60°
2
1
2.8
1
5
-9498
3.4
7
600
60°
2.2
3
5
-9636
8.7
1
48
1
660
60°
1.8
1
2.4
1
4
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
4-58
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 •www.dialight.com
3mm Discrete LED
Integral Resistor, 5V
Diffused
4.40 [.175]
1.01
[.040]
1.0
[.040]
.457
[.018]
SQ.
521-9215, -9322, -9323
PART NO.
521-9215
521-9322
521-9323
COLOR
Red
Yellow
Green
3.20 2.90
[.125] [.115]
2.54
[.100]
5.97 [.235]
2.41 [.950] MAX
1.27
[.050]
CATHODE
Dimensions in mm [inches]
MOUNTING CLIP: 515-0006
located on page 4-65
Red
Yellow
Green
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C)
Forward Voltage (V)
Derating (V/°C)
From 50°C
Operating Temperature (°C)
Storage Temperature (°C)
Soldering Temperature
Solder Adherence per MIL-STD-202E, Method 208C
-9215
7.5
.086
-40/+85
-55/+100
-9322
7.5
.086
-40/+85
-55/+100
-9323
7.5
.071
-20/+85
-55/+100
4
260°C, 5 seconds, 1.6 mm from case
Red
Yellow
Green
OPERATING CHARACTERISTICS
(T
A
=25°C)
Luminous Intensity (mcd)
VF=5V
Peak Wavelength (nm)
λ
Peak
Viewing Angle (2
Θ
½)
Forward Current (mA)
VF=5V
Reverse Voltage (V), IR=100µA
Min.
Typical
Typical
Typical
Typical
Max.
Min.
-9215
8.7
29
635
60°
10
20
5
-9322
3.7
12.6
585
60°
10
20
5
-9323
5.6
19
565
60°
10
20
5
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 •www.dialight.com
4-59
Embedded System
京公网安备 11010802033920号
EEWORLD
