THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
Ø1.65 ± 0.05
25.3 ± 0.5
19.3
22.5
25.3
32.3 ± 0.5
2
30.8
PANEL CUTOUT
6.3 ± 0.05
18
9.6
1
31.5
11±0.2511±0.25
28 ± 0.5
33.3
1.8
12.5 4
22 ± 0.5
NOTES:
RATING:
UL, CSA: 16A 250V AC 1/3HP/ 16A 125V AC 1/4HP
VDE: 16(4)A 250V AC T85/ 16(4)A 250V AC T85)
APPROVALS: UL, CSA, VDE
RoHS COMPLIANT
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.

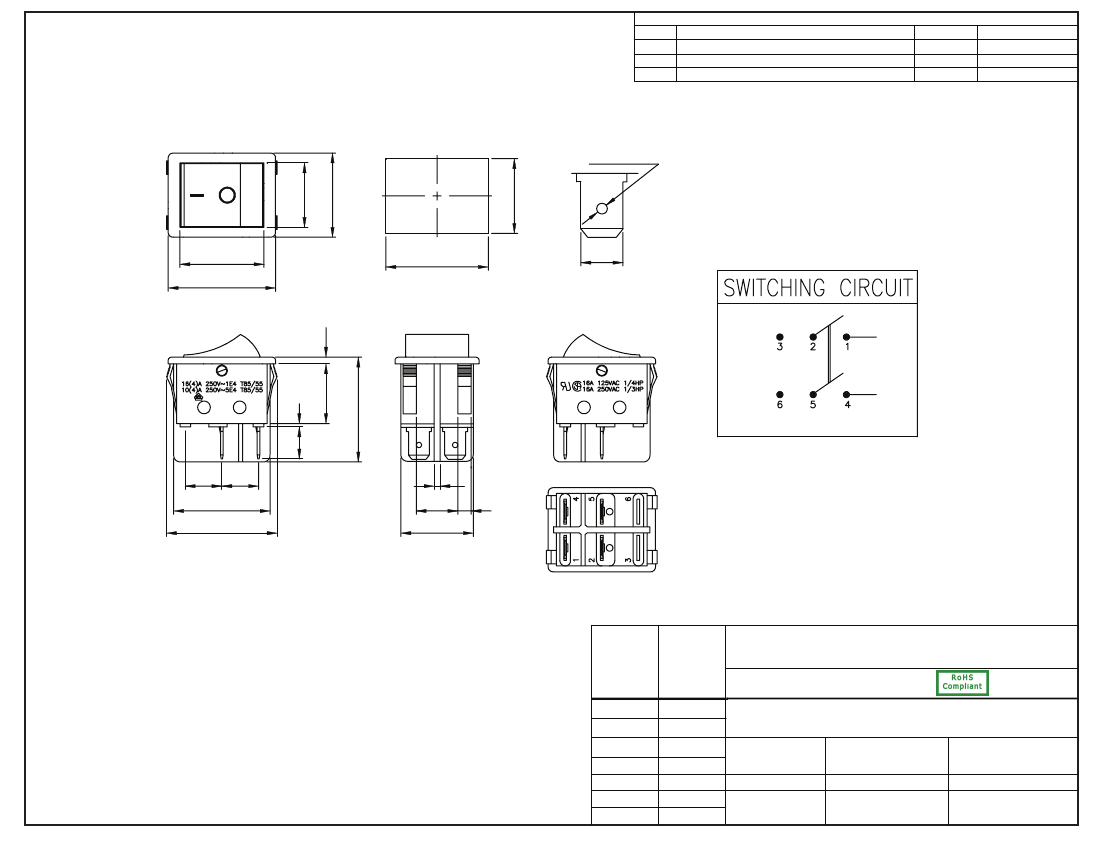

Part Number:
Description:
PPC DIVISION
737W-C/01
ROCKER SWITCH
UNIT: mm
REV. B
Approved / Date
JJH / 11-21-98
Drawn / Date
K.HUANG
11-21-98
Checked / Date
11-21-98
