71243-1004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71243-1004

71243-1004: Descriptionddr3 / ddr2 / ddr connector 05 dimm skt Vert SK ert SK del Pd-Ni 144; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

71243-1004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71243-1004	-	-	View	Buy Now

71243-1004 Overview

ddr3 / ddr2 / ddr connector 05 dimm skt Vert SK ert SK del Pd-Ni 144

71243-1004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.29 inch
subject depth	0.41 inch
body length	4.91 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	.7784 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	71243
Plug contact pitch	0.05 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.127 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	144
Evacuation force-minimum value	.0695 N

Preview

Download Datasheet

View All

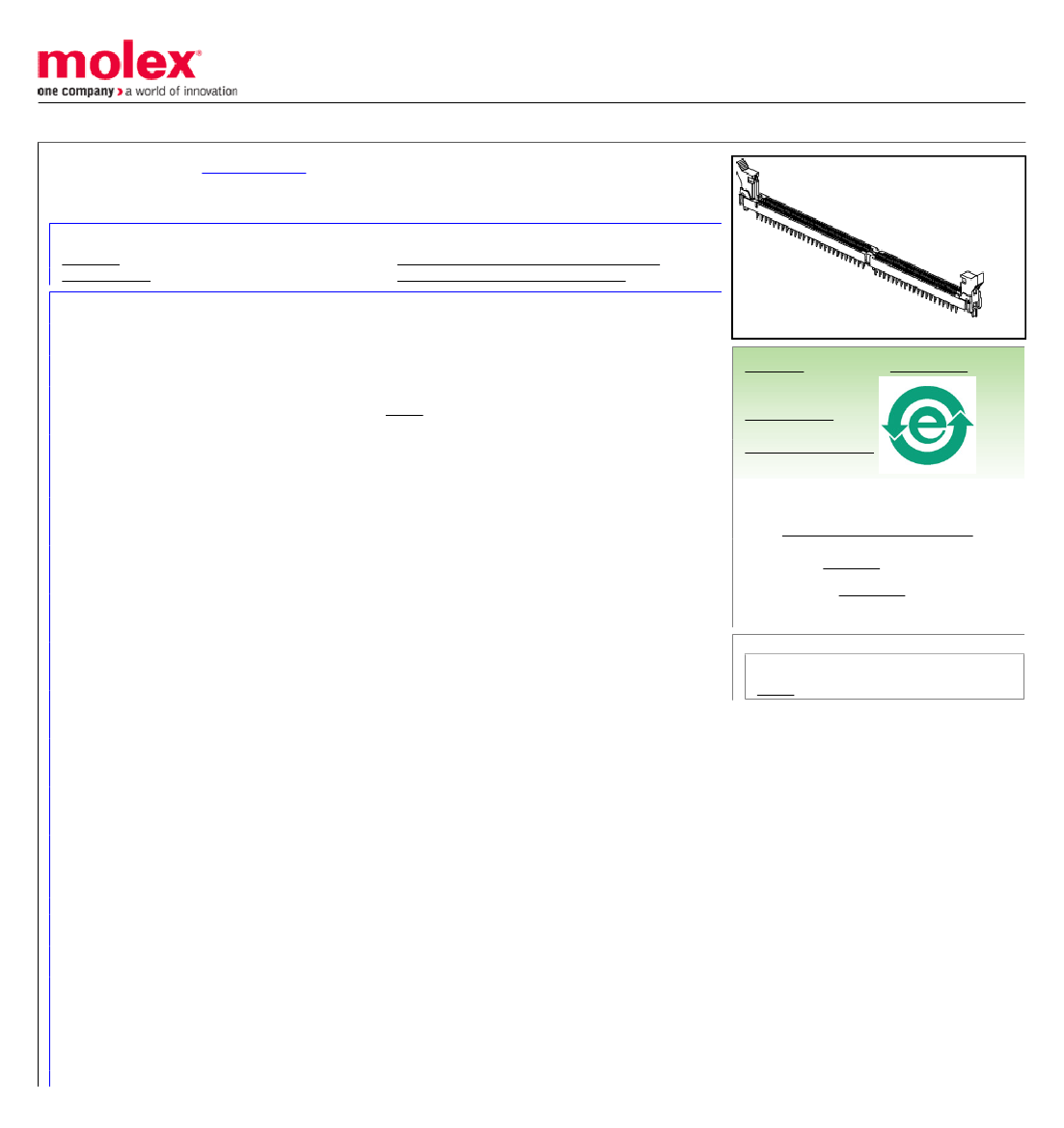

This document was generated on 11/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0712431004

Planned for Obsolescence

1.27mm (.050") Pitch DIMM Socket, Single Key, Vertical, Plastic Peg, 144 Circuits

Product Specification PS-71243-9999 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

General

Product Family

Series

Component Type

JEDEC Outline

Product Name

Memory Module Sockets

71243

Memory Module

N/A

DIMM

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Function Key

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

144

Black, Natural

Vertical

94V-0

None

Yes

Phosphor Bronze, Stainless Steel

Gold

Tin

High Temperature Thermoplastic

3.23mm (.127")

Yes

1.57mm (.062")

Tray

1.27mm (.050")

0.051µm (2µ")

3.810µm (150µ")

-40°C to +85°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

71243Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

100V AC (RMS)/DC

Center

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

PK-70873-062*

PS-71243-9999
