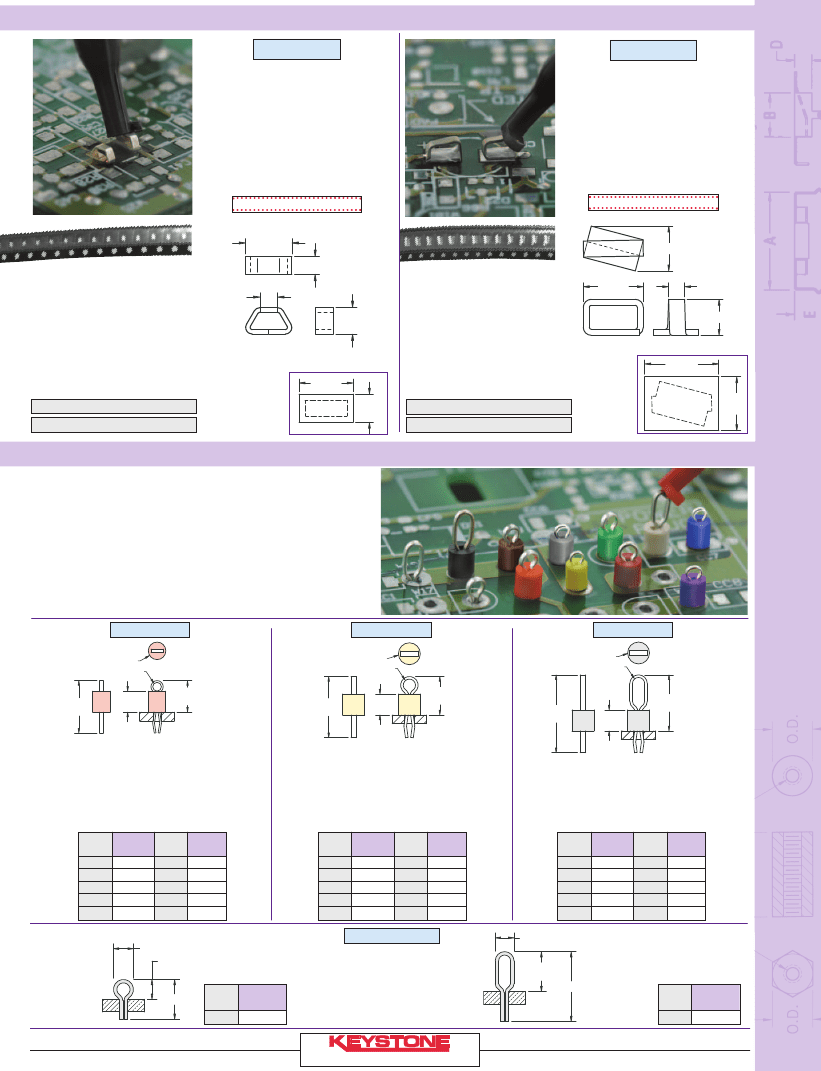

(SMT) SURFACE MOUNT TEST POINTS ON TAPE & REEL
MINIATURE
•
Ultra low profile, ideally suited for advanced
surface mount printed circuit board
applications
•
Designed for long life and durability
•
Manufactured using flat wire to provide
a large mounting surface area
•
Ideal for use with miniature probes, clips,
and hooks
•
Efficient, safe, board level testing
SUPPLIED ON TAPE AND REEL
COMPACT
•
Unique design provides exceptional
strength and durability
•
Simplifies testing on dense SMT circuit
boards
•
Ideal for use with most standard probes,
clips and hooks
•
Efficient, safe, board level testing
SUPPLIED ON TAPE AND REEL
.105 [2.7]
.040 [1.00]
.112 [2.8]
SPECIFICATIONS
Contact Material:
.010 (.25) thick Phosphor Bronze
Contact Finish:
Silver Plate
Tape Material:
8mm wide; 4mm pitch;
conductive polycarbonate carrier tape meets
ANSI/EIA-481 standard
.040 [1.00]
.060
[1.50]
Pad Layout
.135
[3.4]
SPECIFICATIONS
Contact Material:
.015 (.38) thick Phosphor Bronze
Contact Finish:
Silver Plate
Tape Material:
12mm wide; 4mm pitch;
conductive polycarbonate carrier tape
meets ANSI/EIA-481 standard
.150 [3.8]
.040 [1.00]
.090 [2.30]
Pad Layout
.185 [4.7]
SMT
/
THM TEST POINTS
CAT. NO. 5015
- 1000 pieces per reel
CAT. NO. 5017
- 5000 pieces per reel
.070
[1.80]
CAT. NO. 5016
- 1000 pieces per reel
CAT. NO. 5018
- 5000 pieces per reel
.135
[3.4]
(THM) THRU HOLE MOUNT TEST POINTS - COLOR KEYED
•
Color keyed for visibility and quick identification
•
Economical choice for PC test point terminations
•
Snap-fit mounting provides positive retention for wave soldering
•
Wire form loop for safe, non-slip testing
•
Space saving, ultra low and low profile designs
•
High profile design for difficult to reach applications
•
Suitable for high density packaging on .062 (1.57) and .093 (2.36) PC boards
•
Practical replacement for wire-wrap posts and turrets
•
Secure grip for J hooks, EZ hooks, grabbers, alligator clips, tips or probes
•
High tempurature nylon base ideal for reflow soldering
•
Ideal for reliable production testing and field service troubleshooting
MINIATURE
.100 [2.5] DIA.
.050 [1.25] I.D.
.120
[3.0]
.180
[4.6]
COMPACT
.125 [3.2] DIA.
.070 [1.80] I.D.
.220
[5.6]
.445
[11.3]
MULTIPURPOSE
.125 [3.2] DIA.
.070 [1.80] I.D.
.300
[7.6]
.350
[8.9]
.120
[3.0]
.320
[8.1]
.120
[3.0]
SPECIFICATIONS
Terminal:
.010 (.25)
×
.020 (.51) thick
Phosphor Bronze Wire, Silver Plate
Base:
Nylon 46, UL Rated 94V-0
Mtg. Hole:
.040 (1.0) Diameter
CAT.
BASE
CAT.
BASE
NO.
COLOR
NO.
COLOR
5000
RED
5115
BROWN
5001
BLACK
5116
GREEN
5002
WHITE
5117
BLUE
5003
ORANGE
5118
GREY
5004
YELLOW
5119
PURPLE
.100 [2.5] DIA.
SHOWN AS
INSTALLED INTO
.040 [1.02] DIA.
MOUNTING HOLE
.100 [2.5]
REF.
SPECIFICATIONS
Terminal:
.015 (.38)
×
.032 (.81) thick
Phosphor Bronze Wire, Silver Plate
Base:
Nylon 46, UL Rated 94V-0
Mtg. Hole:
.063 (1.6) Diameter
CAT.
BASE
CAT.
BASE
NO.
COLOR
NO.
COLOR
5005
RED
5120
BROWN
5006
BLACK
5121
GREEN
5007
WHITE
5122
BLUE
5008
ORANGE
5123
GREY
5009
YELLOW
5124
PURPLE
ULTRA LOW PROFILE
WITHOUT BASE
SPECIFICATIONS
Terminal:
.015 (.38)
×
.032 (.81) thick
Phosphor Bronze Wire, Silver Plate
Base:
Nylon 46, UL Rated 94V-0
Mtg. Hole:
.063 (1.6) Diameter
CAT.
BASE
CAT.
BASE
NO.
COLOR
NO.
COLOR
5010
RED
5125
BROWN
5011
BLACK
5126
GREEN
5012
WHITE
5127
BLUE
5013
ORANGE
5128
GREY
5014
YELLOW
5129
PURPLE
.094 [2.4] DIA.
.200 [5.1]
CAT.
NO.
5021
BASE
COLOR
NONE
MATERIAL:
.017 (.43) Diameter
Phosphor Bronze, Silver Plate
Mtg. Hole:
.040 (1.0) Diameter
®
.200 [5.1]
REF.
.350 [8.9]
SHOWN AS
INSTALLED INTO
.040 [1.02] DIA.
MOUNTING HOLE
CAT.
NO.
5020
BASE
COLOR
NONE
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
51
