09 45 971 1109 Overview

Telecom and Ethernet connector cat5 ip20 patch cabl green sheath 7.5m

Preview

Download Datasheet

View All

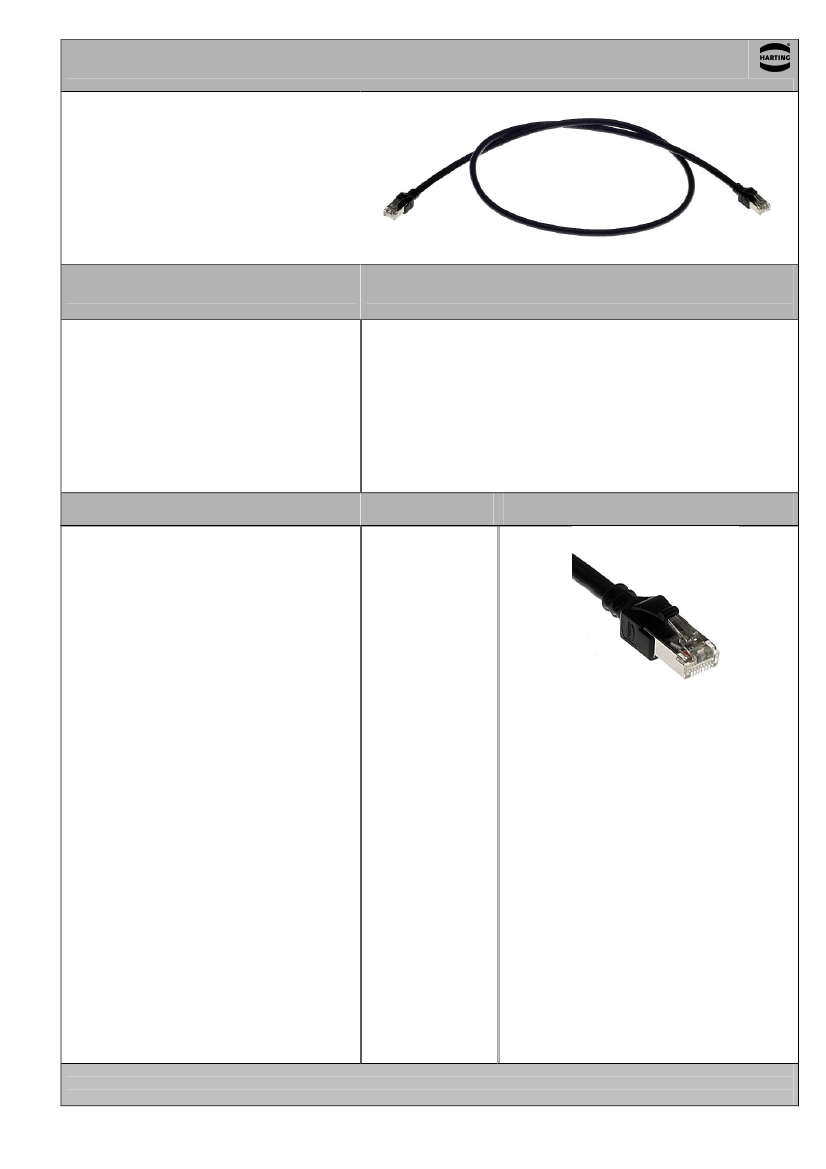

HARTING RJ Industrial

®

IP 20 Standard Patch cables CAT 5e

IP 20 Standard Patch cables

CAT 5e

Advantages

•

over moulded RJ45 design with

polyamide plastic

protected locking lever

suitable for Gigabit Ethernet

PUR jacket, LSZH

compact and space saving

design for multi-port applications

RoHS compliant

General

The HARTING standard patch cables are designed for

Industrial Ethernet cabling systems in an environment of

limited mechanical stress. Applications in control cabinets

require high-quality cables with small but robust

connectors. For this reason the HARTING standard patch

cables are especially designed for multi-port switches and

compact industrial devices.

HARTING’s standard patch cables are deployable for

safe Gigabit Ethernet transmission.

Order number

Description

IP 20 Standard Patch cables CAT 5e

green

black

0.5 m

1.0 m

1.5 m

2.0 m

2.5 m

3.0 m

4.0 m

5.0 m

7.5 m

10.0 m

15.0 m

20.0 m

0.5 m

1.0 m

1.5 m

2.0 m

2.5 m

3.0 m

4.0 m

5.0 m

7.5 m

10.0 m

15.0 m

20.0 m

09 45 971 1101

09 45 971 1102

09 45 971 1115

09 45 971 1103

09 45 971 1116

09 45 971 1104

09 45 971 1105

09 45 971 1106

09 45 971 1109

09 45 971 1112

09 45 971 1113

09 45 971 1114

09 45 971 1121

09 45 971 1122

09 45 971 1135

09 45 971 1123

09 45 971 1136

09 45 971 1124

09 45 971 1125

09 45 971 1126

09 45 971 1129

09 45 971 1132

09 45 971 1133

09 45 971 1134

•

Cable SF/UTP AWG 26/7

PUR chemical resistant cable

jacket

100% electrical tested @

500VDC/min

option of green and black cable

All data given are in line with the actual state of art and therefore not binding.

HARTING reserves the right to modify designs without giving the relevant reasons.

Version 1.0 03.04.2008
