Last Update:
4-15-05

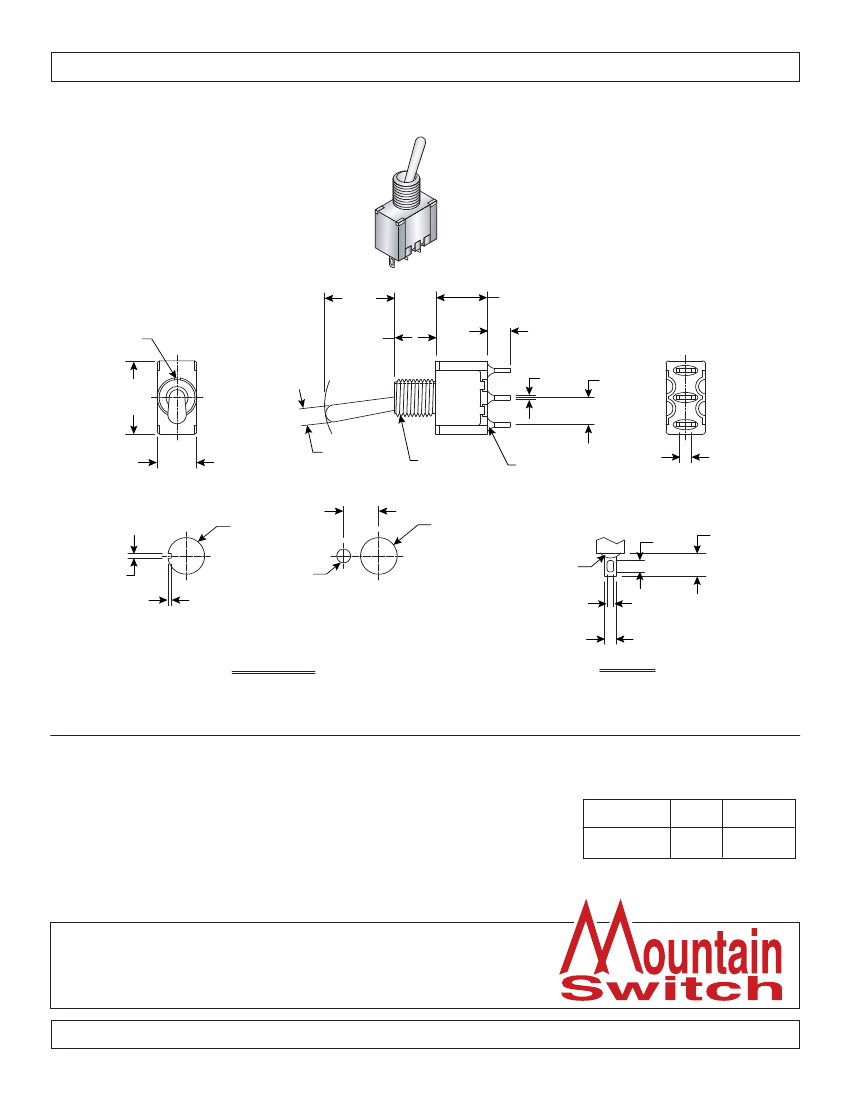

Dimensions: mm (In.)
Ref. #:
MS-100453
(.48)
12.2
Keyway
(.28)
7.10
(.35)
8.89
(.156)
3.96
(.03)
0.76
(.185)
4.70
3
2
1
(.50)
12.70
(.27)
6.86
(ø.115)
ø2.92
1/4-40 UNS-2A
Eproxy Seal
(.08)
2.03
(ø.25)
ø6.35
(.033)
0.85
(.022)
0.55
Without locking ring.
(ø.094)
ø2.38
(.24)
6.10
(ø.25)
ø6.35
Epoxy seal
(.047)
1.19
(.078)
1.98
(.156)
3.96
With standard locking ring.
(.08)
2.03
Solder Lug
Panel Mounting
Electrical Specifications:
•
Rating: 2A/250VAC, 5A/120VAC or 28VDC
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS @ sea level
Mechanical Specifications:
•
Mechanical Life: 40,000 make-and-break cycles
•
Operating Temperature: -30°C to 85°C
Materials:
•
Case: Diallyl phthalate (DAP)(UL94V-0)
•
Actuator: Brass, chrome plated
•
Bushing: Brass, nickel plated
•
Housing: Stainless Steel
•
Terminal/Contact: Silver or gold plated
Mountain Switch
Part No.
20126SPST08
20126SPDT09
Type
SPST
SPDT
Circuit
Off-On
On-On
Miniature Toggle Switches
20126SPST08, 20126SPDT09
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
