MOUSER
®
ELECTRONICS
10TA730
10TA732
10TA735
10TA740
10TA745
10TA760
10TA762
10TA765
10TA770
10TA775
MOUSER STOCK NO.
10TA730, 732, 735, 1740, 745, 760, 762, 765, 770, 775

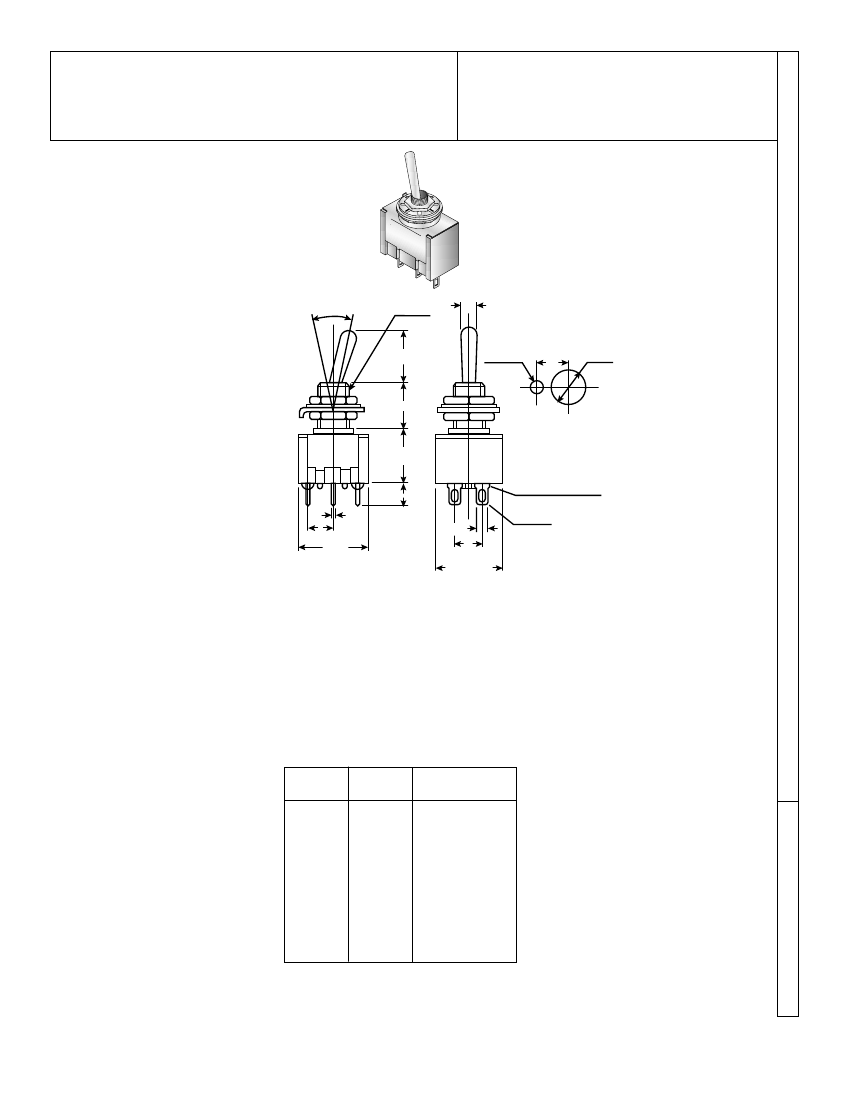

Miniature
Toggle Switches
Dimensions (In.)
.12 dia.
24°±4°
1/4 -50 UNS-2A
Mounting Hole
.51
.087
.25
.25
.32
.41
Flux Prevention
(Epoxy Resin)
.04x.08
.16
.03
.19
.51
.08
.19
.50
Specifications:
•
Resistance load: 6A @ 125VAC (3A @ 250VAC) (6A @ 30VDC)
•
Inductive load: 6A @ 125VAC (power factor 0.8) (3A @ 250) (PF 0.8)
•
Mechanical life: over 30,000 operations (switching frequency 20 operations minute)
•
Electrical life: over 10,000 operations (same as above) (rated load)
•
Insulation resistance: over 100MΩ (by 500VDC tester)
•
Voltage breakdown: 1000VAC for 1 minute (between contact & case)
•
Contact resistance: 20mΩ max.
•
Ambient temperature: -10°C to +55°C
•
Ambient humidity: 85% RH max.
*
UL (File No. E43907) Listed
Mouser
Circuit
Type
Stock No.
10TA730
SPDT
On-On
*
10TA732
SPDT
On-(On)
10TA735
SPDT
On-Off-On
*
10TA740
SPDT
On-Off-(On)
SPDT
10TA745
(On)-Off-(On)
10TA760
DPDT
On-On
*
10TA762
DPDT
On-(On)
10TA765
DPDT
On-Off-On
*
DPDT
10TA770
On-Off-(On)
DPDT
10TA775
(On)-Off-(On)
Miniature Toggle Switches
8-
011043
Your source for quality electronics. Toll-free full service
1-8-96
(800) 346-6873
