ZP32P0001 Overview

switch push spdt 0.4va 20v

Preview

Download Datasheet

View All

ZP series

Tiny pushbutton switches - metal bushing

Distinctive features - Specifications - Overview

❑

Ø 4,83 mm threaded bushing

❑

Solder lug and straight PC terminals

ELECTRICALSPECIFICATIONS

MATERIALS

• Max. current/voltage rating with resistive load :

- gold plated contacts : 0,4VA 20V max. AC or DC

- silver plated contacts : 0,5A 48V max. AC or DC

• Minimum load : 10mA 50mV - 10µA 5VDC

• Contact resistance : 50 mΩ max.

• Insulation resistance : 1.000 MΩ min. at 500VDC

• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals and frame

500 Vrms 50 Hz min. between terminals

• Electrical life at full load :

- gold plated contacts : 60.000 cycles

- silver plated contacts: 20.000 cycles

GENERALSPECIFICATIONS

• Case : thermoplastic UL94-V0

• Actuator : thermoplastic UL94-V0

• Bushing : zamac, tin plated

• Contacts and terminals :

: brass, gold plated (standard)

: brass, silver plated

: brass, gold plated

(1,27 micron gold)

• Terminal seal : epoxy

SOLDERING

• Travel :

- function 2 (ON-MOM) : 1,2 mm (.047)

± 0,3 (.11)

- function 3 (OFF-MOM) : 1 mm (.039)

± 0,3 (.11)

• Strength of terminals : pull-out force 10N max.

• Torque : 1Nm max. applied between the 2 nuts

• Max. panel thickness : 1,5 mm (.059) with 2 nuts

• Operating temperature : -30°C to +85°C

• Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3)

• Hand soldering : 280°C max. for

5 seconds max.

• Wave soldering : 260°C max. for

5 seconds max.

SERIES

Number of

poles

Single

pole

Electrical functions

OFF

MOM

Terminals

Solder lug

Straight PC

Contact and

terminal materials

Brass, gold plated

Brass, silver plated

Brass, gold plated

(1,27 micron gold)

Bushing

Threaded,

with flat

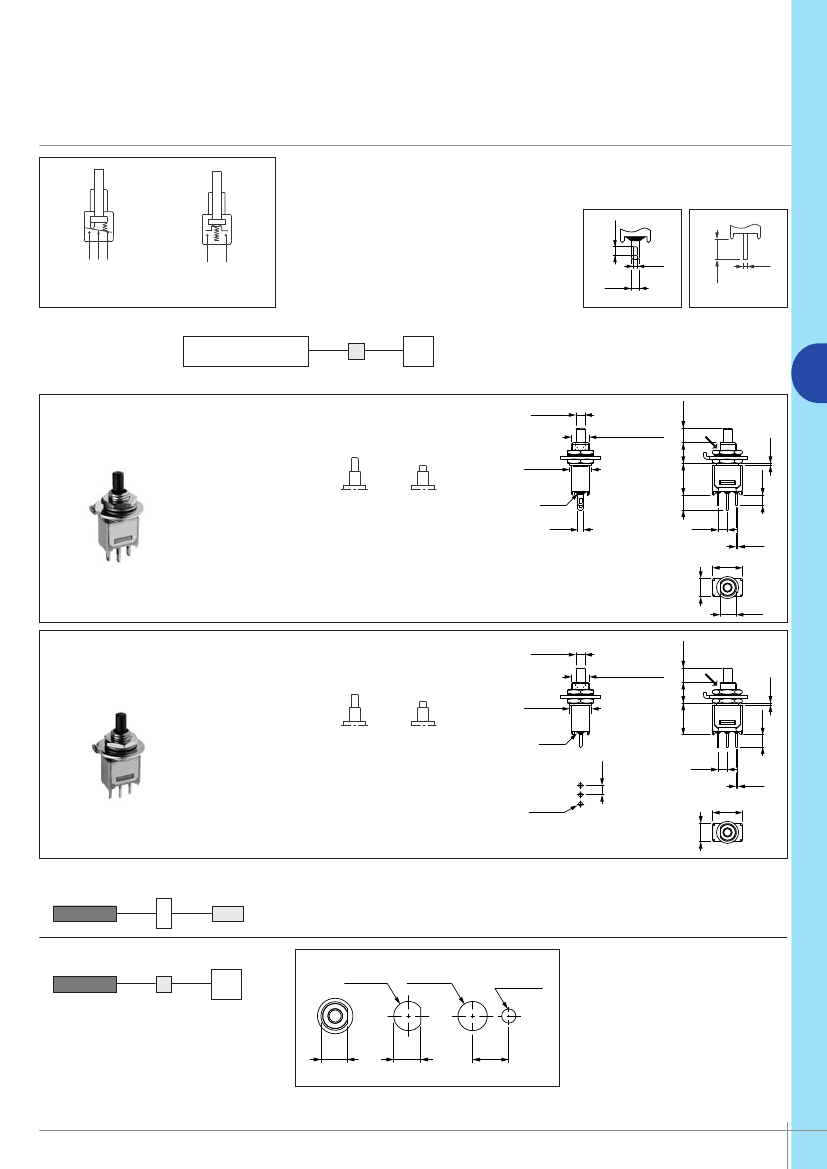

Dimensions

: First dimensions are in mm while inches are shown as bracketed numbers.

Packaging unit

: 100 pieces

Mounting accessories

: Standard hardware supplied with all models : 2 hex nuts 7 mm (.275) across flats P/N U5731,

1 locking ring P/N U5831 and 1 lockwasher P/N U5841.

B2-2

www.apem.com

APEM
