WJM3000
G

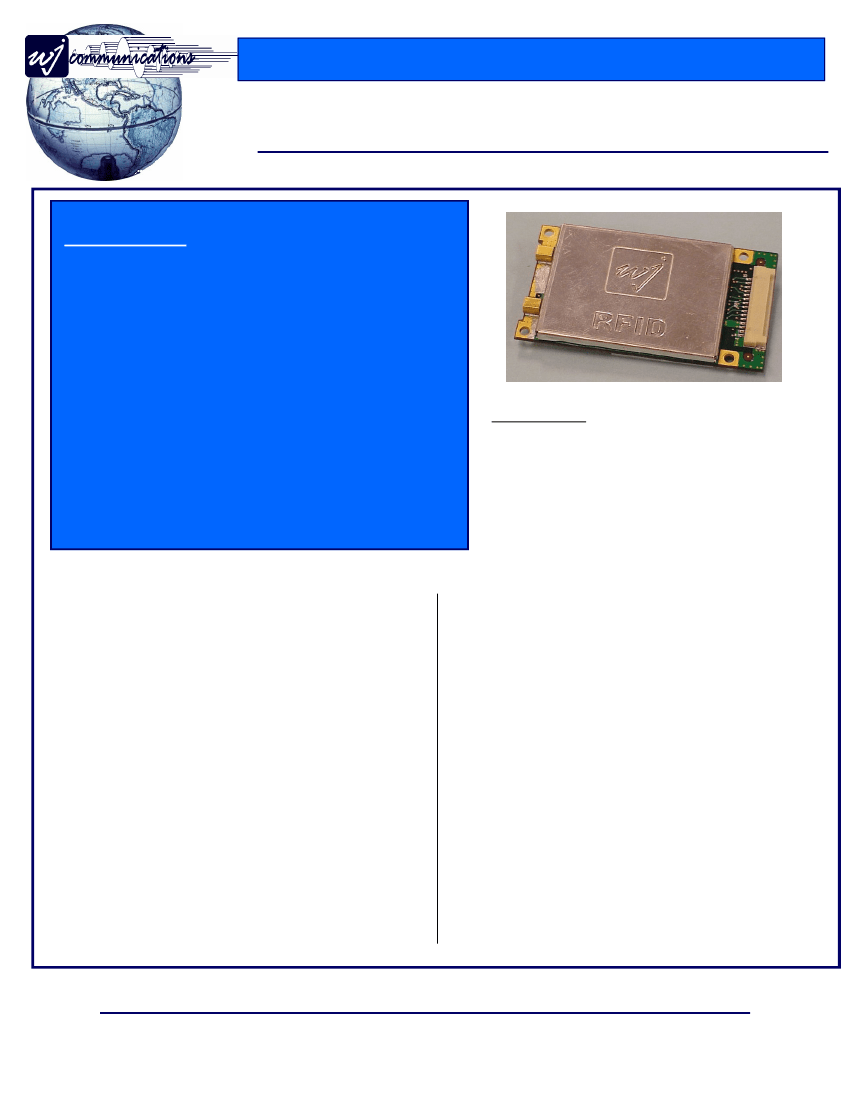

Next Generation RFID Reader Module
Based on WJC200 Gen2 RFID reader chipset
Key Features
x
Multi-protocol support: ISO 18000-6C (Gen2) &
ISO 18000-6B
Dynamic RF output power: +18 dBm to +30 dBm
(1W) range
Two antenna ports for added flexibility
Power saving modes to extend battery life
Supports Gen2 Dense Reader Environment
(DRE)
WJC200 Gen2 reader chipset based design
Applications:
x
x
x
x
x
x
x
x
x
Printers
Item-level RFID
Mobile & handheld devices
Fixed readers
WJ Communication’s WJM3000 UHF RFID
module is designed to enable OEMs, System
Integrators and VARs to offer RFID UHF Gen2
capability into new and existing short and long
range applications such as printers, Mobile
handheld and fixed readers. By leveraging WJ’s
WJC200 Gen2 chipset, the WJM3000 enables
cost effective, compact RFID-enabled devices.
The WJM3000 extends industry leading features
including Gen2 dense reader environment
(DRE) . The WJM3000 reader module’s simple
but powerful command set allows for fast crea-
tion of custom applications via an open-source
DLL and API.
The WJM3000 can be set to transmit a range
of output powers, providing increased flexibil-
ity to enable optimal for different near and far
field applications. The module operates over
the North American UHF frequency band
(902-928 MHz) and includes the RF, digital
circuitry and embedded firmware required for
ISO18000- 6C (UHF Gen2) and ISO 18000-
6B international standards. 3.3V CMOS level
serial communications and 4 GPIO lines are
available on a 15-pin connector. Mounting
holes provide fast and easy mechanical inte-
gration. WJ’s free demo software offers quick
evaluation of the module without software de-
velopment.
WJ Communications
www.wj.com
04/03/2007
Copyright WJ Communications 2007. Subject to change without notice.
All trademarks, trade names, service marks, and logos remain the property of the rightful owners
WJM3000
G
Next Generation RFID Reader Module
Based on WJC200 Gen2 RFID reader chipset
Absolute Maximum Rating*
Parameter
ESD Protection (per ISO 7816-1)
Maximum Voltage
Operating Case Temperature
Storage Temperature
Rating
2
6
-20 to +55
-40 to +65
Units
KV
V
°
C
°
C
*Operation of this device above any of these parameters may cause permanent damage.
Specifications
Operating Conditions: Vcc = 5.0 VDC, T
AMB
= 25° 50
C,
System.
Symbol
f
RFID
D
RATE
f
CH
Parameter
RF Frequency—UHF Operation
Data Rate
Channel Spacing
Frequency Hopping Channels
Supply Voltage @ 1.3A, Connected to System
Peak Operating Current*
Maximum Transmit Power
Power Control Range
Step Size
Min
902
Typ
Max
928
Units
MHz
KHz
kHz
Channels
40
500
50
+4.85
18
12
1
10
+5.0
+5.50
1.3
30
CH
V
CC
I
PEAK OP
P
TX-Max
P
RANGE
V
A
dBm
dB
dB
ppm
S
f
Frequency Stability
*Peak operating current for 1W CW output power; Average operating current draw is significantly less than CW peak current.
WJ Communications
www.wj.com
04/03/2007
Copyright WJ Communications 2007. Subject to change without notice.
All trademarks, trade names, service marks, and logos remain the property of the rightful owners
WJM3000
G
Next Generation RFID Reader Module
Based on WJC200 Gen2 RFID reader chipset
Protocol Support
Protocol
ISO 18000-6B
ISO-18000-6C (EPC Class1 Gen2)
ID
Read
X
X
ID
Write
X
X
Data
Read
X
Data
Write
X
Password
Write
X
X
Lock
X
X
Kill
X

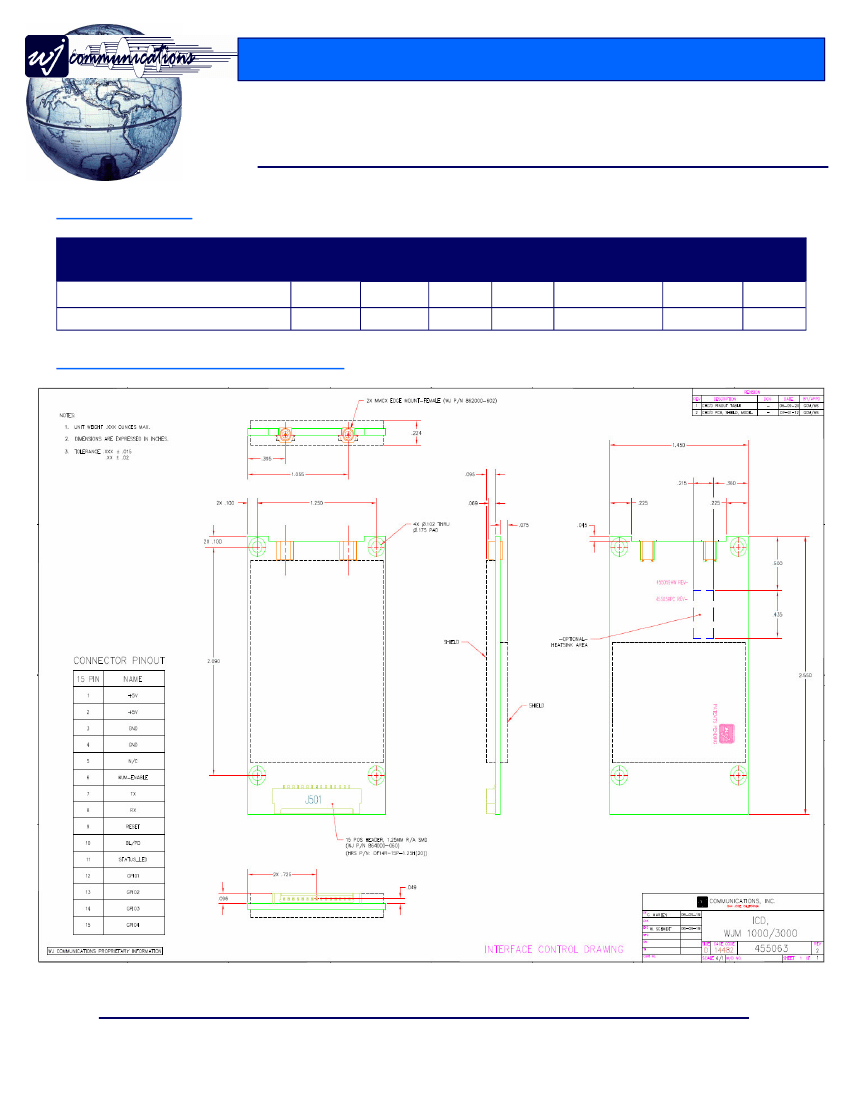

WJM3000 Mechanical Specifications
WJ Communications
www.wj.com
04/03/2007
Copyright WJ Communications 2007. Subject to change without notice.
All trademarks, trade names, service marks, and logos remain the property of the rightful owners
WJM3000
G
Next Generation RFID Reader Module
Based on WJC200 Gen2 RFID reader chipset
Interface Connector Pin out
1, 2
3,4
5
6
7
8
9
+5.0 V
GND
N/C
WJM_EN
TX
RX
nRESET
Pin #
Name
Description
Power Supply. +5.0V @ 1.3 A
Power Supply Ground Return
No Connect
Active High Power Enable. Grounding this pin shuts off entire module. Minimum logic
high voltage is +2.5V. 5V tolerant. Low impedance driver or a pull up resistor less than
2K required.
3.3V CMOS logic-level UART transmit pin
5V tolerant CMOS logic-level UART receive pin
5V tolerant Active Low Reset Pin. 10K internal pull up, interface with open collector
driver. When held low, WJM draws current but will not respond to commands. If nBL/
nPD is held low as nRESET is brought high, the WJM enters Bootloader mode. If nBL/
nPD is held high as nRESET is brought high, the WJM application starts. This pin can
be left unconnected for minimal hardware configuration. A reset controller may be re-
quired if power supply rise time is slow.
5V tolerant Active Low Bootloader/PowerDown pin. 10K internal pull up, interface with
open collector driver. This pin serves two functions.
1) If this pin is low at the rising edge of nRESET (including power-on), the Boot-
loader is activated for writing a new Firmware application (FW). If it is high, FW
starts.
2) Once FW starts, bringing this pin low enables sleep mode. The module will not
respond to API commands in sleep mode. Keep it high for normal operation.
This pin can be left unconnected for minimal hardware configuration.
3.3V logic-level 3-state output:
Logic high: OK
Tri-State: Sleep Mode
Logic low: Error
Currently FW configures these pins as outputs, they display various debug and status
signals to LEDs. If unused they can be left un-connected.
10
nBL/nPD
11
STATUS_LED
12
13
14
15
GPIO1
GPIO2
GPIO3
GPIO4
WJ Communications
www.wj.com
04/03/2007
Copyright WJ Communications 2007. Subject to change without notice.
All trademarks, trade names, service marks, and logos remain the property of the rightful owners
WJM3000
G
Next Generation RFID Reader Module
Based on WJC200 Gen2 RFID reader chipset

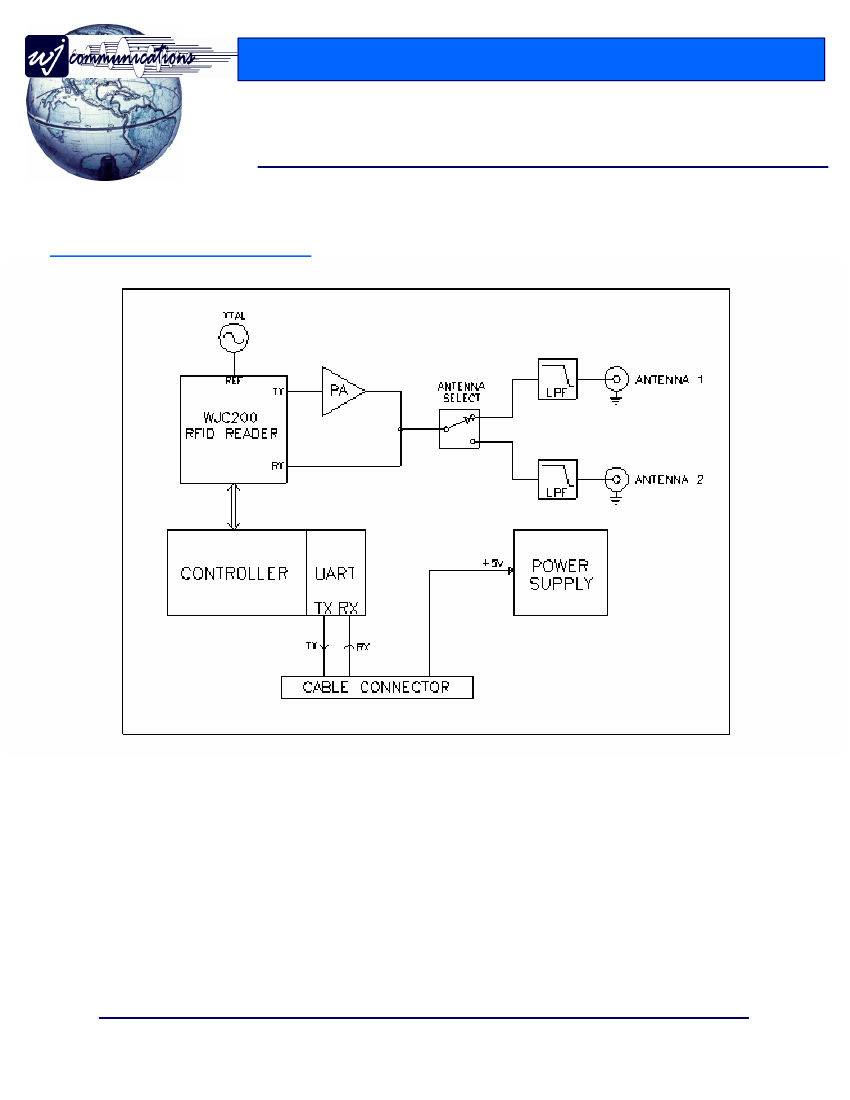

WJM3000 System Block Diagram
