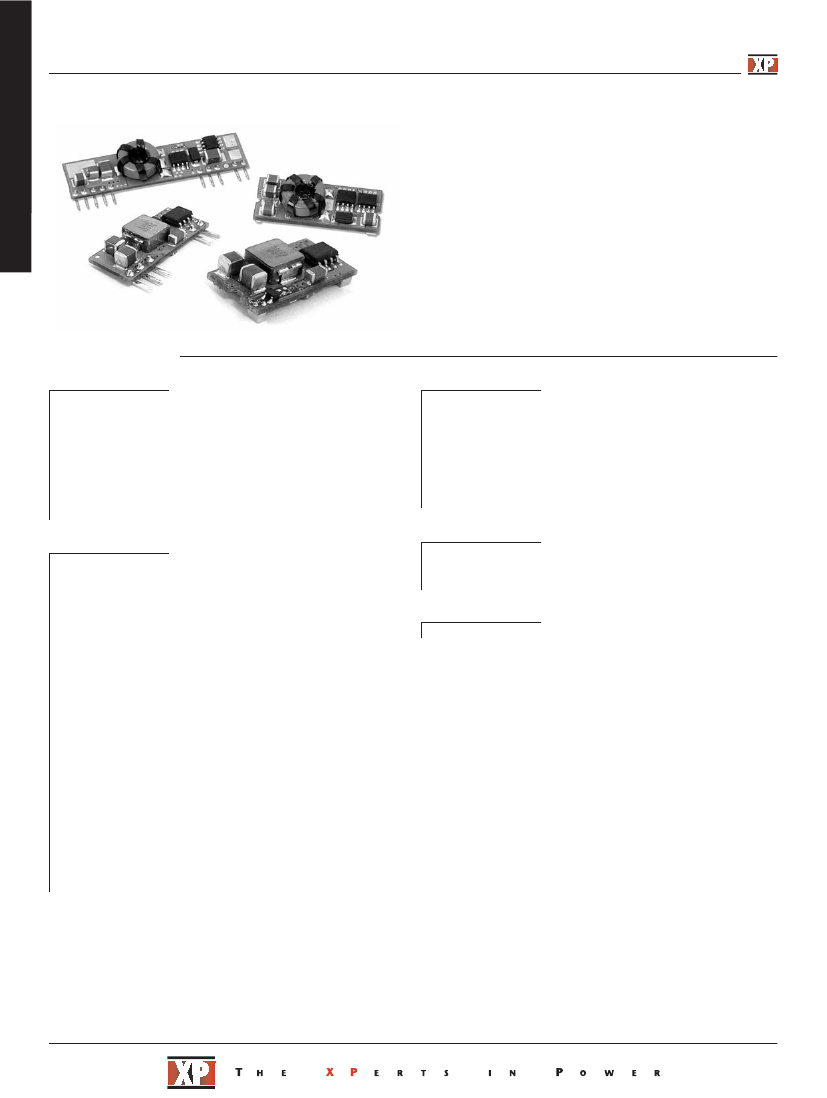

DC-DC
5-16 Amps
JAZ Series
•
•
•
•
•
•
•
Industry Standard Pin-out
xppower.com
0.75 - 5.5 VDC Adjustable Output Versions
No Minimum Load Required
Continuous Short Circuit Protection
Input Range from 3-5.5 VDC and 9-14 VDC
UL60950 Approval
SIP and SMT Versions Available
Specification
Input
Input Voltage Range
Input Current
Undervoltage Lockout
Protection
• 5 V: 3 - 5.5VDC
12 V: 9 - 14 VDC
• See tables
• 5 V: Turn ON > 2.8 V typical
Turn OFF > 2.7 V typical
12 V: Turn ON > 8.5 V typical
Turn OFF > 8.0 V typical
(see note 2)
• Capacitive
General
Efficiency
Isolation Voltage
Switching Frequency
Packaging Style
MTBF
•
•
•
•
•
See tables
Non-isolated
300 kHz typical
SIP or SMT
JAZ05: 1500 kHrs
JAZ10: 1450 kHrs
JAZ15: 1370 kHrs
JAZ16: 1300 kHrs
Input Filter
Output
Output Voltage
Output Voltage Trim
Minimum Load
Line Regulation
Load Regulation
Setpoint Accuracy
Transient Response
Ripple & Noise
• See tables
• 0.75 - 5.5 V, output is set by R Trim -
see output configuration table
• No minimum load requirements
• ±0.2%
• ±0.5%
• ±1.5%
• Recovery to within 1% of nominal output
voltage in 200 µS after a 25% load change
• JAZ05/10/15: 20 mVrms, 50 mV pk-pk
JAZ05 5 V: 45 mVrms, 75 mV pk-pk
JAZ16: 30 mVrms, 75 mV pk-pk
• 0.03% /˚C
Environmental
Operating Temperature
• -40 ˚C to +85 ˚C, see derating curves
Cooling
• Convection or force-cooled
Storage Temperature
• -55 ˚C to +125 ˚C
EMC & Safety
Safety Approvals
• UL60950
Temperature
Coefficient
Short Circuit Protection
• Continuous
Overtemperature
• JAZ5/10/15: 120 ˚C typical
Protection
JAZ16: 130 ˚C typical
(measured internally on all units)
Remote On/Off
• On = Open circuit or
≥
Vin
Off = < 0.4 V
For negative logic ‘L’ option:
On = Open circuit or < 0,4 V
Off = 2.8 V < V < Vin
1
DC-DC
Models and Ratings
Input
Voltage
Output
Voltage
0.75 V
1.20 V
1.50 V
1.80 V
2.00 V
2.50 V
3.30 V
5.00 V
Output
Current
5A
5A
5A
5A
5A
5A
5A
5A
R Trim
(kOhms)
Open
22.33
13.00
9.00
7.40
5.00
3.12
1.47
Input Current
No Load
Full Load
20 mA
428 mA
25 mA
625 mA
25 mA
762 mA
30 mA
893 mA
30 mA
890 mA
35 mA
1197 mA
45 mA
1545 mA
50 mA
2264 mA
Efficiency
73%
80%
82%
84%
85%
87%
89%
92%
JAZ05
Model
Number
(1,2,3)
8.3 - 14.0 VDC
JAZ05-12S05
Notes
1. Add suffix ‘S’ for SMT versions.
2. The undervoltage lockout protection for the JAZ05-12S05 is turn on > 8.0 V and turn off <7.9 V.
3. For negative logic remote turn on/off add suffix ‘-L’ to part number.
Mechanical Details
All dimensions are in inches (mm)
Tolerances:
x.xx = ±0.02 (±0.50) unless otherwise stated
x.xxx = ±0.01 (±0.25)
SMT Version
0.80
(20.3)
0.19
(4.8)
0.16
(4.1)
0.16
(4.1)
0.18
(4.6)
0.065
(1.7)
Standard Version
0.90 (22.9)
0.22 (5.6)
Max
0.24
(6.1) max
0.40 (10.2)
1
2
3
4
5
0.35
(8.9)
GND
TRIM
VOUT
0.34
(8.6)
0.45
(11.4)
0.14 (3.6)
0.025
(0.64)
VIN
0.025 (0.64)
ON/OFF
0.100 (2.54)
0.200 (5.08)
0.700 (17.78)
0.800 (20.32)
0.062
(1.57)
Surface Mount Contact 5 Places
0.09
(2.3)
0.05
(1.3)
0.06
(1.5)
0.19 (4.7)
1.1 mm PLATED THROUGH HOLE
1.6 mm PAD SIZE
0.18
(4.6)
0.16
(4.1)
0.16
(4.1)
0.19
(4.8)
VOUT
0.20 (5.1)
LAYOUT PATTERN
TOP VIEW
0.24 (6.1)
0.34
(8.6)
TRIM
GND
0.35
(8.9)
0.01
(0.3)
ON/OFF
VIN
PIN CONNECTIONS
Pin
Function
1
+ Output
2
Trim
3
Common
4
+ V Input
5
On/Off
0.06
(1.5)
0.05
(1.3)
0.69
(17.5)
PAD SIZE
MIN: 0.120 x 0.095 (3.05 x 2.41)
MAX: 0.135 x 0.110 (3.43 x 2.79)

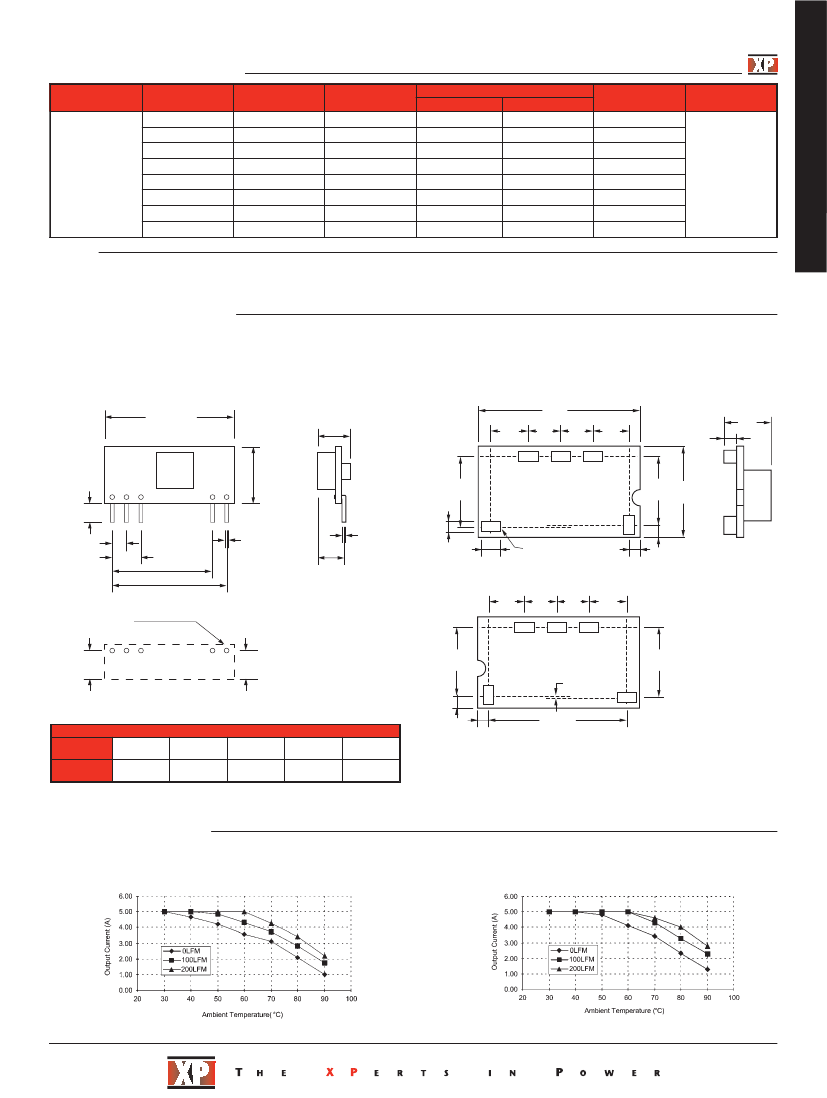

Derating Curves
Standard Version
Derating Curve for 3.3 VDC Output
SMT Version
Derating Curve for 3.3 VDC Output
2
DC-DC
Models and Ratings
Input
Voltage
Output
Voltage
1.00 V
1.20 V
1.50 V
1.80 V
2.00 V
2.50 V
3.30 V
0.75 - 5.00 V
1.0 V
1.2 V
1.5 V
1.8 V
2.5 V
3.3 V
5.0 V
0.9 - 2.5 V
3.3 V
0.75 - 5.00 V
Output
Current
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
15 A
15 A
16 A
Input Current
No Load
Full Load
50 mA
2353 mA
50 mA
2791 mA
50 mA
3409 mA
50 mA
4000 mA
60 mA
4396 mA
60 mA
5376 mA
60 mA
6947 mA
70 mA
3000 mA
50 mA
992 mA
50 mA
1160 mA
50 mA
1400 mA
50 mA
1670 mA
50 mA
2260 mA
70 mA
2960 mA
70 mA
4390 mA
70 mA
8152 mA
70 mA
10532 mA
75 mA
4783 mA
JAZ10/15/16
Efficiency
85%
86%
88%
90%
91%
93%
95%
93% at 3.3
84%
86%
89%
90%
92%
93%
95%
92% at 2.5
94% at 3.3
92% at 3.3
Model
Number
(1,2,4)
JAZ10-05S1V0
JAZ10-05S1V2
JAZ10-05S1V5
JAZ10-05S1V8
JAZ10-05S2V0
JAZ10-05S2V5
JAZ10-05S3V3
JAZ10-12S05T
(3)
JAZ10-12S1V0
JAZ10-12S1V2
JAZ10-12S1V5
JAZ10-12S1V8
JAZ10-12S2V5
JAZ10-12S3V3
JAZ10-12S05
JAZ15-05S3V3
(3)
JAZ16-12S05
(3)
3.0 - 5.5 VDC
8.3 - 14.0 VDC
V
9.0 - 14.0 VDC
3.0 - 5.5 VDC
4.5 - 5.5 VDC
9.0 - 14.0 VDC
Notes
V
V
V
1. Add suffix ‘S’ for SMT versions.
2. The undervoltage lockout protection for the JAZ10-12S05T is turn on > 8.0 V
and turn off <7.9 V.
3. See Output Configuration Table below for values of trim resistors for specific
output voltages.
4. For negative logic remote turn on/off add suffix ‘-L’ to part number.
Output Configuration Table
Output
Voltage
0.75 V
0.90 V
1.20 V
1.50 V
1.80 V
2.00 V
2.50 V
3.30 V
5.00 V
JAZ05-12S05
R Trim (kOhm)
Open
22.33
13.00
9.00
7.40
5.00
3.12
1.47
JAZ10-12S05T
R Trim (kOhm)
Open
22.30
13.00
9.00
5.00
3.12
1.47
JAZ15-05S3V3
R Trim (kOhm)
135.36
41.70
23.00
15.00
7.00
3.20
JAZ16-12S05
R Trim (kOhm)
Open
22.30
13.00
9.00
5.00
3.12
1.47
Mechanical Details
All dimensions are in inches (mm)
Standard Version
Tolerances:
x.xx = ±0.02 (±0.50) unless otherwise stated, x.xxx = ±0.01 (±0.25)
0.33
(8.30)
max
2.00
(50.80)
0.23
(5.80)
SMT Version
1.30
(33.0)
0.31
(7.9)
0.19
(4.8)
0.19
(4.8)
0.19
(4.8)
0.30
(7.5)
0.065
(1.7)
0.37
(9.3) max
COM
+VO
TRIM
+SENSE
0.41 0.53
(10.3) (13.5)
0.13
(3.52)
0.50
(12.70)
1 2
3
4
5
6
7
8
9 10 11
0.43
(10.9)
VIN
ON/OFF
0.03
(0.64)
0.10
(2.54)
0.40
(10.20)
1.00
(25.40)
0.05
(1.30)
0.28
(7.10)
0.063
(1.60)
Surface Mount Contact
0.112
(2.84)
1.18
(29.9)
0.30
(7.5)
0.19
(4.8)
0.19
(4.8)
0.19
(4.8)
0.31
(7.9)
0.048
(1.2)
0.075
(1.9)
0.25
(0.64)
PAD SIZE
MIN: 0.140 x 0.095 (3.56 x 2.41)
MAX: 0.165 x 0.110 (4.19 x 2.79)
0.29
(7.4)
LAYOUT PATTERN
TOP VIEW
0.33
(8.40)
+SENSE
0.41
(10.3)
TRIM
+VO
COM
0.43
(10.9)
ON/OFF
0.025
(0.64)
VIN
0.04 (1.10) PLATED THROUGH HOLE
0.06 (1.60) PAD SIZE
Surface Mount Contact
PIN CONNECTIONS
Pin
Function
1
+ Output
2
+ Output
3
+ Sense
4
+ Output
5
Common
6
Common
7
+ V input
8
+ V input
9
No pin
10
Trim
11
On/Off Control
3
DC-DC

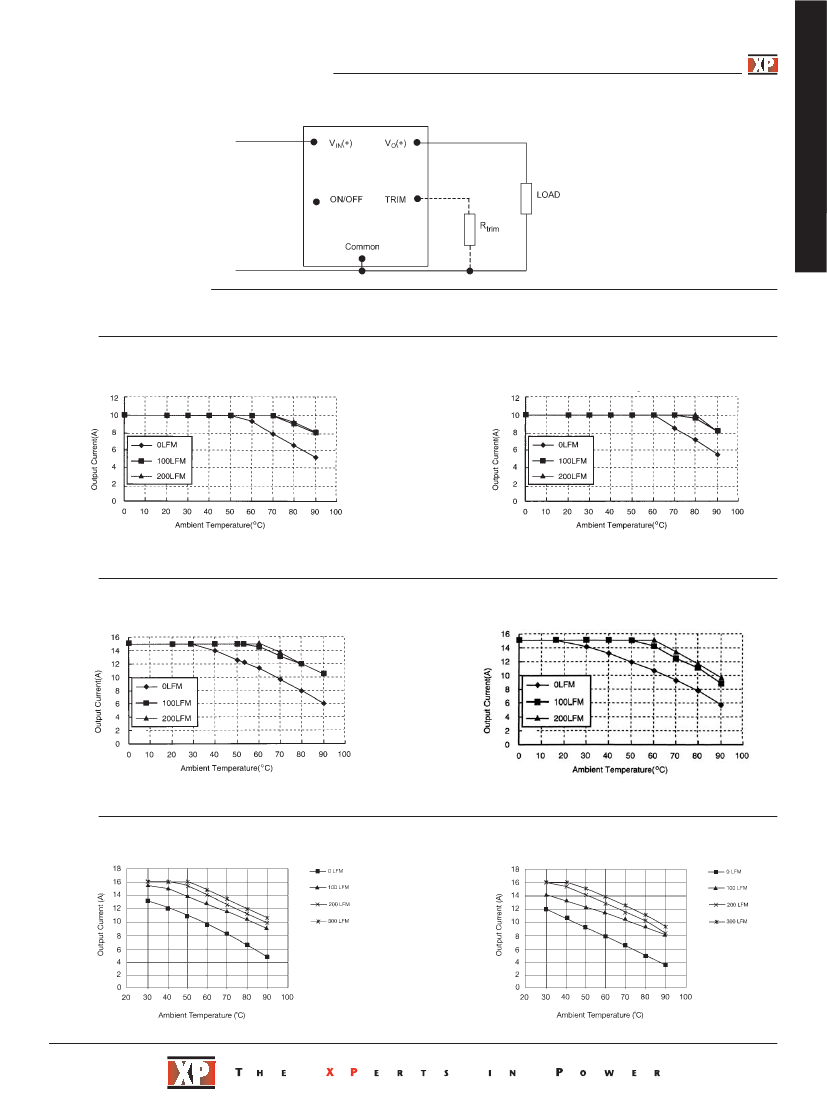

Circuit Configuration Diagram
JAZ05/10/15/16
JAZ10/15/16
Circuit configuration for programming output voltage using an external resistor.
Derating Curves
Standard Version
JAZ10
Derating Curve for 5.0 VDC Input
Derating Curve for 5.0 VDC Input
SMT Version
JAZ15
Derating Curve for 5.0 VDC Input
Derating Curve for 5.0 VDC Input
JAZ16
Derating Curve for 12.0 VDC Input
Derating Curve for 12.0 VDC Input
