87705-7903 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87705-7903

87705-7903: Descriptionddr3 / ddr2 / ddr connector 1mm ddr2 240ckt fork klock ny66 hsg black; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87705-7903 Overview

ddr3 / ddr2 / ddr connector 1mm ddr2 240ckt fork klock ny66 hsg black

87705-7903 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

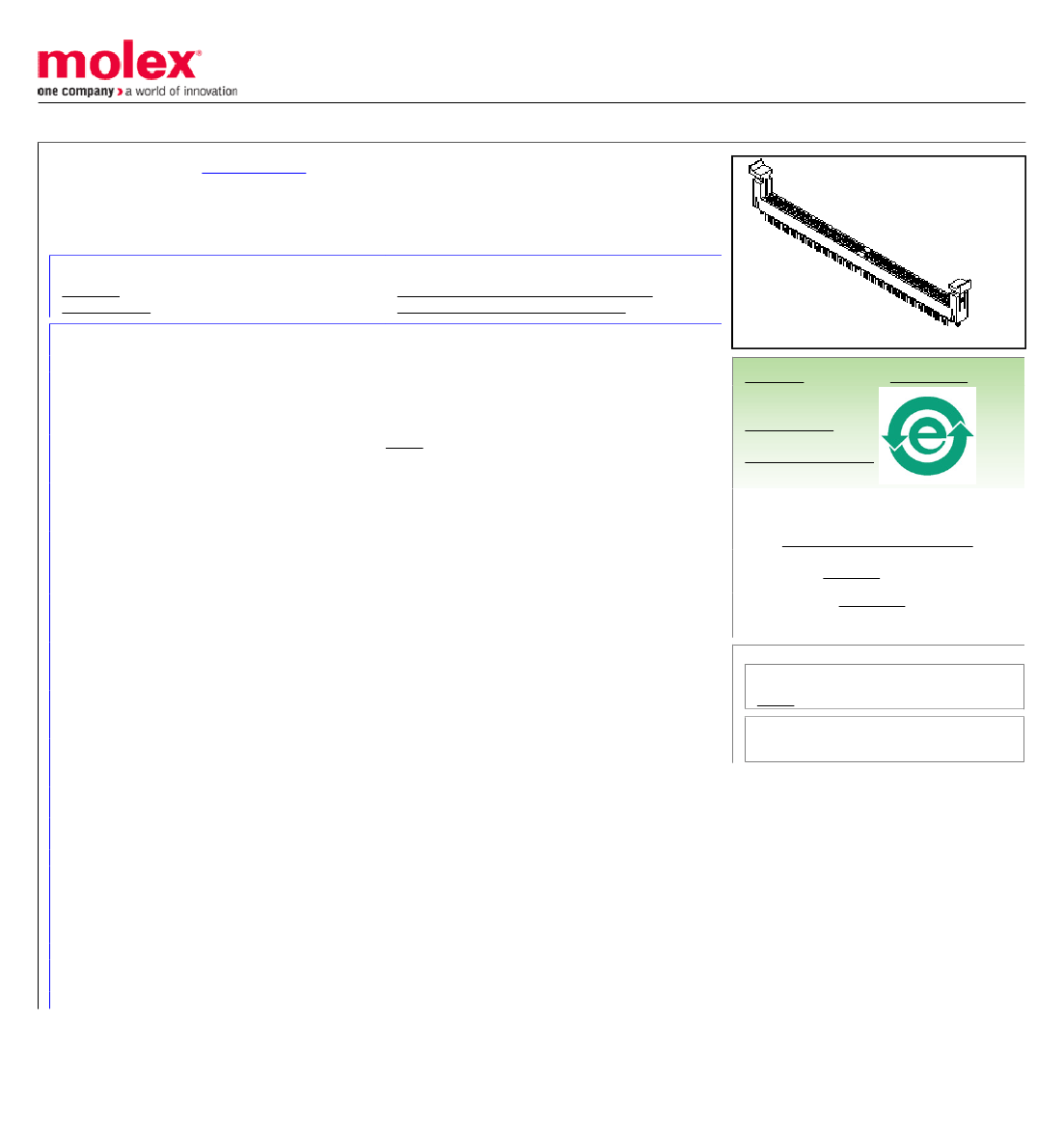

This document was generated on 11/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0877057903

Active

1.00mm (.039") Pitch DDR-II DIMM 240 Circuits Socket, Vertical, 1.8 Voltage, 2.54mm

(.100") Tail Length, White Latches, Nylon 4/6 Glass-filled, Black Housing, Gold (Au)

Flash, Beveled Metal Pins Width 2.55mm (.100"), Lead Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87705-801 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Memory Module Sockets

87705

<LI>White Latches <LI>Insertion Force: 10Kg (98N)

Max. <LI>Beveled Metal Pin Width: 2.55mm (.100")

Socket

MO-237

DDR2 DIMM

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Durability (mating cycles max)

Entry Angle

Flammability

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

PC Tail Length

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Temperature Range - Operating

Termination Interface: Style

240

Vertical (Top Entry)

94V-0

Yes

Gold

Tin

2.54mm (.100")

Yes

1.60mm (.063")

Tray

1.00mm (.039")

-10°C to +85°C

Through Hole

Search Parts in this Series

87705Series

Mates With

JEDEC standard 1.27mm modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

0.5A

30V

1.8V, Center

Material Info

Country of Origin

CN, HK

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-87705-801, PK-87705-901

PS-87705-801

SD-87705-801

TS-87705-801

This document was generated on 11/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
