NEC's
1W SINGLE CONTROL UPG2015TB
L, S-BAND SPDT SWITCH
FEATURES
• SUPPLY VOLTAGE:
V
DD
= 2.7 to 3.0 V (2.8 V TYP.)
• SINGLE SWITCH CONTROL VOLTAGE:
V
cont (H)
= 2.7 to 3.0 V (2.8 V TYP.)
V
cont (L)
=
−0.2
to +0.2 V (0 V TYP.)
• LOW INSERTION LOSS:
L
INS1
= 0.25 dB TYP. @ f = 0.5 to 1.0 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
L
INS2
= 0.30 dB TYP. @ f = 1.0 to 2.0 GHz,V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
L
INS3
= 0.35 dB TYP. @ f = 2.5 GHz,V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
• HIGH ISOLATION:
ISL1 = 27 dB TYP. @ f = 0.5 to 2.0 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
ISL2 = 24 dB TYP. @ f =2.5 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
• POWER HANDLING:
P
in (0.1 dB)
= +27.0 dBm TYP. @ f = 2.5 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
• HIGH-DENSITY SURFACE MOUNTING:
6-pin super minimold package (2.0
×
1.25
×
0.9 mm)
DESCRIPTION
NEC's UPG2015TB is a single control single control GaAs
MMIC L, S-band SPDT (Single Pole Double Throw) switch
for mobile phone and L, S-band applications.
This device can operate frequency from 0.5 to 2.5 GHz, with
low insertion loss and high isolation.
This device is housed in a 6-pin super minimold package,
suitable for high-density surface mounting.
APPLICATIONS
• L, S-band digital cellular or cordless handsets
• PCS, W-LAN, WLL and Bluetooth
TM
• Short Range Wireless
ORDERING INFORMATION
Part Number
UPG2015TB-E3-A
Package
6-pin super minimold
Marking
G3J
Supplying Form
•
Embossed tape 8 mm wide
•
Pin 1, 2, 3 face the perforation side of the tape
•
Qty 3 kpcs/reel
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order: UPG2015TB
Caution
Observe precautions when handling because these devices are sensitive to electrostatic discharge.
California Eastern Laboratories
UPG2015TB
PIN CONNECTIONS AND INTERNAL BLOCK DIAGRAM
(Top View)
3
2
1
4 3
5 2
6 1
(Top View)
4 4
5 5
6 6
(Bottom View)
3
2
1
Pin No.
1
2
3
4
5
6
Pin Name
OUTPUT1
GND
OUTPUT2
V
Cont
INPUT
V
DD
TRUTH TABLE
Vcont
Low
High
INPUT−OUTPUT1
OFF
ON
INPUT−OUTPUT2
ON
OFF
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C, unless otherwise specified)
Parameter
Supply Voltage
Switch Control Voltage
Input Power
Operating Ambient Temperature
Storage Temperature
Symbol
V
DD
V
cont
P
in
T
A
T
stg
Ratings
+6.0
+6.0
+33
−45
to +85
−55
to +150
Unit
V
V
dBm
°C
°C
RECOMMENDED OPERATING RANGE
(T
A
= 25°C, unless otherwise specified)
Parameter
Supply Voltage
Switch Control Voltage (H)
Switch Control Voltage (L)
Symbol
V
DD
V
cont (H)
V
cont (L)
MIN.
2.7
2.7
−0.2
TYP.
2.8
2.8
0
MAX.
3.0
3.0
0.2
Unit
V
V
V
G3J
UPG2015TB
ELECTRICAL CHARACTERISTICS
Parameter
Insertion Loss 1
Insertion Loss 2
Insertion Loss 3
Isolation 1
Isolation 2
Input Return Loss
Output Return Loss
0.1 dB Gain Compression
Input Power
Note
Supply Current
Switch Control Current
Switch Control Speed
I
DD
I
cont
t
SW
Symbol
L
INS1
L
INS2
L
INS3
ISL
1
ISL
2
RL
in
RL
out
(T
A
= +25°C, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V, DC blocking capacitors = 56 pF, unless otherwise specified)
Test Conditions
f = 0.5 to 1.0 GHz
f = 1.0 to 2.0 GHz
f = 2.5 GHz
f = 0.5 to 2.0 GHz
f = 2.5 GHz
f = 0.5 to 2.5 GHz
f = 0.5 to 2.5 GHz
f = 2.5 GHz
MIN.
−
−
−
23
20
15
15
+25.5
+25.5
−
−
−
TYP.
0.25
0.30
0.35
27
24
20
20
+27.0
+27.0
50
4
0.3
MAX.
0.45
0.50
0.55
−
−
−
−
−
−
100
20
2.0
Unit
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
μA
μA
μs
P
in (0.1 dB)
f = 2.0 GHz
Note
P
in (0.1 dB)
is the measured input power level when the insertion loss increases 0.1 dB more than that of linear
range.
STANDARD CHARACTERISTICS FOR REFERENCE
Parameter
1 dB Gain Compression
Input Power
Note
Symbol
P
in (1 dB)
Test Conditions
f = 2.0 GHz
(T
A
= +25°C, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V, DC blocking capacitors = 56 pF, unless otherwise specified)
MIN.
−
TYP.
+30.0
MAX.
−
Unit
dBm
Note
P
in (1 dB)
is the measured input power level when the insertion loss increases 1 dB more than that of linear
range.

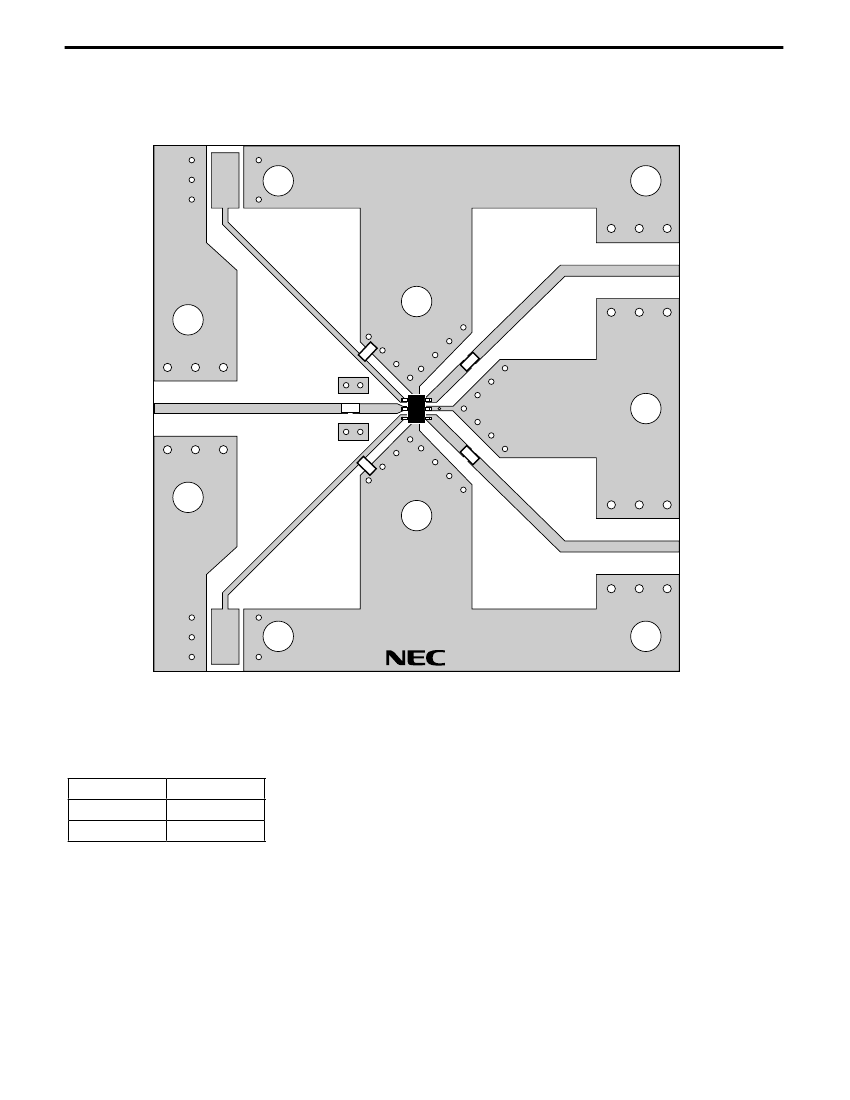

Caution
It is necessary to use DC blocking capacitors with the device.
The value of DC blocking capacitors should be chosen to accommodate the frequency of operation,
bandwidth, switching speed and the condition with actual board of your system. The range of recommended
DC blocking capacitor value is less than 100 pF.
